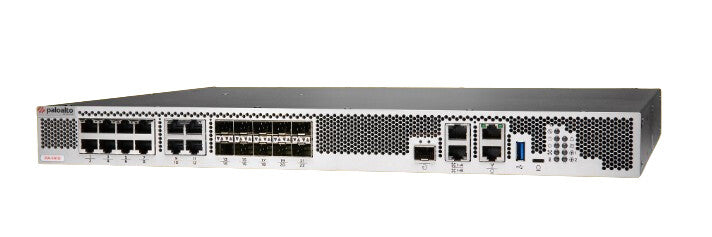

Palo Alto Software PAN-PA-1420 hardware firewall 1U 9.5 Gbit/s
Palo Alto Software PAN-PA-1420 hardware firewall 1U 9.5 Gbit/s

Palo Alto Software PAN-PA-1420 hardware firewall 1U 9.5 Gbit/s

Palo Alto Software · MPN: PAN-PA-1420
£15,101.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £5,033.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Connectivity technologyWired
  • Weight7.03 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • 1U
  • Mean time between failures (MTBF): 210240 h
  • Wired Ethernet LAN data rates: 10,100,1000 Mbit/s Console port: RJ-45
  • Total storage capacity: 240 GB SSD capacity: 240 GB
  • 300 W

Palo Alto Networks PA-1400 series ML-Powered NGFW (PA-1420, PA-1410) brings Next Generation Firewall capabilities to smaller campus locations and larger distributed enterprise branch offices.

Specifications

Data transmission

Firewall throughput9.5 Gbit/s
IPSec VPN throughput5.6 Gbit/s
Maximum number of virtual firewalls6
Default number of virtual firewalls1
Maximum firewall connections per second140000

Performance

Concurrent connections1400000
Mean time between failures (MTBF)210240 h
Show all 41 specificationsShow fewer specifications

Network

Networking standardsIEEE 802.1Q
Multicast supportYes
Quality of Service (QoS) supportYes
Point-to-point protocol over Ethernet (PPPoE)Yes
Number of VLANs4094

Security

Security algorithms3DES, 128-bit AES, 192-bit AES, 256-bit AES, IPSec, MD5, SHA-1, SHA-256, SHA-384, SHA-512

Protocols

Routing protocolsBGP, OSPFv2, OSPFv3, RIP

Management features

LED indicatorsYes

Ports & interfaces

Connectivity technologyWired
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports12
Micro-USB ports quantity1
Console portRJ-45
Ethernet LAN data rates10,100,1000 Mbit/s
Number of console ports1
Remote management portRJ-45 (Gigabit)
SFP+ module slots quantity8
DC-in jackYes
SFP module slots quantity2

Storage

Storage media typeSSD
SSD capacity240 GB
Total storage capacity240 GB

Design

Rack mountingYes
Form factor1U
Built-in displayYes

Power

AC input voltage100-240 V
AC input frequency50/60 Hz
Power consumption (max)300 W
Power consumption (typical)260 W

Certificates

Compliance certificatesCB, CE, Federal Communications Commission (FCC), VCCI, cTUVus

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating altitude0 - 3048 m

Weight & dimensions

Weight7.03 kg
