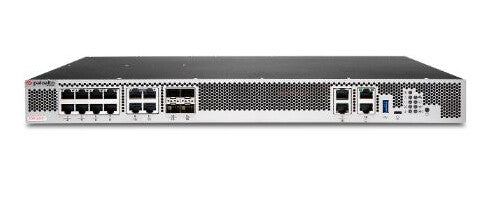

Palo Alto Networks Prisma SD-WAN ION 9200 hardware firewall 1U
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £4,135.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 1U
- Wired Console port: RJ-45/Micro-USB
- 65536 MB
- Total storage capacity: 480 GB SSD capacity: 480 GB
Prisma SD-WAN ION 9200 is a next generation software-defined device that can be deployed in a data center. With the introduction of ION 9200, accelerate your SASE deployment to a DC by leveraging WAN connectivity without installing additional hardware to enable rapid deployments.
The new high-performance ION 9200 device comes with fiber ports offering RJ-45/SFP Combo WAN ports, higher power SFP+ ports to support smart SFPs, wireless LAN Access points, PoE to power external cellular gateways, and other PoE powered devices such as IP phones or cameras or Wireless Access Points.
Specifications
Performance
| Internal memory | 65536 MB |
|---|
Ports & interfaces
| Connectivity technology | Wired |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 15 |
| Console port | RJ-45/Micro-USB |
| Number of console ports | 1 |
| Installed SFP+ modules quantity | 10 |
Show all 28 specificationsShow fewer specifications
Storage
| Storage media type | SSD |
|---|---|
| SSD capacity | 480 GB |
| Total storage capacity | 480 GB |
Design
| Rack mounting | Yes |
|---|---|
| Form factor | 1U |
| Built-in display | No |
| Number of fans | 4 fan(s) |
| Built-in fan | Yes |
Power
| AC input voltage | 100-240 V |
|---|---|
| AC input frequency | 50/60 Hz |
| Redundant power supply (RPS) support | Yes |
| Power supply | 450 W |
Certificates
| Certification | IEC 62368-1, cTUVus, FCC & CE Class A, TEC, KCC |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Width | 359.4 mm |
|---|---|
| Depth | 435.6 mm |
| Height | 43.2 mm |
| Weight | 7.03 kg |
