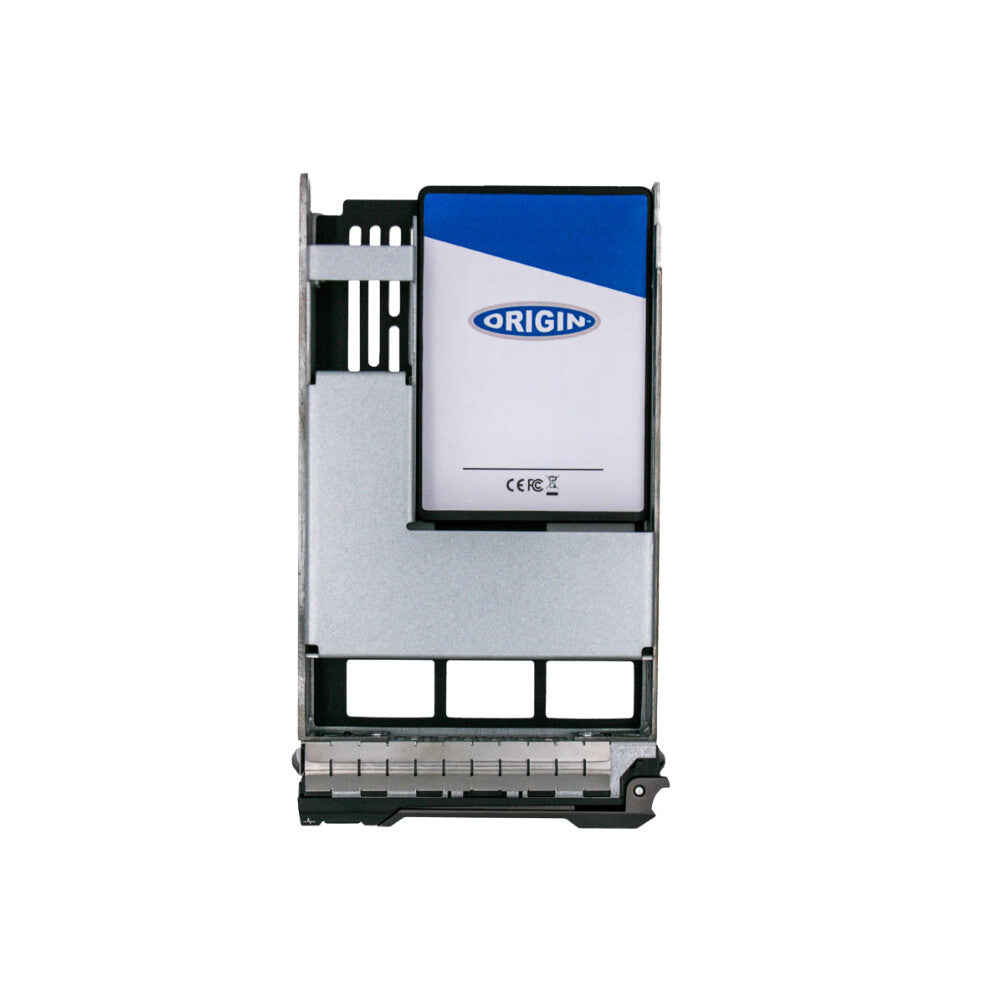

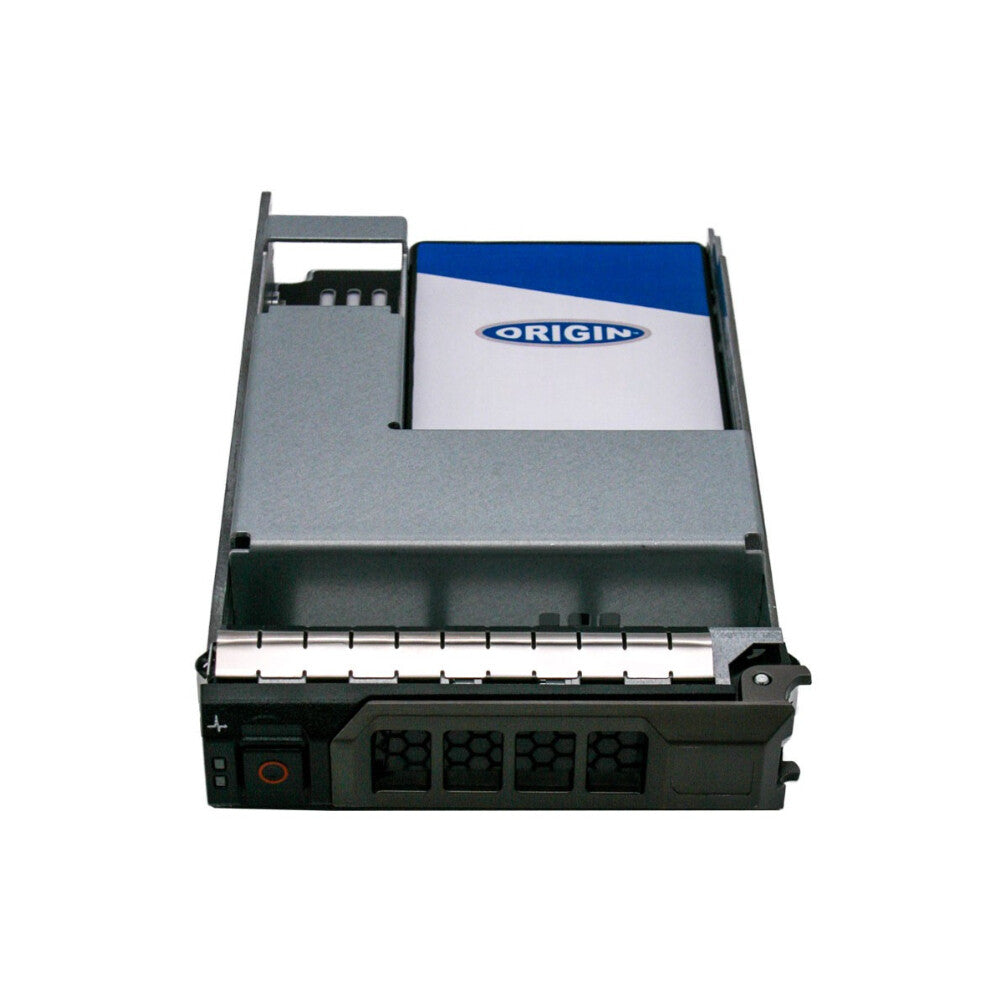

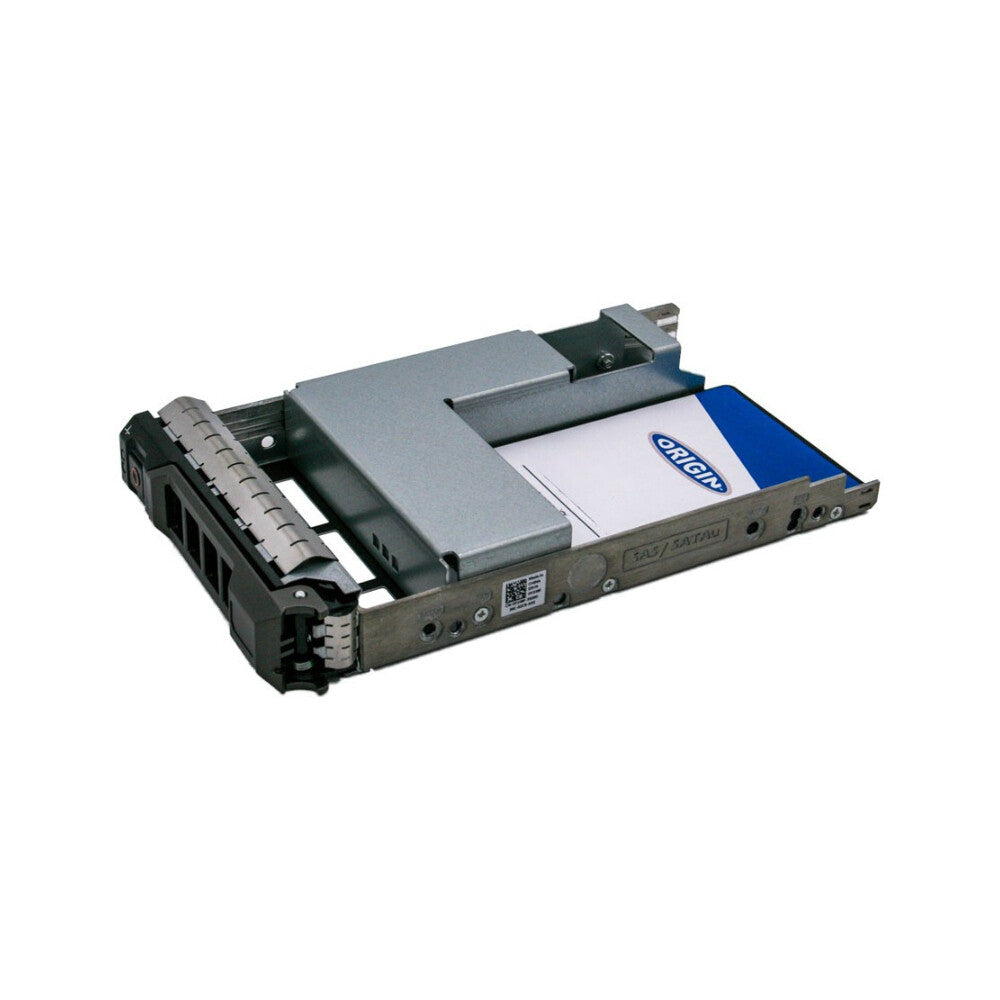

Origin Storage SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy
£496.99
Couldn't load pickup availability
- Does not invalidate OEM warranty
- 100% compatible replacement/upgrade for storage solutions
- Pre- & Post-Sale UK Based Tech Support
Origin Storage Ltd manufactures a full range of Matched SSD Solutions for most major branded Servers, laptops and desktops, such as Dell, HP, Toshiba, and Lenovo. All of our Matched SSD Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support. We can supply replacements or upgrades in form factors of 2.5" or 3.5", M.2 & AIC with either SATA, SAS or PCIe interfaces respectively, available in a range of capacities and drive write endurances for laptop, desktop or Server. All our Matched SSD Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
| Features | |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA |
| NVMe | No |
| Memory type | eMLC |
| NAND flash type | MLC (Multi Level Cell) |
| Component for | Server/workstation |
| Hardware encryption | No |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 520 MB/s |
| Write speed | 500 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 19000 IOPS |
| Access time | 0.1 ms |
| Read latency | 110 µs |
| Write latency | 110 µs |
| TRIM support | Yes |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Active garbage collection | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 2.8 W |
| Power consumption (average) | 2.8 W |
| Power consumption (idle) | 1.3 W |
| Weight & dimensions | |
|---|---|
| Height | 7 mm |
| Packaging data | |
|---|---|
| Storage drive adapter included | Yes |
| Downloadable software | Samsung SSD DC Toolkit |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 20 G |
| Non-operating vibration | 20 G |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
| Other features | |
|---|---|
| Internal | Yes |
| Compliance certificates | RoHS |
| Compatible products | Dell Server |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
