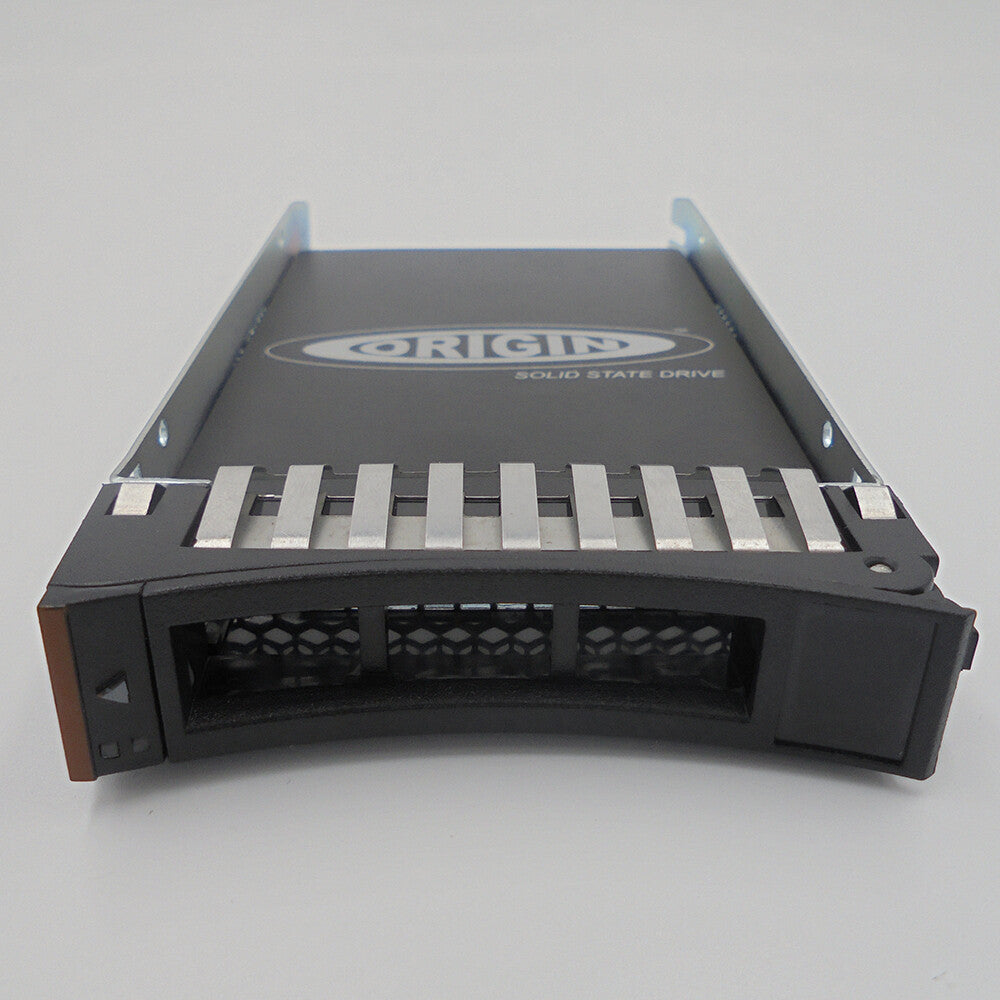

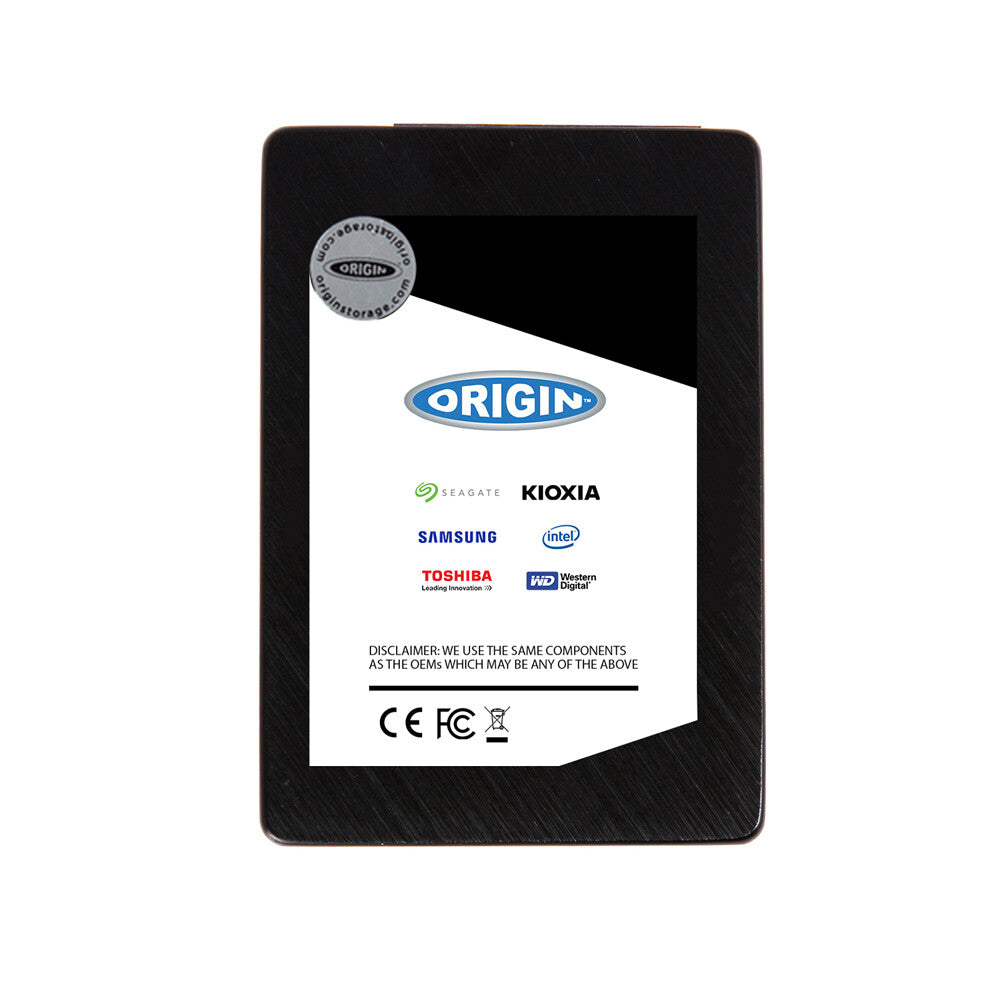

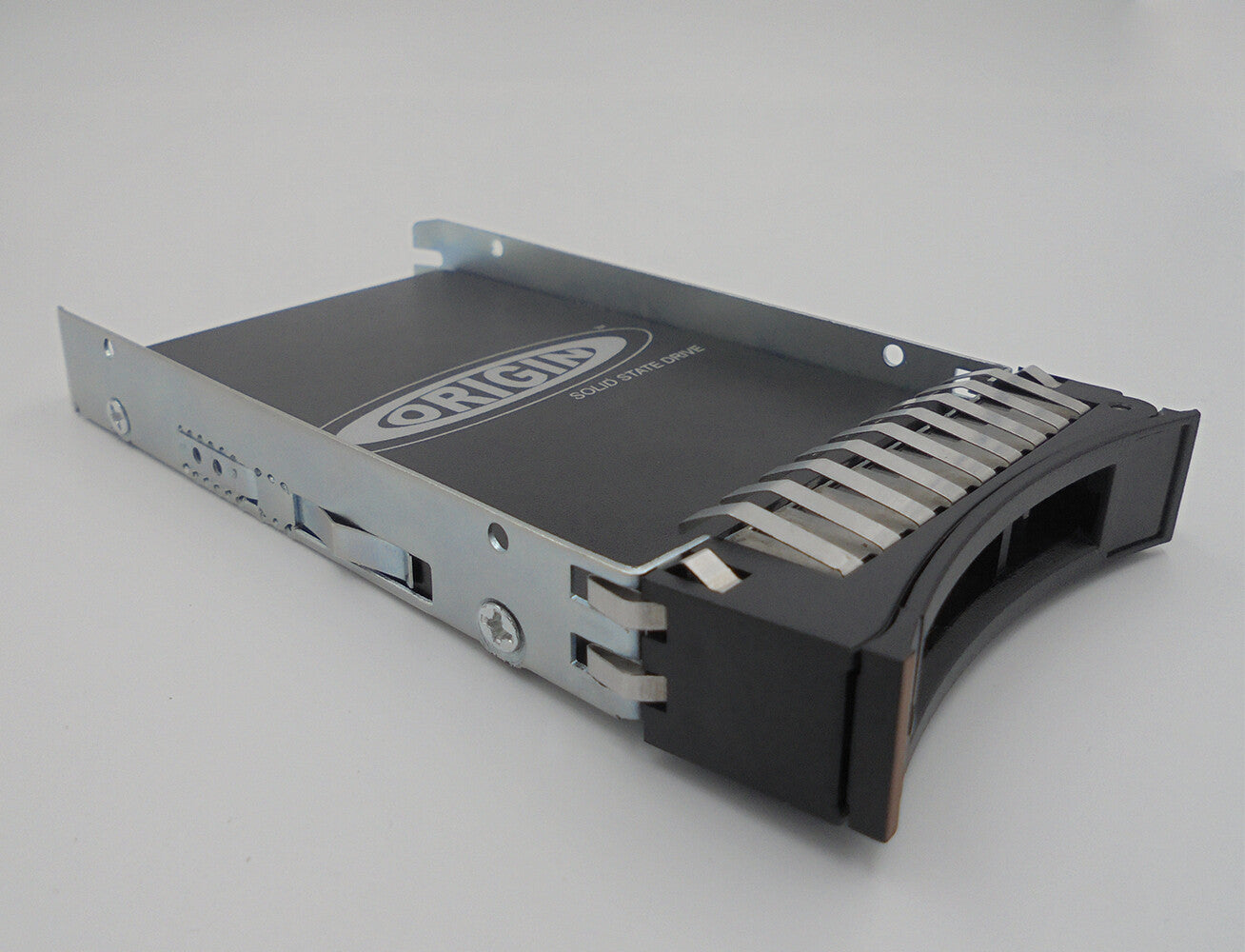

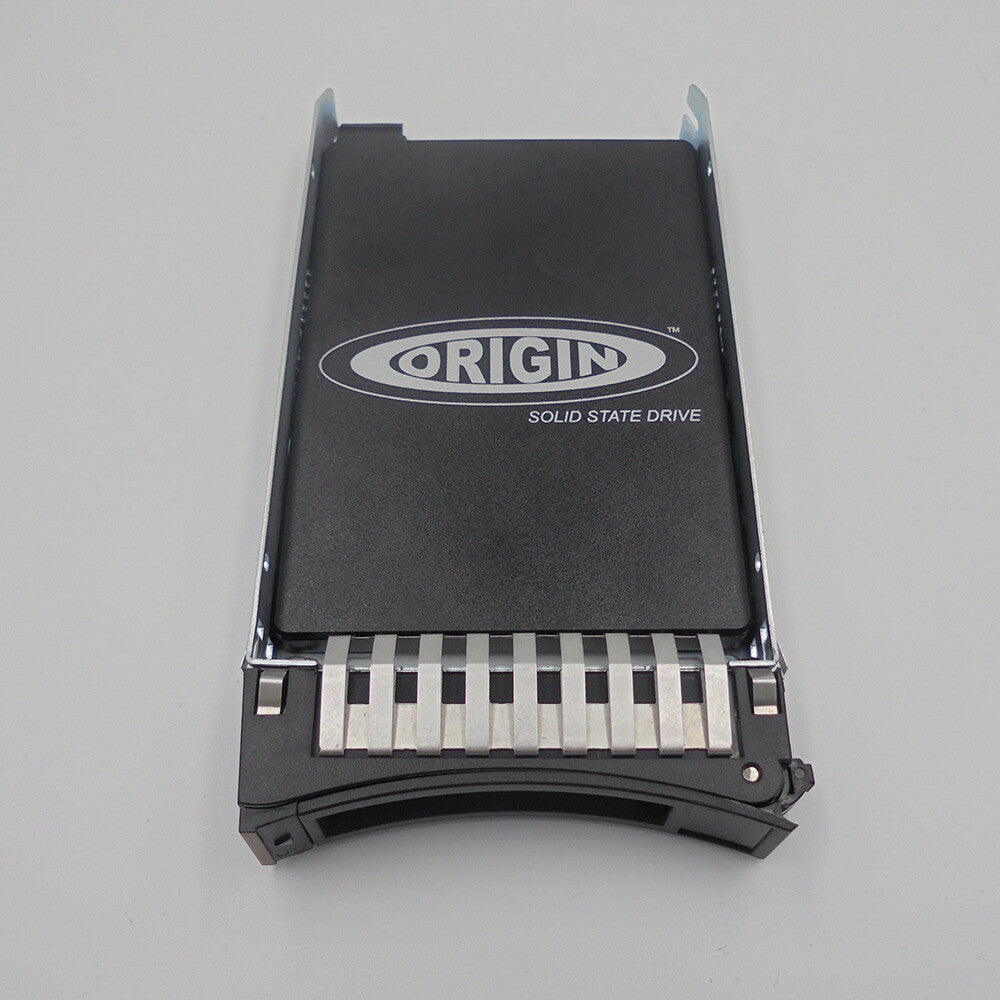

Origin Storage SSD 1.92TB 2.5in SATA MWL 3DWPD in Hot Swap Caddy
Couldn't load pickup availability
- Does not invalidate OEM warranty
- 100% compatible replacement/upgrade for storage solutions
- Pre- & Post-Sale UK Based Tech Support
Origin Storage Ltd manufactures a full range of Matched Hard Drive & Solid State Solutions for Lenovo ThinkServer, ThinkCentre and ThinkPad ranges, covering all their legacy systems right through to the latest modern day technology. All of our Matched Drive Solutions come with up to 5 years advanced replacement warranty and also come with free pre and post sales technical support from our in house engineers. We can supply replacements or upgrades in form factors 2.5" ,3.5", M.2, mSATA and AIC (PCIe) connectivity's including SATA & SAS interfaces, available in a range of capacities and spin speeds. All our Matched Drive Solutions are just that, matched to the system you have for 100% compatibility, right first time, every time!
| Features | |
|---|---|
| TBW rating | 10512 |
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Active garbage collection | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Enhanced Power Loss Data Protection technology | Yes |
| Hot-swap | Yes |
| ECC | No |
| S.M.A.R.T. support | Yes |
| Write latency | 110 µs |
| Read latency | 110 µs |
| Random write (4KB) | 28000 IOPS |
| Random read (4KB) | 95000 IOPS |
| Maximum write (4KB) | 28000 IOPS |
| Maximum read (4KB) | 95000 IOPS |
| Write speed | 500 MB/s |
| Read speed | 500 MB/s |
| Data transfer rate | 6 Gbit/s |
| Security algorithms | 256-bit AES |
| Hardware encryption | No |
| Component for | Server/workstation |
| NAND flash type | eMLC (Enterprise Multi Level Cell) |
| Memory type | TLC |
| NVMe | No |
| Interface | Serial ATA |
| SSD form factor | 2.5" |
| SSD capacity | 1.92 TB |
| Power | |
|---|---|
| Power consumption (average) | 3 W |
| Weight & dimensions | |
|---|---|
| Weight | 54.3 g |
| Height | 7 mm |
| Depth | 100.5 mm |
| Width | 69.8 mm |
| Packaging data | |
|---|---|
| Storage drive adapter included | Yes |
| Operational conditions | |
|---|---|
| Non-operating shock | 1500 G |
| Operating shock | 1500 G |
| Non-operating vibration | 2.17 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Other features | |
|---|---|
| Compatible products | IBM Server |
| Compliance certificates | RoHS |
| Internal | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
