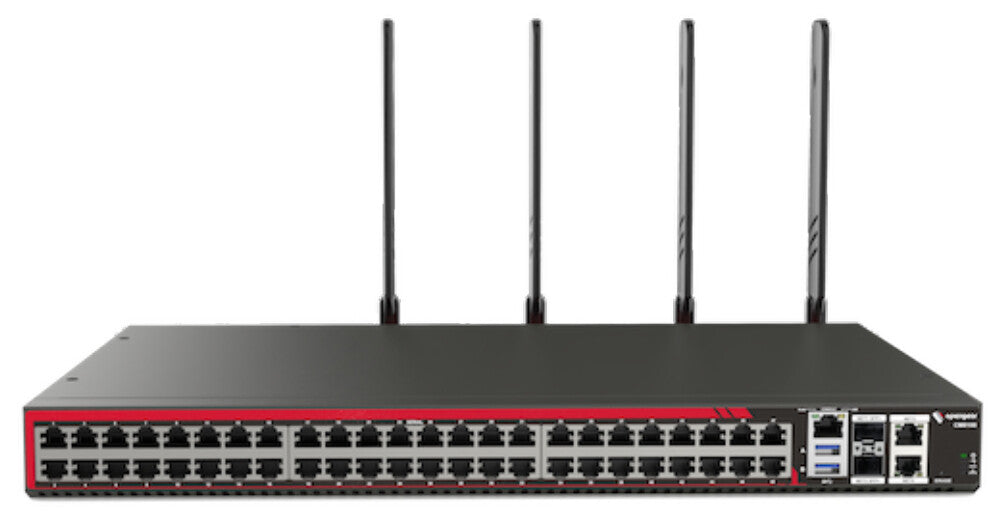

Opengear CM8132-10G-LSP network switch Managed Gigabit Ethernet (10/100/1000) 1U Black
£3,456.99
Couldn't load pickup availability
- Secure, remote, access to manage up to 96 serial devices
- Connect to high-speed networks via 10G SFP+ uplinks
- Simplify configuration with the auto-port discovery
- Reduce cable clutter with software-selectable serial ports
- Global cellular modem for cellular resiliency
CM8100-10G, used with our Lighthouse software, is the newest addition to Opengear's Network Resilience platform.
| Management features | |
|---|---|
| Switch type | Managed |
| Cloud-managed | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-A ports quantity | 2 |
| Number of management ports | 32 pc(s) |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Power connector | DC-in jack |
| Network | |
|---|---|
| Networking standards | IEEE 802.3 |
| 10G support | No |
| Copper ethernet cabling technology | 1000BASE-T |
| Cable types supported | Cat5e |
| IP routing | Yes |
| Full duplex | Yes |
| Active link detection | Yes |
| Spanning tree protocol | Yes |
| MAC address auto-aging supported | Yes |
| Link aggregation | Yes |
| Auto-sensing | Yes |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| MAC address auto-learning supported | Yes |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Design | |
|---|---|
| Rack mounting | Yes |
| Stackable | No |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Performance | |
|---|---|
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| Processor frequency | 1600 MHz |
| Memory type | SDRAM |
| Internal memory | 4096 MB |
| Flash memory | 32768 MB |
| Firmware upgradeable | Yes |
| Fanless | Yes |
| Mean time between failures (MTBF) | 683385 h |
| Power | |
|---|---|
| Power source | AC |
| Power supply included | Yes |
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | No |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 265 mm |
| Height | 44 mm |
| Weight | 3.5 kg |
| Packaging content | |
|---|---|
| Cables included | Power |
| Rack mount kit | Yes |
| Certificates | |
|---|---|
| Compliance certificates | UL, CB, PSE |
