Neomounts WL30S-950BL19 Heavy duty wall mount 55-115" - fixed - lockable - landscape and portrait
Couldn't load pickup availability
- Maximum weight capacity: 160 kg
- Minimum screen size: 139.7 cm (55") Maximum screen size: 2.92 m (115") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 1500 x 900 mm
- Number of displays supported: 1
- Height adjustment
- Steel Black

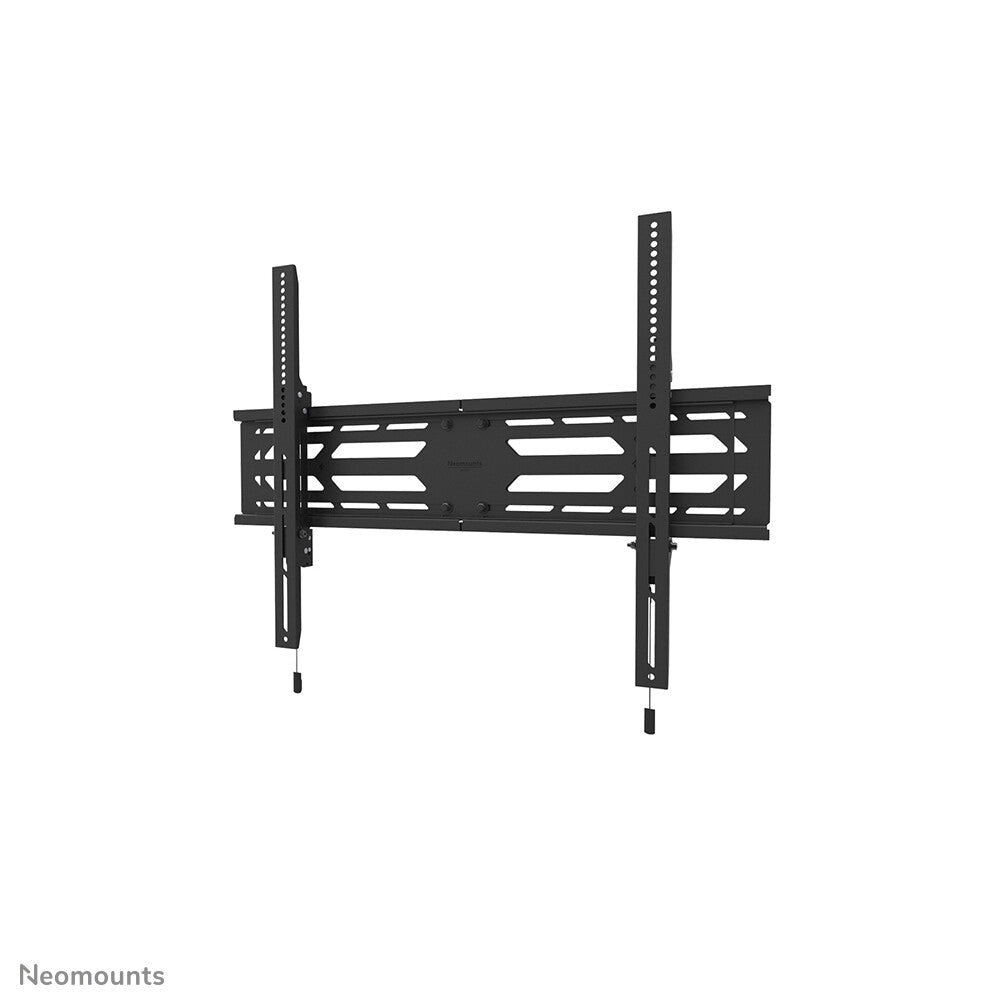

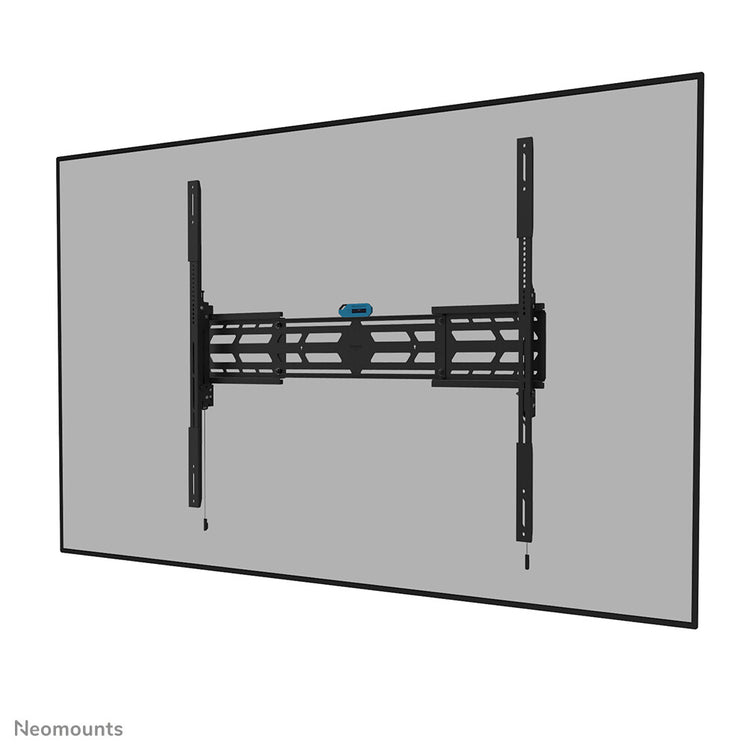

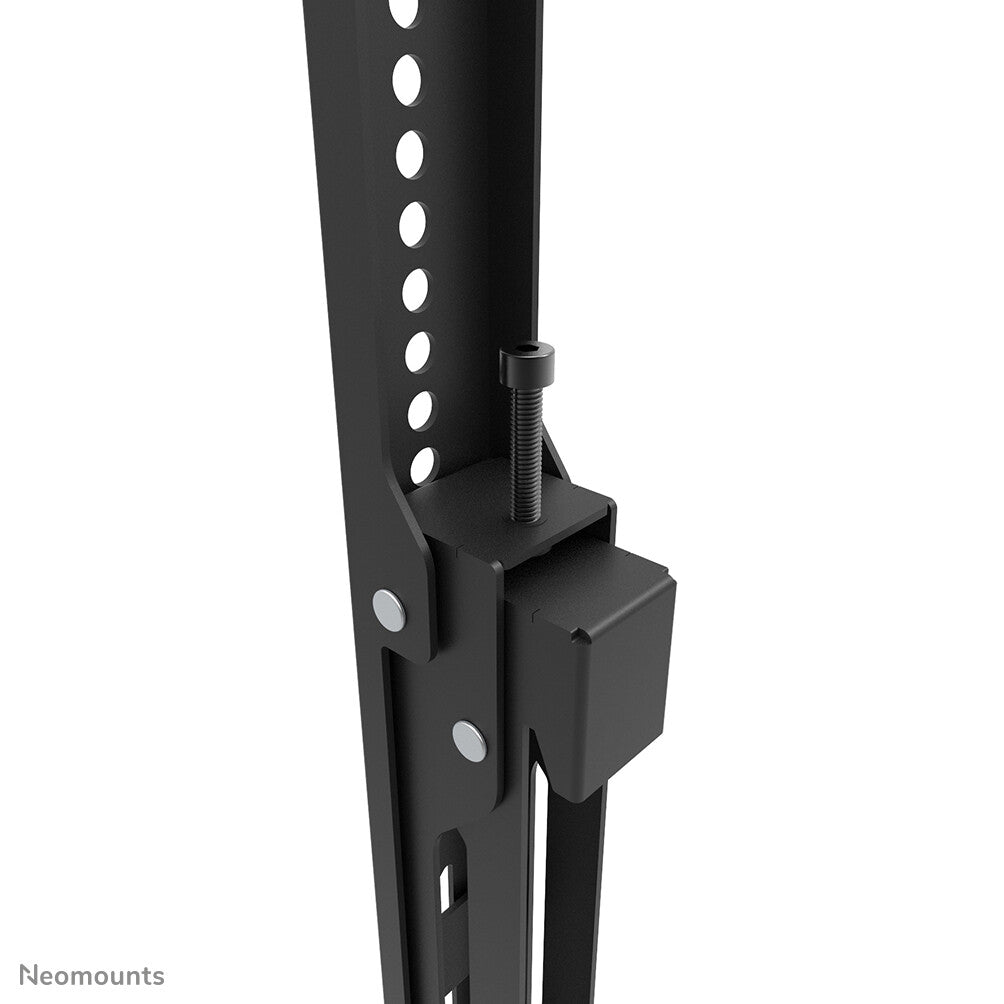

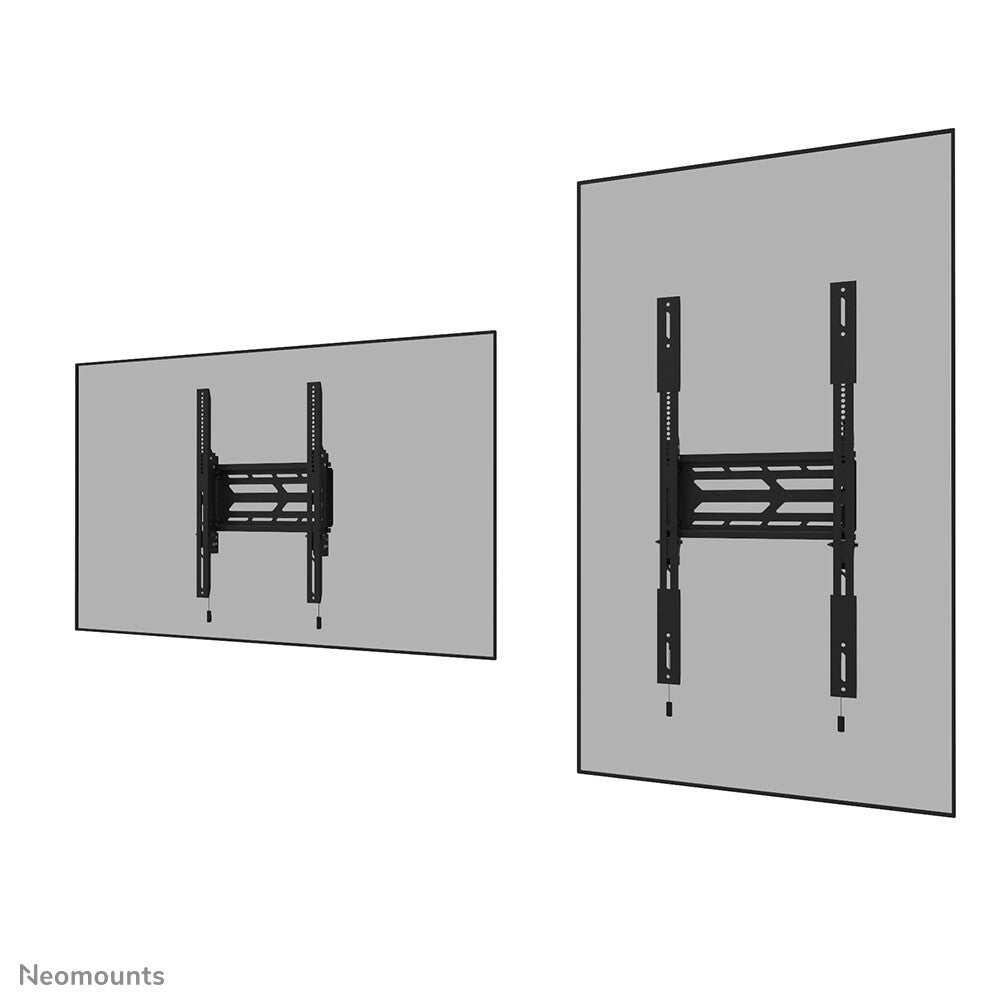

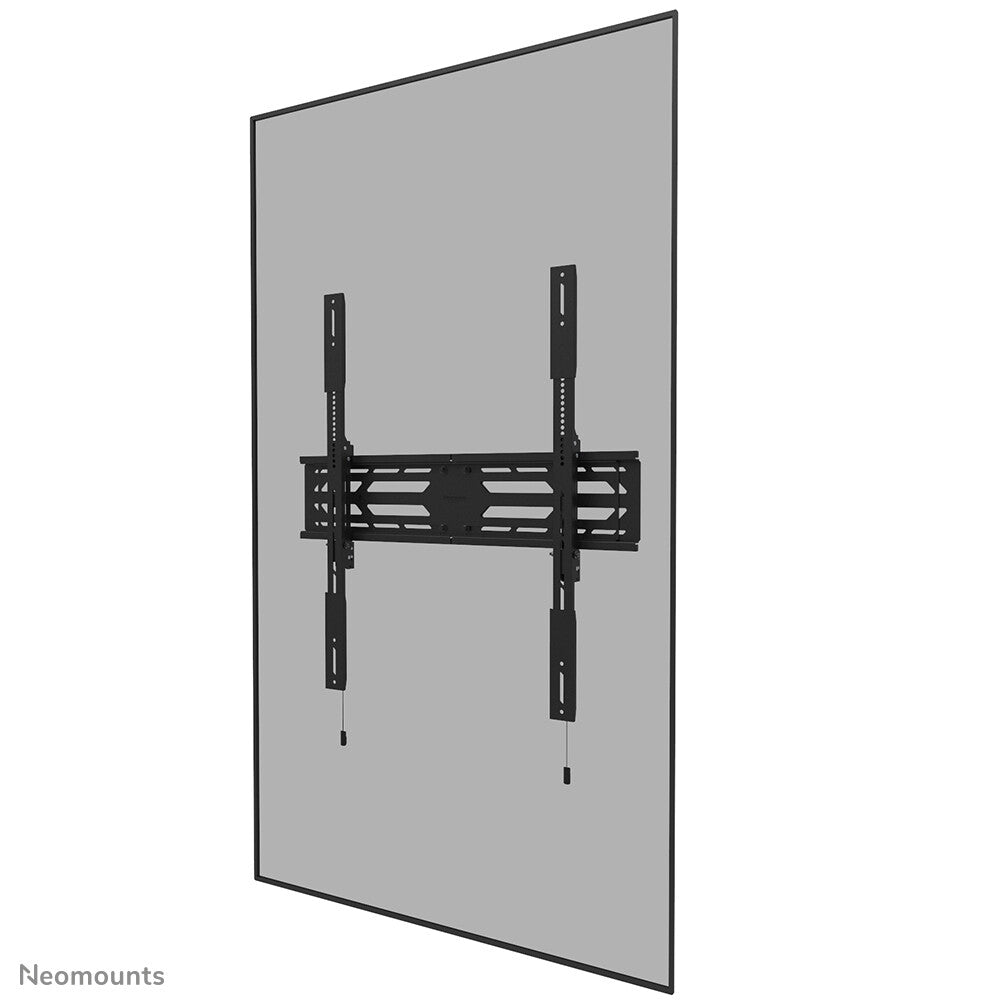

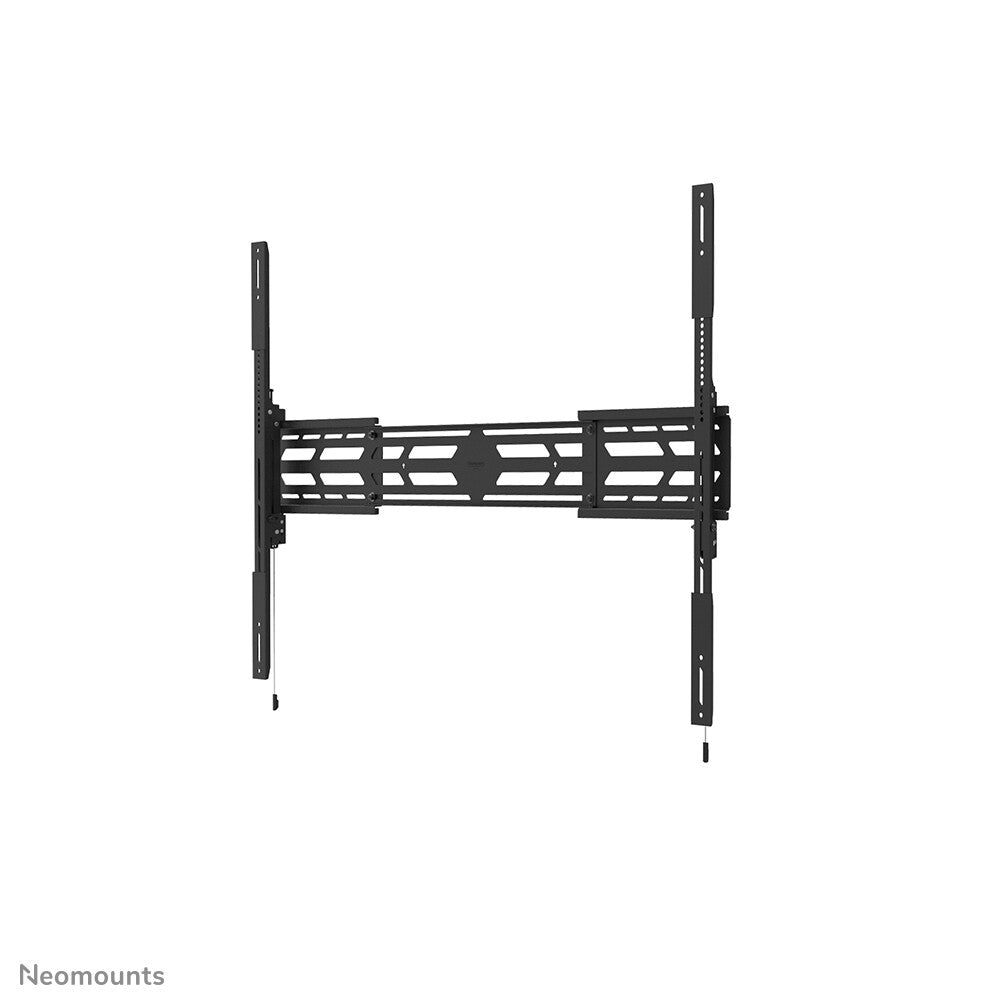

The Neomounts WL30S-950BL19 is a fixed heavy-duty wall mount for flat screens up to 115" with a maximum weight capacity of 160 kg. It is possible to install the screen in both portrait and landscape orientation. The mount features individual height adjustable brackets and level adjustment is available for the perfect installation.

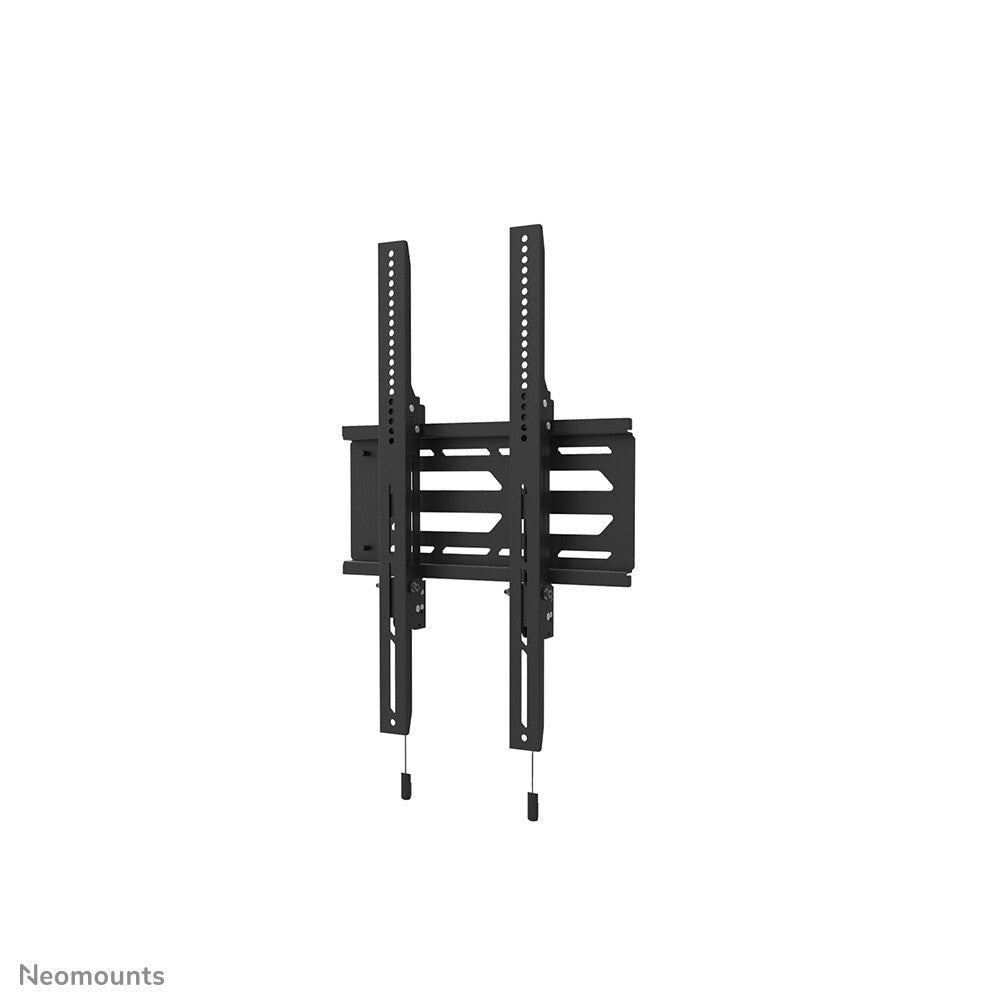

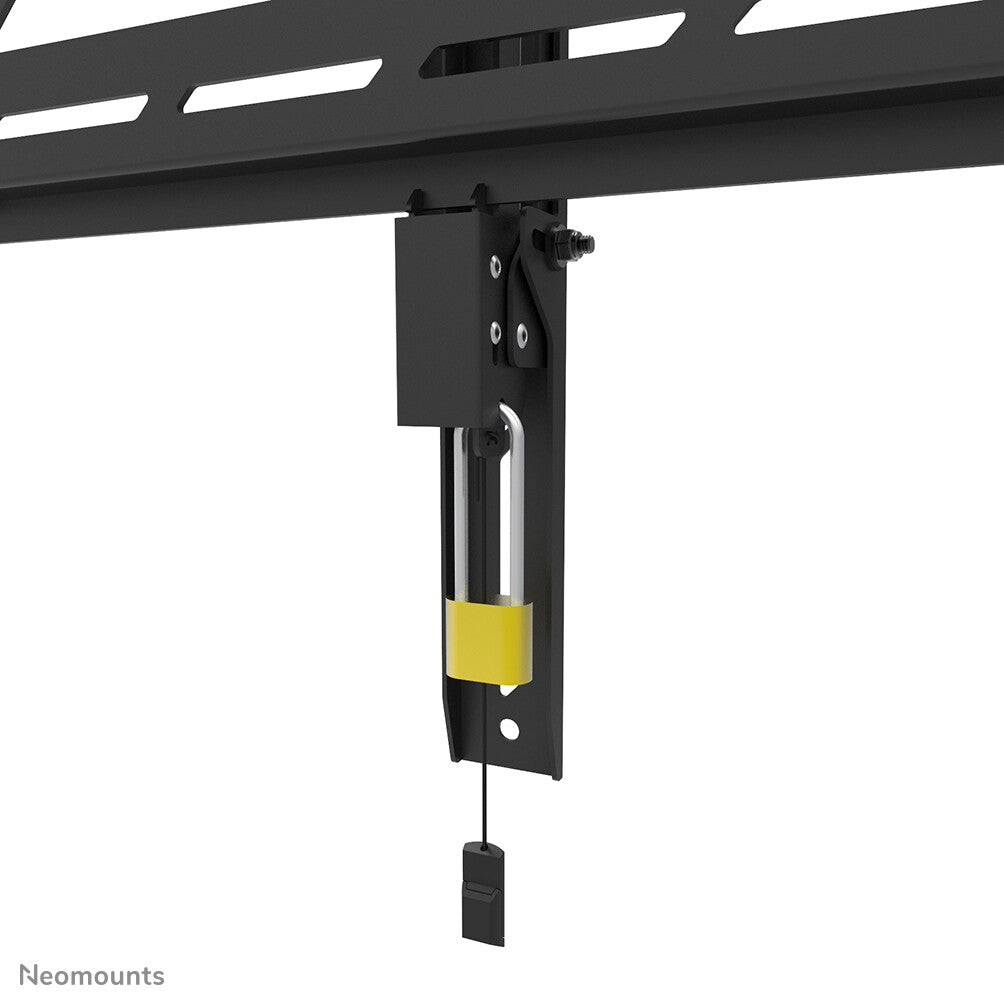

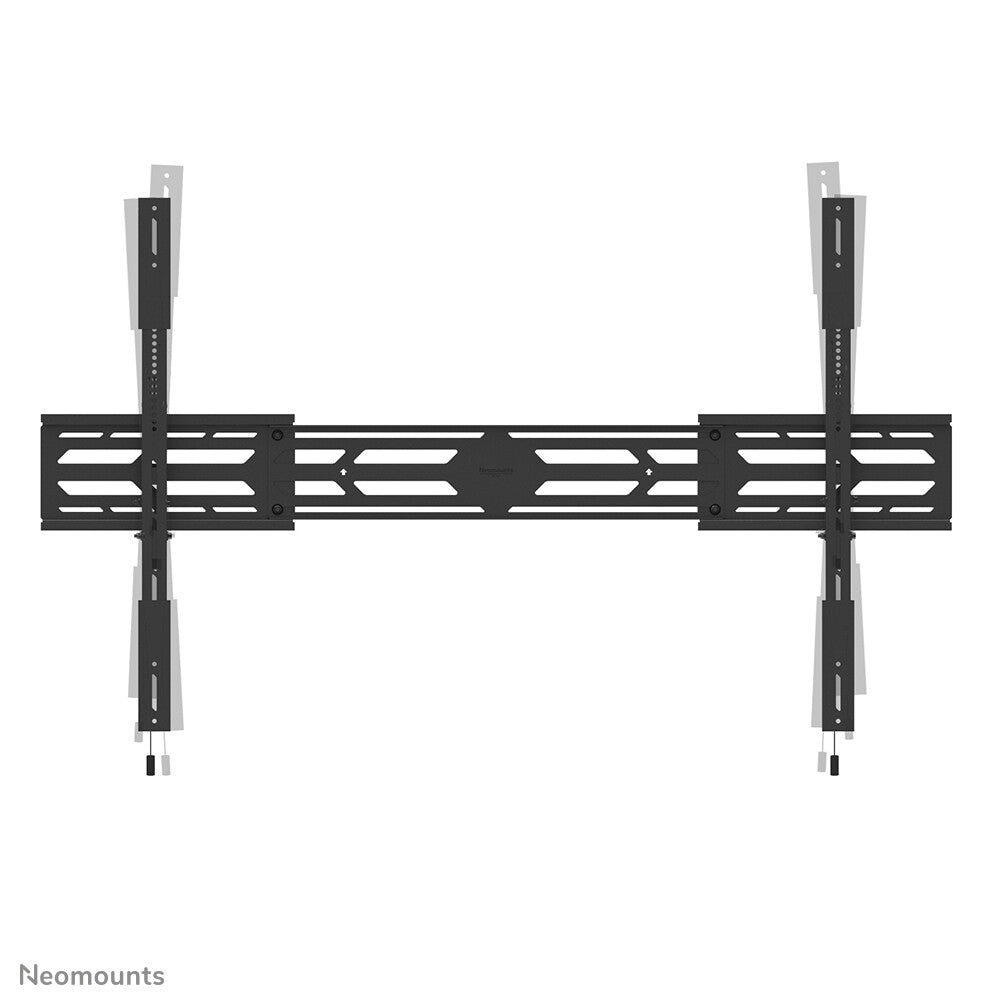

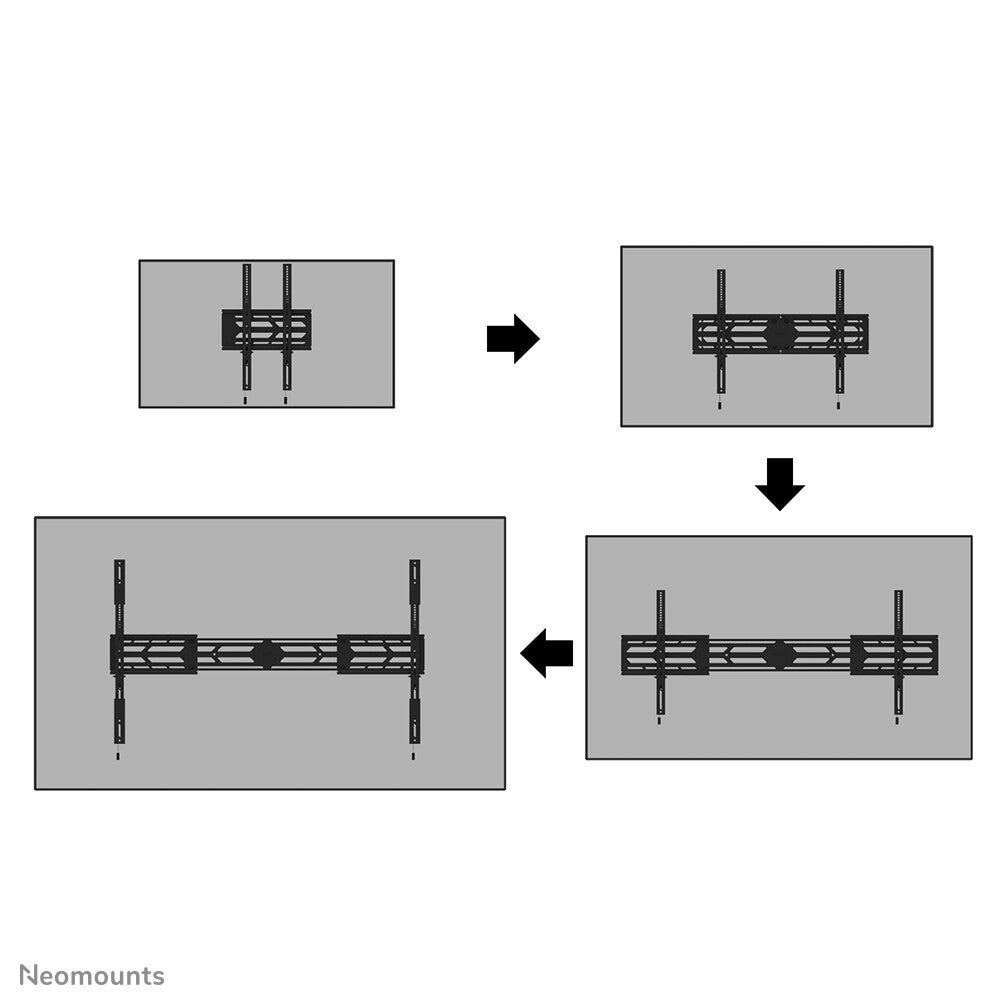

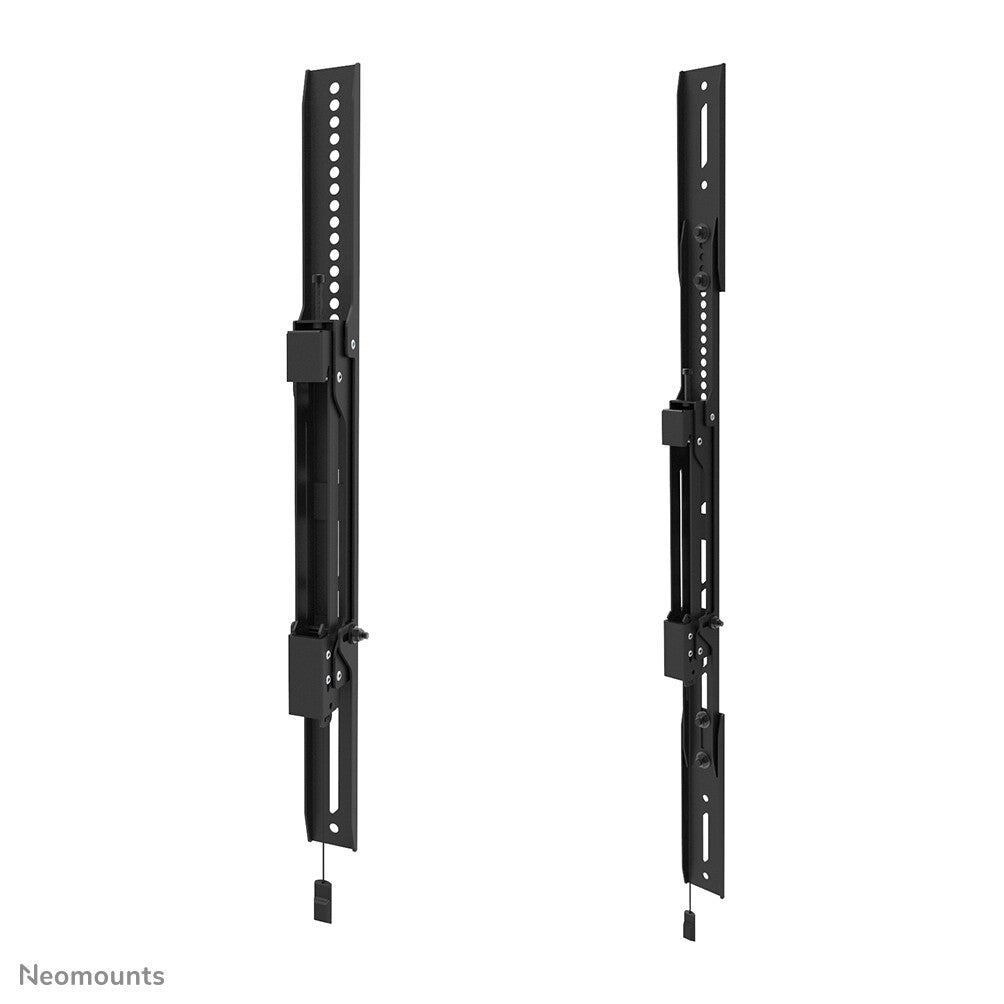

The WL30S-950BL19 has a depth of 6,5 cm and is, thanks to the included vertical extension brackets, suitable for screens that meet VESA hole pattern 100x100 to 1500x900 mm. Due to the unique extendable design, the mount can be adjusted to a wide range of screens dimensions; from 55" up to 115". It is possible to lock the mount using a padlock (not included).

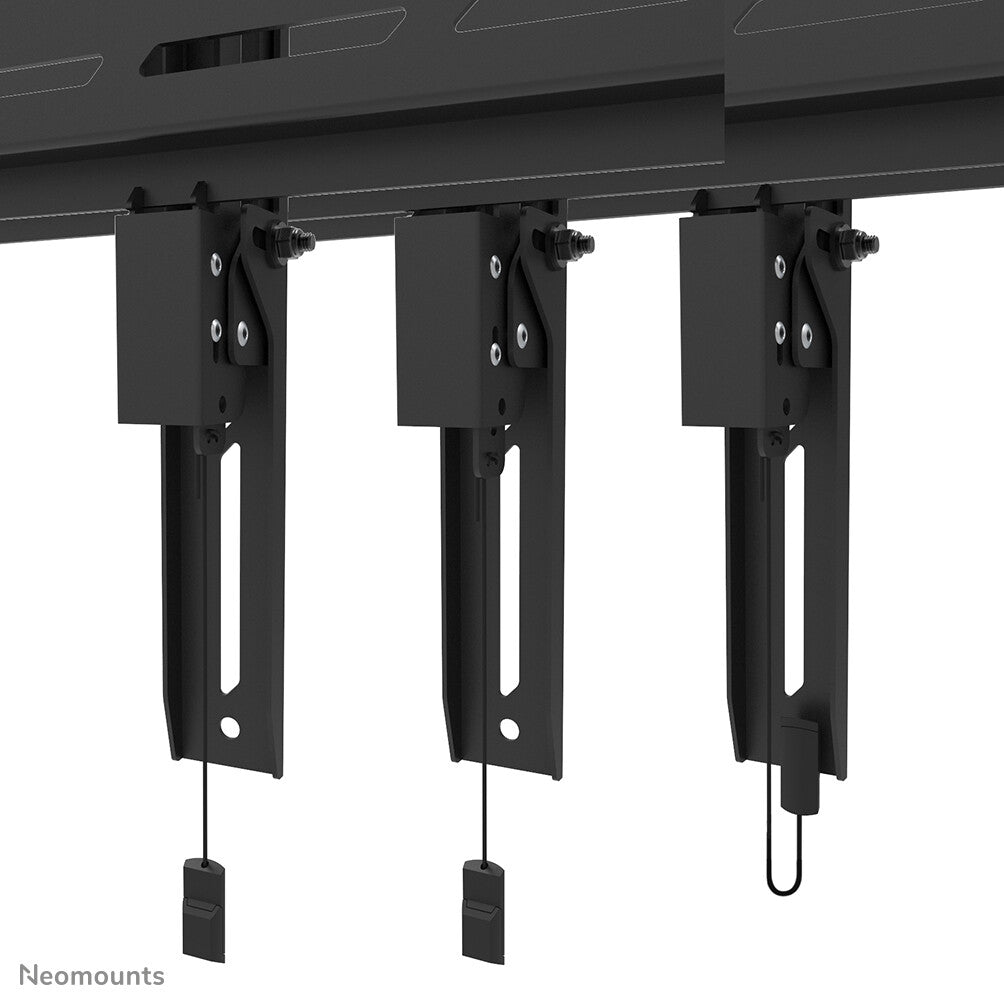

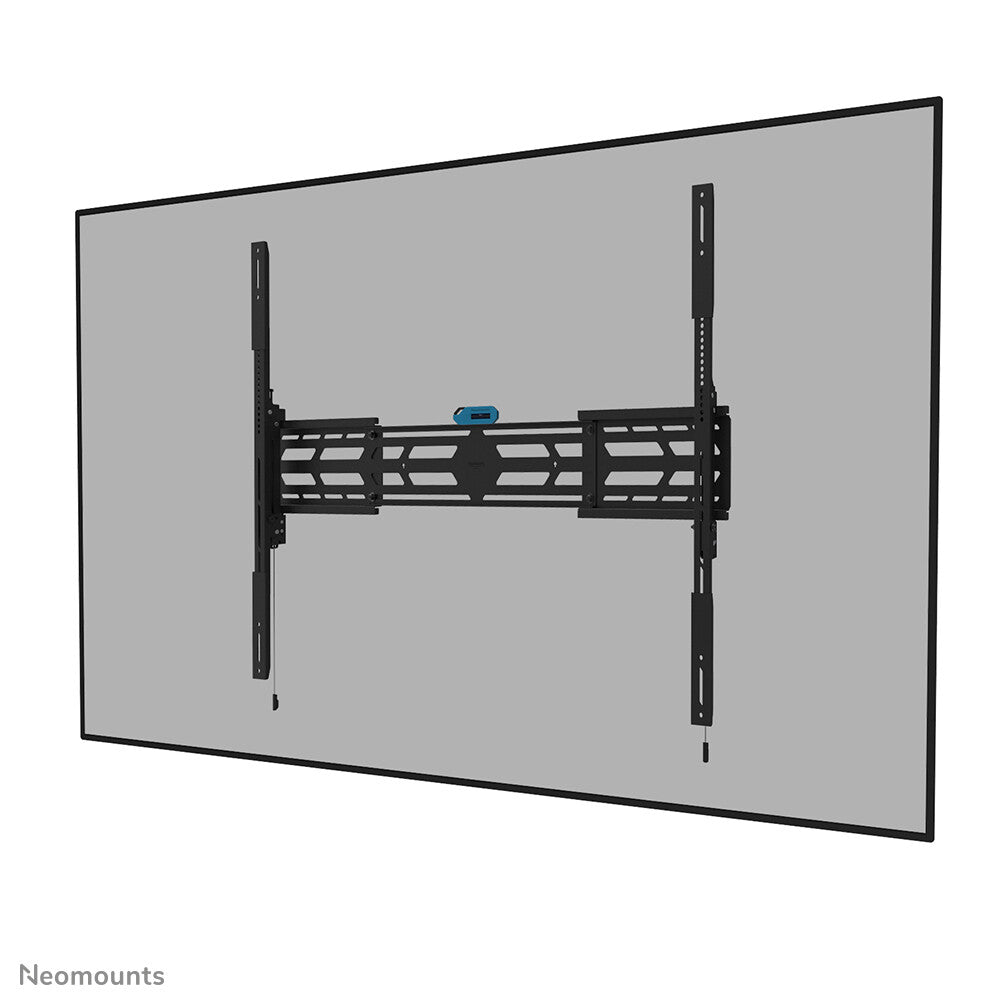

The mount features a nifty magnetic pull & release system, that allows you to attach the TV in a wink of an eye and secure the TV in safe and solid manner. Afterwards, the pull & release straps can be easily hidden behind the screen by clicking the magnet to the mount. A separate spirit level tool is included with the wall mount to ensure easy installation of the mount.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 1000 x 400,1000 x 600,1000 x 800,1000 x 700,100 x 200,100 x 100,100 x 150,1200 x 600,1200 x 800,1200 x 900,1400 x 800,1500 x 900,1500 x 600,200 x 100,200 x 150,200 x 200,200 x 300,200 x 400,300 x 900,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 600,440 x 400,460 x 640,500 x 500,500 x 400,600 x 300,600 x 200,600 x 400,600 x 500,600 x 600,680 x 300,800 x 800,800 x 200,800 x 400,800 x 500,800 x 600,900 x 600 |
| Maximum VESA mount | 1500 x 900 mm |
| Minimum VESA mount | 100 x 100 mm |
| Mounting type | Wall |
| Maximum screen size | 2.92 m (115") |
| Minimum screen size | 139.7 cm (55") |
| Maximum weight capacity | 160 kg |
| Maximum weight capacity (per display) | 160 kg |
| Ergonomics | |
|---|---|
| Distance to the wall (max) | 6.7 cm |
| Pivot angle | -3 - 3° |
| Angle of rotation | 6° |
| Height adjustment range | 0 - 20 mm |
| Height adjustment | Yes |
| Design | |
|---|---|
| Accepts padlock | Yes |
| Housing material | Steel |
| Product colour | Black |
| Technical details | |
|---|---|
| Package net weight | 11.7 kg |
| Lockable | Security screw included |
| Country of origin | China |
| Warranty period | 5 year(s) |
| Orientation | Landscape/Portrait |
| Weight & dimensions | |
|---|---|
| Weight | 10.2 kg |
| Height | 936 mm |
| Depth (max) | 6.7 cm |
| Depth | 67 mm |
| Width | 1600 mm |
| Packaging data | |
|---|---|
| Package weight | 11.7 kg |
| Package height | 918 mm |
| Package depth | 98 mm |
| Package width | 222 mm |
| Logistics data | |
|---|---|
| Products per pallet (EU) | 30 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 20.3 kg |
| Master (outer) case gross weight | 23.9 kg |
| Master (outer) case height | 938 mm |
| Master (outer) case length | 242 mm |
| Master (outer) case width | 211 mm |
| Other features | |
|---|---|
| Width adjustment range | 893 - 1600 mm |
