Neomounts FPMA-D860BLACK Monitor arm 10-32"
Couldn't load pickup availability
- Maximum weight capacity: 8 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 81.3 cm (32")
- Number of displays supported: 1
- Clamp/Grommet Mounting type: Desk
- Maximum VESA mount: 100 x 100 mm
- Manual Height adjustment Tilt adjustment

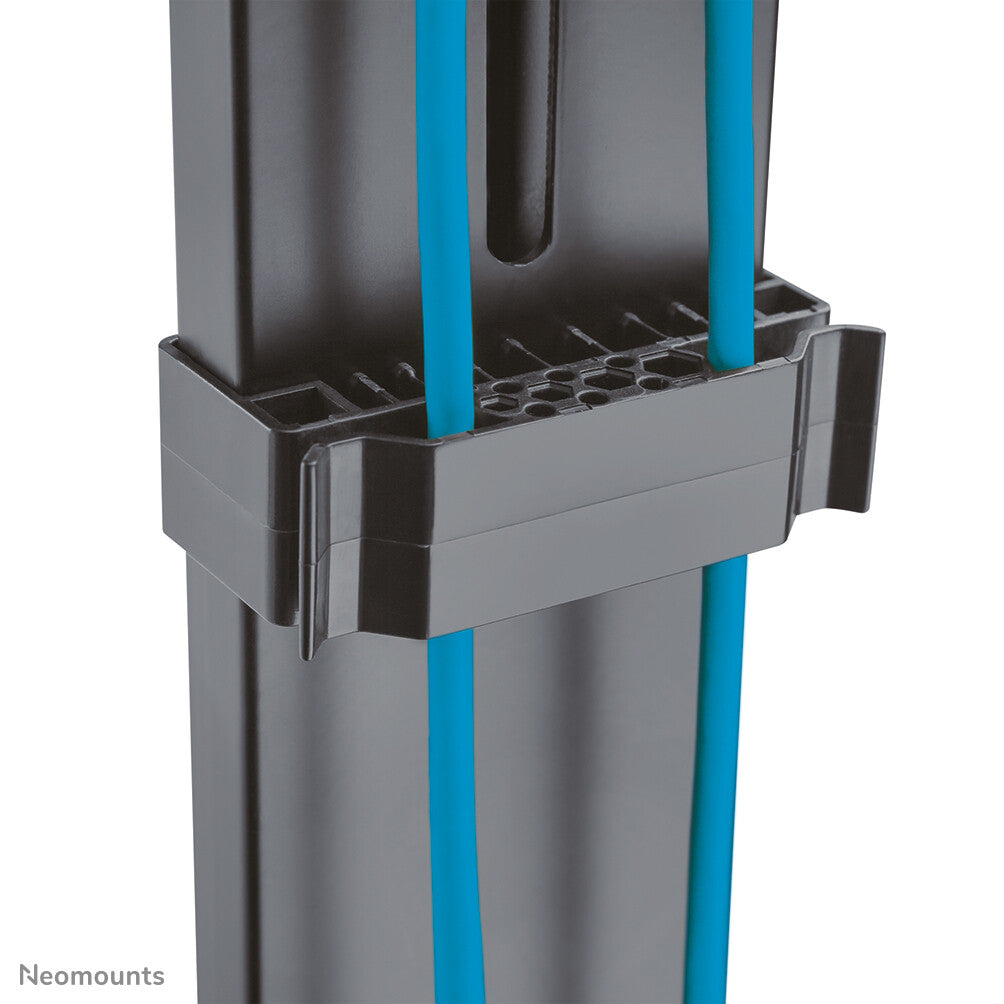

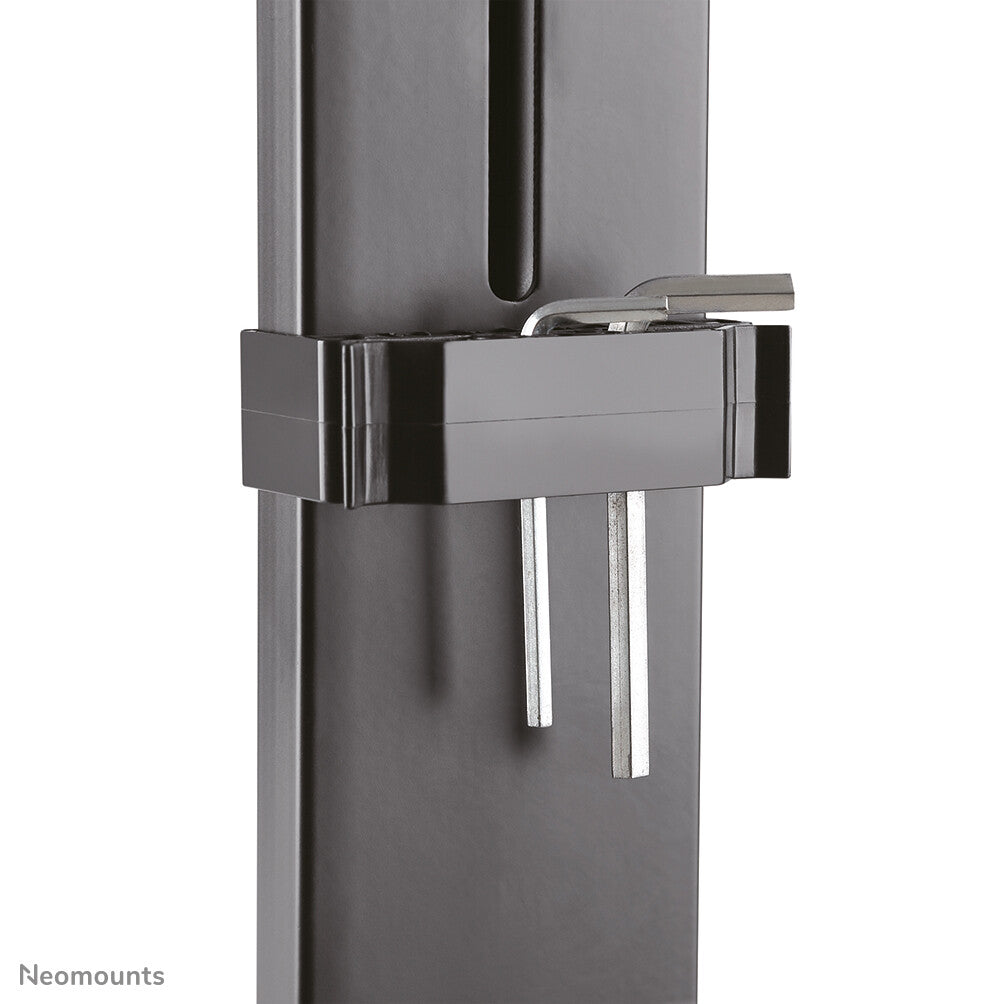

- Cable management
- Steel Black

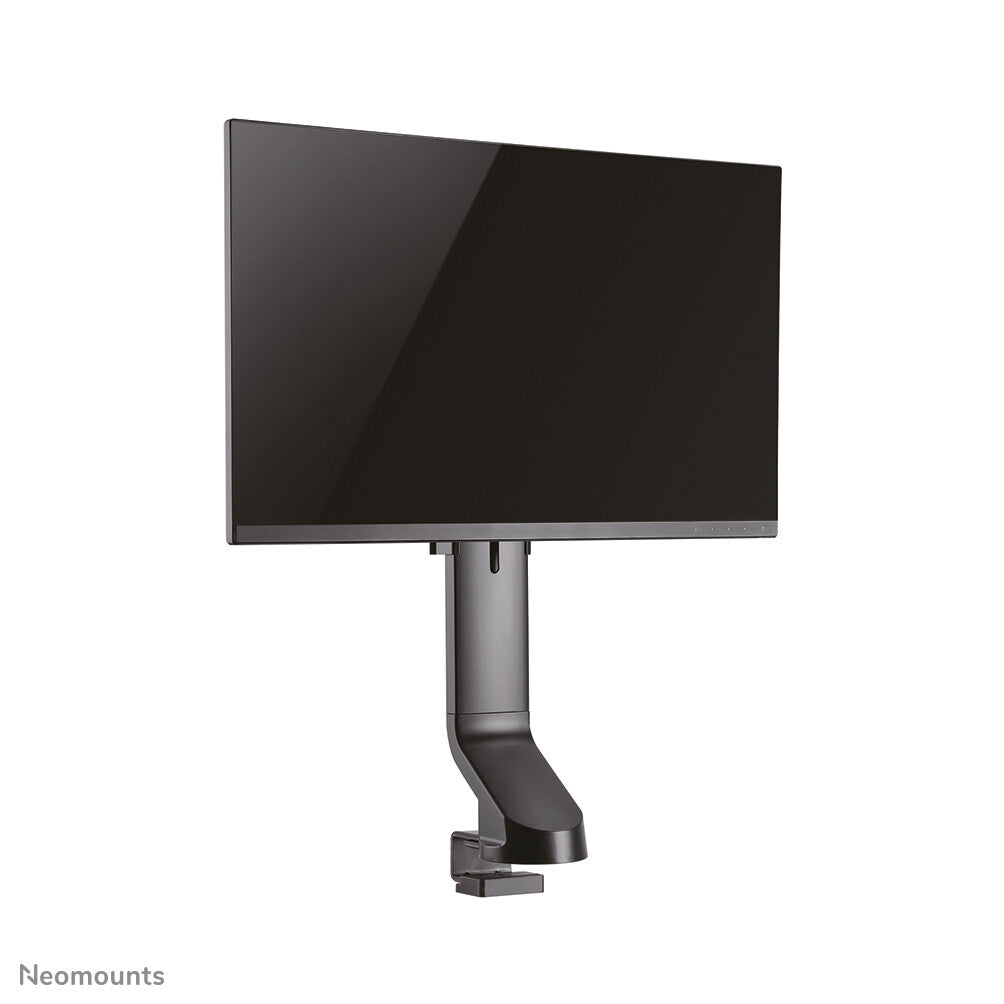

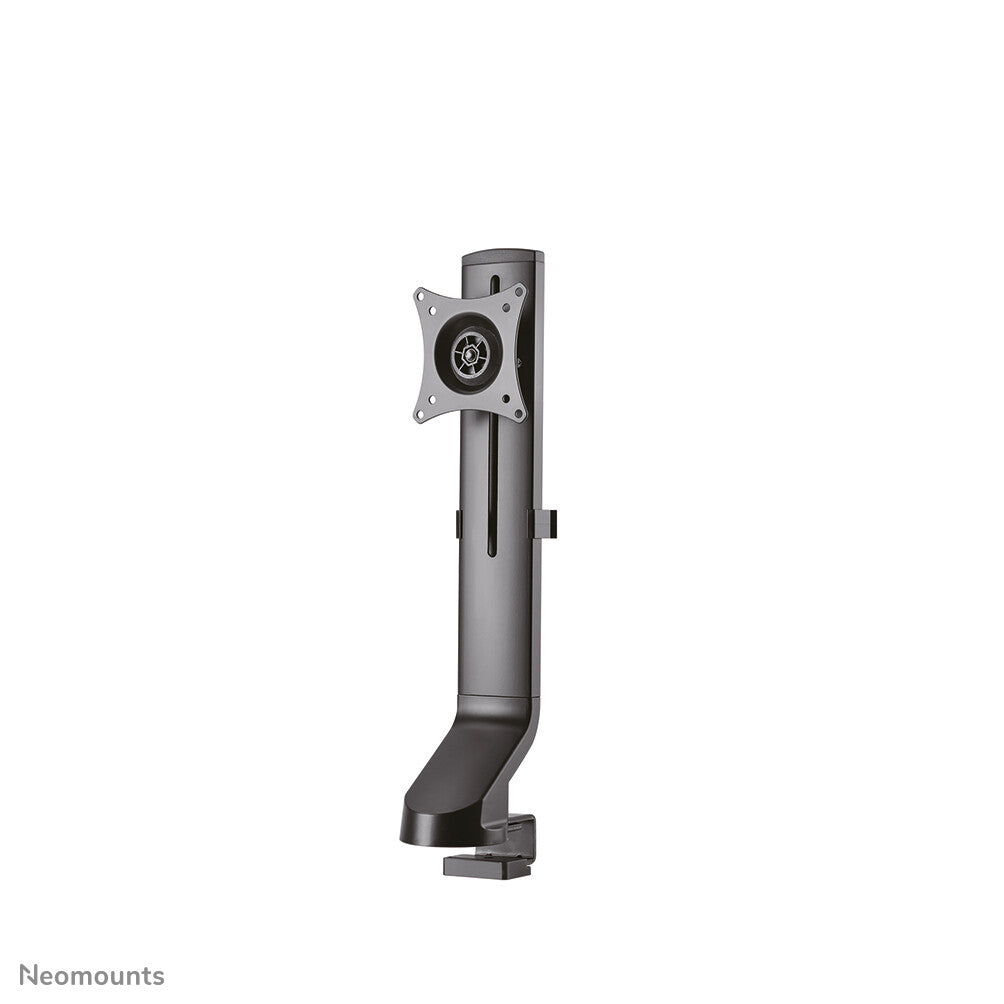

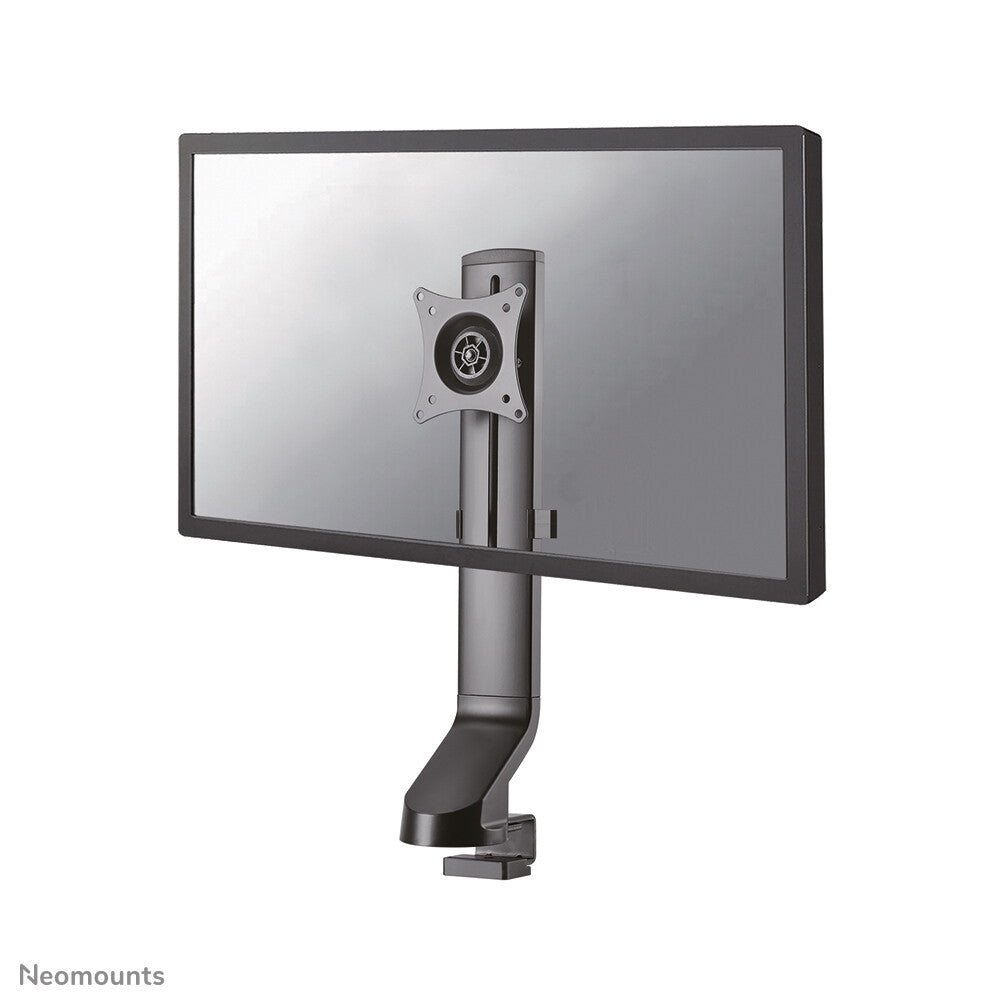

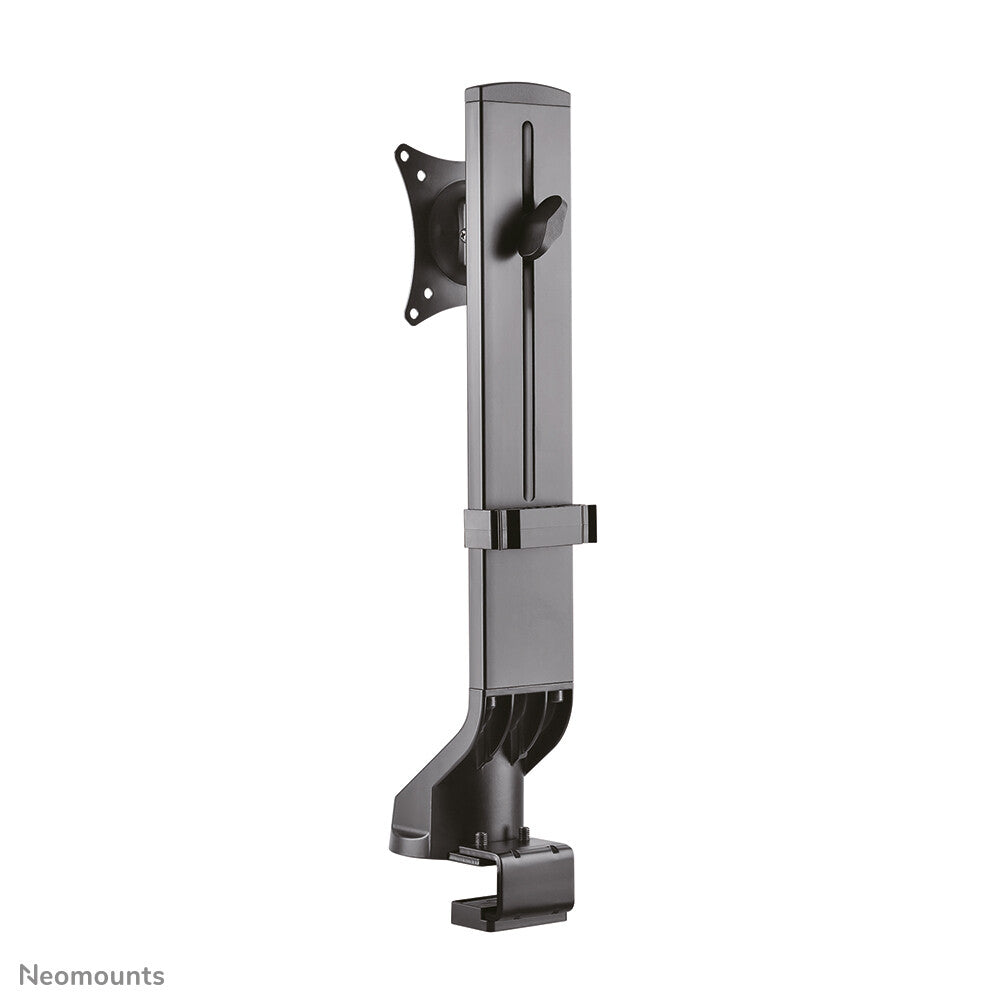

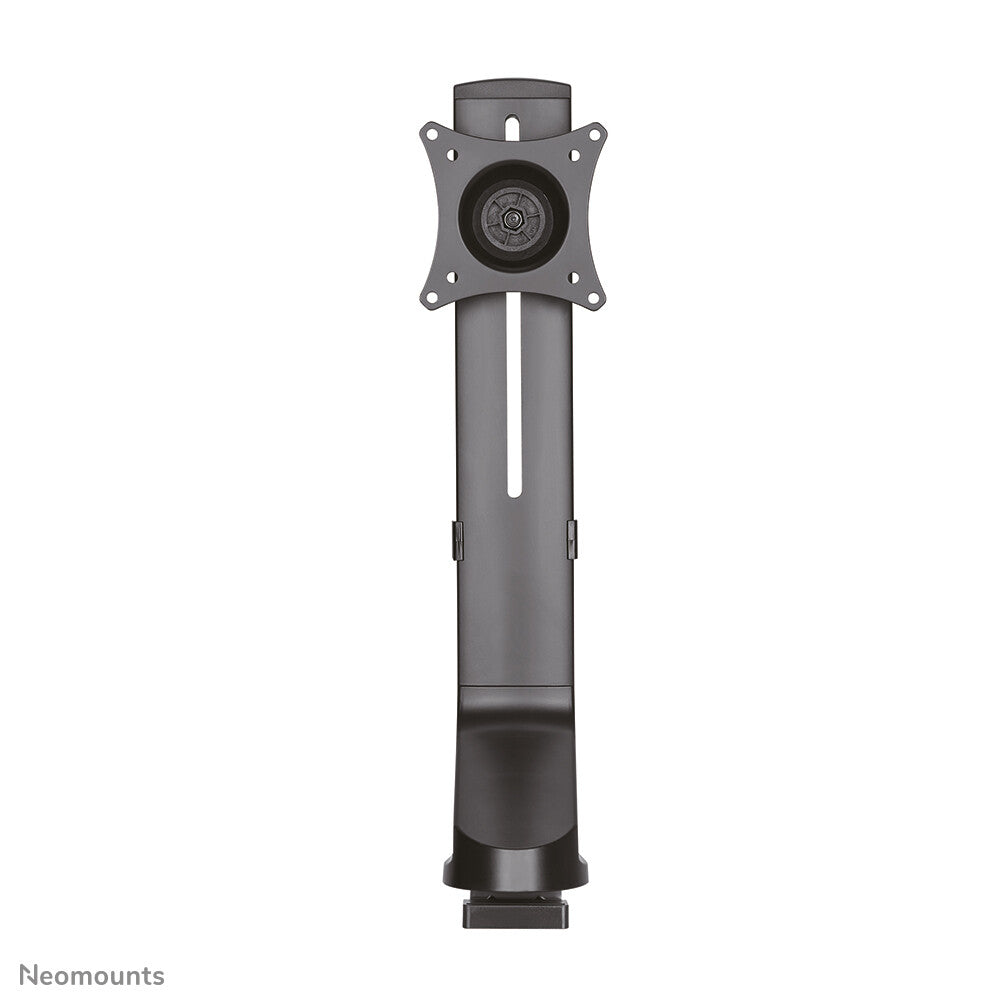

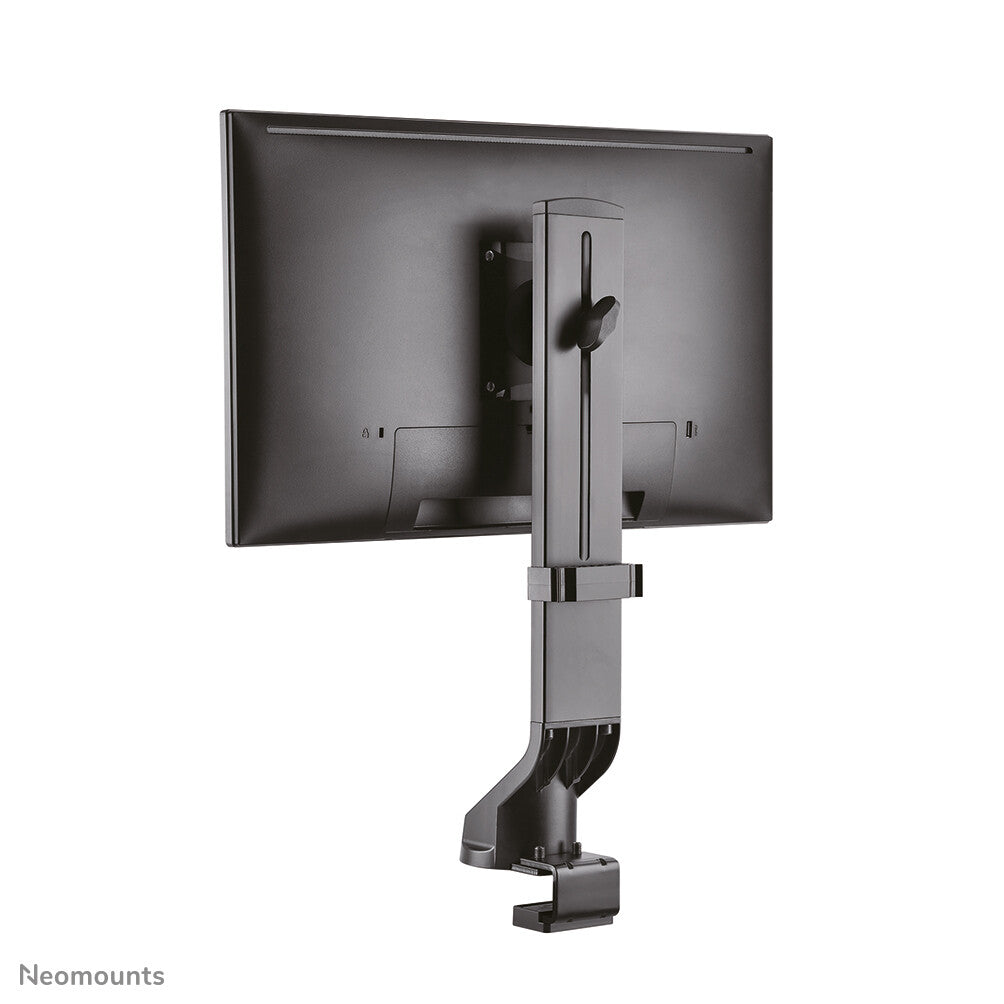

The Neomounts desk mount, model FPMA-D860BLACK is a tilt-, swivel and rotatable desk mount for flat screens up to 32". This mount is a great choice for space saving placement on desks.

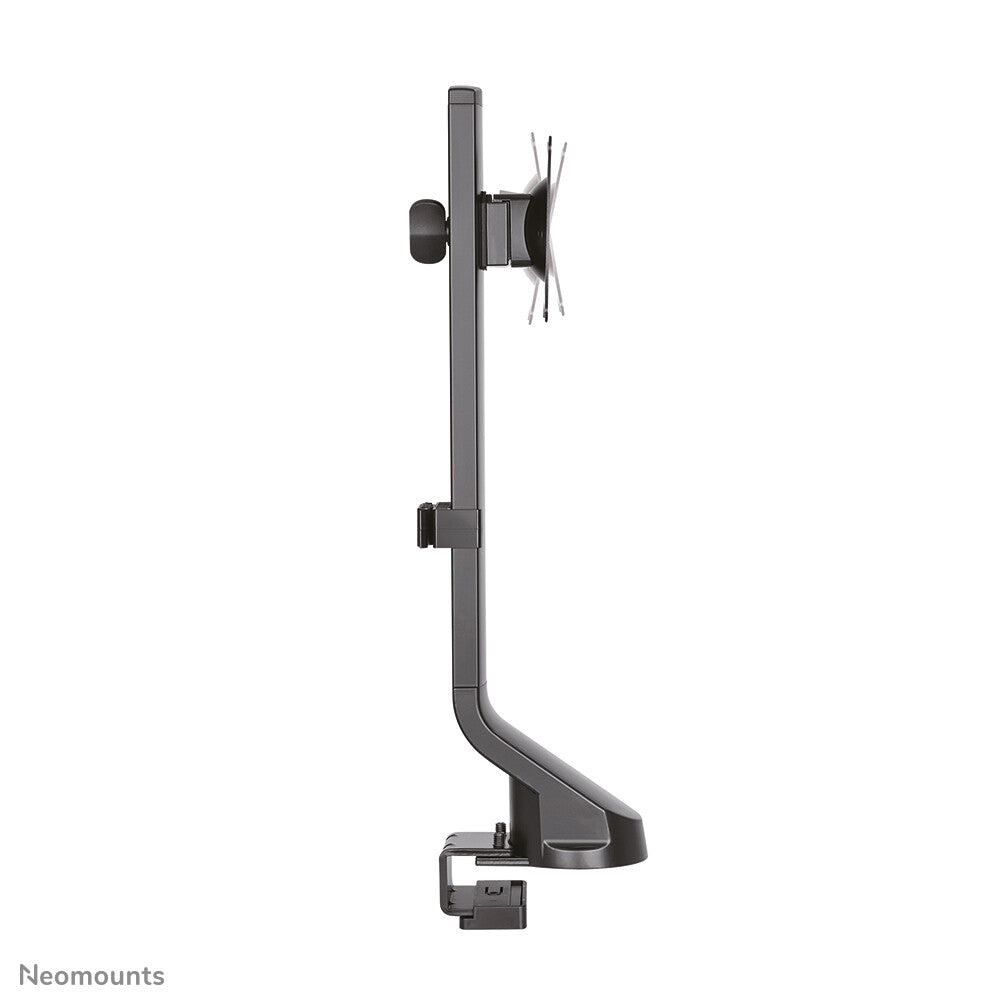

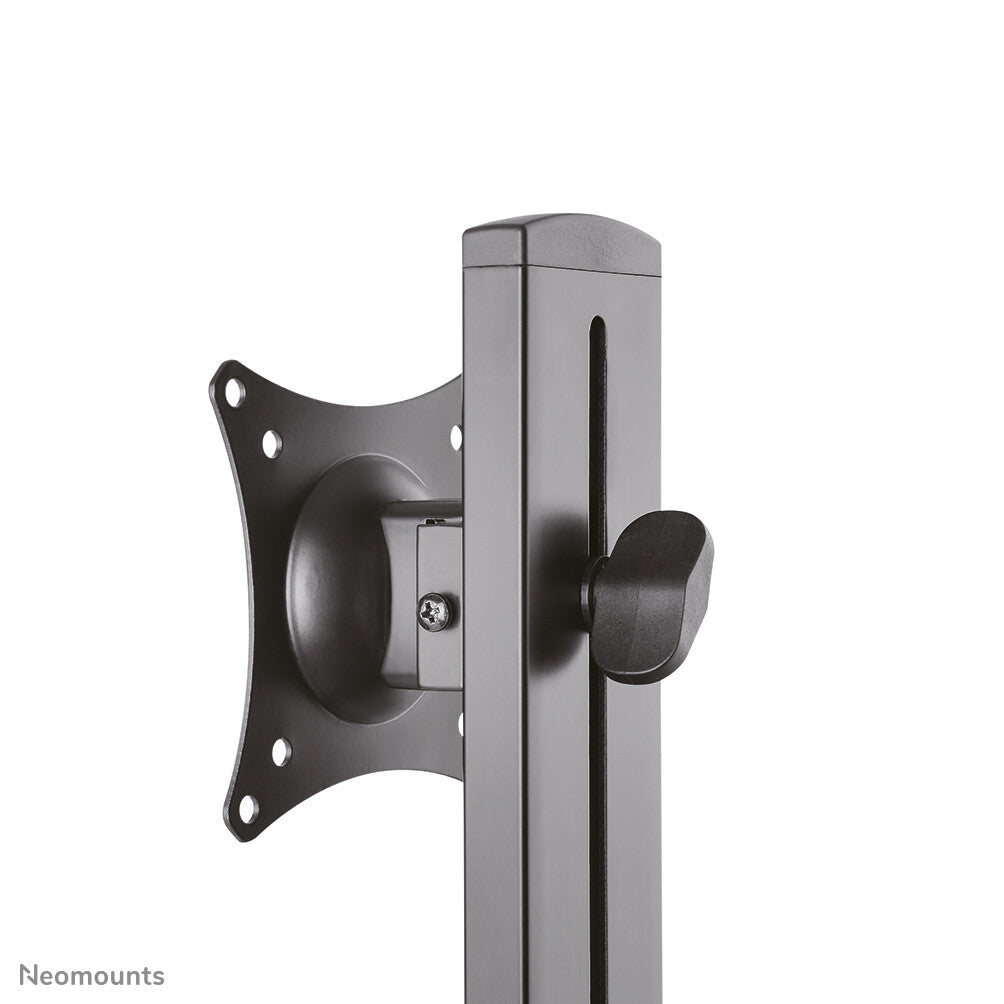

Neomounts' versatile tilt (20°), rotate (360°) and swivel (20°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is manually height adjustable from 26 to 45 centimetres. Depth 5 centimetres.

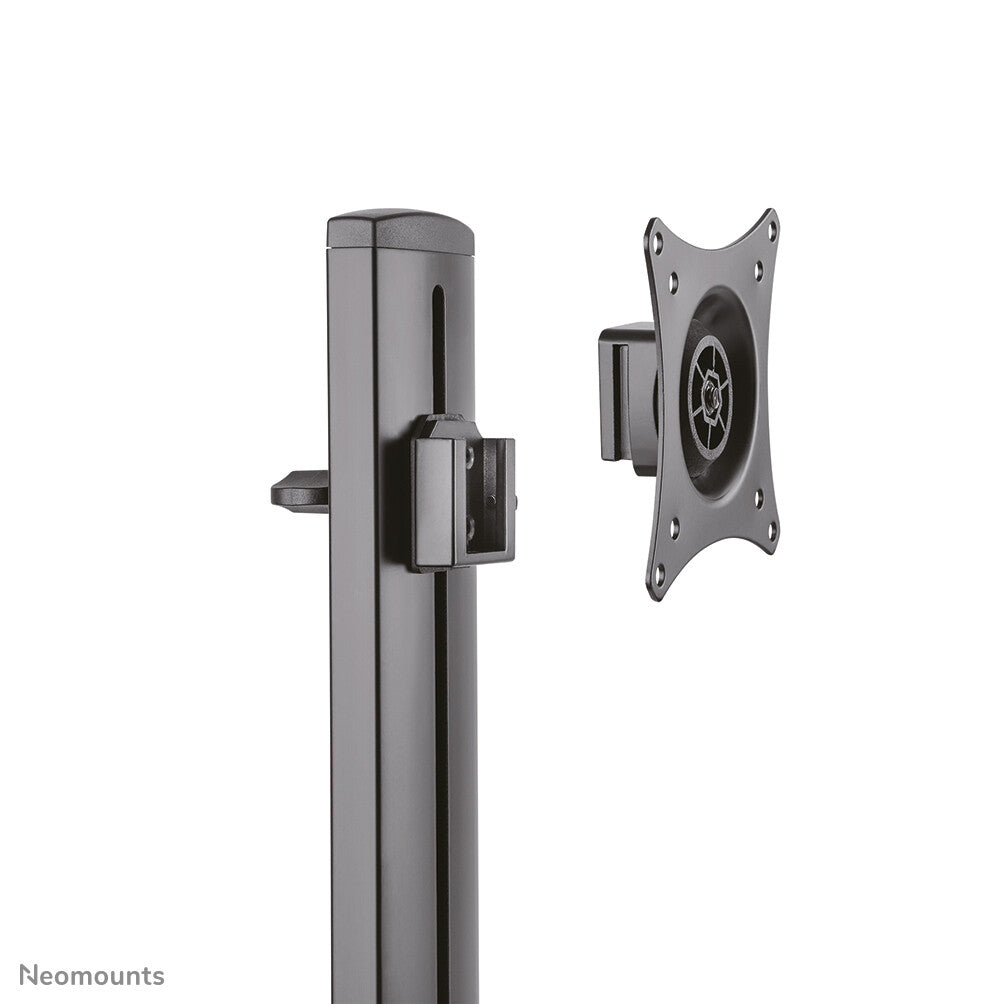

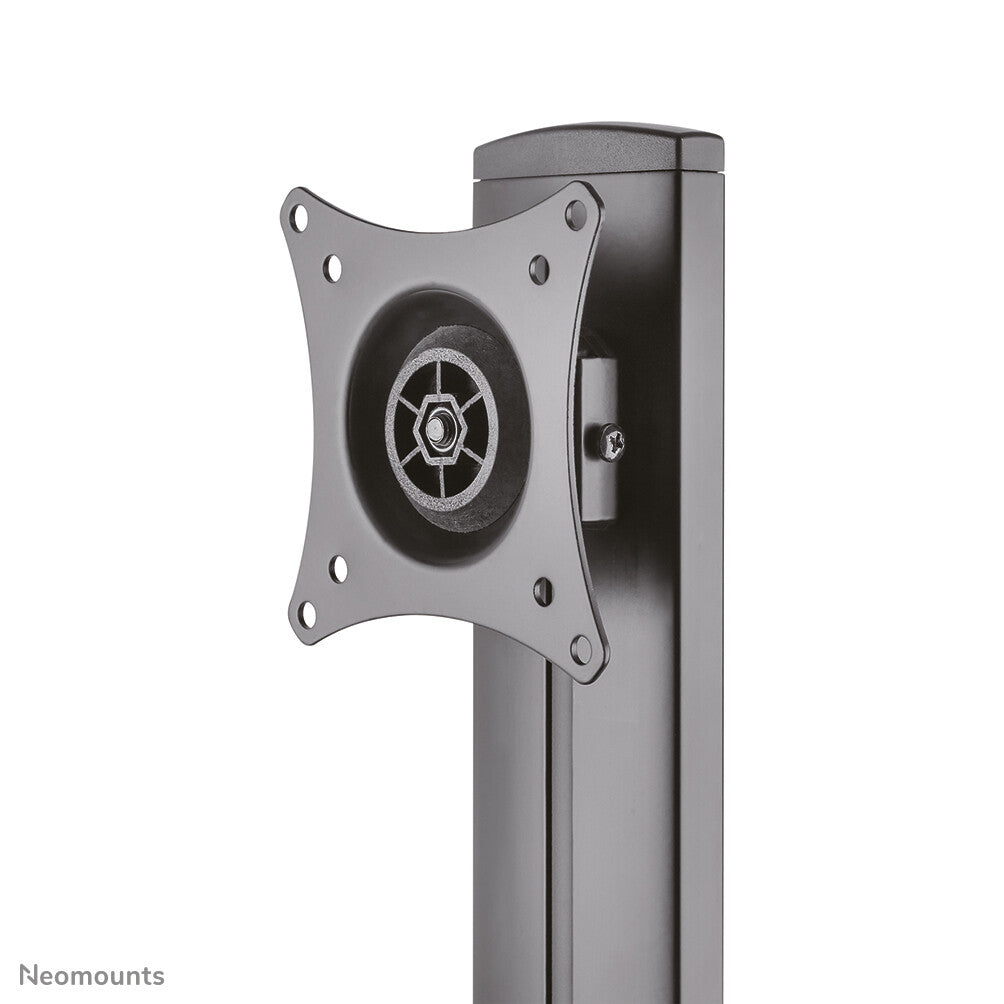

Neomounts FPMA-D860BLACK has one pivot point and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 8 kg each screen. The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
| Mounting | |
|---|---|
| Desk thickness (max) | 2.5 cm |
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 100,75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting | Clamp/Grommet |
| Maximum weight capacity (per display) | 8 kg |
| Mounting type | Desk |
| Maximum screen size | 81.3 cm (32") |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 8 kg |
| Ergonomics | |
|---|---|
| Cable management | Yes |
| Number of pivot points | 1 |
| Pivot angle | -180 - 180° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle range | -10 - 10° |
| Swivel angle | 20° |
| Swivelling | Yes |
| Tilt angle range | -10 - 10° |
| Tilt adjustment | Yes |
| Depth adjustment range | 0 - 50 mm |
| Height adjustment range | 260 - 450 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 2.08 kg |
| Height | 450 mm |
| Depth | 50 mm |
| Packaging data | |
|---|---|
| Package weight | 2.4 kg |
| Package height | 405 mm |
| Package depth | 90 mm |
| Package width | 130 mm |
| Logistics data | |
|---|---|
| Country of origin | China |
| Master (outer) case net weight | 10 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 176 pc(s) |
| Products per master (outer) case | 8 pc(s) |
| Master (outer) case gross weight | 12.5 kg |
| Master (outer) case height | 445 mm |
| Master (outer) case length | 320 mm |
| Master (outer) case width | 540 mm |
