Neomounts FPMA-C100WHITE Monitor/TV mount ceiling 10-30" - h 79-129 cm
Couldn't load pickup availability
- Maximum weight capacity: 12 kg
- Minimum screen size: 25.4 cm (10") Maximum screen size: 76.2 cm (30") Ceiling
- Minimum VESA mount: 75 x 75 mm Maximum VESA mount: 200 x 100 mm
- Number of displays supported: 1
- Height adjustment Manual Tilt adjustment Rotating
- Steel White

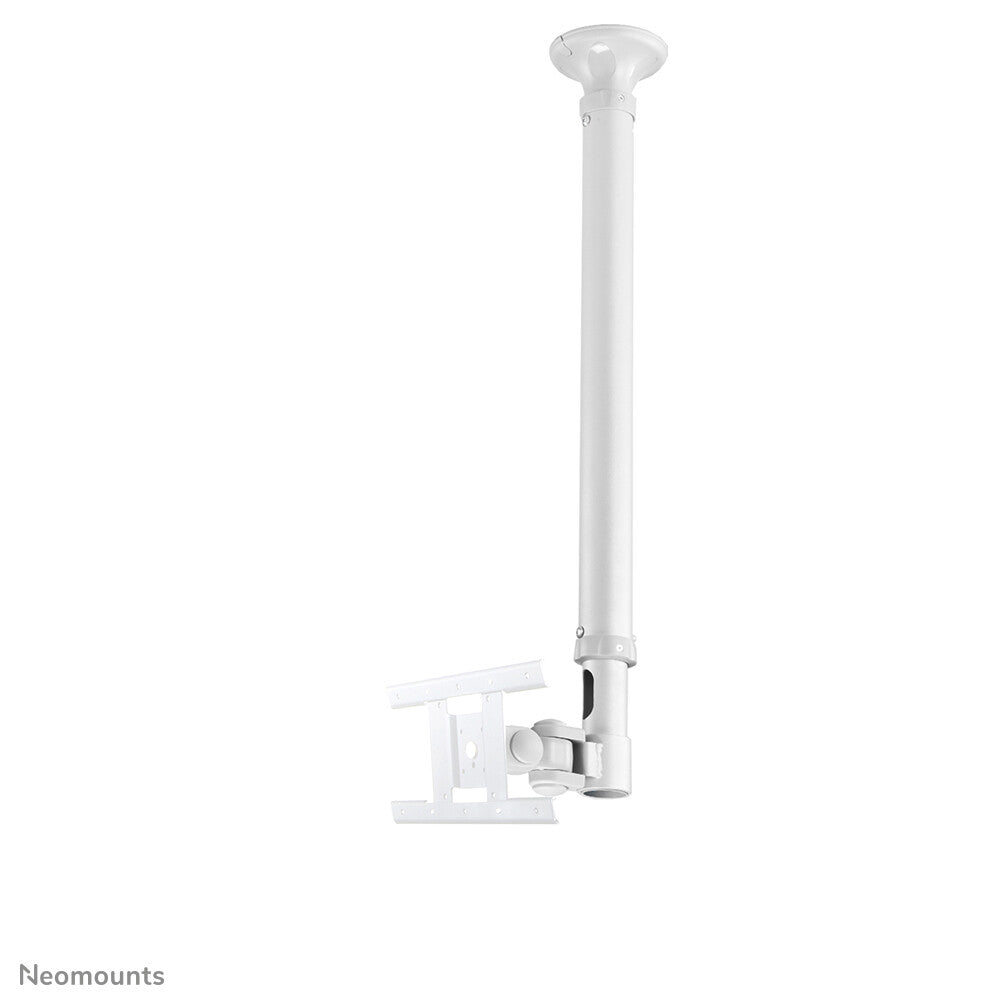

The Neomounts ceiling mount, model FPMA-C100WHITE is a tilt- and swivel ceiling mount for flat screens up to 30". This mount is a great choice for space saving placement or when wall mounting and floor placement is not an option.
Neomounts versatile tilt (180°), rotate (360°) and swivel (180°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The support is easily height adjustable from 79 to 129 centimetres. An innovative cable management conceals and routes cables from ceiling to TV. Hide your cables in the column to keep it nice and tidy.
Neomounts FPMA-C100WHITE has two pivot points and is suitable for screens up to 30" (76 cm). The weight capacity of this product is 12 kg. The ceiling mount is suitable for screens that meetVESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
All installation material is included with the product.
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Panel mounting interface | 100 x 200,100 x 100,75 x 75 |
| Maximum VESA mount | 200 x 100 mm |
| Minimum VESA mount | 75 x 75 mm |
| Mounting type | Ceiling |
| Maximum screen size | 76.2 cm (30") |
| Minimum screen size | 25.4 cm (10") |
| Maximum weight capacity | 12 kg |
| Maximum weight capacity (per display) | 12 kg |
| Ergonomics | |
|---|---|
| Tilt angle | 180° |
| Angle of rotation | 360° |
| Rotating | Yes |
| Swivel angle range | 0 - 180° |
| Swivel angle | 180° |
| Swivelling | Yes |
| Tilt angle range | 0 - 180° |
| Tilt adjustment | Yes |

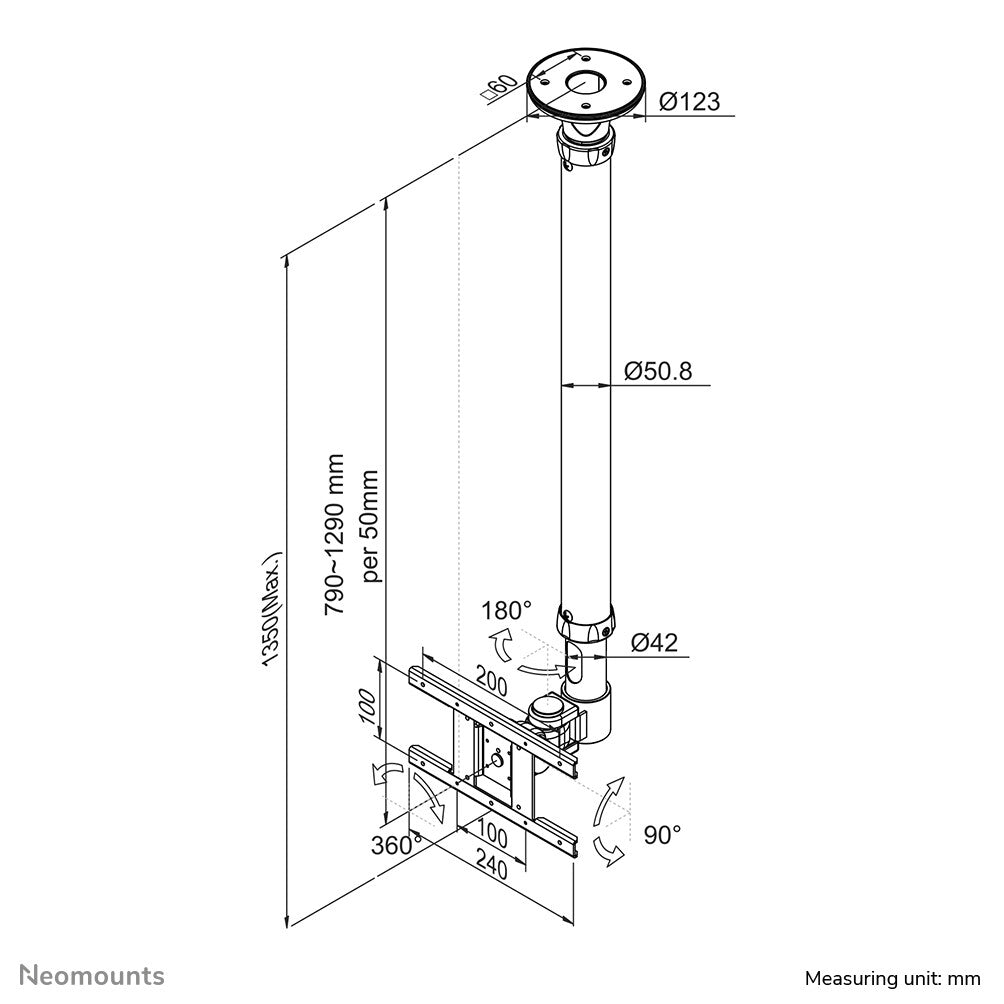

| Height adjustment range | 790 - 1290 mm |
| Height adjustment type | Manual |
| Height adjustment | Yes |
| Design | |
|---|---|
| Housing material | Steel |
| Product colour | White |
| Technical details | |
|---|---|
| Country of origin | Taiwan |
| Weight & dimensions | |
|---|---|
| Weight | 4.32 kg |
| Height | 1290 mm |
| Depth | 90 mm |
| Packaging data | |
|---|---|
| Package weight | 4.5 kg |
| Package height | 188 mm |
| Package depth | 152 mm |
| Package width | 858 mm |
| Logistics data | |
|---|---|
| Products per pallet (EU) | 39 pc(s) |
| Harmonized System (HS) code | 7326909890 |
| Products per master (outer) case | 3 pc(s) |
| Master (outer) case net weight | 14.6 kg |
| Master (outer) case gross weight | 16.2 kg |
| Master (outer) case height | 175 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case width | 880 mm |
| Other features | |
|---|---|
| Depth adjustment range | 0 - 90 mm |
