Sharp · MPN: 100014259
£1,354.99
inc. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £451.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Processor modeli5-6440EQ
  • Memory clock speed2133 MHz
  • Internal memory typeDDR4-SDRAM
  • Weight900 g
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

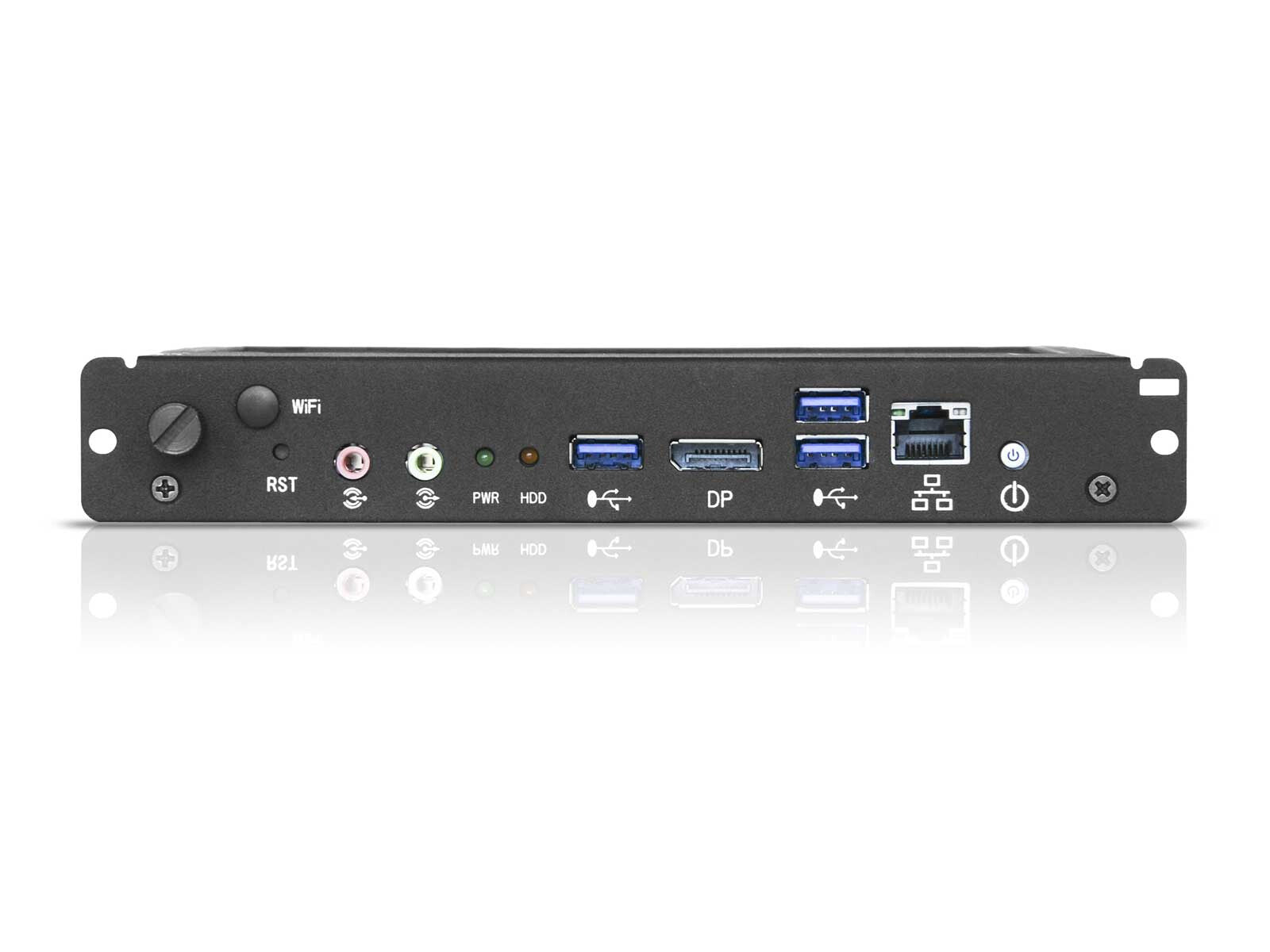

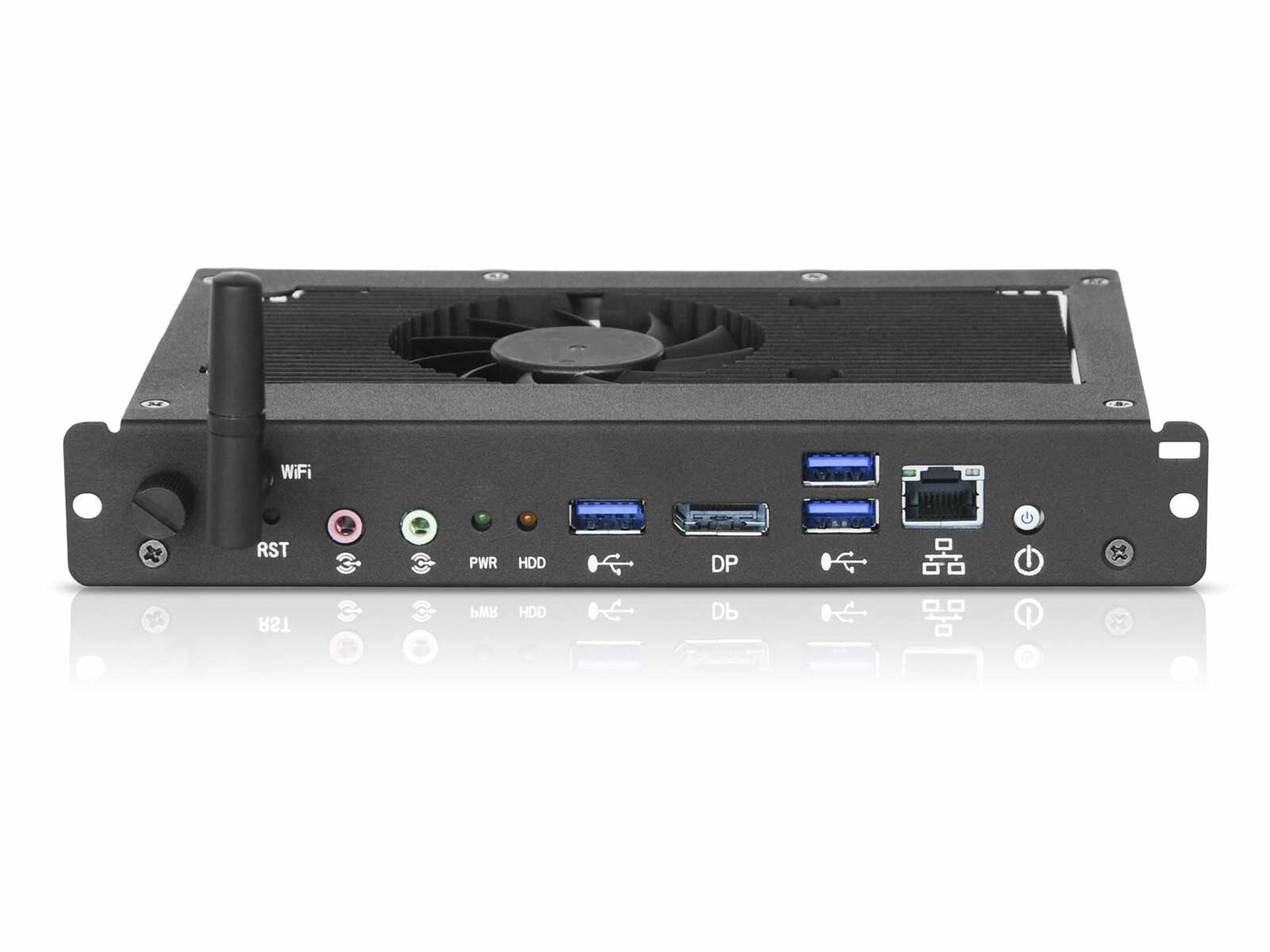

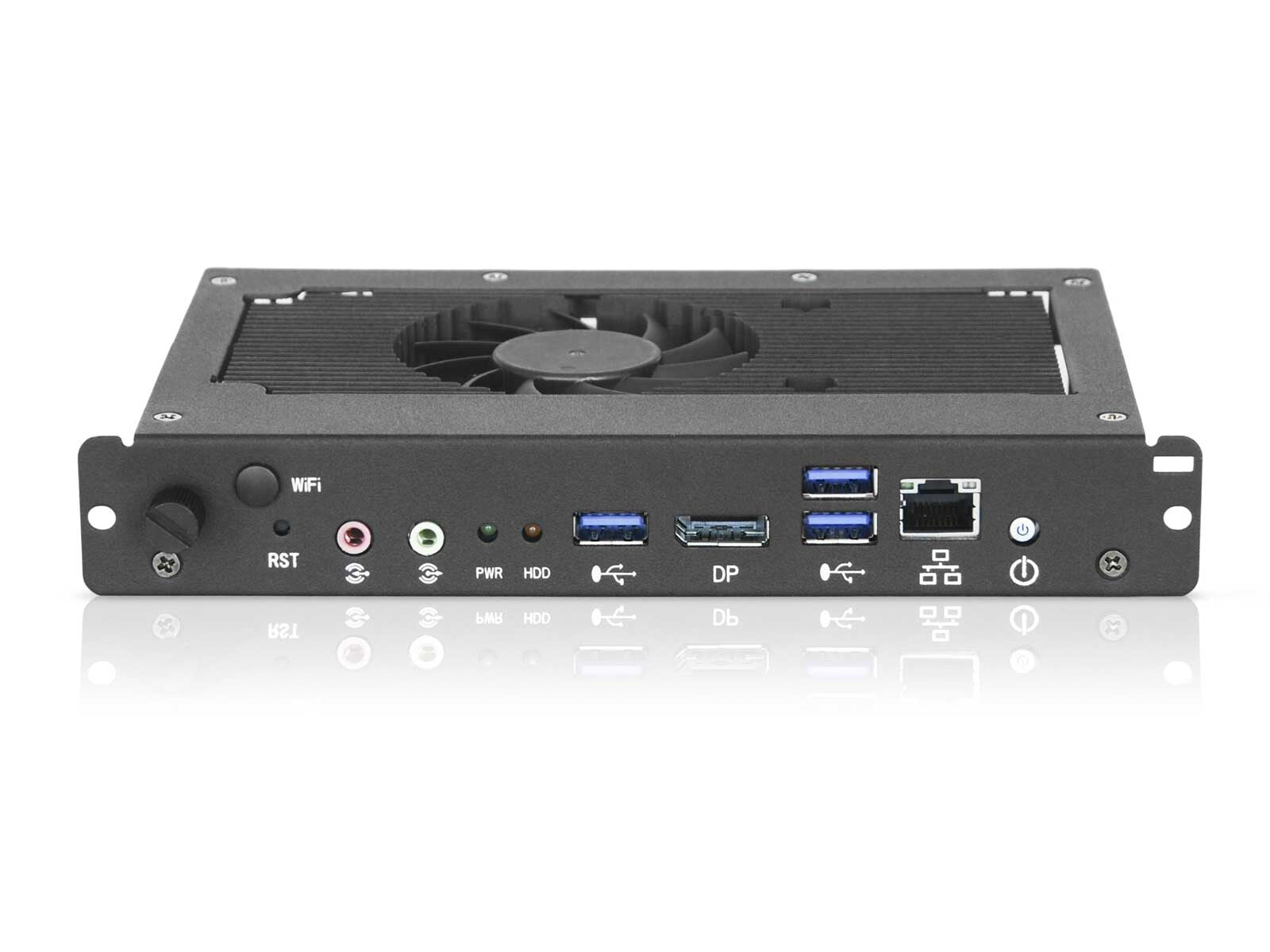

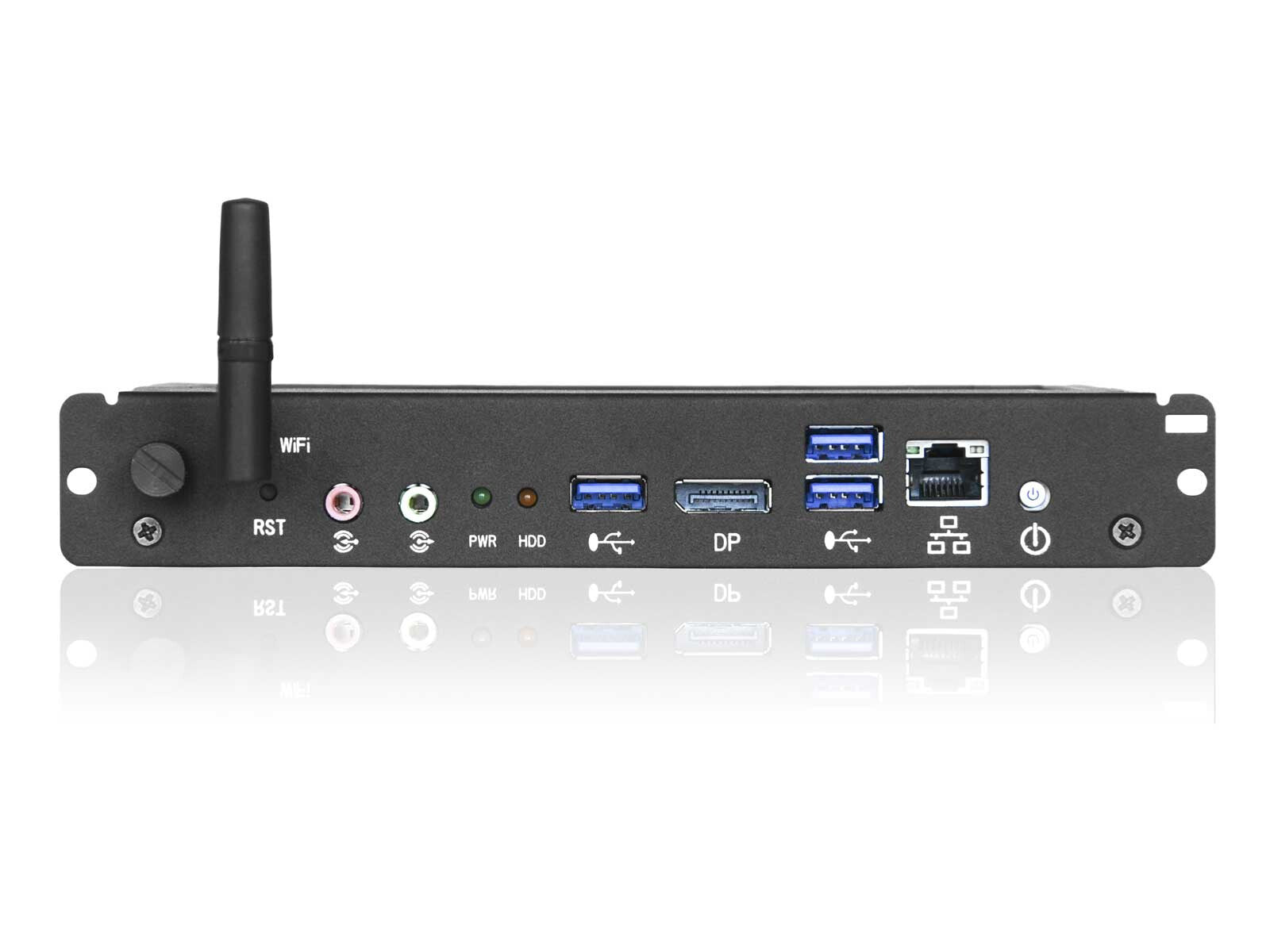

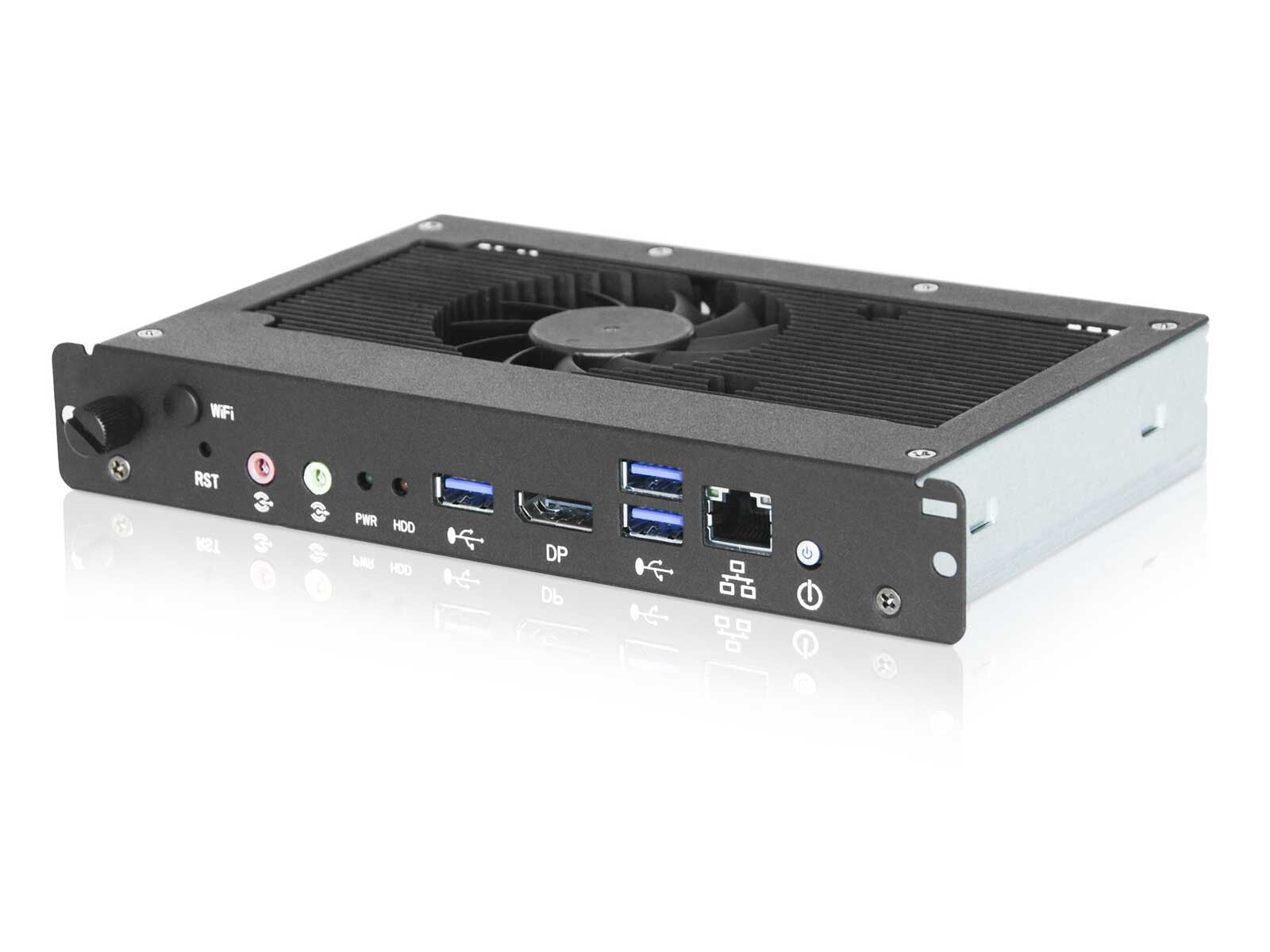

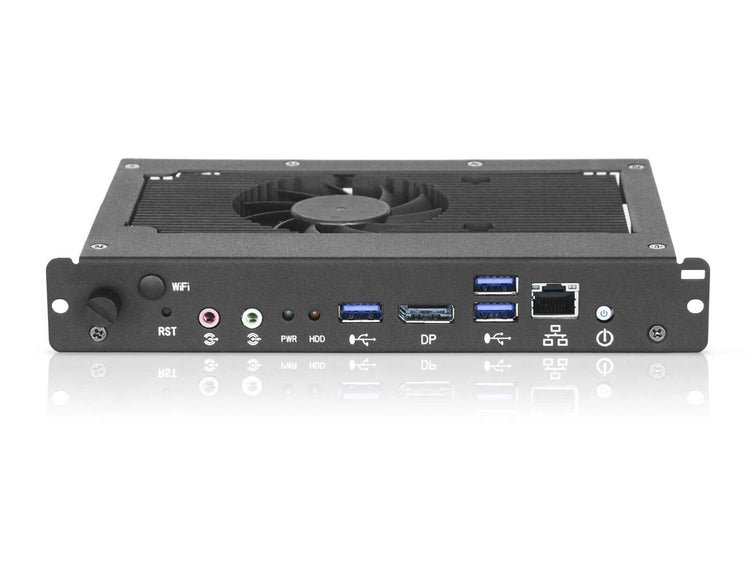

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices

The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot.

Delivering Genuine Benefits

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.

Specifications

Processor

ECC supported by processorNo
Memory bandwidth supported by processor (max)34.1 GB/s
Memory clock speeds supported by processor1600,1866,2133 MHz
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Tjunction100 °C
Tcase100 °C
PCI Express configurations1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes16
Processor seriesIntel Core i5-6400 Mobile series
Thermal Design Power (TDP)45 W
Processor codenameSkylake
Bus typeDMI3
SteppingR0
Processor operating modes64-bit
Processor lithography14 nm
PCI Express slots version3.0
Processor threads4
System bus rate8 GT/s
Processor cache typeSmart Cache
Processor cache6 MB
Processor socketBGA 1440
Processor boost frequency3.4 GHz
Processor cores4
Processor modeli5-6440EQ
Processor generation6th gen Intel® Core™ i5
Processor familyIntel® Core™ i5
Processor frequency2.7 GHz

Memory

Memory channelsDual-channel
Non-ECCYes
Memory clock speed2133 MHz
Memory slots2x SO-DIMM
Maximum internal memory16 GB
Internal memory typeDDR4-SDRAM
Internal memory4 GB
Show all 112 specificationsShow fewer specifications

Storage

SSD capacity64 GB
SSD interfaceM.2
Card reader integratedNo
Storage mediaSSD
Total storage capacity64 GB

Graphics

Number of displays supported (on-board graphics)3
Discrete graphics card modelNot available
On-board graphics card ID0x191B
On-board graphics card OpenGL version4.4
On-board graphics card DirectX version12.0
On-board graphics card dynamic frequency (max)1000 MHz
On-board graphics card base frequency350 MHz
Maximum on-board graphics card memory64 GB
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 530
On-board graphics cardYes

Network

Wake-on-LAN readyYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Wi-FiNo

Ports & interfaces

Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
DVI portNo
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3

Performance

Product colourBlack
Motherboard chipsetIntel® HM170

Software

Operating system installedWindows Embedded Standard 7

Processor special features

Processor ARK ID90425
Processor package size42 x 28 mm
Intel TSX-NI version1.00
Intel Virtualization Technology (VT-x)Yes
Intel Secure Key Technology version1.00
Intel Identity Protection Technology version1.00
Intel HD GraphicsYes
Intel Software Guard Extensions (Intel SGX)Yes
Intel Clear Video TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardYes
Intel 64Yes
Intel® Secure KeyYes
Intel TSX-NIYes
Graphics & IMC lithography14 nm
Embedded options availableYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel Enhanced Halt StateYes
Intel Trusted Execution TechnologyYes
Thermal Monitoring TechnologiesYes
Idle StatesYes
Execute Disable BitYes
Enhanced Intel SpeedStep TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Insider™Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Wireless Display (Intel® WiDi)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost Technology2.0
Intel® Hyper Threading Technology (Intel® HT Technology)No
Intel® Identity Protection Technology (Intel® IPT)Yes
Processor codeSR2DU
Supported instruction setsAVX 2.0, SSE4.1, SSE4.2

Power

Power consumption (typical)45 W

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C

Certificates

CertificationCE, FCC

Weight & dimensions

Package weight1 kg
Package height70 mm
Package depth190 mm
Package width260 mm
Weight900 g
Height30 mm
Depth120 mm
Width200 mm
