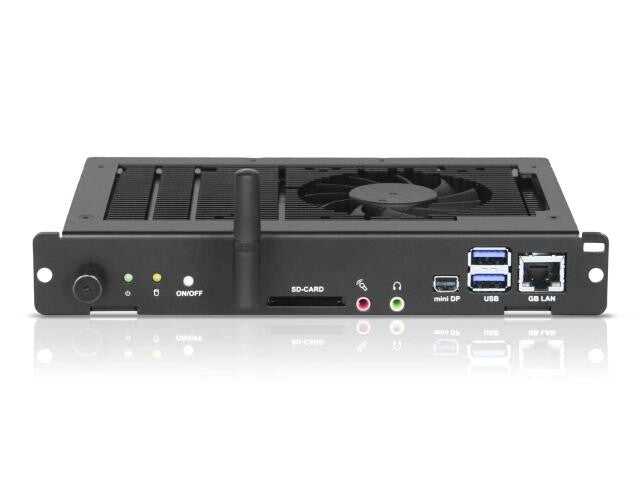

NEC OPS-Sky-i3-s4/64/W7e B 2.7 GHz Intel® Core™ i3 64 GB SSD 4 GB
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £423.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modeli3-6100E
- Memory clock speed2133 MHz
- Internal memory typeDDR4-SDRAM
- Weight900 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot
- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Tailor-made solution - extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- Secure greatness - 6th generation Intel® vProTM processors deliver security protection as well as AMT remote management functionality for the enterprise.
- Ideal for Digital Signage - compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.
- Economical - enjoy more performance whilst consuming less power.
Specifications
Processor
| ECC supported by processor | Yes |
|---|---|
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 1600,1866,2133 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM, LPDDR3-SDRAM |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Tjunction | 100 °C |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Maximum number of PCI Express lanes | 16 |
| Processor series | Intel Core i3-6100 series |
| Thermal Design Power (TDP) | 35 W |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| PCI Express slots version | 3.0 |
| Processor threads | 4 |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 3 MB |
| Processor socket | BGA 1440 |
| Processor cores | 2 |
| Processor model | i3-6100E |
| Processor generation | 6th gen Intel® Core™ i3 |
| Processor family | Intel® Core™ i3 |
| Processor frequency | 2.7 GHz |
Memory
| Memory channels | Dual-channel |
|---|---|
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 4 GB |
Show all 108 specificationsShow fewer specifications
Storage
| SSD capacity | 64 GB |
|---|---|
| SSD interface | Micro Serial ATA III |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 64 GB |
Graphics
| Number of displays supported (on-board graphics) | 3 |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card ID | 0x191B |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 530 |
| On-board graphics card | Yes |
Network
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| RS‐232/422 port | Yes |
|---|---|
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Mini DisplayPorts quantity | 1 |
| DVI port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
Performance
| Product colour | Black |
|---|
Processor special features
| Processor ARK ID | 90611 |
|---|---|
| Processor package size | 42 x 28 mm |
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Graphics & IMC lithography | 14 nm |
| Embedded options available | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Insider™ | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Processor code | SR2DV |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Power
| Power consumption (typical) | 45 W |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CE / FCC class A |
|---|
Weight & dimensions
| Package weight | 1 kg |
|---|---|
| Package height | 60 mm |
| Package depth | 260 mm |
| Package width | 200 mm |
| Weight | 900 g |
| Height | 30 mm |
| Depth | 200 mm |
| Width | 120 mm |
