Sharp · MPN: 100014266
£967.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £322.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Processor modelG3900E
  • Memory clock speed2133 MHz
  • Internal memory typeDDR4-SDRAM
  • Weight900 g
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

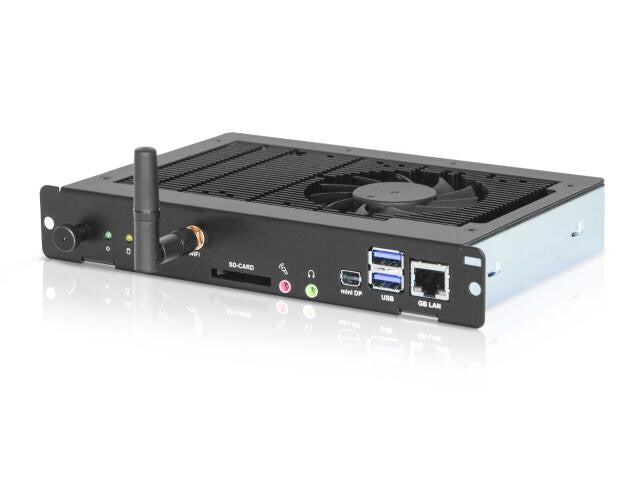

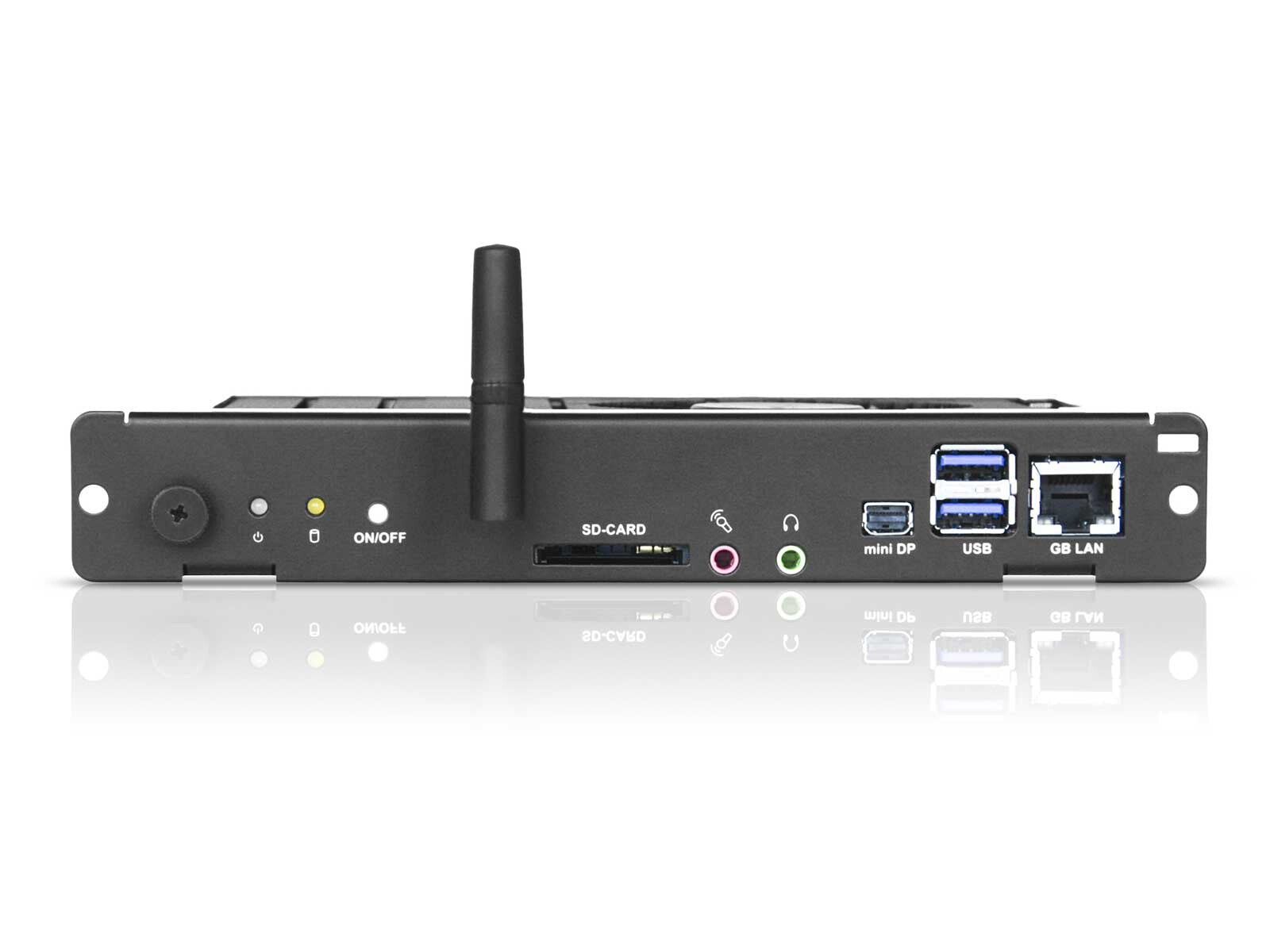

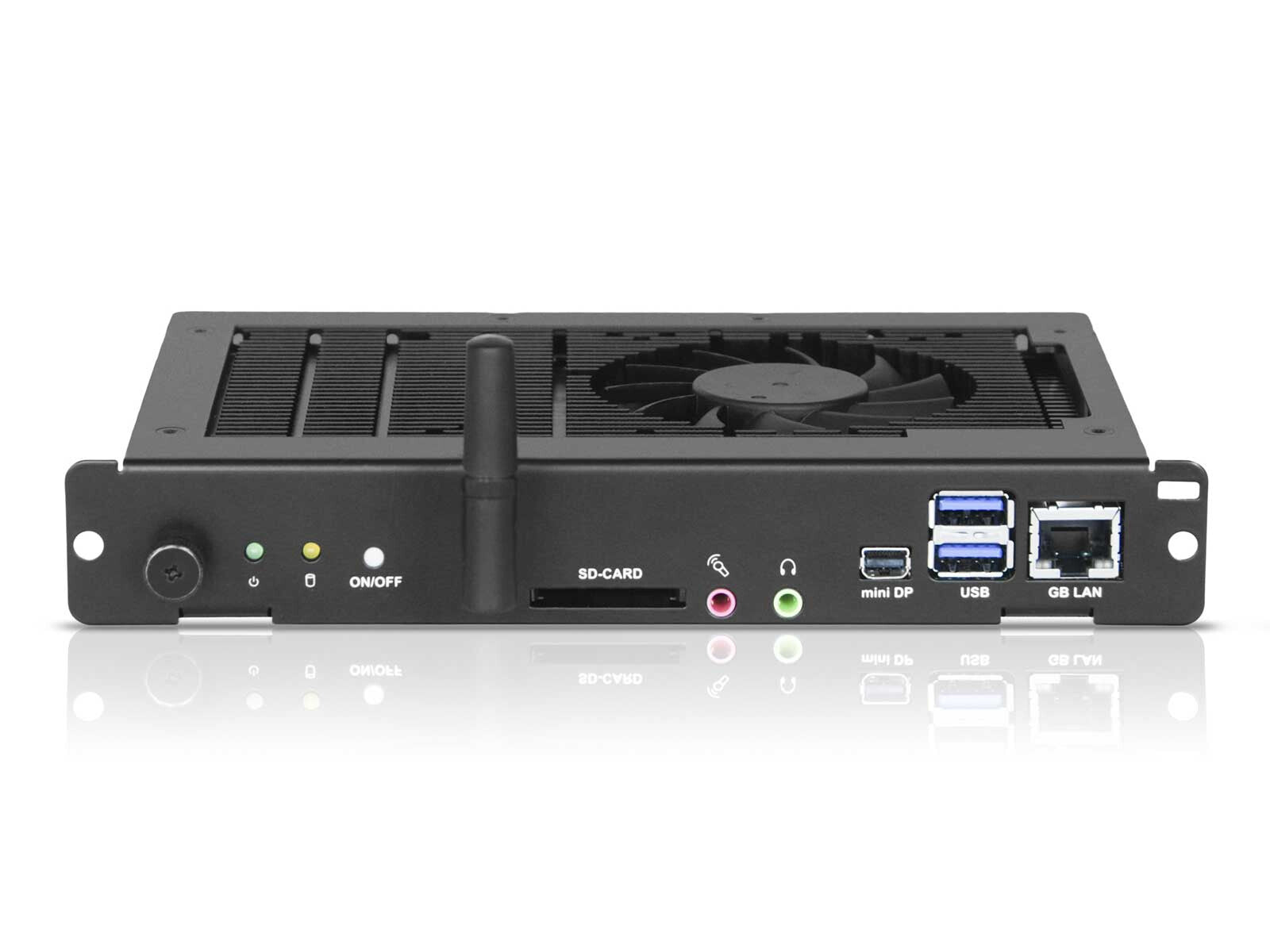

OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices

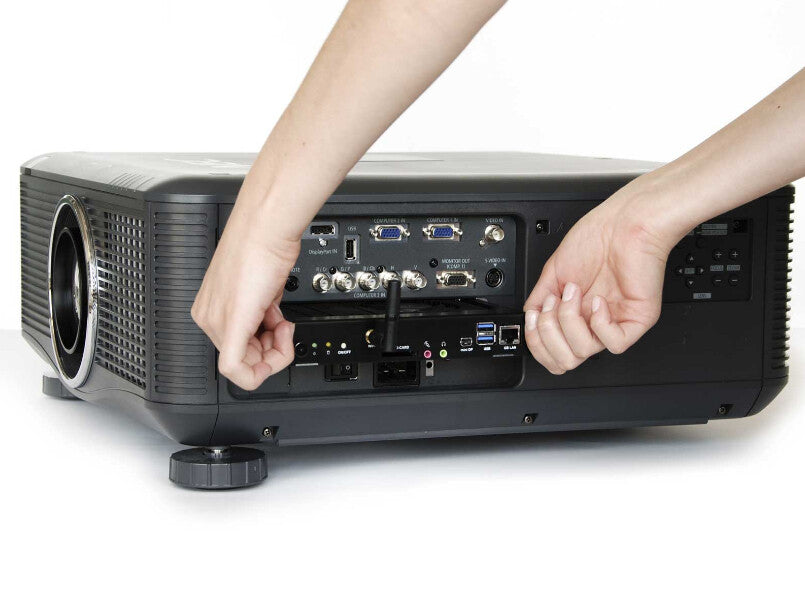

The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot

Delivering Genuine Benefits

- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Tailor-made solution - extensive user configurations with a variety of processors, solid state drives, RAM and operating systems as well as W-LAN, TPM and G3.75 connectivity.
- High reliability - ideally suited for 24/7 operation due to the use of industrial grade components.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- Secure greatness - 6th generation Intel® vProTM processors deliver security protection as well as AMT remote management functionality for the enterprise.
- Ideal for Digital Signage - compatible with OPS standard for option slot products enabling easier installation, operation and maintenance of digital signs.
- Economical - enjoy more performance whilst consuming less power.

Specifications

Processor

Memory voltage supported by processor1.35 V
ECC supported by processorYes
Memory bandwidth supported by processor (max)34.1 GB/s
Memory clock speeds supported by processor1333,1600,1866,2133 MHz
Memory types supported by processorDDR3L-SDRAM, DDR4-SDRAM
Conflict-Free processorYes
Maximum internal memory supported by processor64 GB
Tjunction100 °C
PCI Express configurations1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes16
Processor seriesIntel Celeron Processor G3000 series for Desktop
Thermal Design Power (TDP)35 W
Processor codenameSkylake
Bus typeDMI3
SteppingR0
Processor operating modes64-bit
Processor lithography14 nm
PCI Express slots version3.0
Processor threads2
System bus rate8 GT/s
Processor cache typeSmart Cache
Processor cache2 MB
Processor socketBGA 1440
Processor cores2
Processor modelG3900E
Processor familyIntel® Celeron® G
Processor frequency2.4 GHz

Memory

Memory channelsDual-channel
ECCYes
Memory clock speed2133 MHz
Memory slots2x SO-DIMM
Maximum internal memory16 GB
Internal memory typeDDR4-SDRAM
Internal memory4 GB
Show all 111 specificationsShow fewer specifications

Storage

SSD capacity64 GB
SSD interfaceMicro Serial ATA III
Card reader integratedYes
Compatible memory cardsSD
Storage mediaSSD
Total storage capacity64 GB

Graphics

Number of displays supported (on-board graphics)3
Discrete graphics card modelNot available
On-board graphics card ID0x1902
On-board graphics card OpenGL version4.4
On-board graphics card DirectX version12.0
On-board graphics card dynamic frequency (max)950 MHz
On-board graphics card base frequency350 MHz
Maximum on-board graphics card memory64 GB
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 510
On-board graphics cardYes

Network

Wake-on-LAN readyYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000Base-T(X)
Wi-FiNo

Ports & interfaces

Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
Mini DisplayPorts quantity1
DVI portNo
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2

Performance

Product colourBlack

Software

Operating system installedWindows Embedded Standard 7

Processor special features

Processor ARK ID90713
Processor package size42 x 28 mm
Intel TSX-NI version0.00
Intel Virtualization Technology (VT-x)Yes
Intel Small Business Advantage (SBA) version0.00
Intel Secure Key Technology version1.00
Intel Software Guard Extensions (Intel SGX)Yes
Intel Clear Video TechnologyYes
Intel Virtualization Technology for Directed I/O (VT-d)Yes
Intel® OS GuardNo
Intel Stable Image Platform Program (SIPP)No
Intel 64Yes
Intel® Secure KeyYes
Intel TSX-NINo
Intel® Small Business Advantage (Intel® SBA)No
Graphics & IMC lithography14 nm
Embedded options availableYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)Yes
Intel Enhanced Halt StateYes
Scalability1S
Intel Trusted Execution TechnologyNo
Thermal Monitoring TechnologiesYes
Idle StatesYes
Execute Disable BitYes
Enhanced Intel SpeedStep TechnologyYes
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Insider™Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Wireless Display (Intel® WiDi)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost TechnologyNo
Intel® Hyper Threading Technology (Intel® HT Technology)No
Processor codeSR2GH
Supported instruction setsSSE4.1, SSE4.2

Power

Power consumption (typical)35 W

Operational conditions

Operating relative humidity (H-H)0 - 90%
Operating temperature (T-T)0 - 40 °C

Certificates

CertificationCE, FCC

Weight & dimensions

Package weight1 kg
Package height60 mm
Package depth200 mm
Package width260 mm
Weight900 g
Height30 mm
Depth120 mm
Width200 mm
