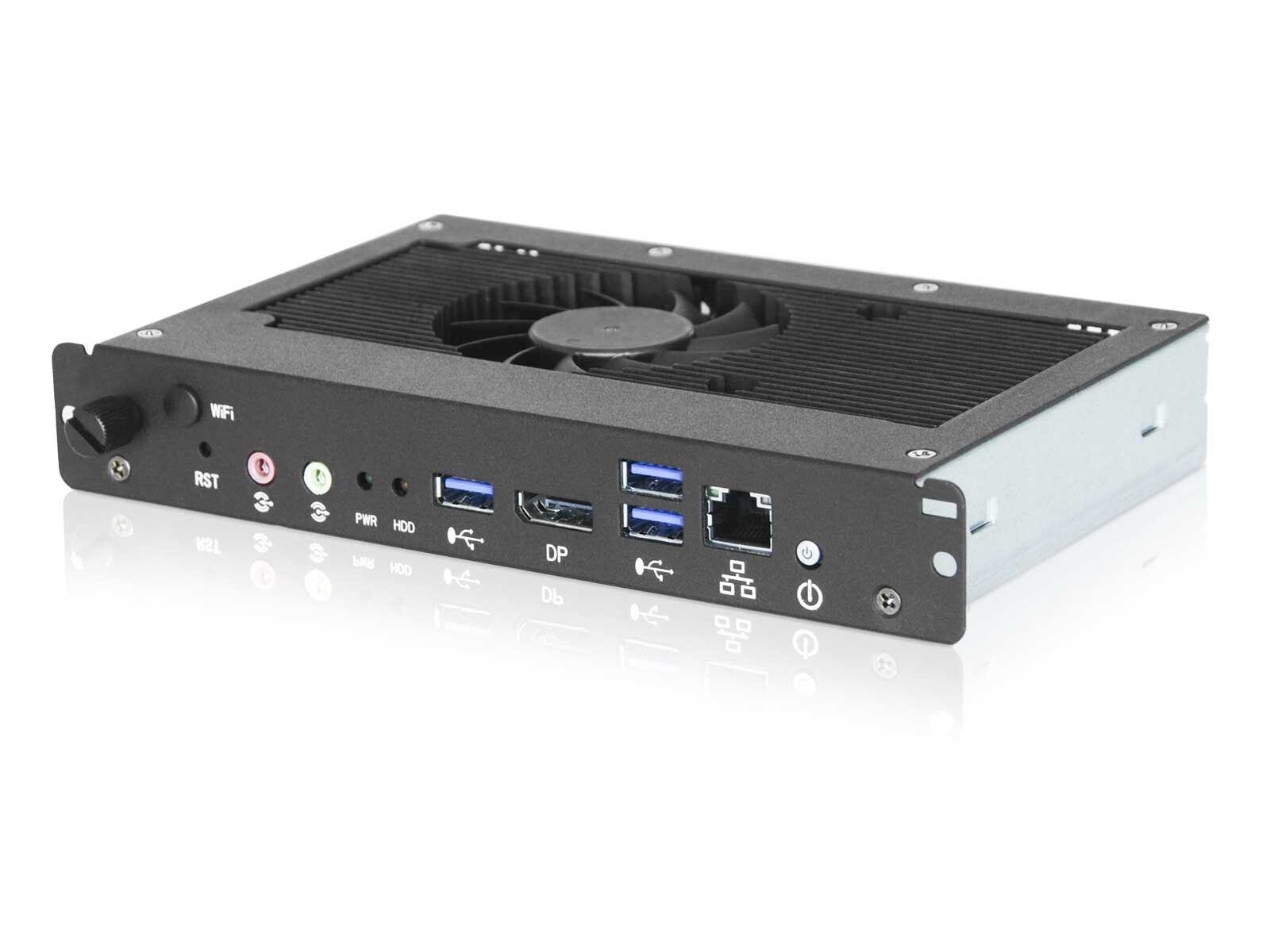

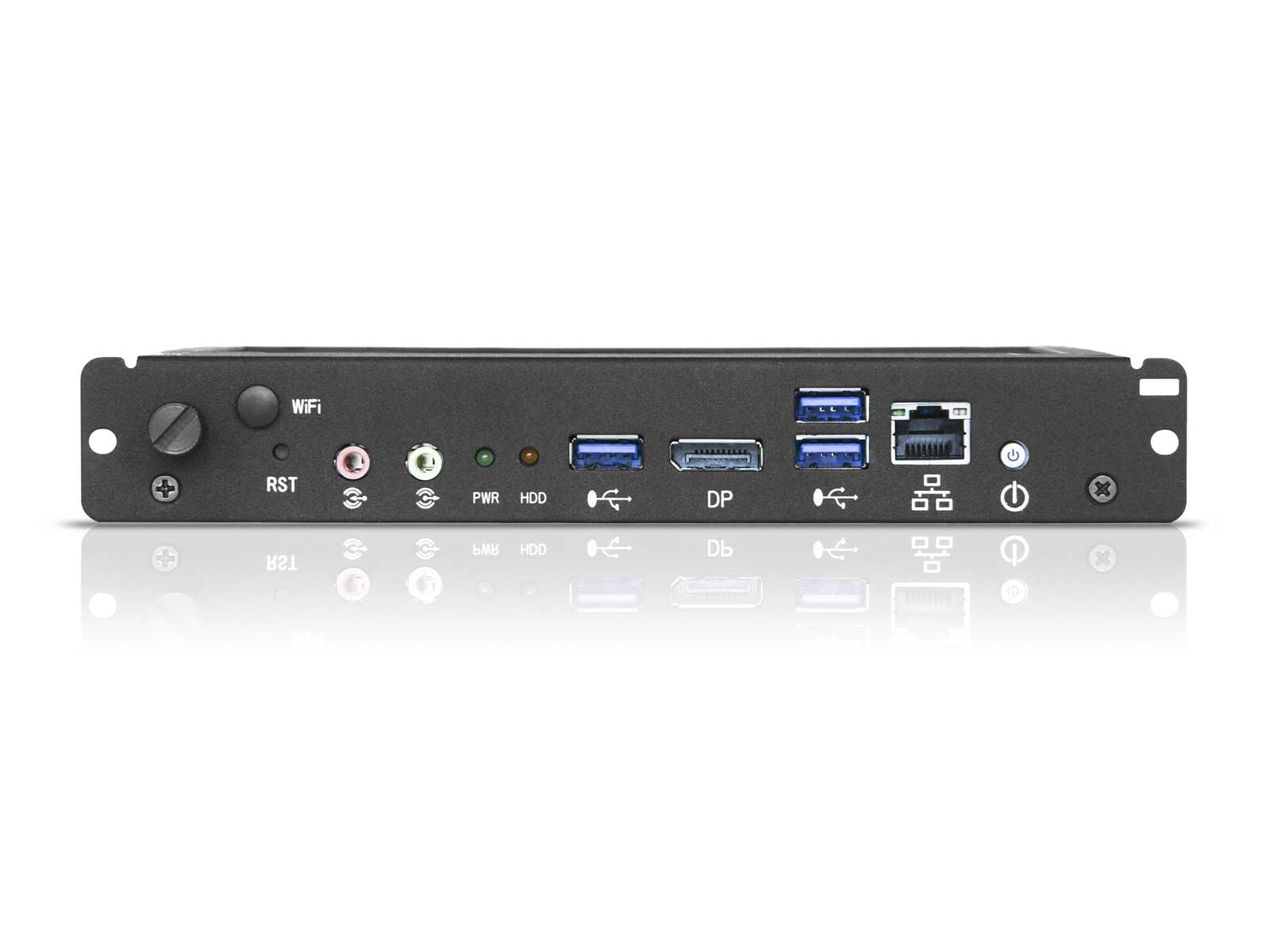

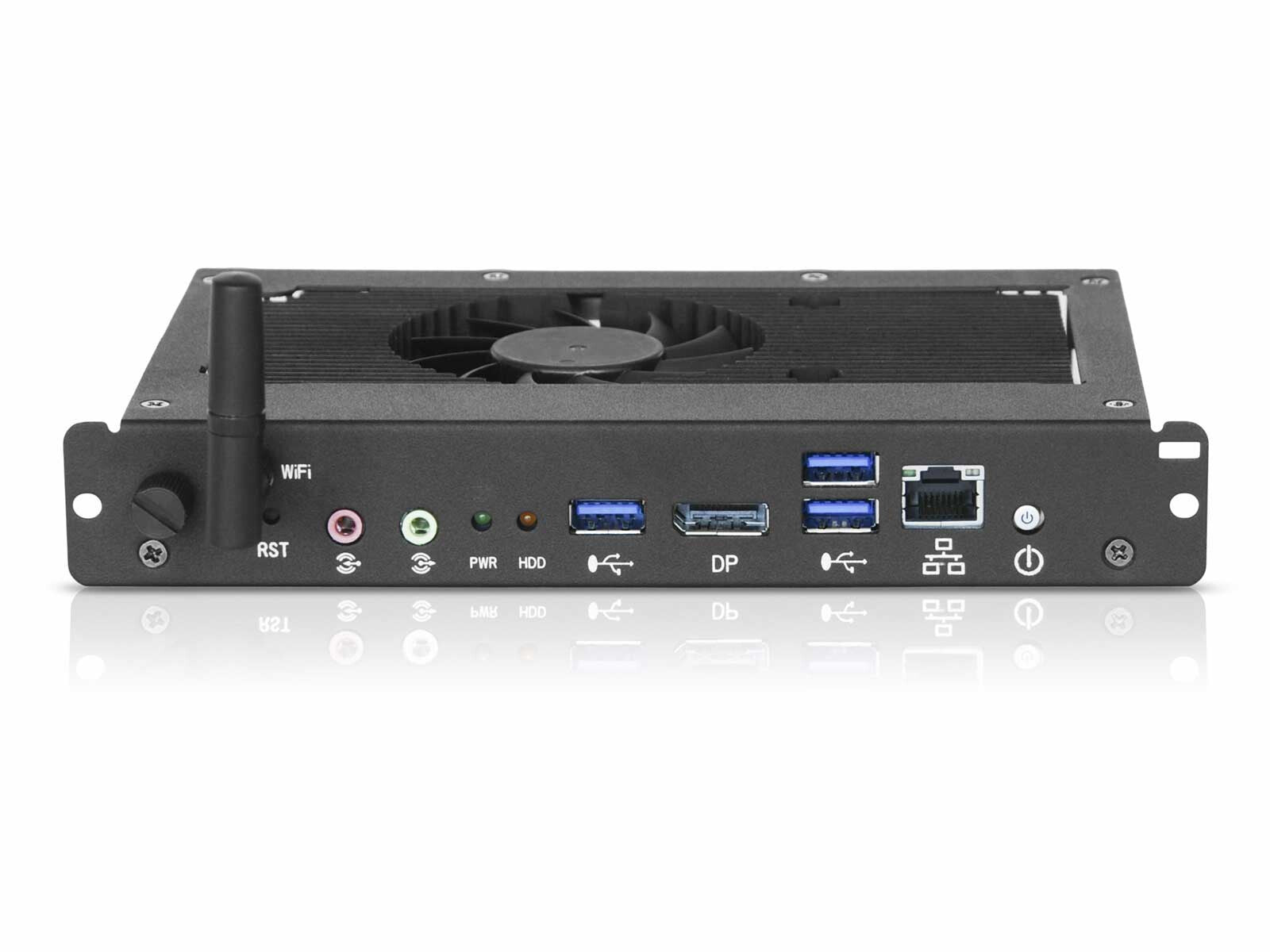

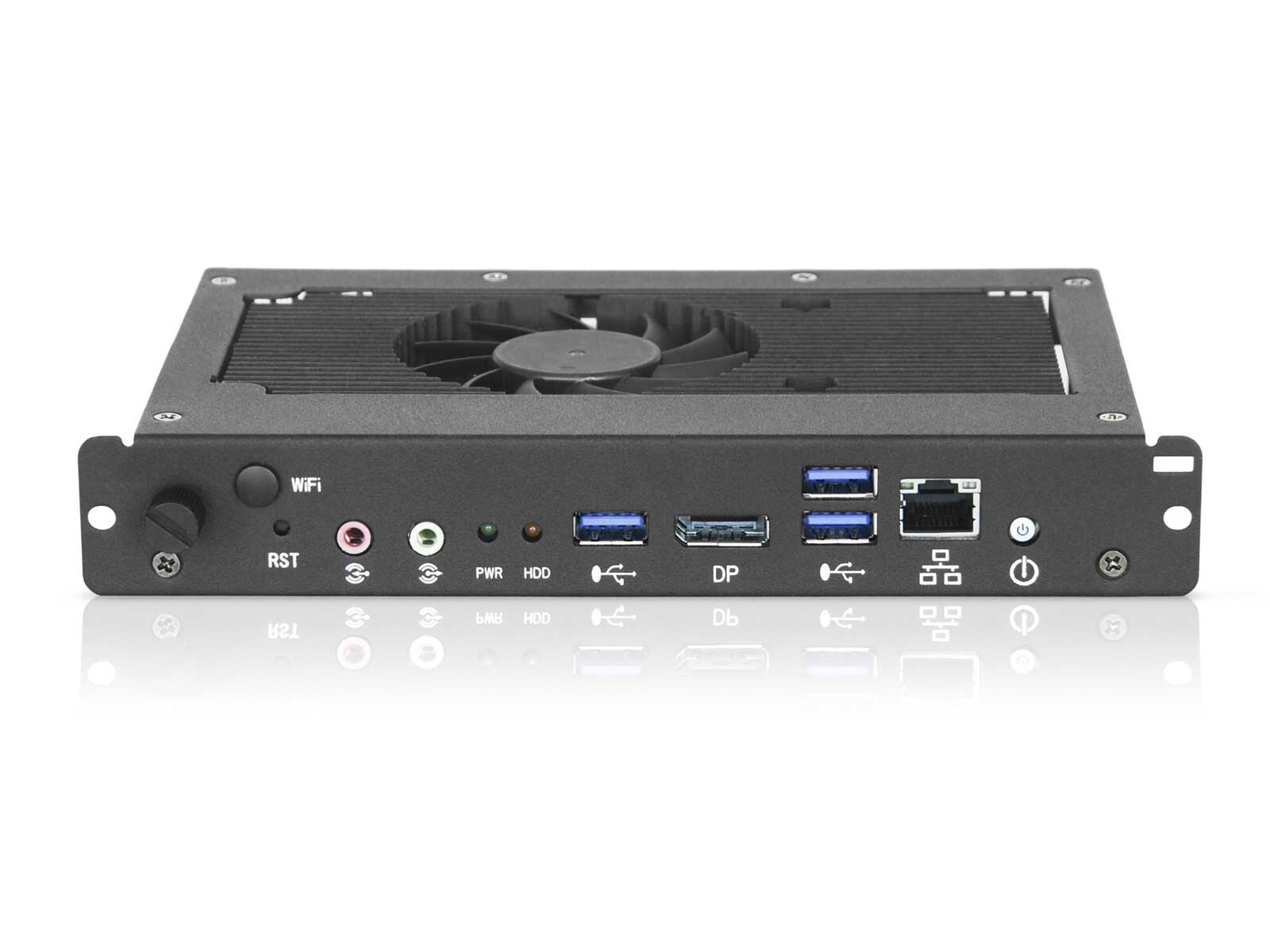

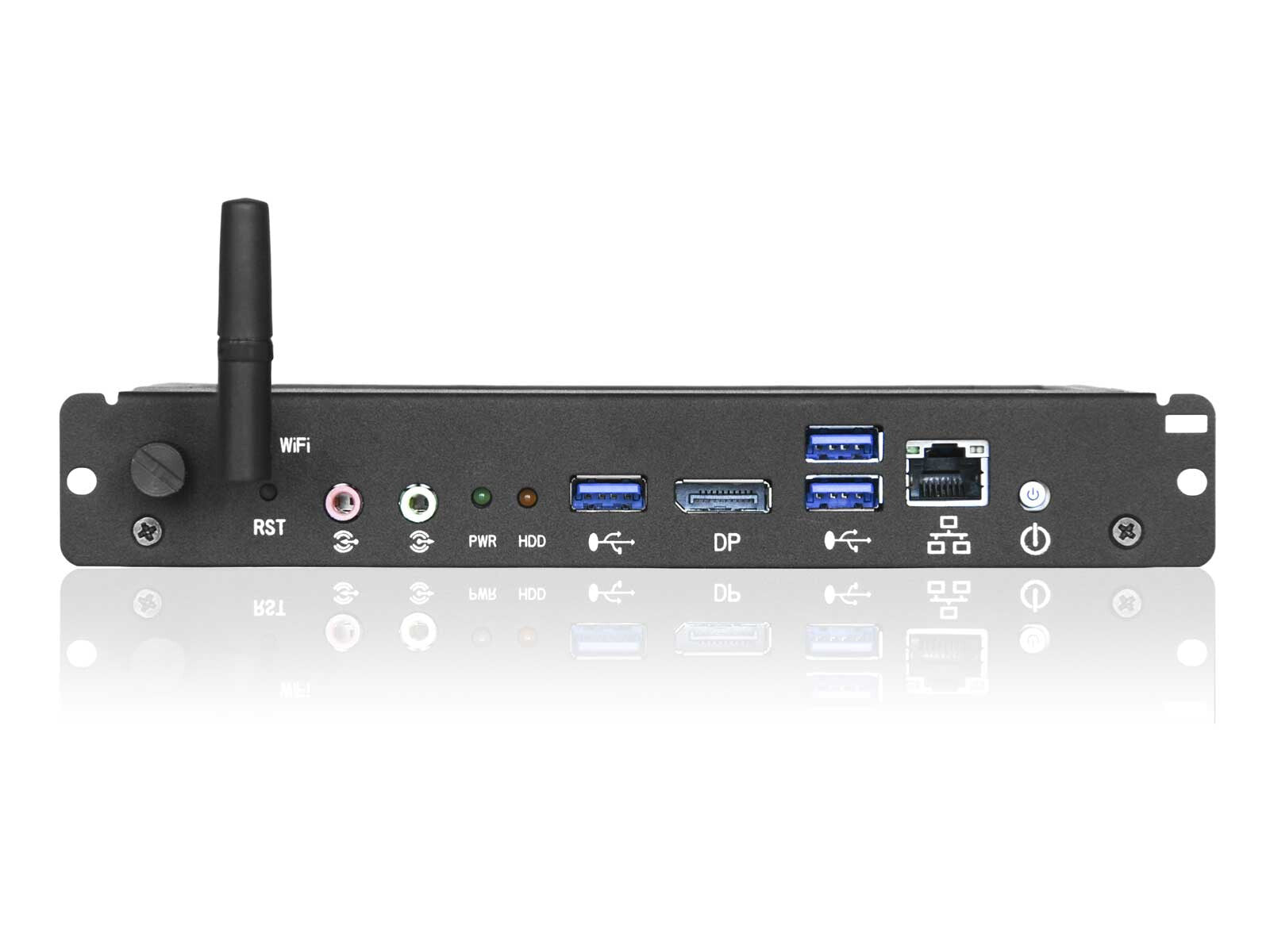

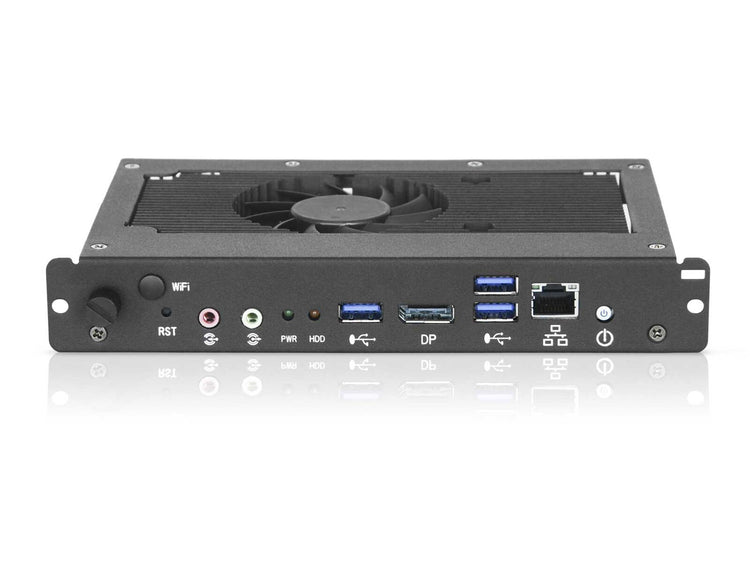

NEC OPS-Sky-Cel-d4/64/W7e A 2.4 GHz Intel® Celeron® G 64 GB SSD 4 GB
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £302.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modelG3900E
- Memory clock speed2133 MHz
- Internal memory typeDDR4-SDRAM
- Weight900 g
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
OPS Slot-In PCs make digital signage simpler and more flexible without additional cables or devices
The full line-up of OPS Slot-in PCs supports a wide variety of applications starting from static content playback and ranging to the most demanding interactive, high resolution or resource hungry applications. The 6th generation Intel® processors (Skylake) deliver a new class of computing to power the next generation of slot-in computing. The OPS concept provides a compact and fully embedded solution ensuring that all connectors are integrated including power, video & audio signals and RS-232. All NEC large format displays (except E series 32" to 65"), PX and PH installation projectors feature this option slot.
Delivering Genuine Benefits
- Powerful possibilities - the 6th generation Intel® processors deliver a new class of computing with a host of new features to power the next generation of embedded computing.
- Intel® HD graphics - provides Ultra HD resolution, intense detail and faster frame rates, giving you a remarkable visual experience.
- Industrial grade components - secure high reliability whilst withstanding extreme operating conditions.
- Seamless and fully embedded - as all connectors are inside the display including power, video, audio signals and RS-232, no external cables are required.
- High usage flexibility - thanks to wide connectivity such as 3 x USB, DisplayPort out, Gigabit ethernet and audio.
- Upgrade the power of your displays at any time - savings are possible by upgrading only your OPS device or your display with no need to change all hardware.
- A commitment to quality - tailored warranties available to best match long-term demands by extending standard warranty up to 5 years.
- Economical - enjoy more performance whilst consuming less power.
Specifications
Processor
| Memory voltage supported by processor | 1.35 V |
|---|---|
| ECC supported by processor | Yes |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Conflict-Free processor | Yes |
| Maximum internal memory supported by processor | 64 GB |
| Tjunction | 100 °C |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Maximum number of PCI Express lanes | 16 |
| Processor series | Intel Celeron Processor G3000 series for Desktop |
| Thermal Design Power (TDP) | 35 W |
| Processor codename | Skylake |
| Bus type | DMI3 |
| Stepping | R0 |
| Processor operating modes | 64-bit |
| Processor lithography | 14 nm |
| PCI Express slots version | 3.0 |
| Processor threads | 2 |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 2 MB |
| Processor socket | BGA 1440 |
| Processor cores | 2 |
| Processor model | G3900E |
| Processor family | Intel® Celeron® G |
| Processor frequency | 2.4 GHz |
Memory
| Memory channels | Dual-channel |
|---|---|
| ECC | Yes |
| Memory clock speed | 2133 MHz |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 4 GB |
Show all 111 specificationsShow fewer specifications
Storage
| SSD capacity | 64 GB |
|---|---|
| SSD interface | M.2 |
| Card reader integrated | No |
| Storage media | SSD |
| Total storage capacity | 64 GB |
Graphics
| Number of displays supported (on-board graphics) | 3 |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card ID | 0x1902 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card dynamic frequency (max) | 950 MHz |
| On-board graphics card base frequency | 350 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 510 |
| On-board graphics card | Yes |
Network
| Wake-on-LAN ready | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Microphone in | Yes |
|---|---|
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DVI port | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Performance
| Product colour | Black |
|---|---|
| Motherboard chipset | Intel® HM170 |
Software
| Operating system installed | Windows Embedded Standard 7 |
|---|
Processor special features
| Processor ARK ID | 90713 |
|---|---|
| Processor package size | 42 x 28 mm |
| Intel TSX-NI version | 0.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel 64 | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Graphics & IMC lithography | 14 nm |
| Embedded options available | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel Enhanced Halt State | Yes |
| Scalability | 1S |
| Intel Trusted Execution Technology | No |
| Thermal Monitoring Technologies | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Insider™ | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Processor code | SR2GH |
| Supported instruction sets | SSE4.1, SSE4.2 |
Power
| Power consumption (typical) | 35 W |
|---|
Operational conditions
| Operating relative humidity (H-H) | 0 - 90% |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Certification | CE, FCC |
|---|
Weight & dimensions
| Package weight | 1 kg |
|---|---|
| Package height | 70 mm |
| Package depth | 190 mm |
| Package width | 260 mm |
| Weight | 900 g |
| Height | 30 mm |
| Depth | 120 mm |
| Width | 200 mm |
