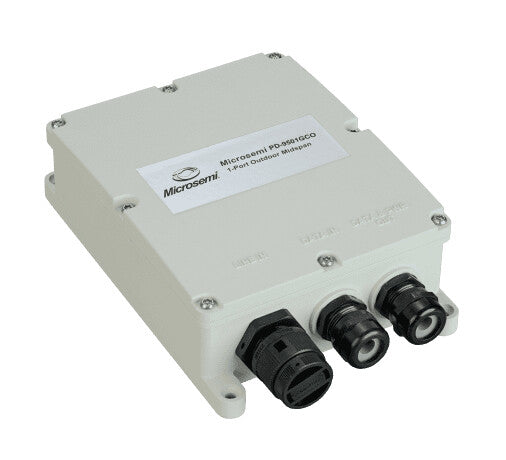

Microsemi PD-9501GCO Fast Ethernet, Gigabit Ethernet 54 V

Microsemi PD-9501GCO Fast Ethernet, Gigabit Ethernet 54 V

Microchip Technology
£211.99
Stock Available: 0
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP67

Summary

The single-port midspan offers a cost effective, IEEE 802.3bt Type3 compliant solution for outdoor installations, guaranteeing 60 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoE data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9501GCO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.

Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Fast Ethernet, Gigabit Ethernet
Features
Pin assignment & polarity : 4/5 (+), 7/8 (–), 1/2(–), 3/6(+)
Surge protection Yes
Plug and Play Yes
Product colour Black, White
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) power per port 60 W
Input current 2 A
Input frequency 50/60 Hz
Input voltage 100-240 V
Power over Ethernet (PoE) voltage 54 V
Certificates
Certification IP67, CE, FCC Part 15, Class B, EN 55032 Class B (Emissions), EN 55024, EN61000-4-5: Class 5 (AC lines 6kV CM/DM) VCCI, UL/IEC/EN 60950-1 (ed.2), UL 60950-22, NEMA 250, Level 4X ASTM B-117
Compliance certificates RoHS, WEEE
Operational conditions
Operating altitude 0 - 2000 m
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 65 °C
Weight & dimensions
Weight 1.4 kg
Height 60 mm
Depth 140 mm
Width 170 mm
