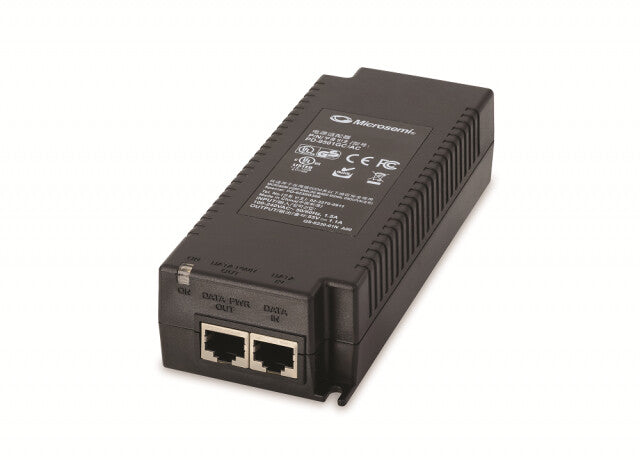

Microsemi PD-9501GC Gigabit Ethernet 55 V

Microsemi PD-9501GC Gigabit Ethernet 55 V

Microchip Technology
£73.99
Stock Available: 0
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps

Summary

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.

Network
Networking standards IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Features
Pin assignment & polarity 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
LED indicators Yes
Product colour Black
Ports & interfaces
RJ-45 output ports 1
RJ-45 input ports 1
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) power per port 60 W
Input current 1.5 A
Input frequency 50/60 Hz
Input voltage 100-240 V
Power over Ethernet (PoE) voltage 55 V
Certificates
Certification FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI, UL/EN/IEC 60950-1 (Ed.2)
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 340 g
Height 38 mm
Depth 151 mm
Width 62 mm
