Microsemi PD-9001GO-ET Gigabit Ethernet 54 V

Microsemi PD-9001GO-ET Gigabit Ethernet 54 V

Microchip Technology
£151.99
Stock Available: 0
  • Outdoor rated: IP67
  • Extended temperature range –40 °C to 65 °C
  • One part number for worldwide use (AC connector)
  • IEEE 802.3at standard-compliant—30 W
  • Supports 10/100/1000 Mbps data rates
  • Plug and play installation (installer does not have to open unit)
  • Supports both IEEE 802.3af and IEEE 802.3at powered devices
  • Includes integrated surge protection

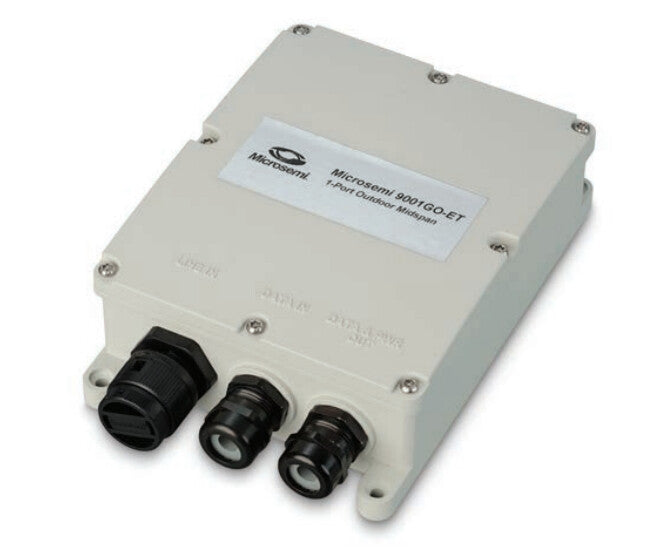

PD-9001GO-ET Midspan

Microsemi’s PD-9001GO-ET Power over Ethernet (PoE) single-port midspan offers a cost-effective, IEEE 802.3atcompliant solution for outdoor installations, guaranteeing 30 W of power and ensuring safe and reliable operation of any standard PoE data terminal in outdoor environments. It allows wireless LAN access points, security network cameras, and other IP terminals to receive power and data over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9001GO-ET also offers surge protection for both the AC and the PoE ports, ensuring the indoor equipment is protected from outdoor surges.

Network
Networking standards IEEE 802.3af, IEEE 802.3at
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Features
Pin assignment & polarity 7/8 (–) 4/5 (+)
Surge protection Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Power
Power over Ethernet (PoE) power per port 30 W
Input current 1 A
Input frequency 50/60 Hz
Input voltage 100-240 V
Power over Ethernet (PoE) voltage 54 V
Certificates
Certification IP67, FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024, EN61000-4-5 Class 5, (6 kV CM/DM), VCCI, UL/IEC/EN 60950-1, UL60950-22, NEMA 250, level 4X ASTM B-117, CE
Compliance certificates RoHS, WEEE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) -40 - 65 °C
Weight & dimensions
Weight 1.4 kg
Height 60 mm
Depth 140 mm
Width 170 mm
Logistics data
Harmonized System (HS) code 85044090
