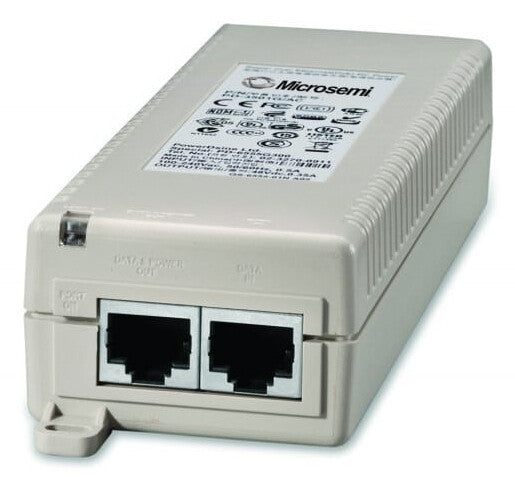

Microsemi PD-3501G Gigabit Ethernet 48 V
£31.99
Couldn't load pickup availability
- Safe and reliable power over existing Ethernet infrastructure
- Stackable and compact
- Legacy PoE Support
- Plug-and-play installation
Microchip’s PD-3501G singleport PoE midspan offers a compact and cost effective, IEEE 802.3af compliant solution for powering IP phones, WLAN access points, network cameras and other IP terminal devices. The compact and affordable PD3501G provides reliable power over standard Ethernet cables, leaving existing network infrastructure completely unaltered. With plug-and-play installation, the PD-3501G can be easily and cost effectively implemented leveraging the existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
|---|---|
| Safety | UL/IEC/EN 62368-1 |
| LED indicators | Yes |
| Plug and Play | Yes |
| Product colour | Grey |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) power per port | 15.4 W |
| Input current | 0.43 A |
| AC adapter frequency | 50/60 Hz |
| AC adapter input voltage | 100 - 240 V |
| Power over Ethernet (PoE) voltage | 48 V |
| Certificates | |
|---|---|
| Compliance certificates | WEEE, CE |
| Operational conditions | |
|---|---|
| Operating altitude | -304.8 - 3048 m |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -10 - 40 °C |
| Weight & dimensions | |
|---|---|
| Dimensions (WxDxH) | 51.8 x 140 x 33.5 mm |
| Weight | 350 g |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
