Microsemi 990-15202-200 network antenna 4.5 dBi
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £216.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- White
- 4.5 dBi
- 1575 - 1606 GHz

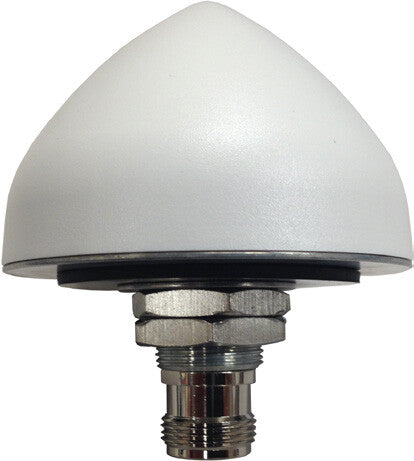

The standard antenna used with the SyncServer S600/S650 is a high-gain (40 dB) GNSS antenna covering the GPS L1, GLONASS L1, and SBAS (WAAS, EGNOS, and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included.
Specifications
Performance
| Bandwidth note | 31 MHz |
|---|---|
| Frequency band | 1575 - 1606 GHz |
| Antenna gain level (max) | 4.5 dBi |
Features
| Cable length | 61 m |
|---|---|
| International Protection (IP) code | IP67 |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
Show all 13 specificationsShow fewer specifications
Certificates
| Certification | CE, REACH |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Operating temperature (T-T) | -40 - 85 °C |
|---|
Weight & dimensions
| Diameter | 6.65 cm |
|---|---|
| Height | 21 mm |
Packaging content
| Quantity per pack | 1 pc(s) |
|---|
