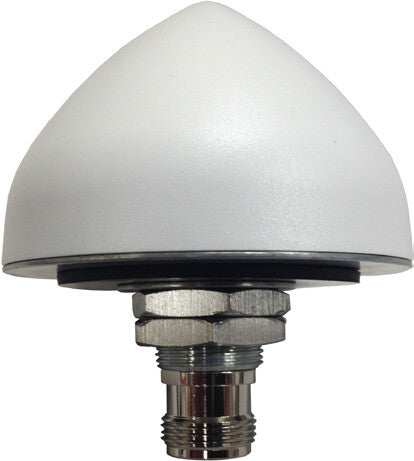

Microsemi 990-15202-100 network antenna 4.5 dBi
£545.99
Couldn't load pickup availability
- White
- 4.5 dBi
- 1575 - 1606 GHz
The standard antenna used with the SyncServer S600/S650 is a high-gain (40 dB) GNSS antenna covering the GPS L1, GLONASS L1, and SBAS (WAAS, EGNOS, and MSAS) frequency band (1575 MHz to 1606 MHz). The antenna has a three-stage low-noise amplifier, with a mid-section SAW with a tight pre-filter to protect against saturation by high- level sub-harmonics and L-Band signals, making it excellent for timing applications. An L-bracket for pole mounting and 3-foot BNC(m) to N(f) cable is also included.
| Performance | |
|---|---|
| Bandwidth note | 31 MHz |
| Frequency band | 1575 - 1606 GHz |
| Antenna gain level (max) | 4.5 dBi |
| Features | |
|---|---|
| Cable length | 30.5 m |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Certificates | |
|---|---|
| Certification | CE, REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Diameter | 6.65 cm |
| Height | 21 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85177100 |
