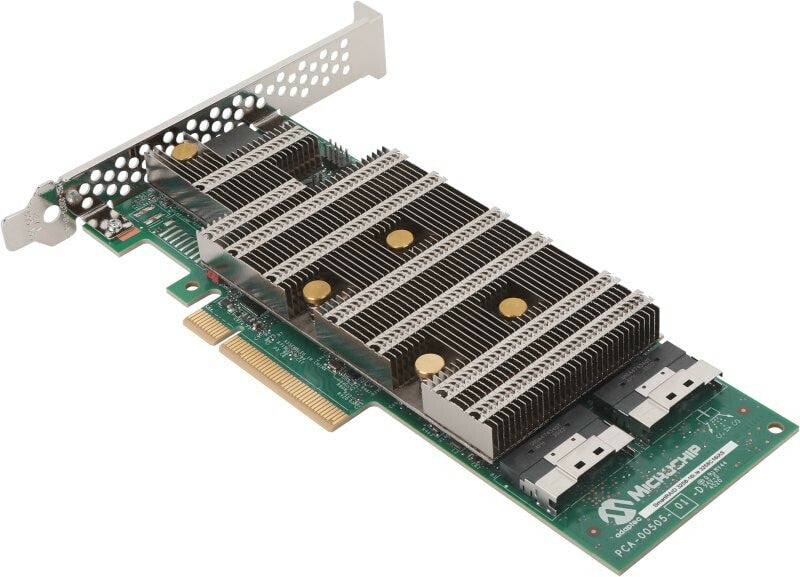

Microchip Technology SmartRAID 3258-16i/e RAID controller PCI Express x8 4.0
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £336.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Memory clock speed3200 MHz
- Internal memory typeDDR4
- Internal memory8000 MB
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Superior performance with up to 14.8 GB/s throughput and 3.4M IOPs 4K random reads
- Integrated PCIe Switch enables DirectPath technology for the industry's lowest latency and high bandwidth NVMe solution
- Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled throughput
- Microchip’s Trusted Platform support with a new level of compute and supply chain security based on Hardware Root of Trust
- Expanded unique maxCrypto™ Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media
- Self-Encrypting Drive (SED) management software
- Common management experience across Smart Storage platform and tri-mode media
- Support for both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility
- SGPIO and SCSI Enclosure Services (SES) allow a common way to manage device status and activity for directly connected storage devices or for devices connected behind a SAS expander
- Industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration
SmartRAID 3258-16i /e
24G SAS/SATA/NVMe PCIe Gen 4 RAID Adapter
The Adaptec® SmartRAID 3258-16i /e RAID adapter offers maximum performance with SAS/SATA/NVMe Tri-Mode functionality for server OEM, storage systems, data center, and enterprise customers than previous generations.
Built on Microchip's proven 5th generation SmartROC 3200 storage controller, the SmartRAID 3258-16i /e supports a x8 PCIe Gen 4 host interface with 16 media facing port variants for internal Tri-Mode connectivity. New technologies available with the SmartRAID 3200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage.
SmartRAID 3200 adapters include Microchip’s Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. For additional layers of security, Microchip has now expanded on its unique Adaptec maxCrypto Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media, and also supports Self-Encrypting Drive (SED) management software.
The SmartRAID 3200 RAID adapters also support both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.
Specifications
Ports & interfaces
| Internal SAS ports | 16 |
|---|---|
| PCI Express slots version | 4.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS-4, Serial ATA |
Performance
| Memory clock speed | 3200 MHz |
|---|---|
| Internal memory type | DDR4 |
| Internal memory | 8000 MB |
| SSD support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
Show all 11 specificationsShow fewer specifications
Weight & dimensions
| Height | 64 mm |
|---|---|
| Width | 167 mm |
