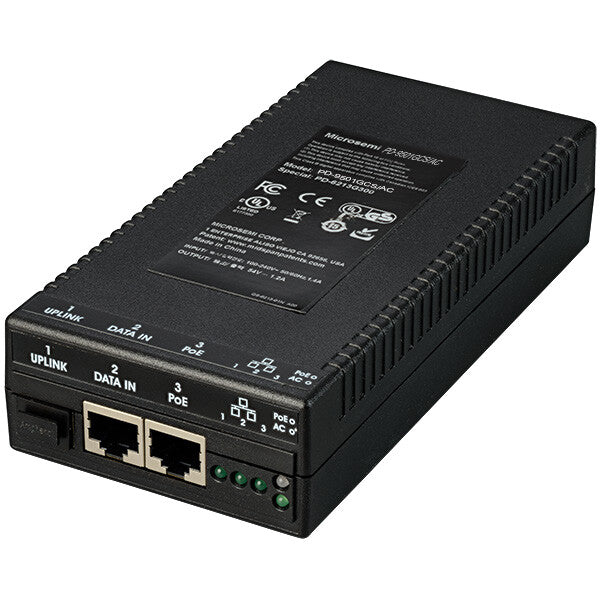

Microchip Technology PD-9501GCS/AC-UK PoE adapter Gigabit Ethernet 54 V

Microchip Technology PD-9501GCS/AC-UK PoE adapter Gigabit Ethernet 54 V

Microchip Technology
£245.99
Stock Available: 0
  • Media converter–SFP to PoE
  • IEEE 802.bt Type 3 compliant
  • IEEE 802.3af/at backward compliant
  • All 3 ports can be active simultaneously
  • Guaranteed output power of 60W over four pairs
  • Supports 10/100/1000 Base-T standard

Our PD-9501GCS is a media converter with PoE functionality that can power up to 60W. It contains three ports that can be active simultaneously and you can input data via an SFP module or RJ45 port.
This media converter offers a unique solution to power long-range installations that receive data input through fiber. You can use standard SFP modules (SM or MM) with this device.
The PD-9501GCS is IEE 802.3bt Type 3-compliant and provides PoE after detection. The PoE port provides the power level required by the end device to offer a safe solution for all types of applications including IEE 802.3af-compliant loads and up to four pairs of IEEE 802.3bt-compliant loads.

Network
Networking standards IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet interface type Gigabit Ethernet
Features
LED indicators Yes
Mean time between failures (MTBF) 150000 h
Product colour Black
Ports & interfaces
RJ-45 output ports 1
RJ-45 input ports 1
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) power per port 60 W
Input current 1.4 A
AC adapter frequency 50/60 Hz
AC adapter input voltage 100 - 240 V
Power over Ethernet (PoE) voltage 54 V
Certificates
Certification CE, WEEEFCC 15, B,EN 55032 BEN 55024VCCI
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 90%
Operating temperature (T-T) -10 - 45 °C
Weight & dimensions
Weight 580 g
Height 36 mm
Depth 80 mm
Width 160 mm
Packaging content
Number of products included 1 pc(s)
Logistics data
Harmonized System (HS) code 85044095
