• Number of ports: 1
• PoE output: 60W
• Data rates: 10/100/1000 Mbps
• Power input: AC
• Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
• Regulatory compliance: IEEE 802.3bt (PoE), RoHS Compliant, WEEE Compliant, CE
• EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
• Safety: UL/EN/IEC 60950-1 (Ed.2)
• Compact design

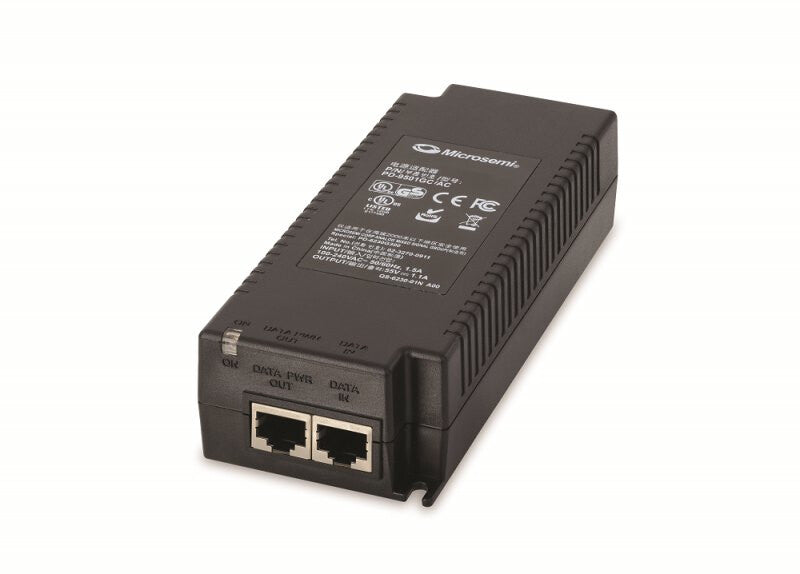

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals. It is also backward compatible and safe to use with any IEEE 802.3af/at terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to 802.3af and 802.3at powered devices.
