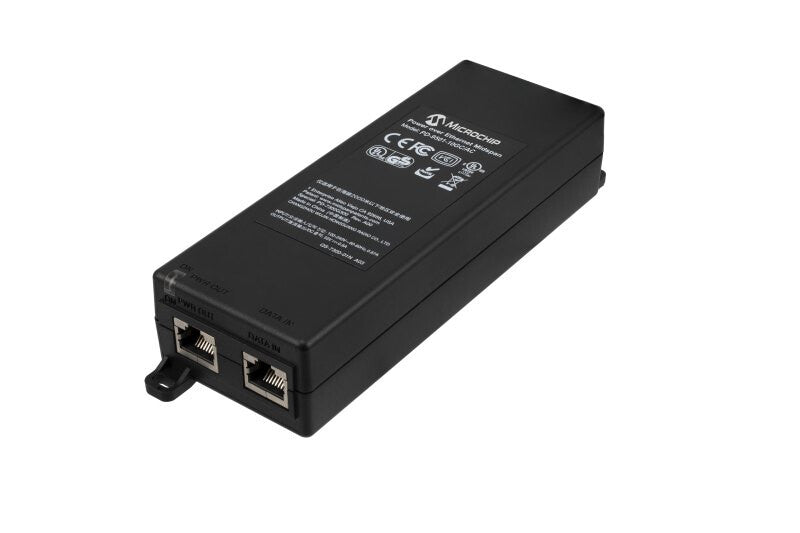

Microchip Technology PD-9501-10GC/AC 10 Gigabit Ethernet
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £36.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Number of ports: 1
- PoE output: 60W
- Data rates: 10/100/1000 Mbps & 10G
- Power input: AC
- Power cord options: US, EU (Europe), UK, EK (Europe and UK), BR (Brazil), AU (Australia), JP (Japan)
- Regulatory compliance: IEEE 802.3bt Type 3 (PoE), RoHS compliant, WEEE compliant, CE
- EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
- Safety: UL/EN/IEC 60950-1 (Ed.2)
The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones.
The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points.
Specifications
Network
| Networking standards | IEEE 802.3bt |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000,2500,5000,10000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
Features
| LED indicators | Yes |
|---|---|
| Mean time between failures (MTBF) | 200000 h |
| Product colour | Black |
Show all 21 specificationsShow fewer specifications
Ports & interfaces
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Power
| Power over Ethernet (PoE) power per port | 60 W |
|---|---|
| Total Power over Ethernet (PoE) budget | 60 W |
Certificates
| Certification | CE, WEEEFCC 15,BEN 55032 BEN 55024VCCI |
|---|
Operational conditions
| Operating altitude | -304.8 - 2000 m |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Weight | 330 g |
|---|---|
| Height | 38.3 mm |
| Depth | 67 mm |
| Width | 176 mm |
Packaging content
| Number of products included | 1 pc(s) |
|---|
