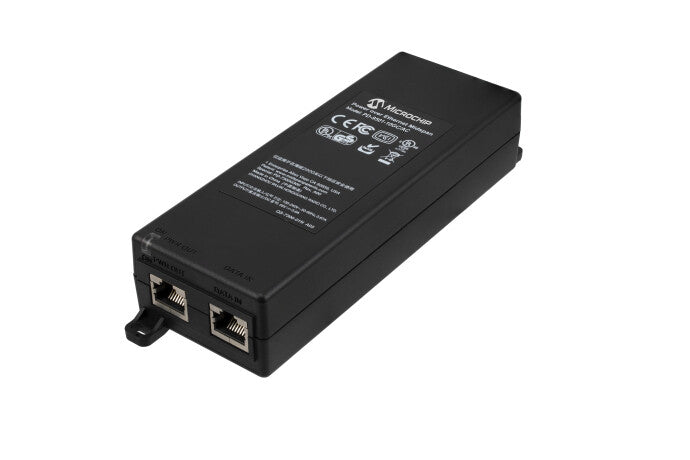

Microchip Technology PD-9501-10GC 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 55 V

Microchip Technology PD-9501-10GC 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet 55 V

Microchip Technology
£100.99
Stock Available: 0
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps & 10G

Summary

The single port PoE midspan is a high-power solution for remote powering of current and emerging high power indoor applications. Generating 60W over 4 pair, the PD-9501-10GC enables remote power for a new range of applications including 802.11ac Access Points, pan-tilt zoom (PTZ) cameras and videophones. The PD-9501-10GC complies with IEEE 802.3bt Type 3 PoE standard and is backward compatible to IEEE 802.3af/at standard. It can power both existing 10/100/1000Base-T network devices and emerging wireless 10 GbE devices such as wireless IEEE 802.11ac access points.

Network
Networking standards IEEE 802.11ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Power over Ethernet (PoE) Yes
Ethernet LAN data rates 10,100,1000,10000 Mbit/s
Ethernet interface type 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Features
Pin assignment & polarity 1/2 (-), 3/6 (+), 7/8 (-), 4/5 (+)
Ports & interfaces
RJ-45 output ports 1
RJ-45 input ports 1
Ethernet LAN (RJ-45) ports 2
Power
Power over Ethernet (PoE) power per port 60 W
Input current 1.5 A
Input frequency 50/60 Hz
Input voltage 100-240 V
Power over Ethernet (PoE) voltage 55 V
Certificates
Certification FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI, UL/EN/IEC 60950-1 (Ed.2)
Compliance certificates RoHS, WEEE
Operational conditions
Storage relative humidity (H-H) 0 - 95%
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 330 g
Height 38.3 mm
Depth 176 mm
Width 67 mm
Logistics data
Harmonized System (HS) code 85044095
