£23.99

Stock Available: 50
  • Compatible with friction-type, contact smart cards
  • Ideal for transactions and applications requiring secure information exchanges
  • For use with government, health care, banking, entertainment and more
  • Supports host communication speeds of up to 12 Mbps
  • Installs quickly and easily
  • Three-Year Warranty

Improve secured data and access protection.
Smart card technology finds popular applications in security and access control, financial transactions, medical records, loyalty programs, toll and vending collection, enterprise or single-user network sign-on and more that require secure information exchanges. Contact smart cards have a contact, or chip area with several contact pads that, when inserted into a Manhattan Smart Card Reader, can authenticate the user and safely transfer information between the card and the host computer. Smart cards are utilized extensively in Europe and Asia, and the use of smart cards is growing in North and South America. They replace less secure and less reliable barcode ID and magnetic stripe cards to provide flexible and standard transactions and strong, tamper-resistant authentication with minimal human intervention.

Quick and Easy Installation

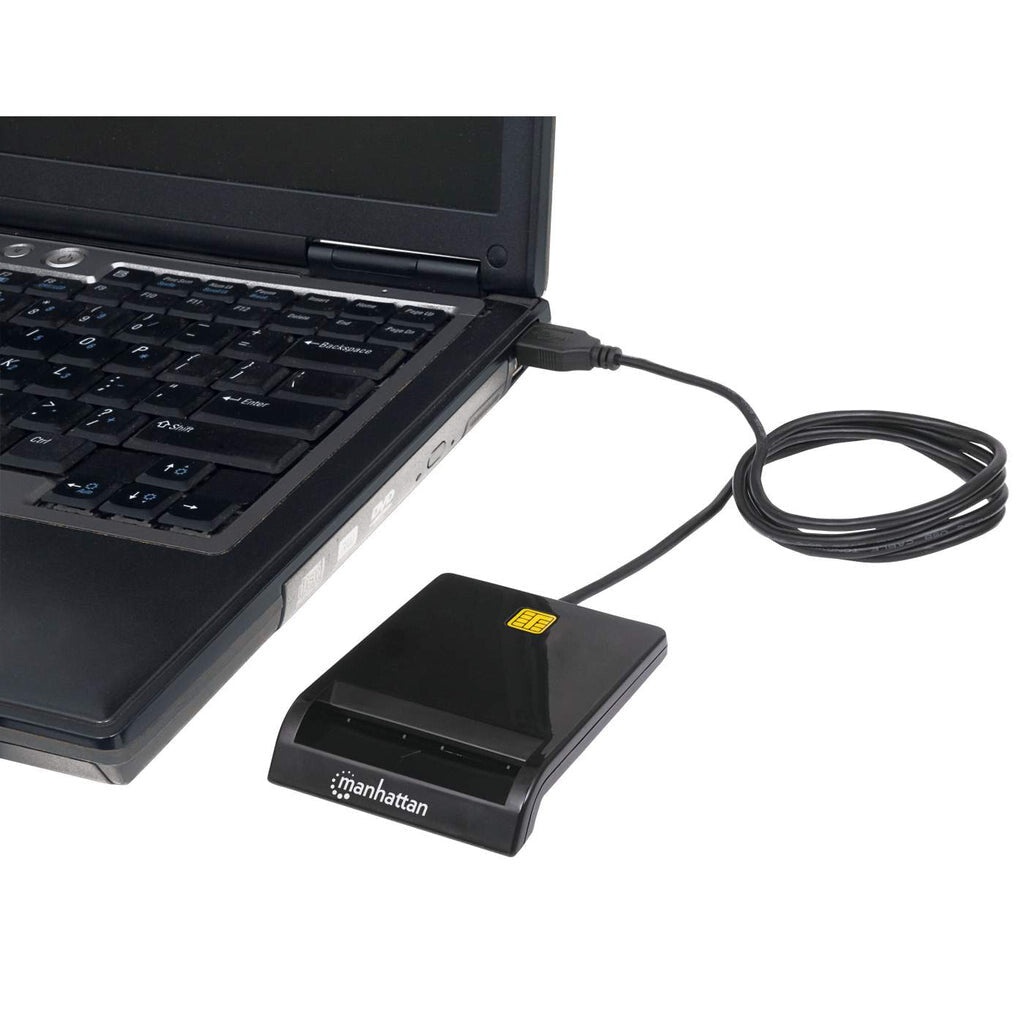

Ideal for desktop and notebook computers without built-in readers, the Manhattan Smart Card Reader is easily installed using any USB port and the included software and driver CD. Plug and play with Windows and Mac compatibility, it requires no external power supply or cables - just a simple USB connection.

Features
Mean cycles between failures (MCBF) 200000
Plug and Play Yes
Application area Banking & payments, Healthcare
Product type Universal smart card reader
Design
Cable length 1.05 m
LED indicators Activity, Power
Housing material Acrylonitrile butadiene styrene (ABS)
Product colour Black
Placement supported Indoor
Ports & interfaces
Compliance industry standards 2-line, 3-line, SLE4418, 4428, 4432, 4442, AT88SC1608, 45D041, I2C
Interface USB 2.0
Power
USB powered Yes
Operating voltage 5 V
Power source USB
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -35 - 70 °C
Technical details
Compliance certificates RoHS
System requirements
Mac operating systems supported Yes
Linux operating systems supported Yes
Mac compatibility Yes
Windows operating systems supported Windows 10, Windows 7, Windows 8.1, Windows Vista, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight & dimensions
Weight 60 g
Depth 85 mm
Height 15 mm
Width 65 mm
Sustainability
Certification FCCECRoHS2usb2.0CCID
Sustainability certificates RoHS
Packaging data
Quick installation guide Yes
