Lindy HDMI ARC Audio Extractor
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £15.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
£4.95 delivery
Express £9.99
Spend £2.01 more for free delivery
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- ARC Enabled: Extract audio signal from ARC (Audio Return Channel) enabled HDTV to analogue stereo output, for audio receiver/amplifier/headphones
- Support PCM 2.0, Dolby 5.1, DTS 5.1 audio downmix to 2 channel stereo audio output
- CEC Pass Through
- 2 Year Warranty

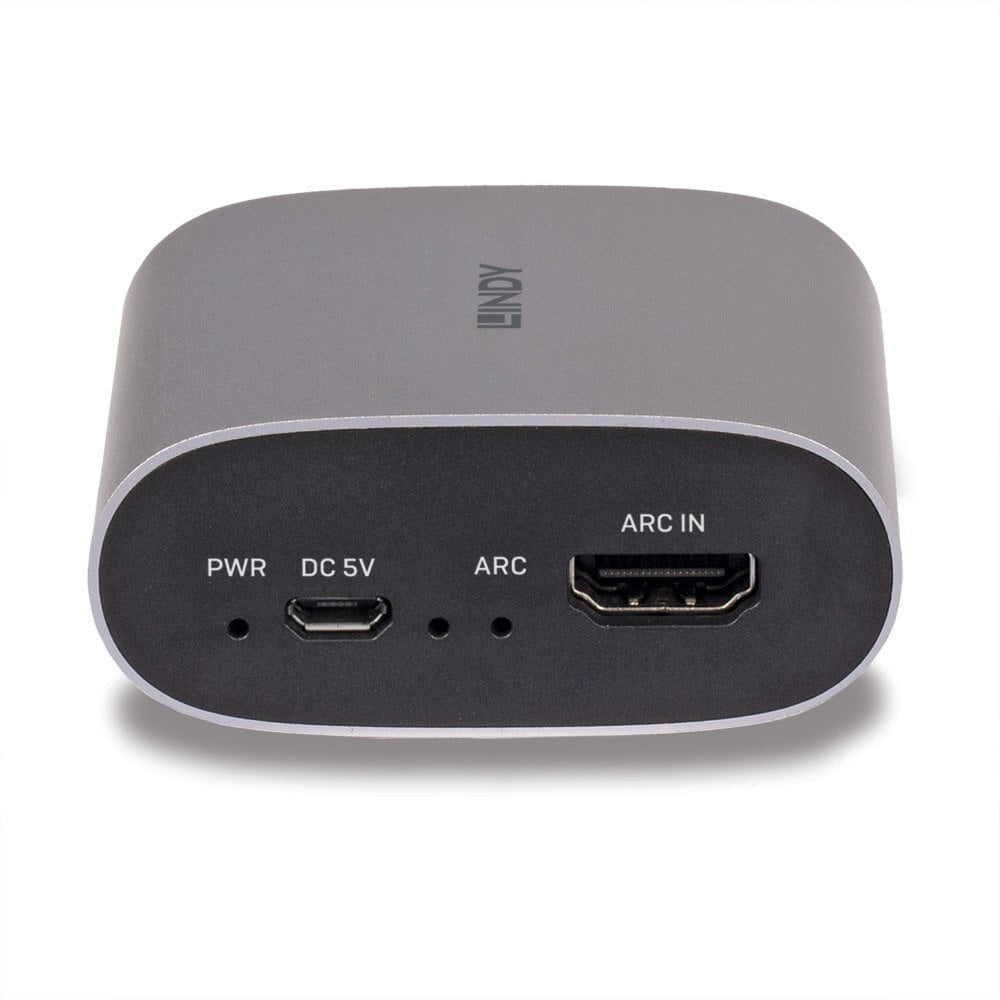

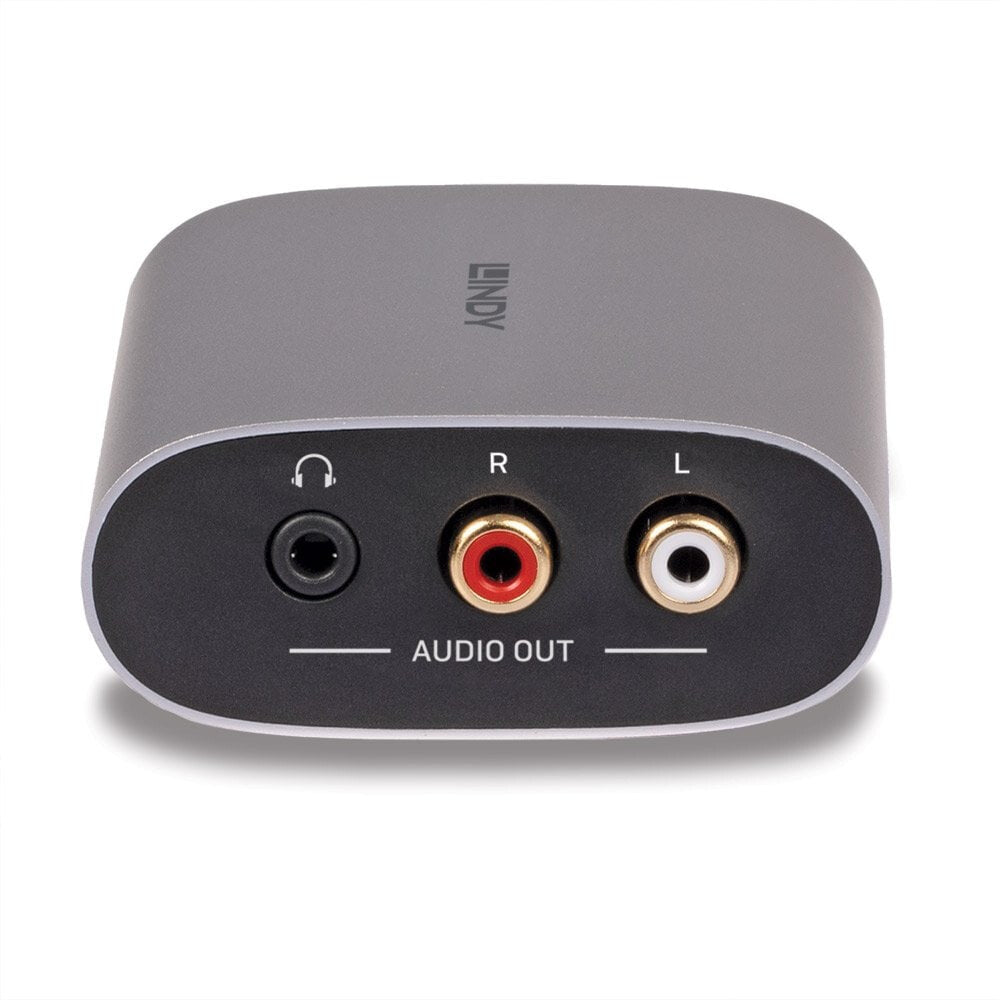

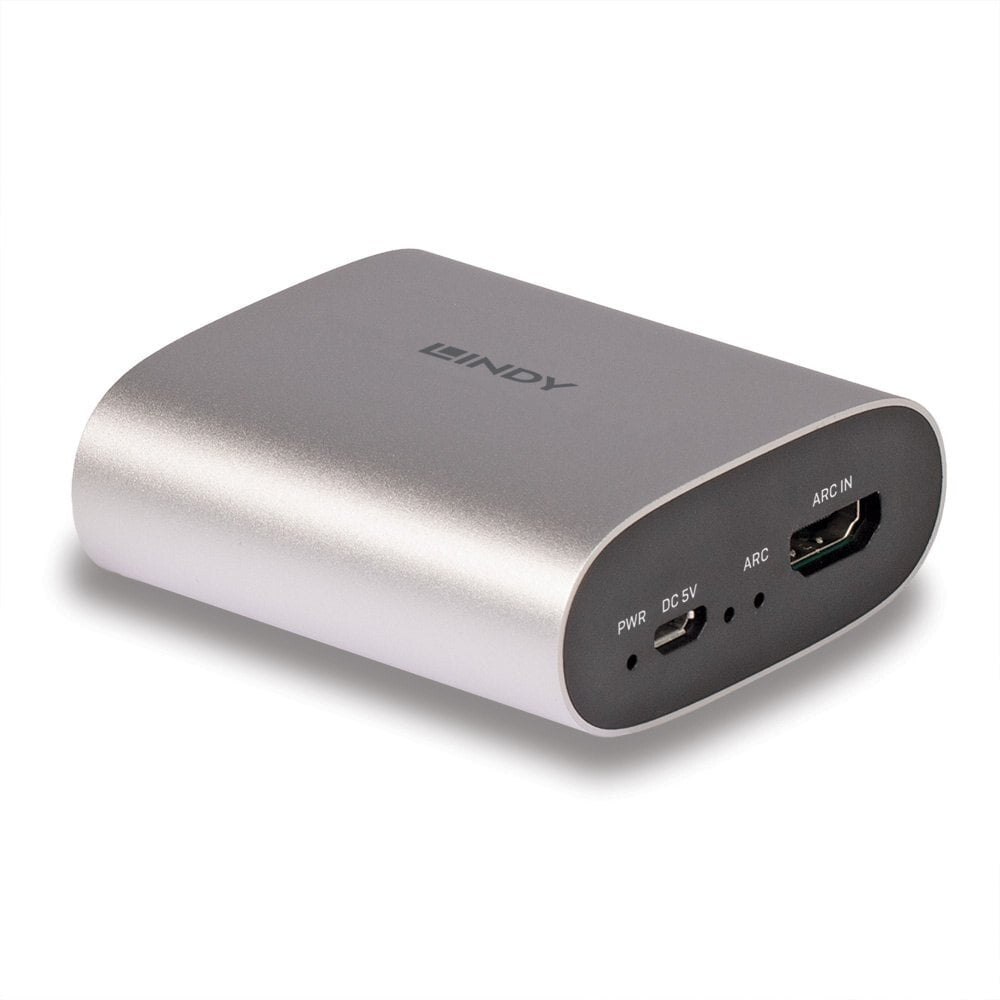

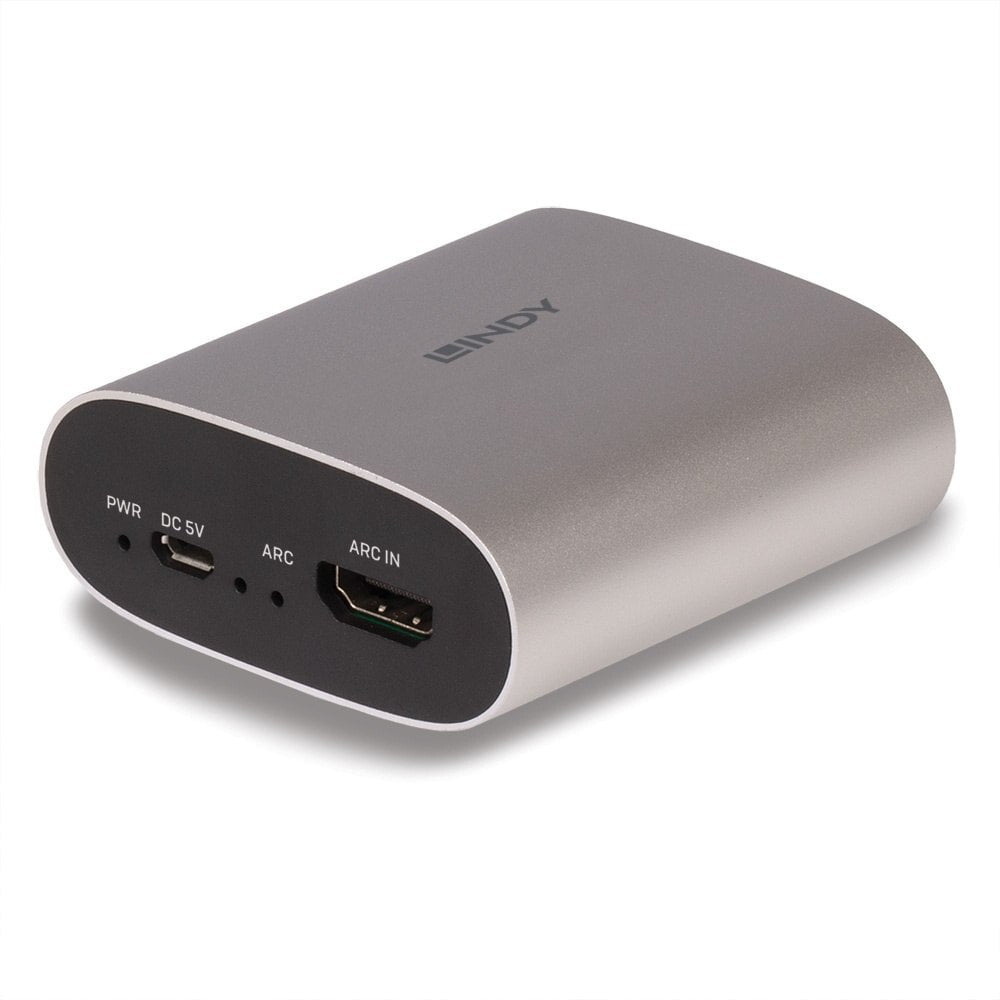

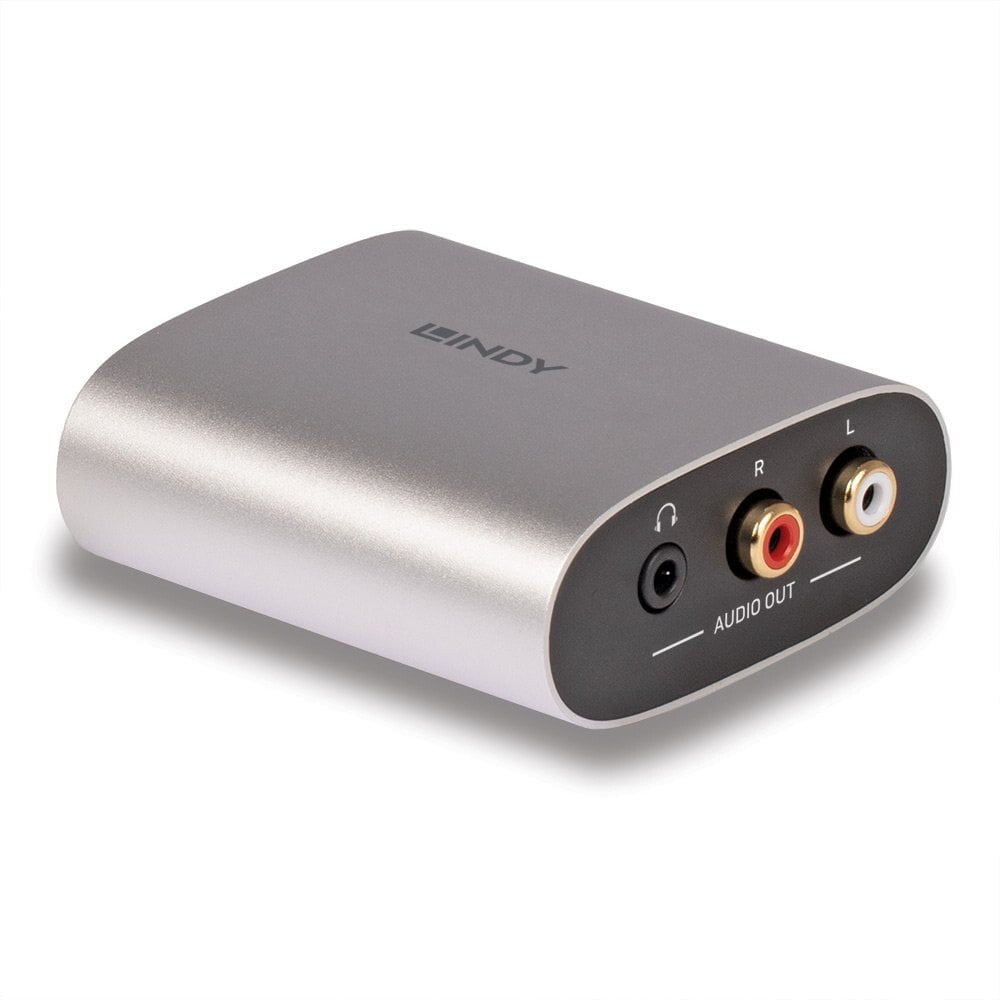

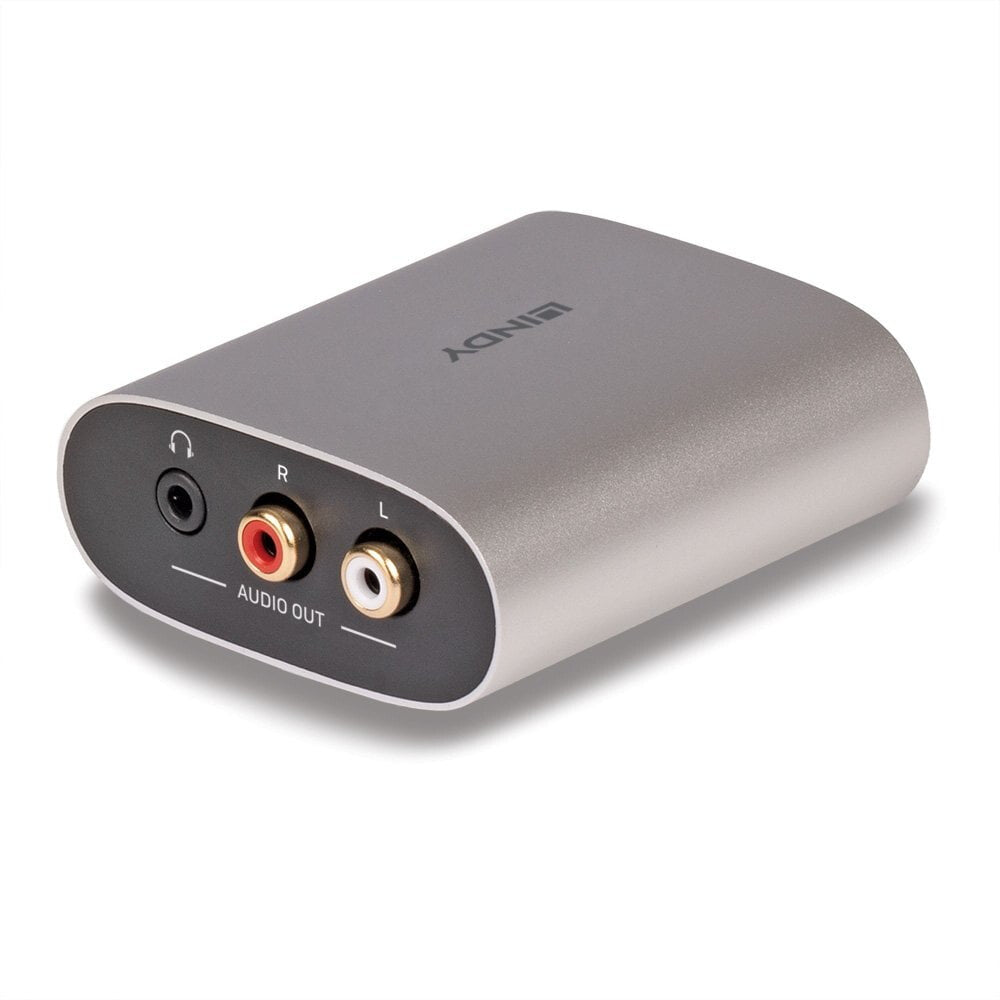

The Lindy HDMI ARC Audio Extractor is an effective solution for extracting audio from a HDMI display to analogue audio devices.
The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.
This audio extractor allows output to HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor, perfect for use with PC monitors which may require separate speakers.
Specifications
Inputs
| USB connector type | Micro-USB |
|---|---|
| HDMI in | 1 |
Outputs
| Audio (L/R) out | 1 |
|---|---|
| Headphone out | Yes |
Show all 26 specificationsShow fewer specifications
Technical details
| Sustainability compliance | Yes |
|---|---|
| Certification | California Proposition 65 |
| Product colour | Silver |
| Housing material | Plastic |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| Warranty period | 2 year(s) |
| Supported sample rates | 192 kHz |
| Output impedance | 100 Ω |
| Chipset | SPHE8107S |
| HDMI version | 1.4 |
| CEC pass-through | Yes |
| Frequency range | 20 - 20000 Hz |
Power
| Input voltage | 5 V |
|---|---|
| Power consumption | 500 mA |
Weight & dimensions
| Weight | 81 g |
|---|---|
| Height | 27 mm |
| Depth | 65 mm |
| Width | 70 mm |
Operational conditions
| Operating relative humidity (H-H) | 20 - 90% |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
