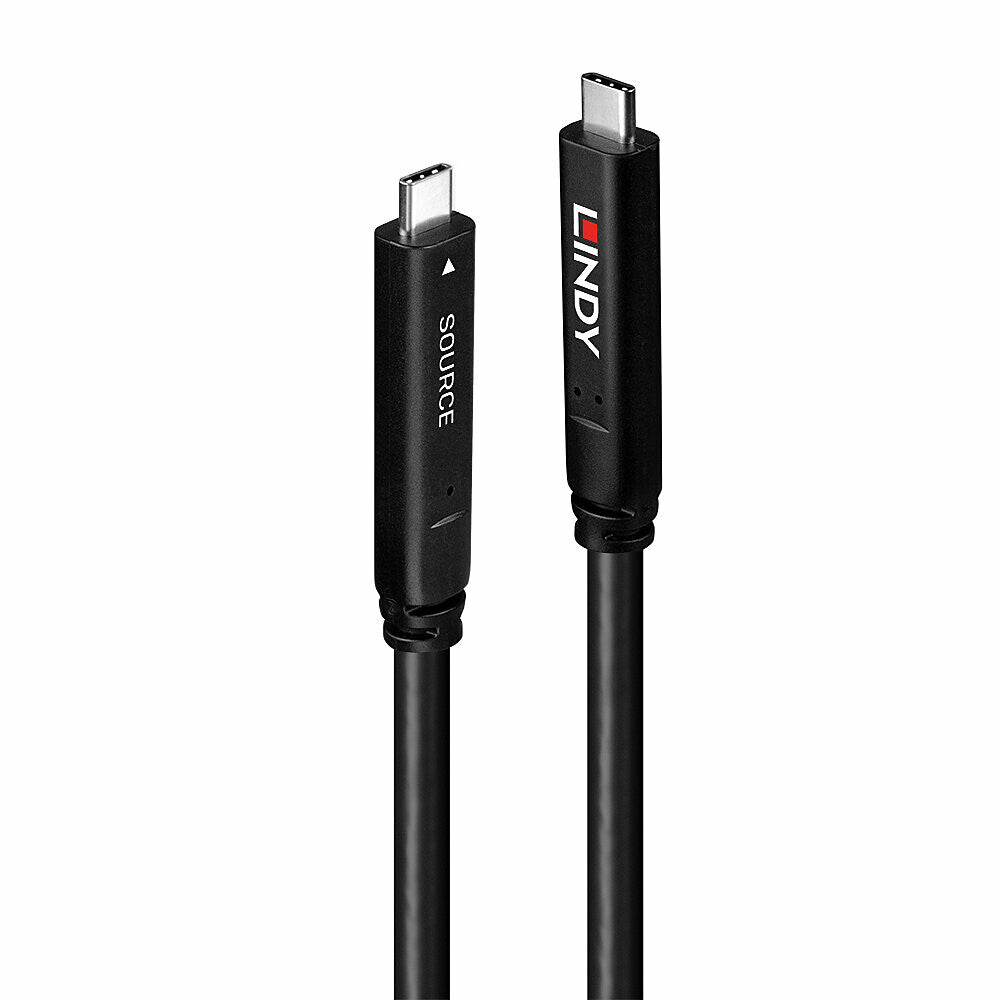

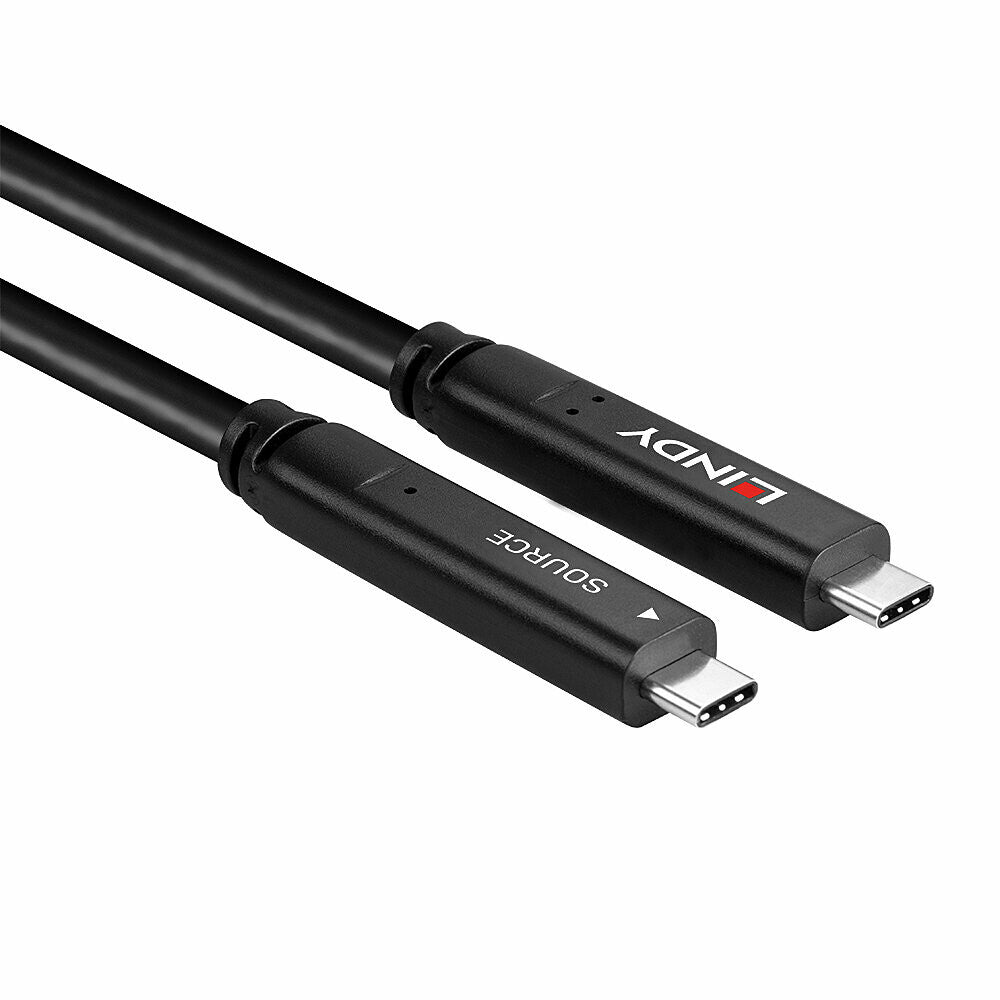

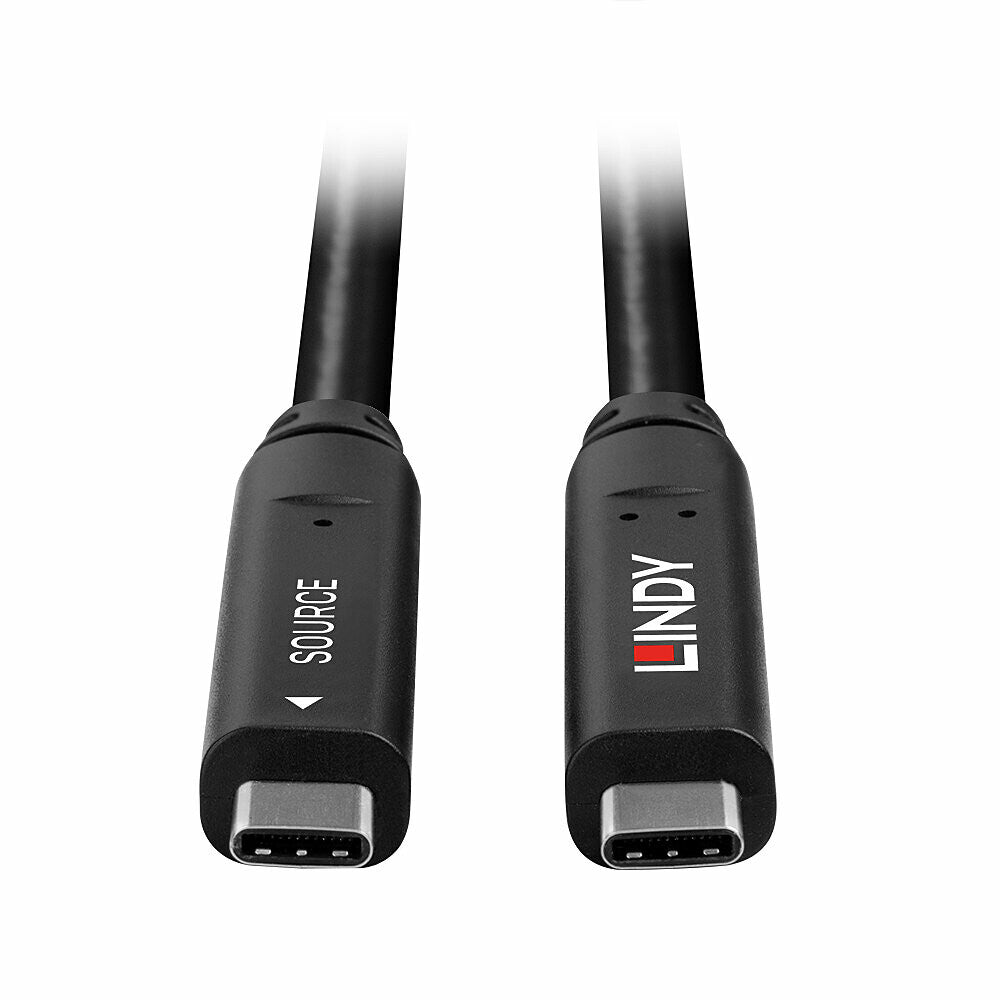

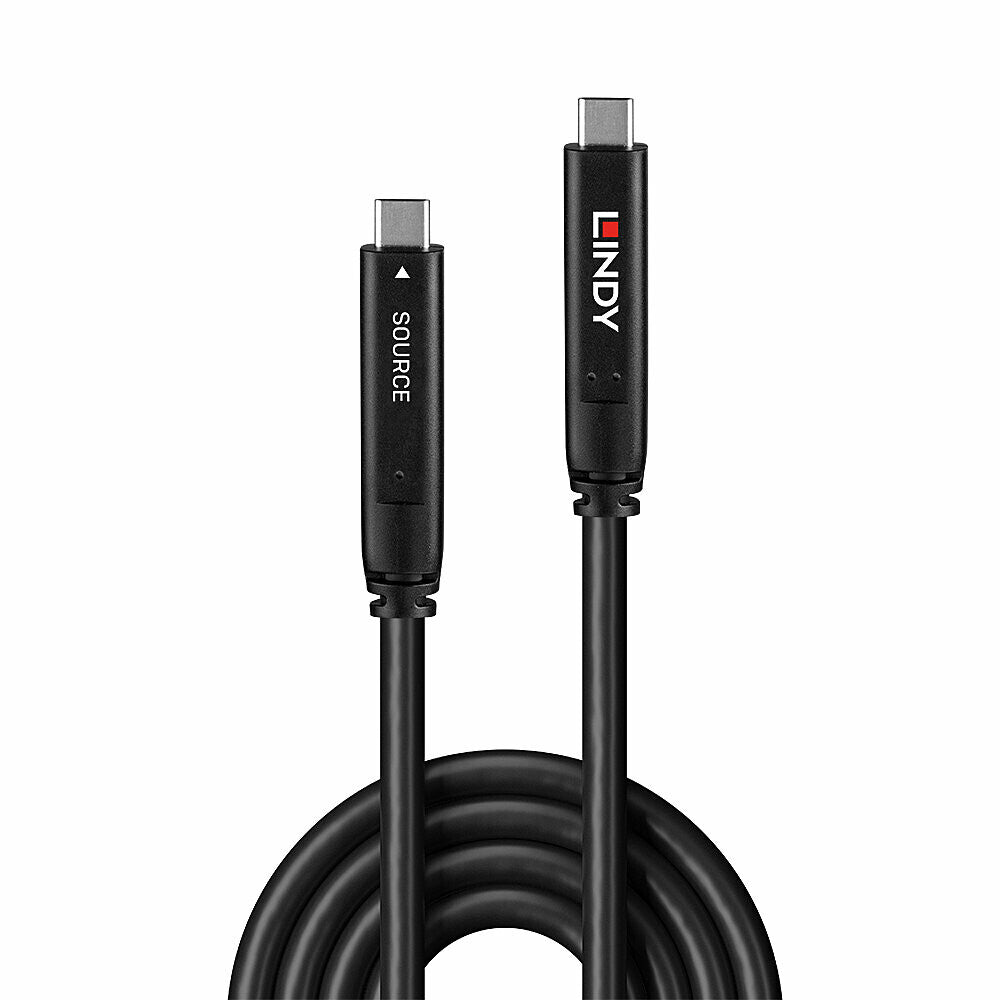

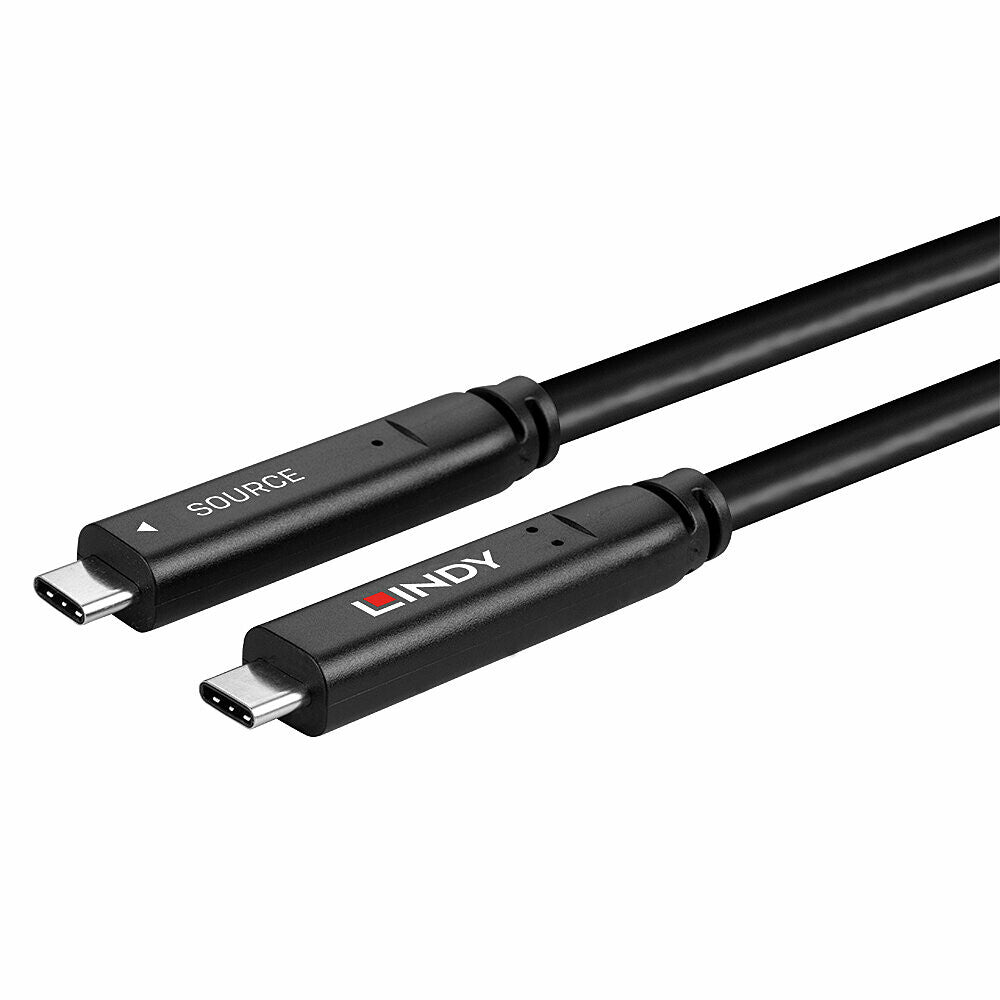

Lindy 8m USB 3.2 Gen 1 and DP 1.4 Type C Hybrid Cable
Couldn't load pickup availability
- 8m USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable for data and video extension
- Data transfer rates up to 5Gbps
- Supports DisplayPort Alternate Mode and DP 1.4 (2 lanes) with video resolutions up to 4K 3840x2160@30Hz
- Supports Power Delivery up to 60W (20V 3A)
The Lindy USB 3.2 Gen 1 & DP 1.4 Type C Hybrid Cable is a unique solution, which uses optical fiber as high-speed transmission medium to perfectly transmit USB 3.2 as well as DP 1.4 data over a distance of 8m. It combines data, video and USB Power Delivery into a single, high performance cable which makes it a great solution for use in modern meeting rooms and classrooms when connecting LFDs and touchpanels. A more flexible construction makes this cable simple to install, with increased resistance to RFI/EMI ensures that the cable can be installed in sensitive environments.
The cable also supports Power Delivery up to 60W (20V / 3A). Compatible with USB 3.2 Type C and Thunderbolt 3/4 equipped computers, this is a perfect extension tool for the latest laptops, Macbooks and Type C computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss,
| Features | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| DisplayPort version | 1.4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 60 W |
| Product colour | Black |
| Maximum data transfer rate | 5 Gbit/s |
| Connector housing material | Plastic |
| Connector shield material | Copper |
| Connector shielding | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 21 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 1 | USB C |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
|---|---|
| Output current (max) | 3 A |
| Output voltage | 20 V |
| Weight & dimensions | |
|---|---|
| Bend radius (min) | 10 cm |
| Weight | 610 g |
| Cable diameter | 6.5 mm |
| Cable length | 8 m |
| Packaging data | |
|---|---|
| Package weight | 770 g |
| Package height | 65 mm |
| Package depth | 240 mm |
| Package width | 240 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quantity per pack | 1 pc(s) |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -10 - 70 °C |
| Certificates | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
