£30.99

Stock Available: 0
  • High performance, active cable that provides an extended 8m connection between a computer and USB 2.0 device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
  • Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
  • USB Type A Male to A Female – connects to the deviceandrsquo;s existing USB cable (2m maximum)
  • 2 year warranty

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

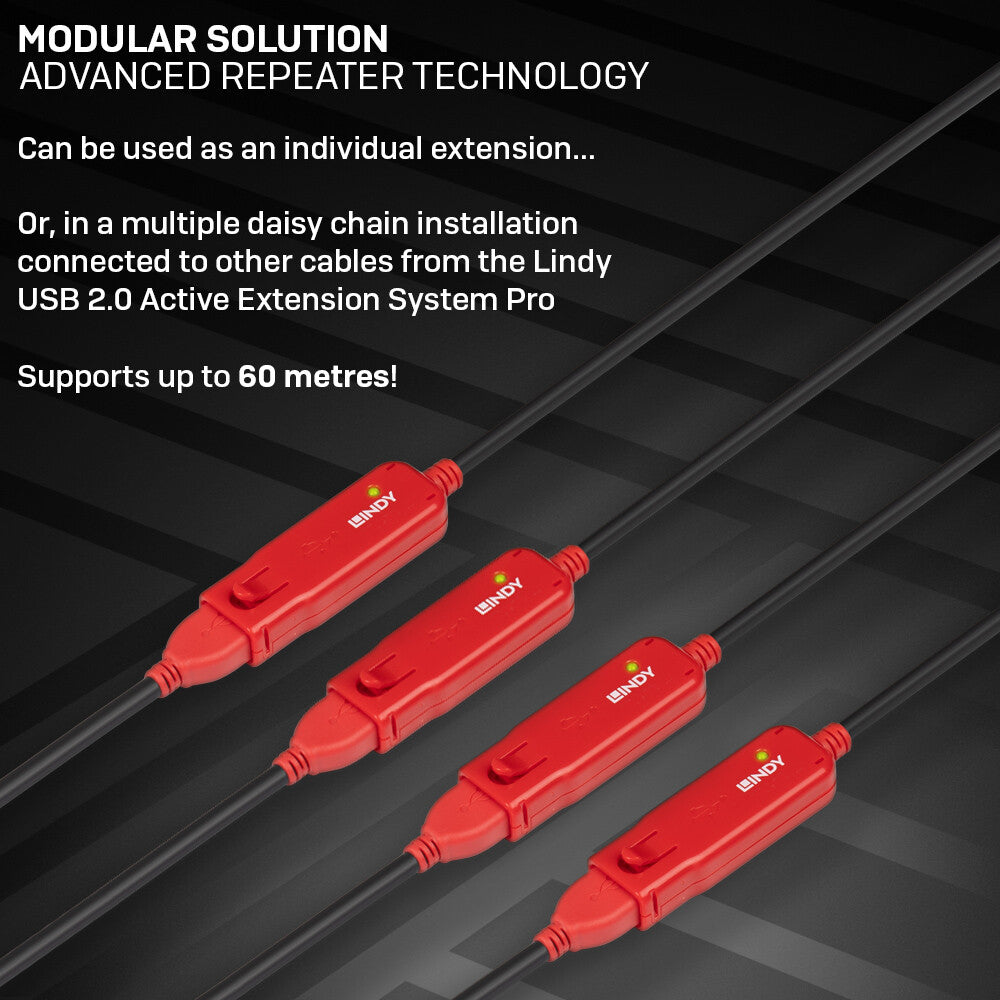

This 8m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Features
Nominal attenuation (0.064 MHz, -0.08 dB)(0.256MHz, -0.11 dB)(0.512MHz, -0.13 dB)(0.772 MHz, -0.15 dB)(1 MHz, -0.2 dB)(4 MHz, -0.39 dB)(8 MHz, -0.57 dB)(12 MHz, -0.76 dB)(24 MHz, -0.95 dB)(48 MHz, -1.35dB)(96 MHz, -1.9 dB)(200 MHz, -3.2 dB)(400 MHz, -5.8 dB)
Transmission medium Twisted pair
Cable type Round cable
Product colour Black
Maximum data transfer rate 480 Mbit/s
Connector housing material Plastic
Conductor material Tinned copper
Connector shield material Aluminium
Connector shielding Yes
Cable jacket material Polyvinyl chloride (PVC)
Connector contacts plating Gold
Contact material Brass
Connector material Gold/Nickel
AWG wire size 26/20
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Female
Connector 1 gender Male
Connector 2 USB A
Connector 1 USB A
USB version USB 2.0
Weight & dimensions
Connector 2 dimensions (WxDxH) 20 x 64 x 13 mm
Connector 1 dimensions (WxDxH) 15 x 43 x 8 mm
Bend radius (min) 2.6 cm
Weight 280 g
Cable diameter 5 mm
Cable length 8 m
Packaging data
Package weight 440 g
Package height 202 mm
Package depth 66 mm
Package width 238 mm
Package type Box
Packaging content
Manual Yes
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Certificates
Certification CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
Harmonized System (HS) code 85044095
