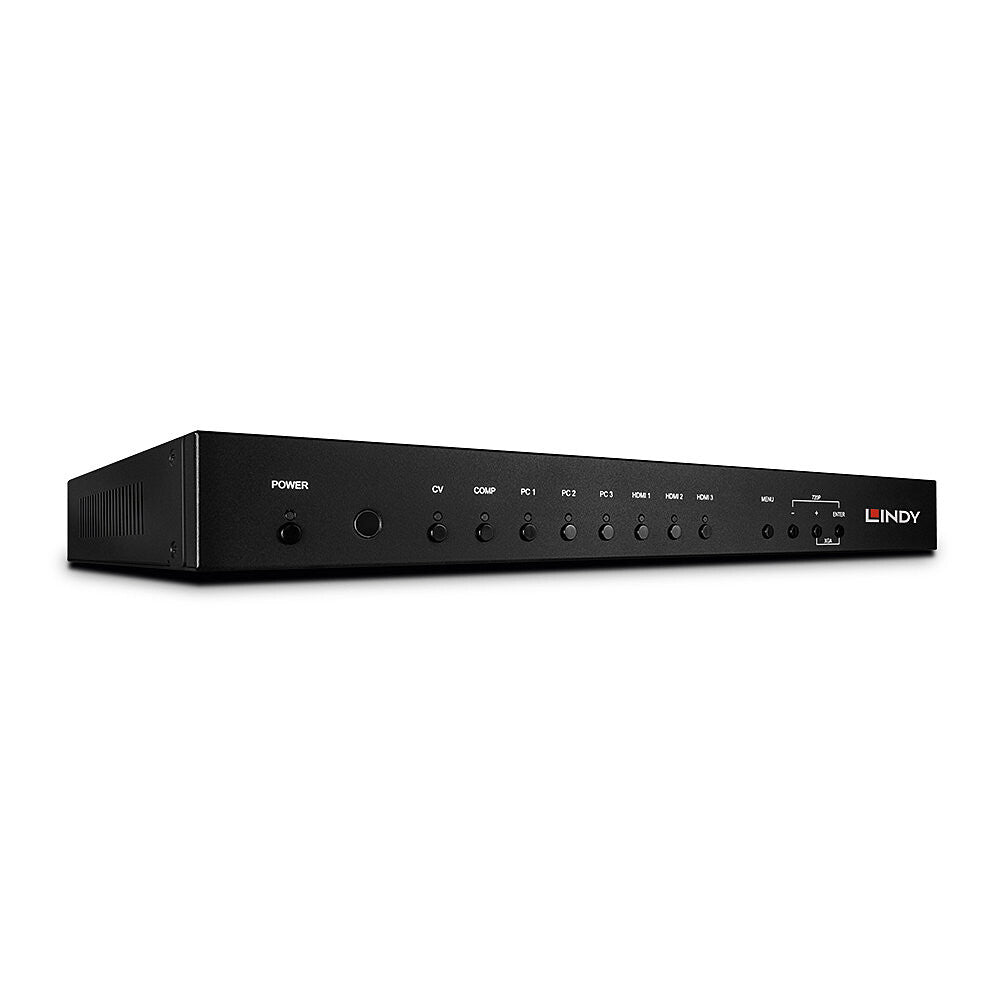

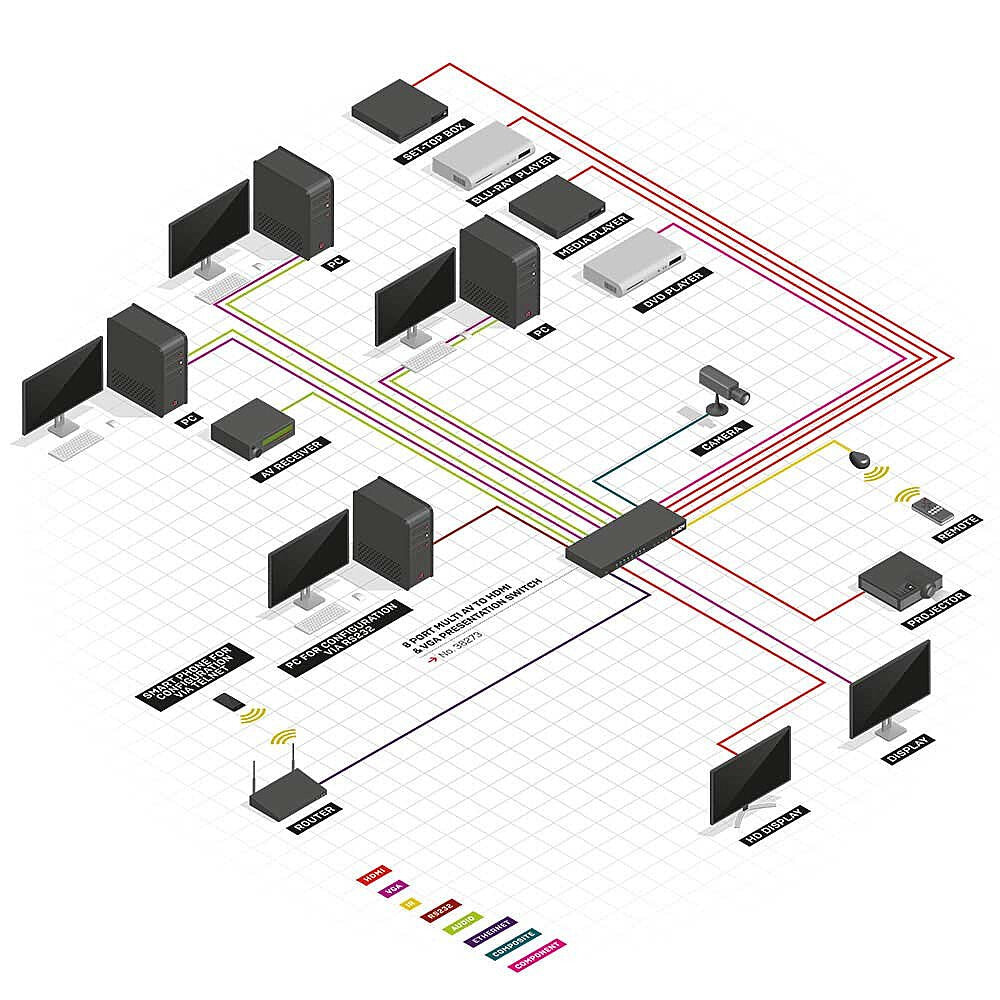

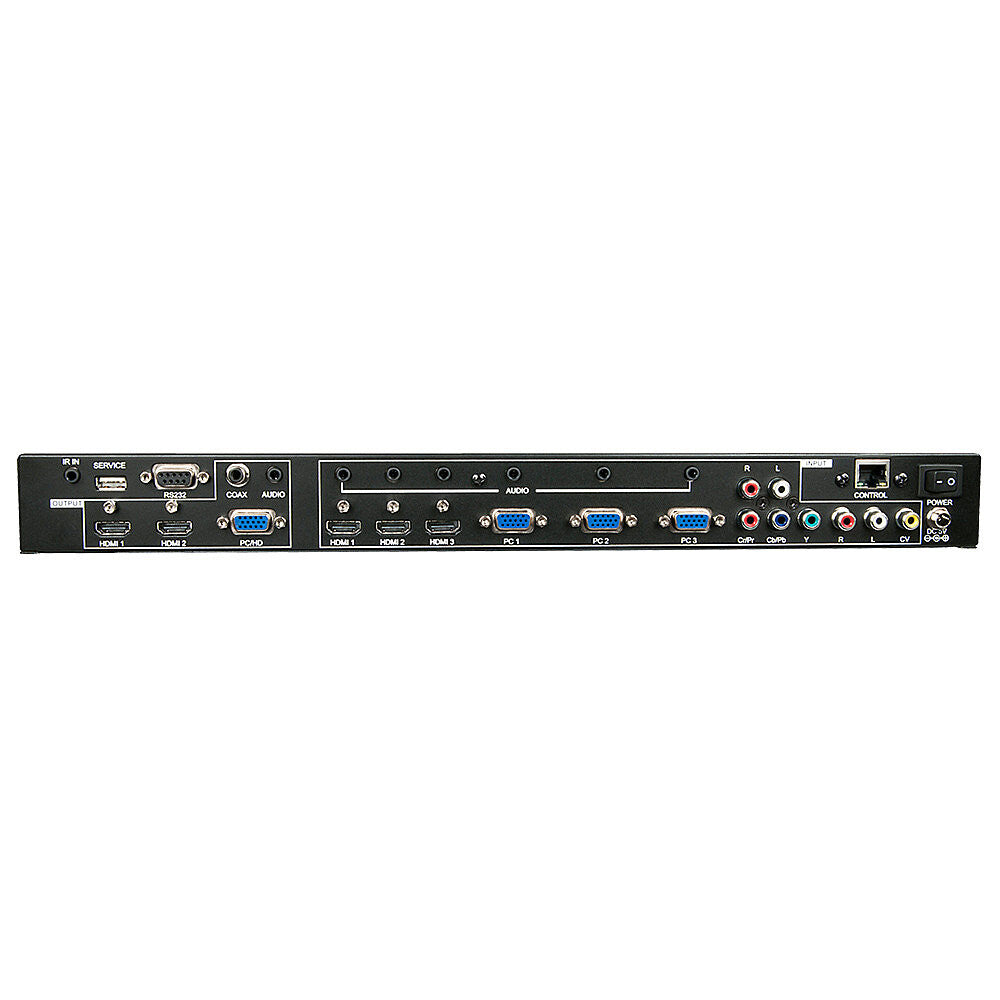

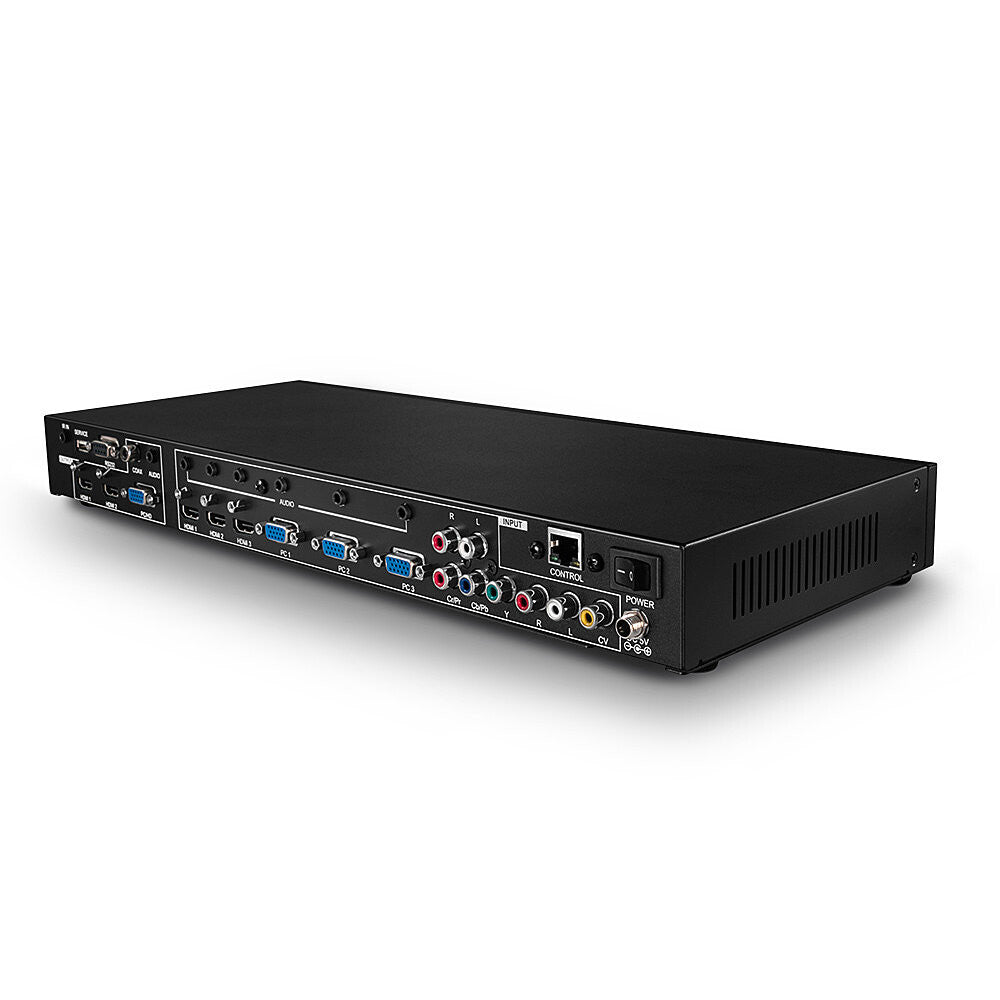

Featuring 8 AV inputs which can be converted and scaled to resolutions up to Full HD 1080p this AV Conversion Switch is an ideal addition to any meeting or conference room, lecture hall or auditorium. Any of the available inputs (3 x HDMI, 3 x VGA and Audio, Component Video and Audio and Composite Video and Audio) can be simultaneously shown across display equipment connected to each of the outputs (2 x HDMI and VGA). These three outputs provide compatibility with both current and legacy AV displays and can be combined with Lindy HDMI or VGA extenders to reach remotely located displays.
In addition to its video capabilities the AV Conversion Switch also features Digital to Analogue and Analogue to Digital conversion and can also embed analogue audio to HDMI video signals. With simultaneous audio output via 3.5mm stereo socket and Coaxial SPDIF the Switch can be directly connected to almost any AV Receiver in the market, whilst for further flexibility one of the HDMI outputs can also be used for audio.
The Switch features remote configuration and control via RS-232, Telnet and Web GUI as well as locally by OSD and IR making it simple to integrate within automated installations.
