Lindy 8 Port HDMI 1.4 Input Modular Board
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £239.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- 8 x HDMI Type A Female Connectors
- Input and output modules can be mixed and added in increments of 8
- Supports video resolutions up to 4kx2k@60Hz 8 bit 4:2:0
- Supports multiple audio signals from Stereo audio to LPCM 7.1Ch & DTS-HD Master Audio Transmission
8 x HDMI Type A Female Connectors
Input and output modules can be mixed and added in increments of 8
Supports video resolutions up to 4kx2k@60Hz 8 bit 4:2:0
Supports multiple audio signals from Stereo audio to LPCM 7.1Ch & DTS-HD Master Audio Transmission
2 Year Warranty
Thank you for purchasing from the LINDY Modular Matrix range of products.

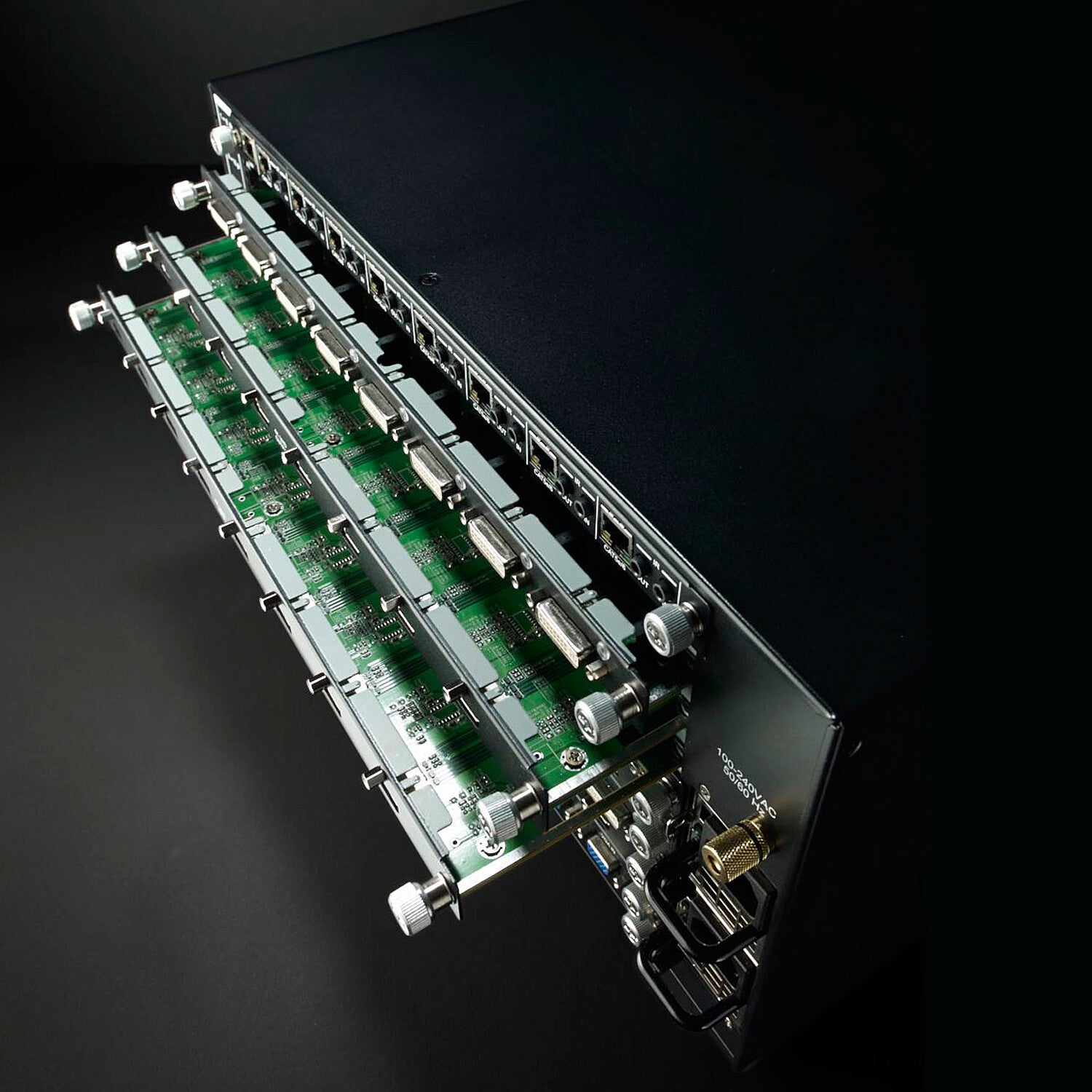

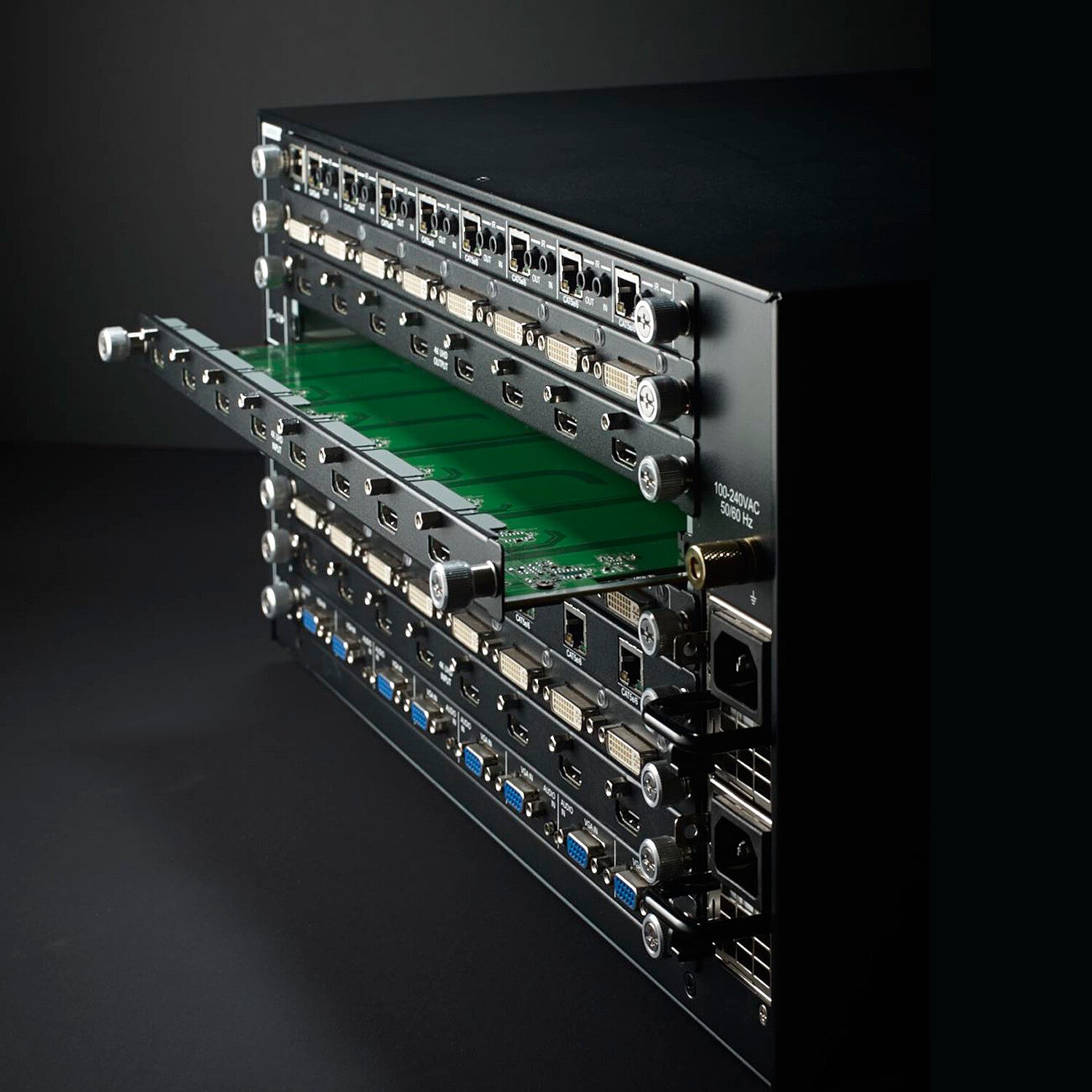

This range of products is designed to allow you to create a matrix with 8, 16 or 32 input and output ports.
The input ports can be a choice of HDMI, DVI or VGA while the output ports can be HDMI, DVI or C6 HD-BaseT. Any of the inputs can be combined with any of the outputs to create a UHD 4Kx2K@60Hz 8 bit 4:2:0 display over distances of up to 100m.
The modular design provides the ultimate in flexibility for audio and video distribution as a matrix, convertor or an extender in retail product demonstration, training and public display application in schools, pubs etc.

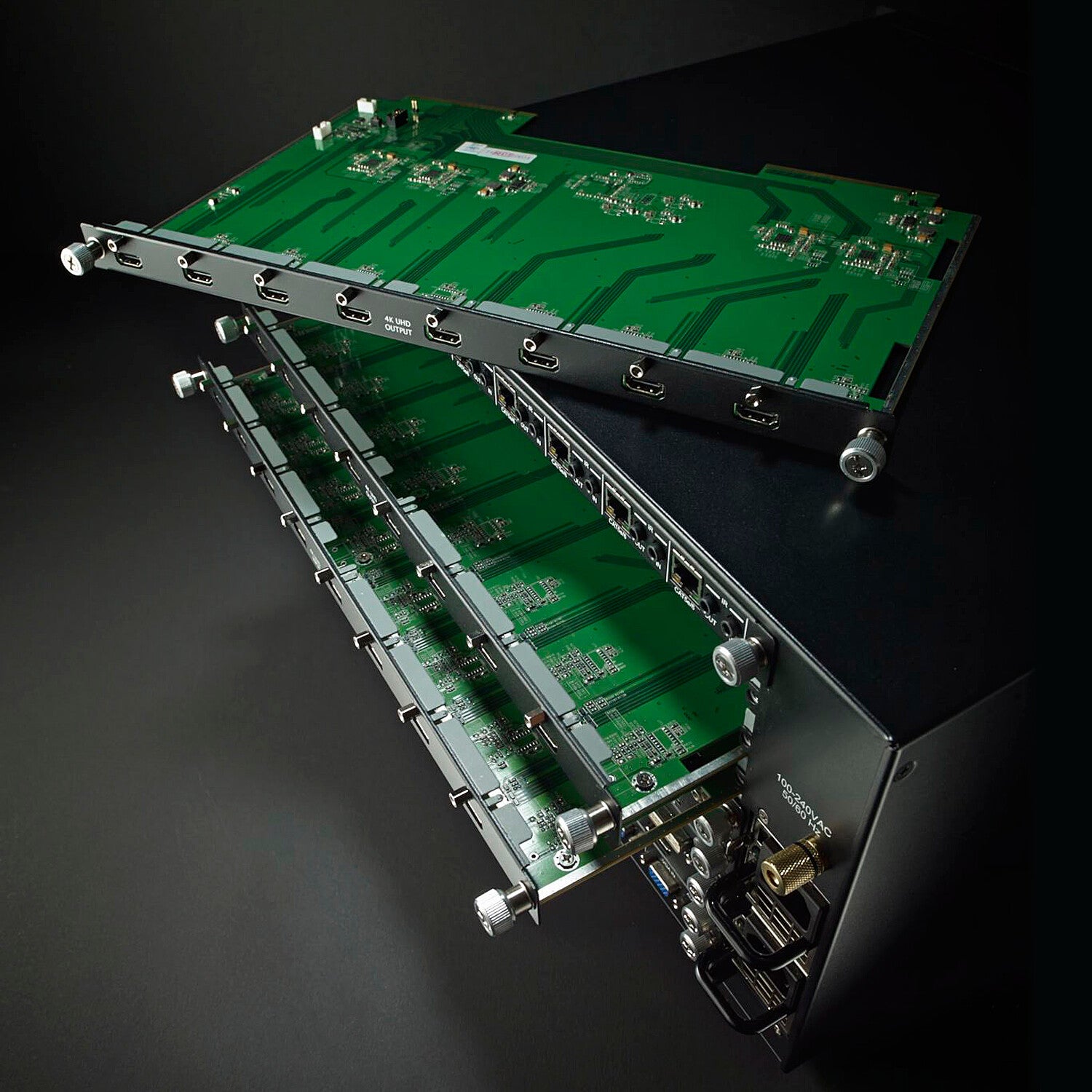

The 8 Port 4K HDMI Input Modular Board is designed for use with 38250, 38251, 38252 Chassis systems and 38254, 38255, 38256, 38257 & 38259 range of modular boards.
Specifications
Ports & interfaces
| Video ports quantity | 8 |
|---|---|
| Video port type | HDMI |
Features
| Product colour | Black |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Dolby technologies | DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD |
Show all 9 specificationsShow fewer specifications
Power
| Power consumption (typical) | 22 W |
|---|
Weight & dimensions
| Dimensions (WxDxH) | 360 x 230 x 22 mm |
|---|---|
| Weight | 470 g |
Technical details
| Supported audio channels | 7.1 |
|---|
