£10.99

Stock Available: 0
  • Professional choice USB 2.0 Type C to Micro-B cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, nickel connectors and gold plated contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • 10 year warranty

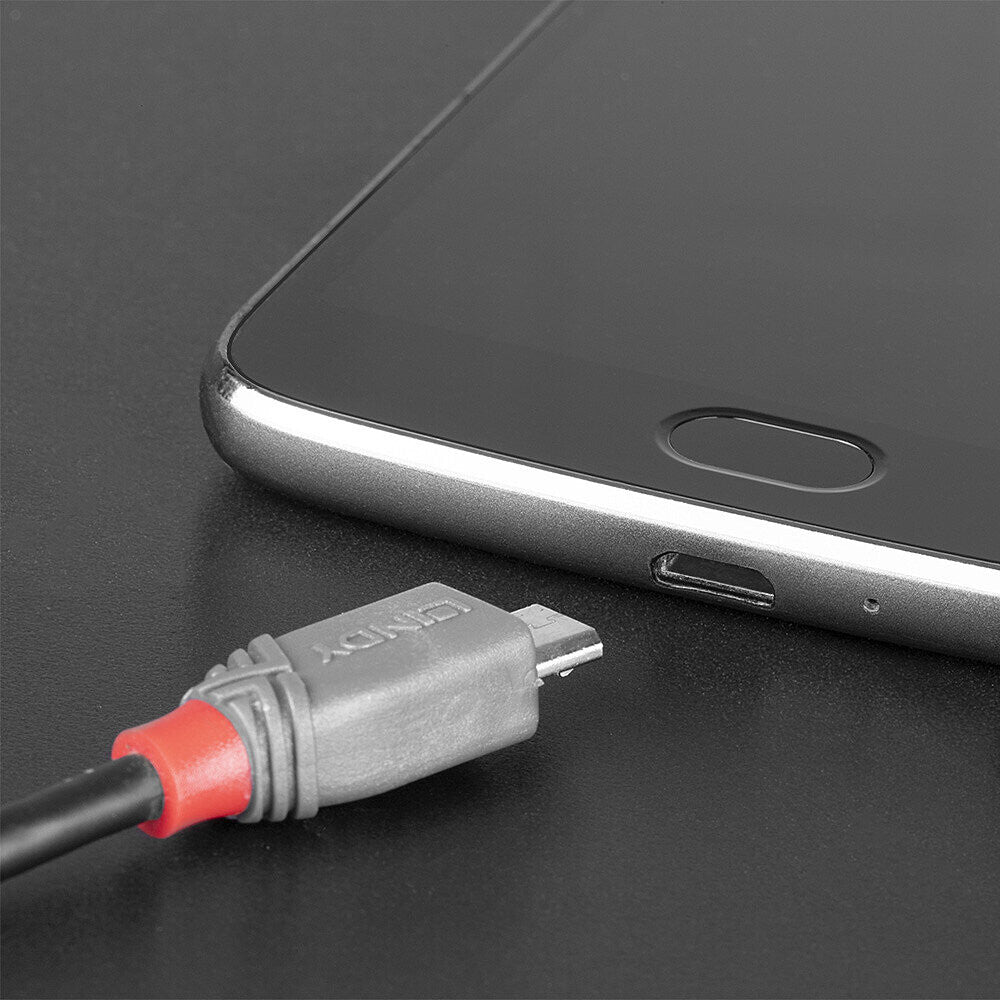

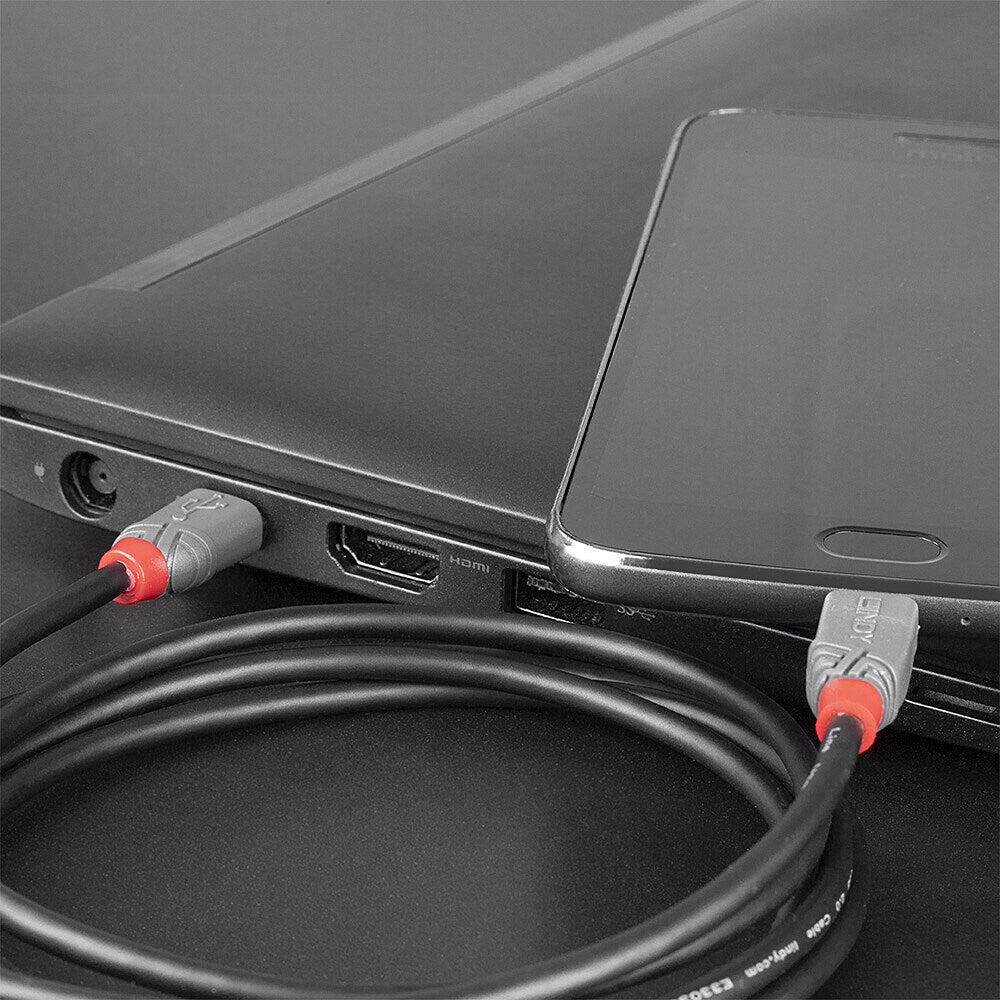

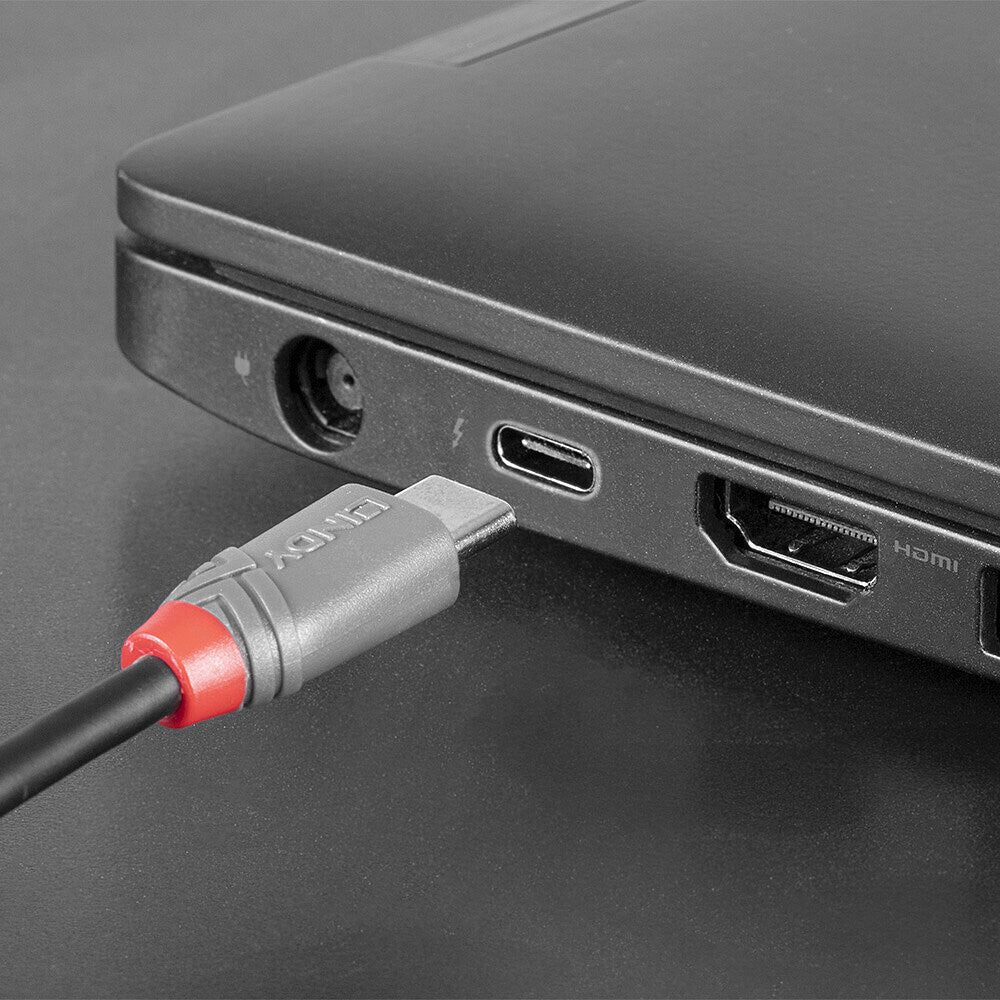

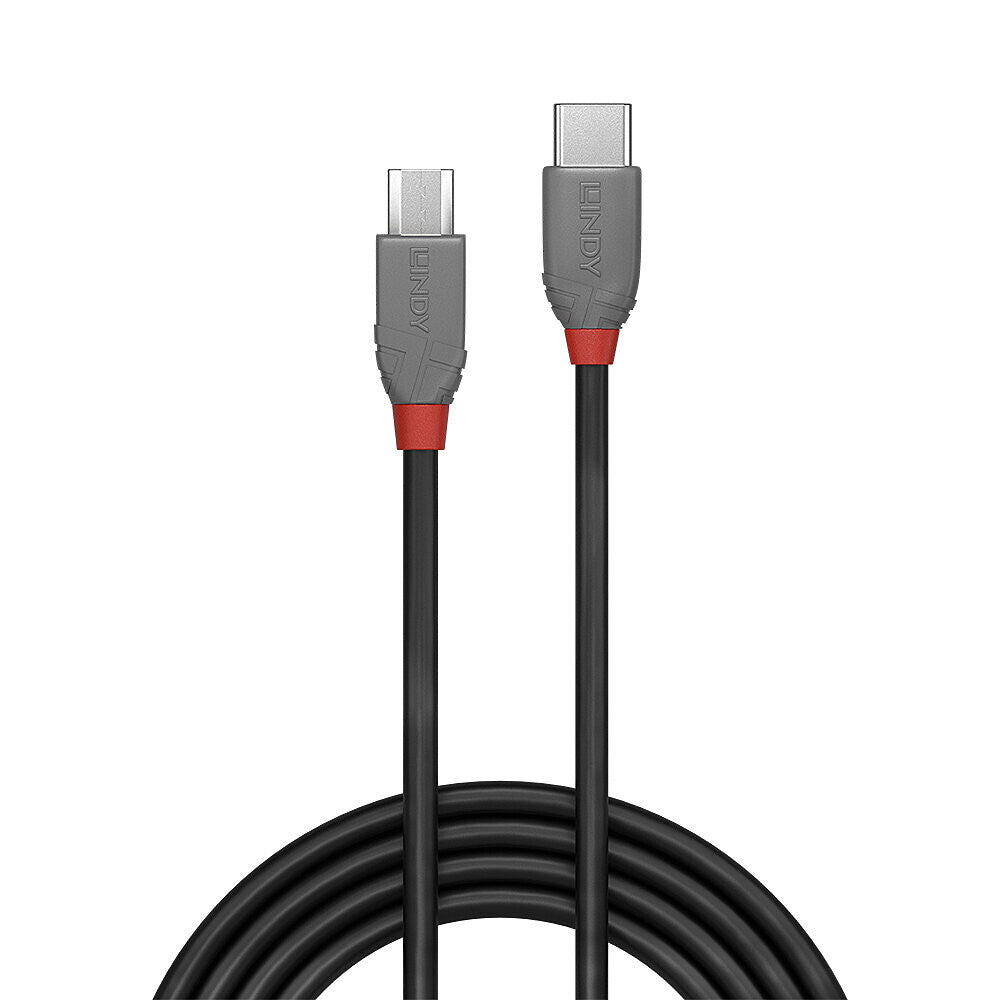

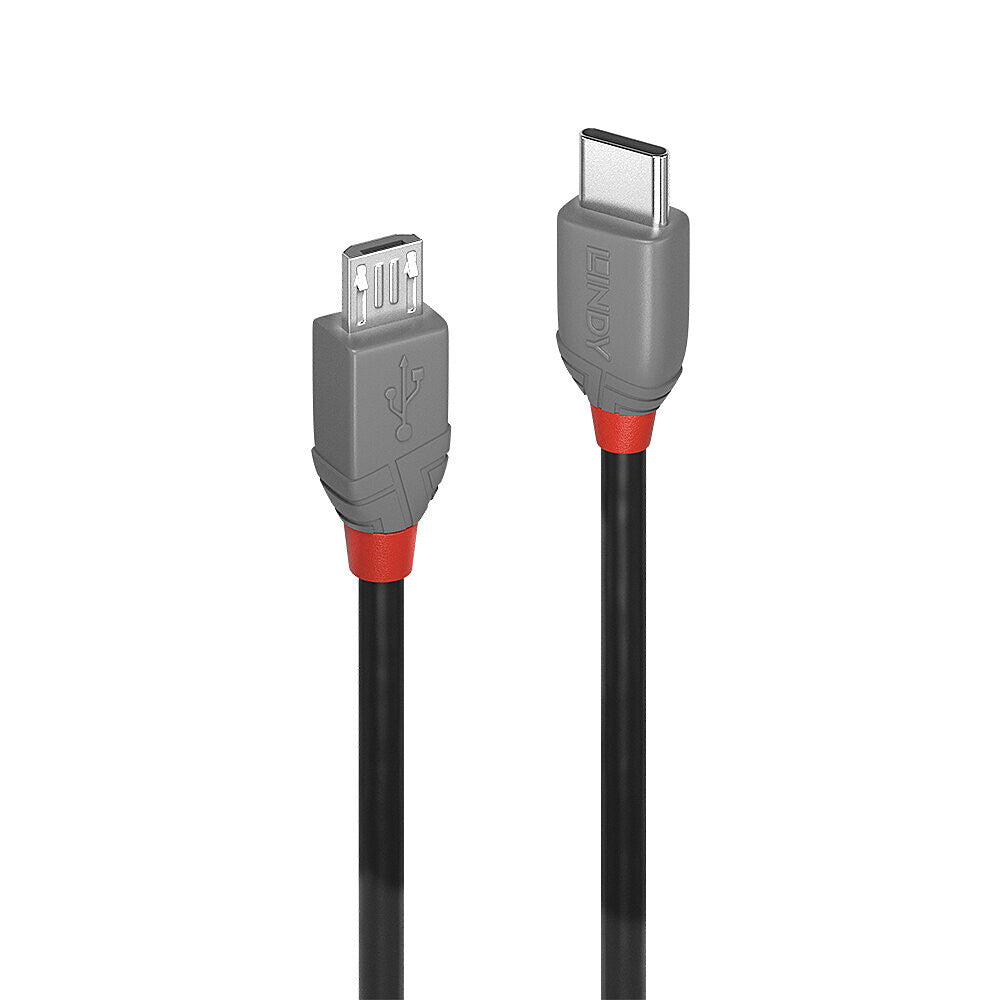

The Anthra Line USB 2.0 Type C to Micro-B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

They are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 Type C to Micro-B cables are available in the following lengths: 0.5m, 1m, 2m and 3m.

Features
Nominal attenuation 1-400MHz < 5.8dB
Cable type Round cable
Product colour Black
Maximum data transfer rate 0.48 Gbit/s
Conductor material Tinned copper
Connector shielding Yes
Cable jacket material Polyvinyl chloride (PVC)
Connector contacts plating Nickel
AWG wire size 28
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 Micro-USB B
Connector 1 USB C
USB version USB 2.0
Weight & dimensions
Connector 2 dimensions (WxDxH) 10.7 x 30 x 7.6 mm
Connector 1 dimensions (WxDxH) 10.9 x 28.3 x 7.2 mm
Bend radius (min) 2.5 cm
Cable diameter 3.5 mm
Cable length 3 m
Packaging data
Package type Polybag
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) 0 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification RoHS, REACH, California Proposition, UL
Logistics data
Harmonized System (HS) code 84733080
