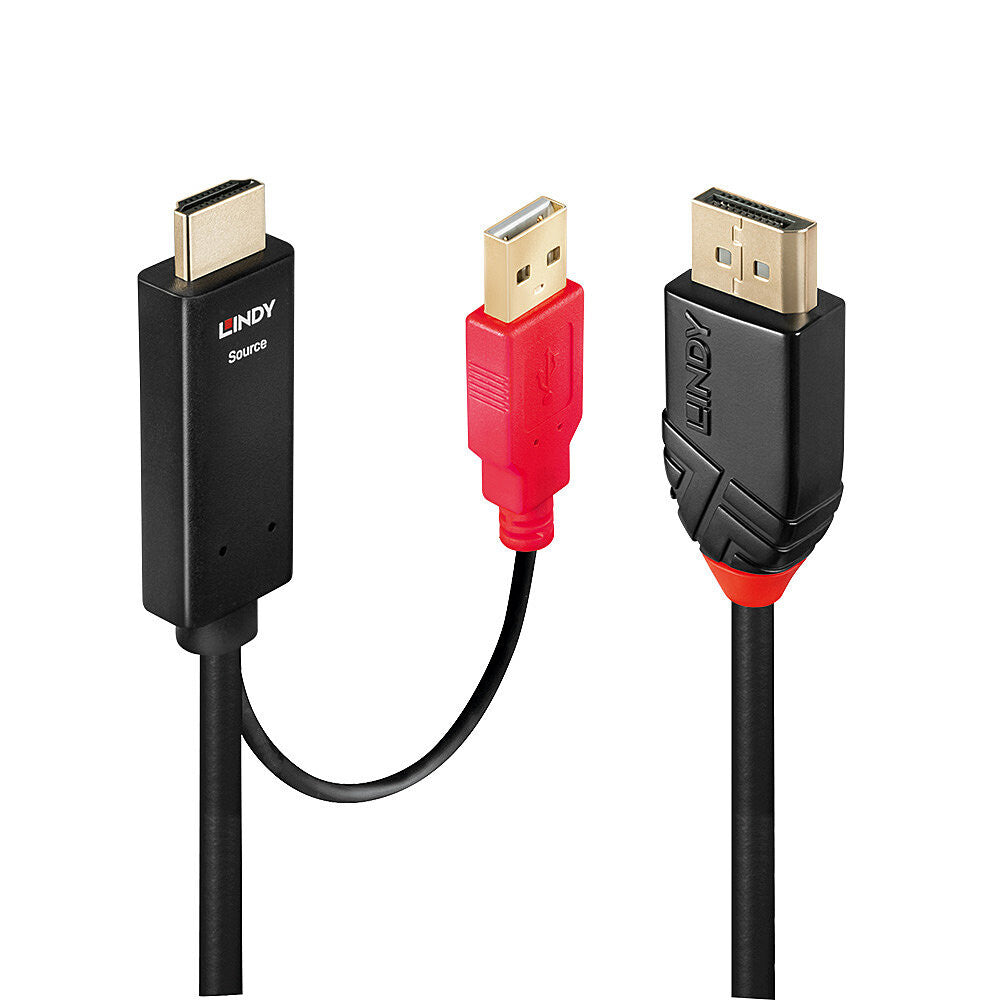

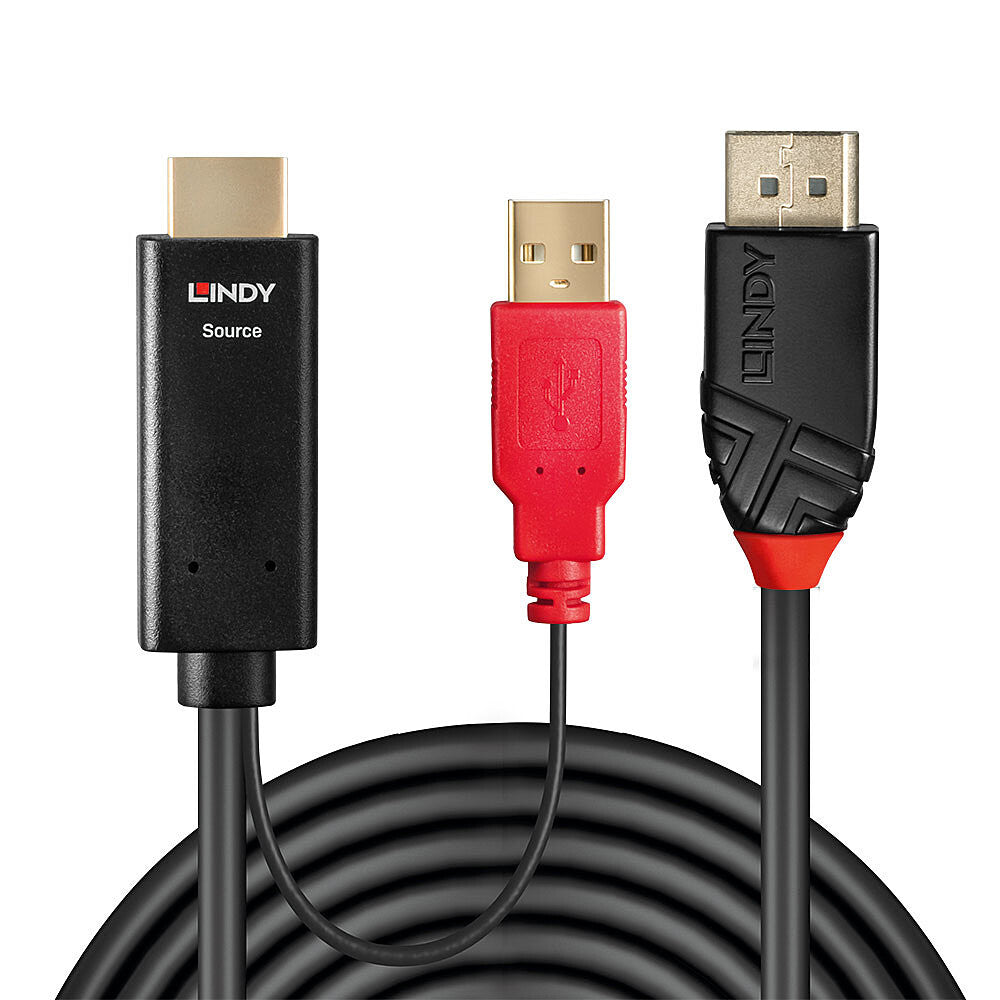

Lindy 3m HDMI to DisplayPort Cable
Couldn't load pickup availability
- Connect an HDMI equipped device to a DisplayPort display
- Supports high quality resolutions up to 4K@30Hz
- Compliant with HDMI 1.4 and DisplayPort 1.2 specification
- Compliant with HDCP 1.4 and DPCP 1.3
- 2 year warranty
Lindy's HDMI to DisplayPort cables combine sleek, modern design with superior performance to provide a high quality conversion of HDMI signals to output to a DisplayPort display. This range of active cables come with a chipset housed neatly inside the HDMI connector to ensure a consistently reliable connection between HDMI media players, games consoles and PCs to DisplayPort monitors.
With support for resolutions up to 4096x2160@30Hz, these cables are great for creating innovative working environments, engaging educational workstations or immersive gaming experiences, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video. The additional USB Type A connector can optionally be used to amplify the power to ensure a reliable connection in all situations.
| Features | |
|---|---|
| Cable shielding | Aluminium braid |
| Plug and Play | Yes |
| Colour sampling | 4:4:4 |
| AWG wire size | 30 |
| Connector material | Gold |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Cable type | Round cable |
| Jacket material | Polyvinyl chloride (PVC) |
| Nominal attenuation | 300kHz-825MHz 5dB825MHz-2.475GHz 5dB2.475GHz-4.125GHz 12dB4.125GHz-5.1GHz 20dB |
| Conductor material | Tinned copper |
| Product colour | Black, Red |
| Bend radius (min) | 5.5 cm |
| Maximum refresh rate | 30 Hz |
| Data transfer rate | 10.2 Gbit/s |
| Supported video modes | 1080p, 2160p |
| Maximum resolution | 4096 x 2160 pixels |
| DisplayPort version | 1.2 |
| Connector contacts plating | Gold |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | HDMI + USB Type-A |
| Cable length | 3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 80 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS, REACH, UL, California Proposition 65 |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Connector 3 dimensions (WxDxH) | 36.4 x 20 x 9.4 mm |
| Connector 2 dimensions (WxDxH) | 37.5 x 15.8 x 8 mm |
| Connector 1 dimensions (WxDxH) | 48 x 20.9 x 11.3 mm |
| Cable diameter | 5.5 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
