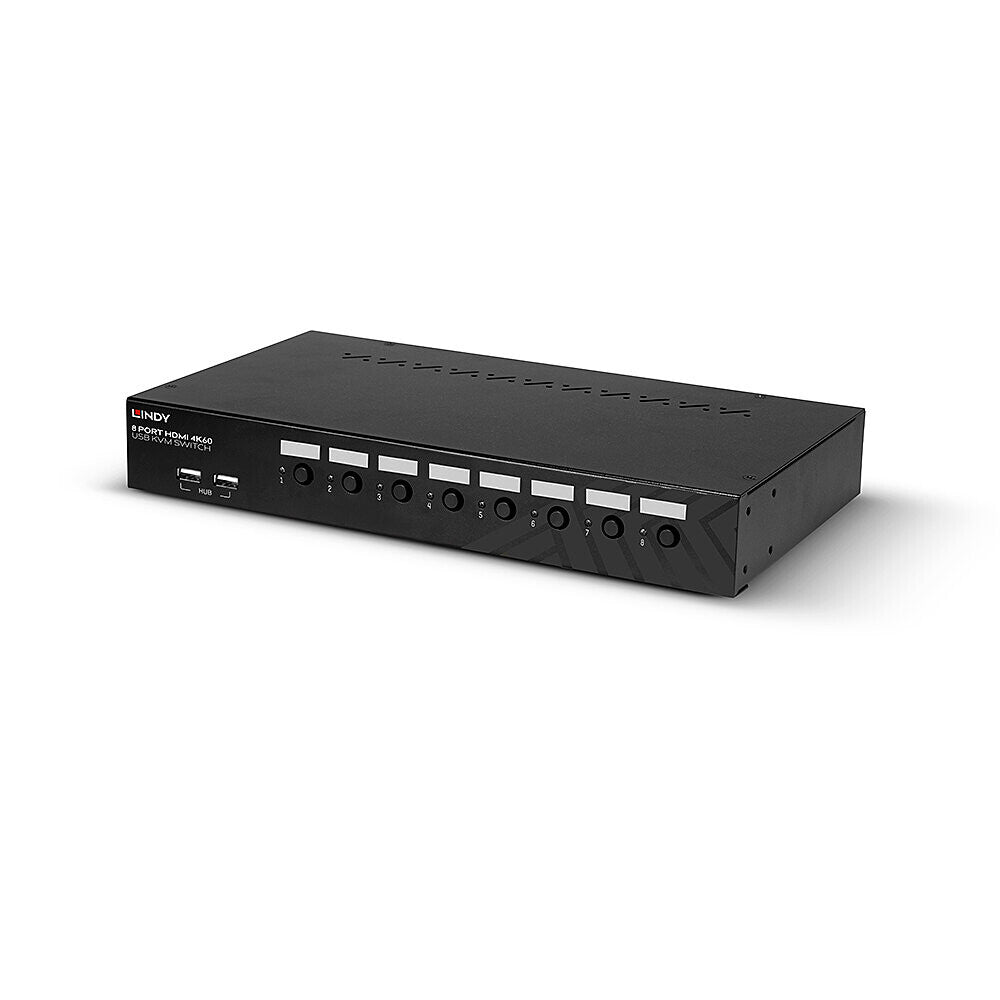

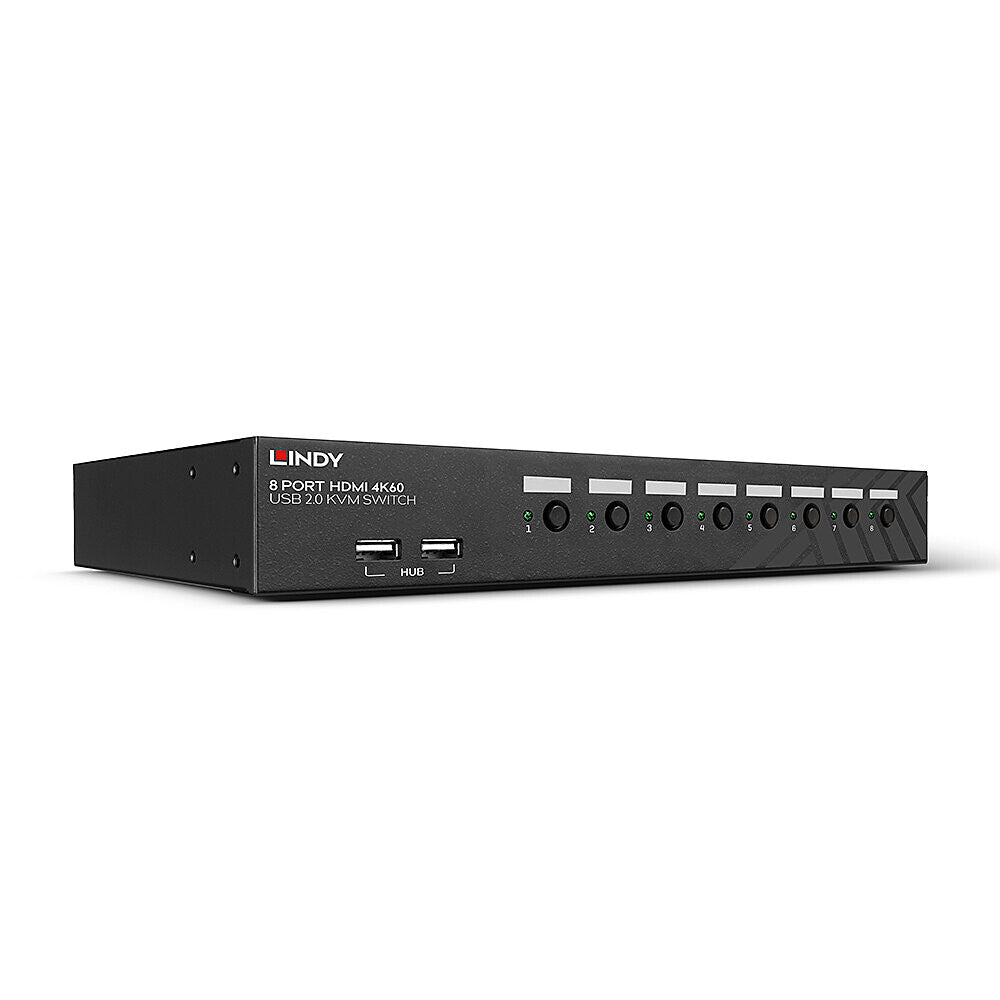

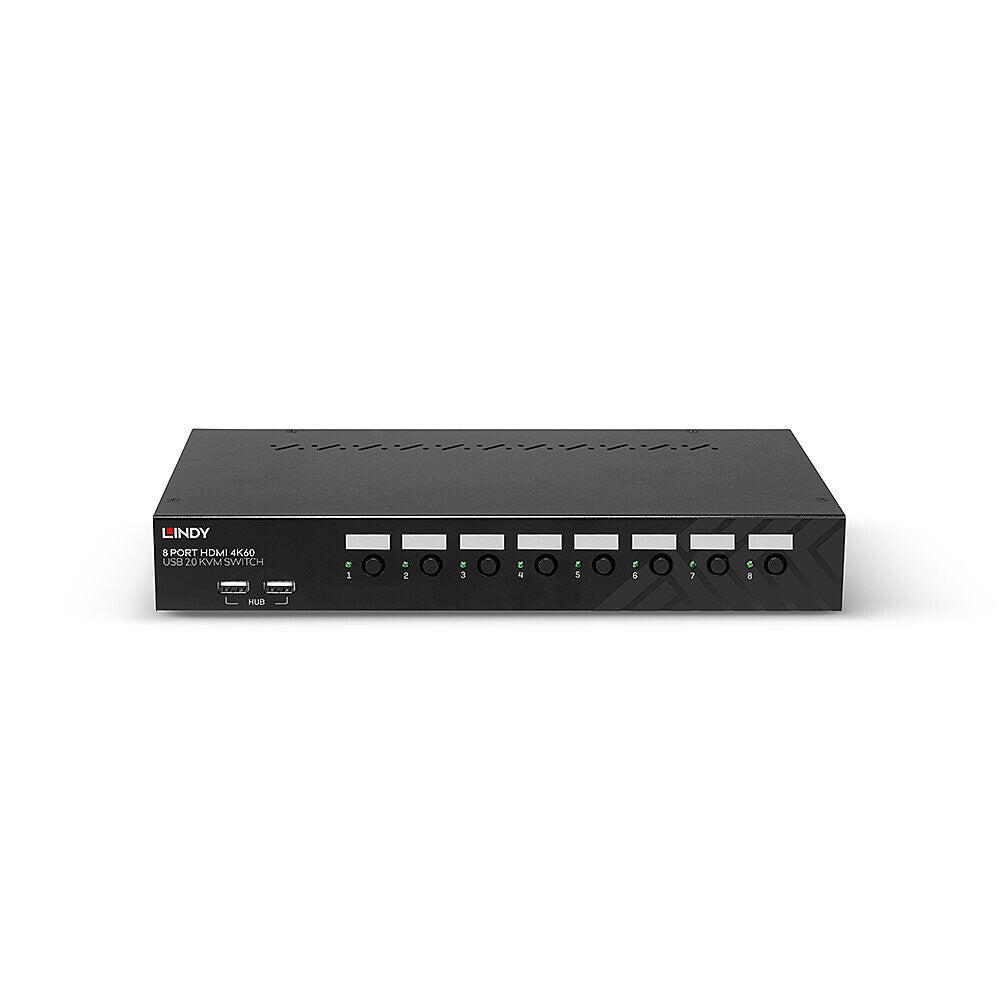

Lindy 39538 KVM switch Rack mounting Black
Couldn't load pickup availability
- Supports up to 8 HDMI® 4K 60Hz, USB & Audio equipped computers
- Built in 2 ports USB 2.0 Hub for sharing additional peripherals
- Port switching via hotkey, front panel buttons or RS-232 commands
- TAA compliant
This advanced KVM Switch has been designed for use with PCs and Macs. It features HDMI® video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.
The switch occupies only a single 1U space in a 19 rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 3 switching modes, via keyboard hotkeys, front panel buttons and RS-232 commands.

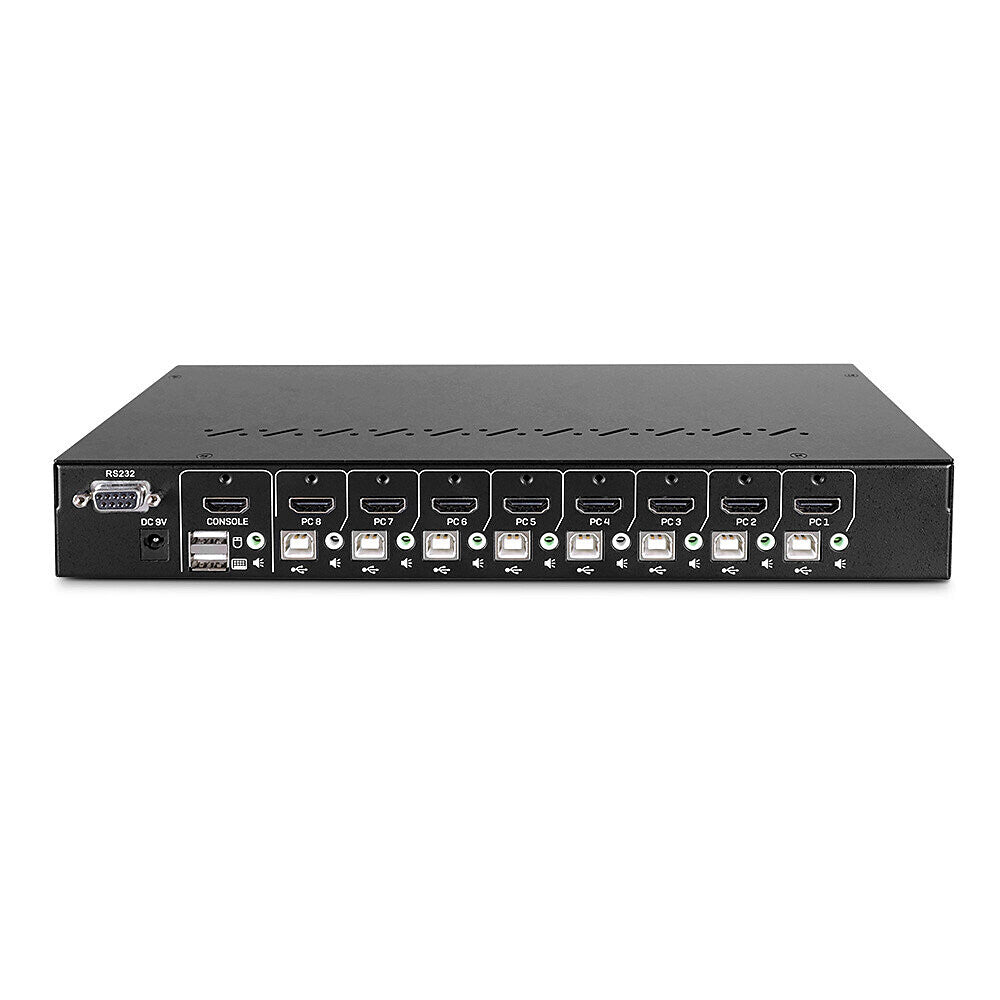

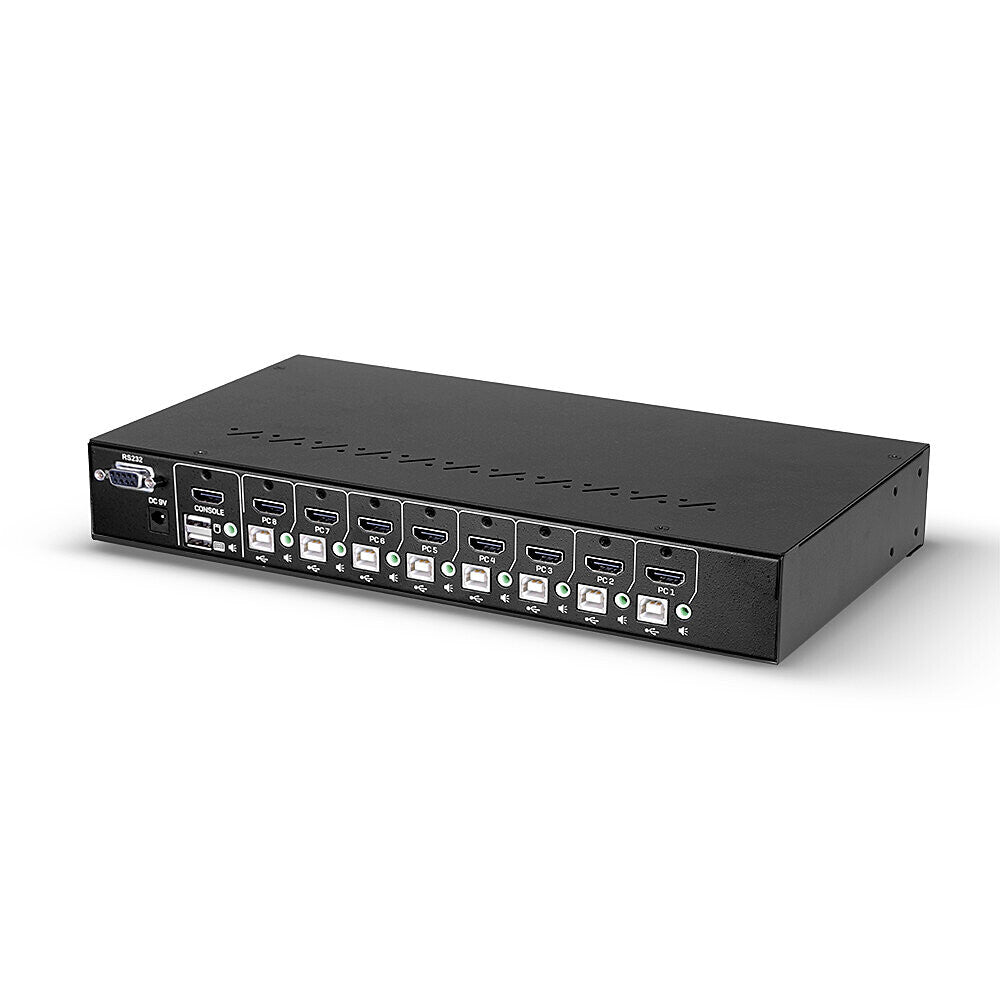

A local console can be connected to the 2 USB and HDMI® ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys or RS-232 commands.
LED indicators show the status of the selected channel.
Please Note: connection cables are not included. HDMI®, USB A to B, and 3.5mm audio cables are required for each connected computer.
| Ports & interfaces | |
|---|---|
| Audio connections | Yes |
| Serial port type | DE-9 (DB-9) |
| Console HDMI ports quantity | 1 |
| Console ports | HDMI, USB A, 3.5mm headphone |
| Console USB ports quantity | 2 |
| Video port type | HDMI |
| Mouse port type | USB |
| Keyboard port type | USB |
| Number of computers controlled | 8 |
| Performance | |
|---|---|
| HDCP version | 2.2 |
| HDCP | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Design | |
|---|---|
| Cascadable | No |
| Housing material | Metal |
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Display | |
|---|---|
| Display | LED |
| Built-in display | Yes |
| Power | |
|---|---|
| Output current | 2 A |
| Output voltage | 9 V |
| Power source | DC |
| Sustainability | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, Trade Agreements Act (TAA), REACH, RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.79 kg |
| Height | 44 mm |
| Depth | 164 mm |
| Width | 300 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.06 kg |
| Package height | 245 mm |
| Package depth | 104 mm |
| Package width | 566 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Cables included | RS-232 |
