View 3G SDI Video on an HDMI Display!
The LINDY 3G SDI to HDMI converter allows SDI, HD-SDI and 3G SDI signals to be displayed on an HDMI display. The converter also features an SDI Pass-Through feature that allows the connection of an SDI compatible display for viewing, extending or recording. The converter accepts a broadcast quality SDI input and converts to an HDMI digital 1080p video signal for viewing on the latest HDMI equipped HDTVs, monitors and projectors. A DVI-D display may also be connected when used with a suitable HDMI to DVI adapter cable.
- Converts broadcast quality SDI video into digital 1080p HDMI.
- SDI Pass-Through feature for viewing or extending.
- Can be used with any suitable HDMI display device.
- Plug & Play - simple to install and use.
- Multi country power supply included.
Additional Information
- Converts 3G SDI to HDMI.
- SMPTE standards: 425M Level A & B, 424M, 292M, 259M-C.
- SDI transmission speed: 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mb/s.
- Automatic video mode detection (3G/SD/HD).
- Converts from SMTPE 425M level B to level A for 1080p 50/59394/60 4:2:2 10-bit.
- Equalized and re-clocked Pass-Through output.
- Simultaneous display on SDI and HDMI displays.

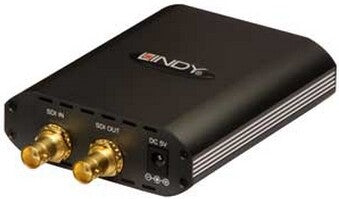

- Input port: 1 x BNC.

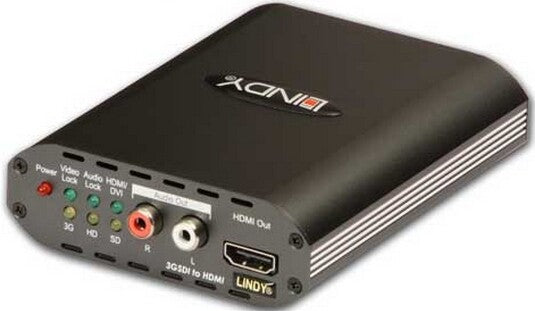

- Output ports: 1 x BNC, 1 x HDMI female, 2 x RCA (Phono) Left + Right audio.
- Supports SDI signal distance of up to 300m for SD, 200m for HD, and 100m for 3G.
- Power supply: 100~240V AC, 5V DC@2.6A centre positive.
- Dimensions: 137 x 90 x 25mm (WxDxH).
- Weight: 225g.
