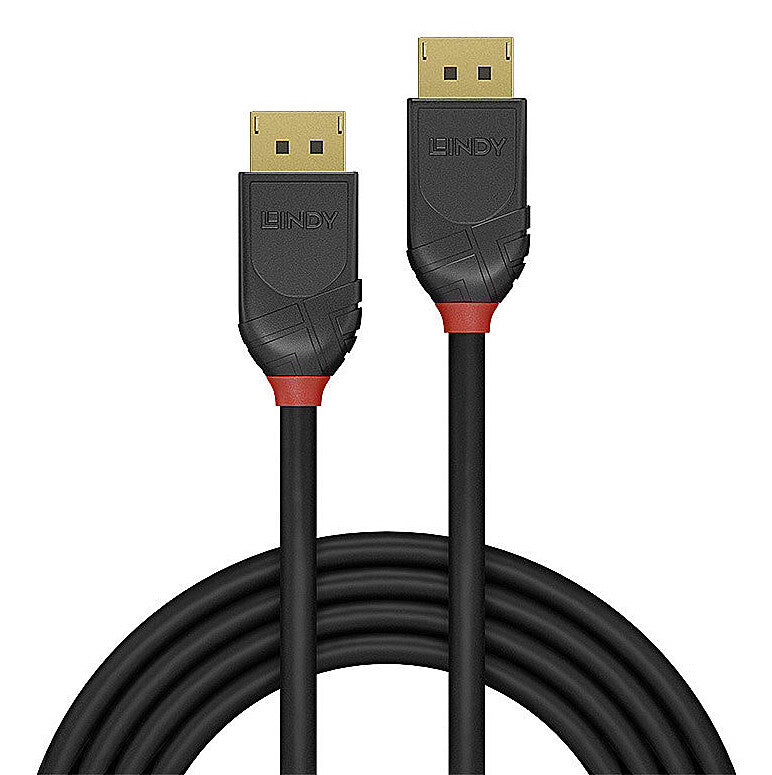

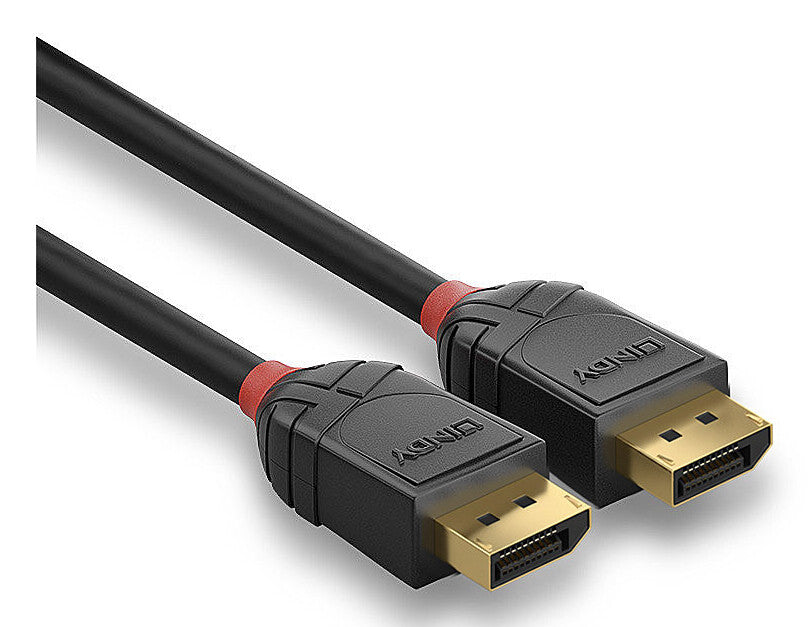

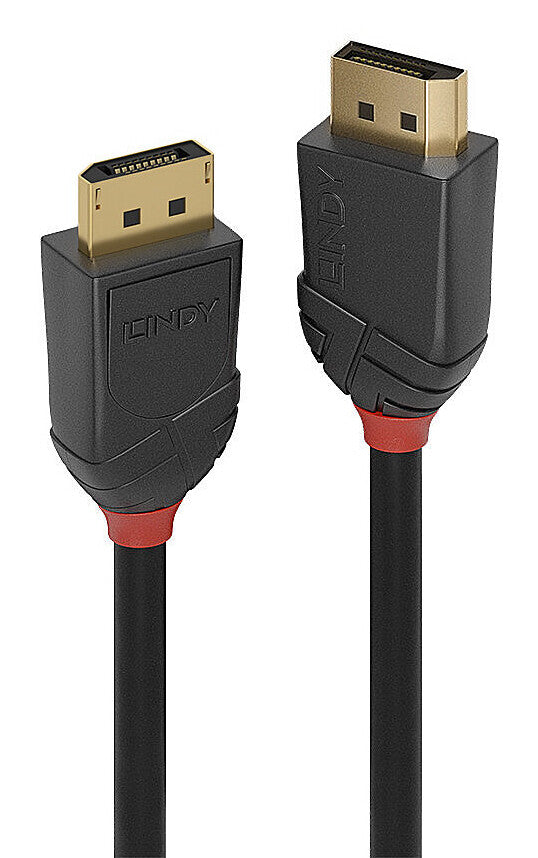

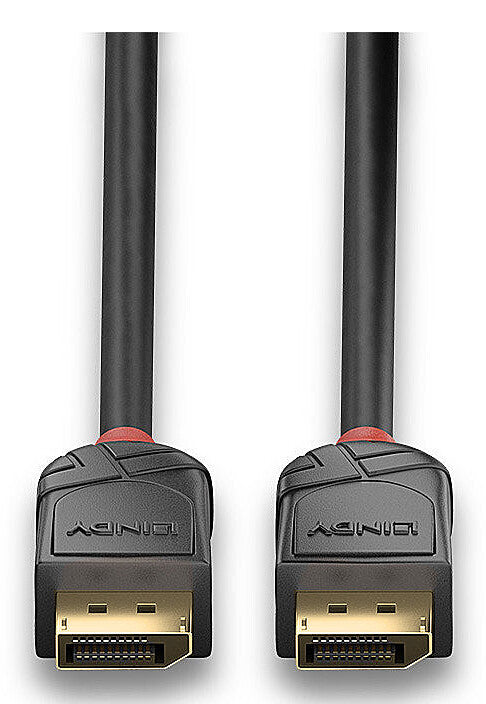

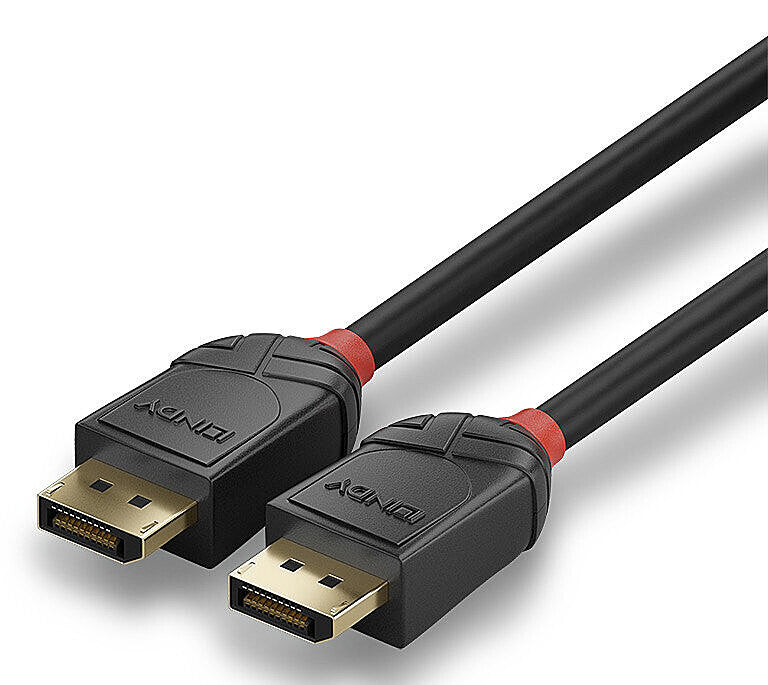

Lindy 36518 DisplayPort cable 3 m Black
Couldn't load pickup availability
- Entry level DisplayPort 2.1 cable for home and small office applications
- Supports resolutions up to 16K@60Hz 4:4:4 10-Bit with DSC (Display Screen Compression)
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant Bare Copper 28AWG conductors
From the Lines cable connectivity concept developed by Lindy, Black Line DisplayPort 2.1 cables are fully featured, entry level high resolution connection solutions, perfect for home and small office use.
UHD resolutions up to 16K 15360x8640@60Hz 4:4:4 10-Bit With DSC (Display Screen Compression). DSC is a visually lossless compression standard that allows higher resolutions and refresh rates by reducing the data bandwidth required for transmission. Black Line DisplayPort cables are also capable of transmitting 32 channel audio and Dolby True HD.
Black Line DisplayPort cables feature triple shielded construction with 28AWG copper conductors for performance and corrosion resistance. Nickel connectors and 24K gold plated contacts maintain signal integrity and reliability.
| Features | |
|---|---|
| Nominal attenuation | 100 MHz - 450 MHz < 5.1 dB 450 MHz - 8100 MHz < 33.28 dB 8100 MHz - 13500 MHz < 38.0 dB |
| Cable type | Round cable |
| Bandwidth | 54000 MB/s |
| AWG wire size | 28 |
| Connector housing material | Acrylonitrile butadiene styrene (ABS) |
| Jacket material | Polyvinyl chloride (PVC) |
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Maximum resolution | 16360 x 8640 pixels |
| DisplayPort version | 2.1 |
| Connector contacts plating | Nickel |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | DisplayPort |
| Connector 1 | DisplayPort |
| Cable length | 3 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -25 - 85 °C |
| Operating temperature (T-T) | -20 - 80 °C |
| Certificates | |
|---|---|
| Compliance certificates | RoHS, REACH, UL |
| Weight & dimensions | |
|---|---|
| Connector 1 dimensions (WxDxH) | 20.7 x 42.6 x 13 mm |
| Cable diameter | 7 mm |
| Packaging data | |
|---|---|
| Package type | Polybag |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
