Lindy 32x32 Modular Matrix Switch Chassis
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £201.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
Supports video resolutions up to 4kx2k@60Hz (depending on the boards installed)
Supports multiple audio signals from Stereo audio to LPCM 7.1Ch & DTS-HD Master Audio Transmission

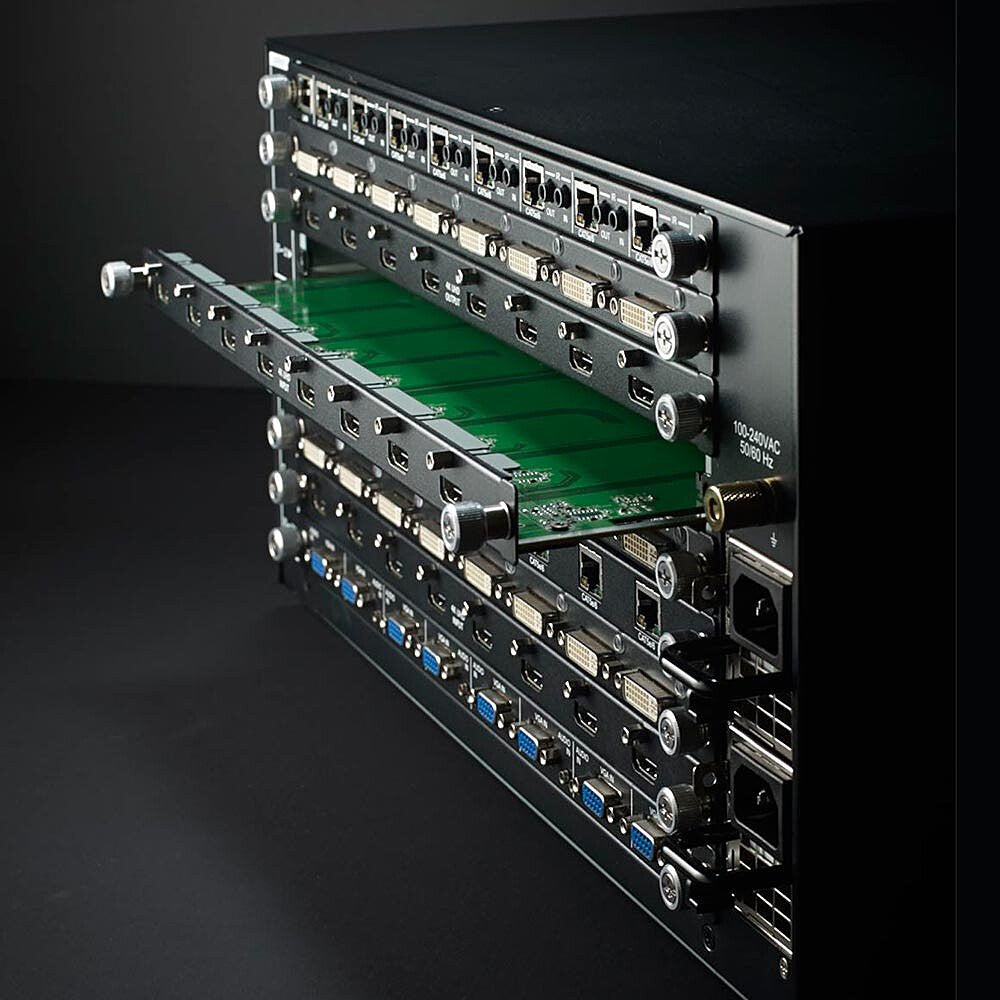

8 Port input and output modules can be mixed and added in multiple combinations (not included)
RS232, Telnet & Web GUI system control
2 Year Warranty
8x8 & 16x16 versions are also available

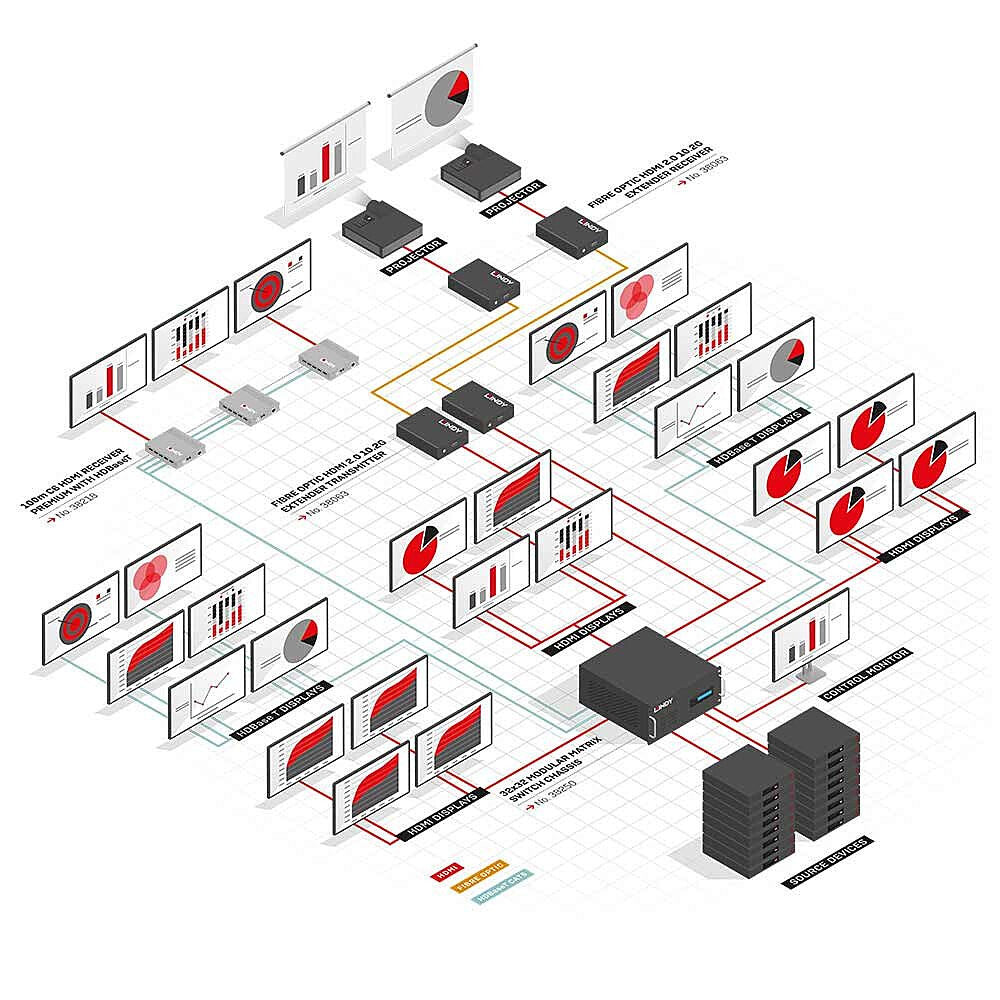

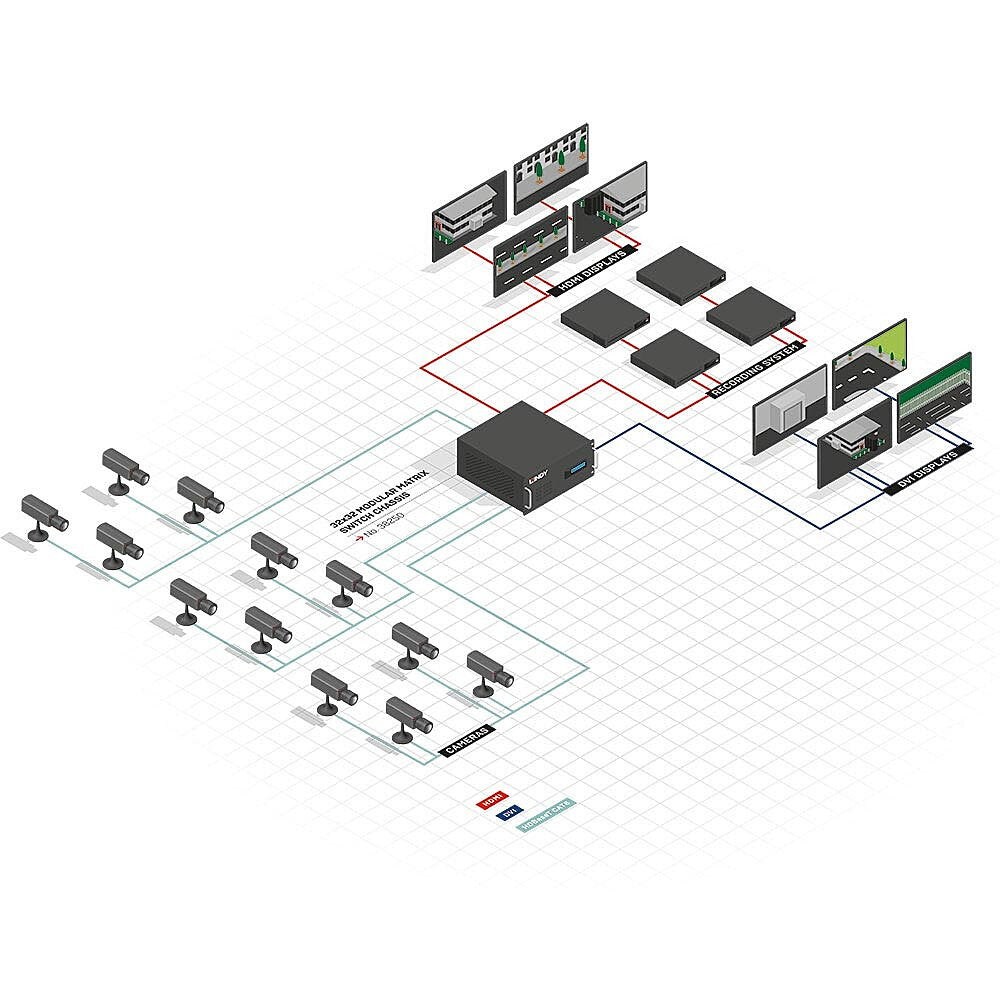

The Lindy 32x32 Modular Matrix is designed to allow you to create a matrix with up to 32 input and 32 output ports. The interchangeable boards can be a choice of HDMI, DVI or VGA input ports while the output ports can be HDMI, DVI or C6 HDBaseT. Any of the inputs can be combined with any of the outputs to create a UHD 4Kx2K@60Hz display over distances of up to 100m. Control of the Matrix is supported through IR, RS232, Telnet and Web GUI. The modular design provides the ultimate in flexibility for audio and video distribution as a matrix, converter or an extender in retail product demonstration, training and public display appliCat.ion in schools, pubs etc.

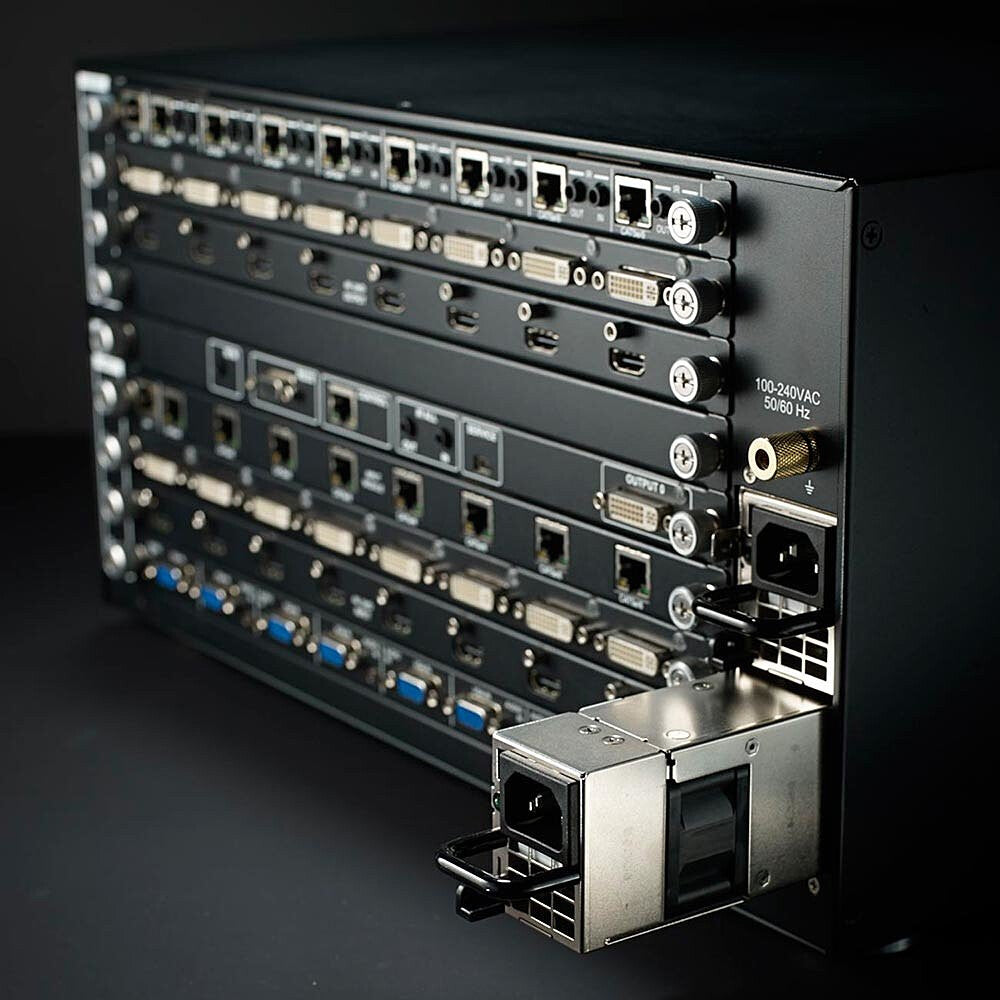

Featuring the added benefit of dual redundant power supplies, the Lindy Modular Matrix provides professional installations with 24 hour operation and zero downtime.
With high quality, reliable products, backed by a 2 year warranty and free telephone technical support, you can rely on Lindy to support you before, during and after installation.
This product is intended to be used with the following modules. - Please call to check your requirements.
To speed up installation, Lindy can pre-install any additional add on cards purchased and perform a 100% test. Once the product arrives on site there is no need to waste time installing the cards, you will only need to configure the Matrix to your installation specifiCat.ion.
Please Note: CEC and ARC are not supported
NOTE: The chassis does not come with any input or output boards. Pictures shown are for illustrative purposes only.
Specifications
Features
| Power LED | Yes |
|---|---|
| Rack mounting | Yes |
| Material | Metal |
| Product colour | Black |
| Product type | Chassis |
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
Show all 9 specificationsShow fewer specifications
Weight & dimensions
| Height | 233 mm |
|---|---|
| Depth | 494 mm |
| Width | 482 mm |
