£24.99

Stock Available: 0

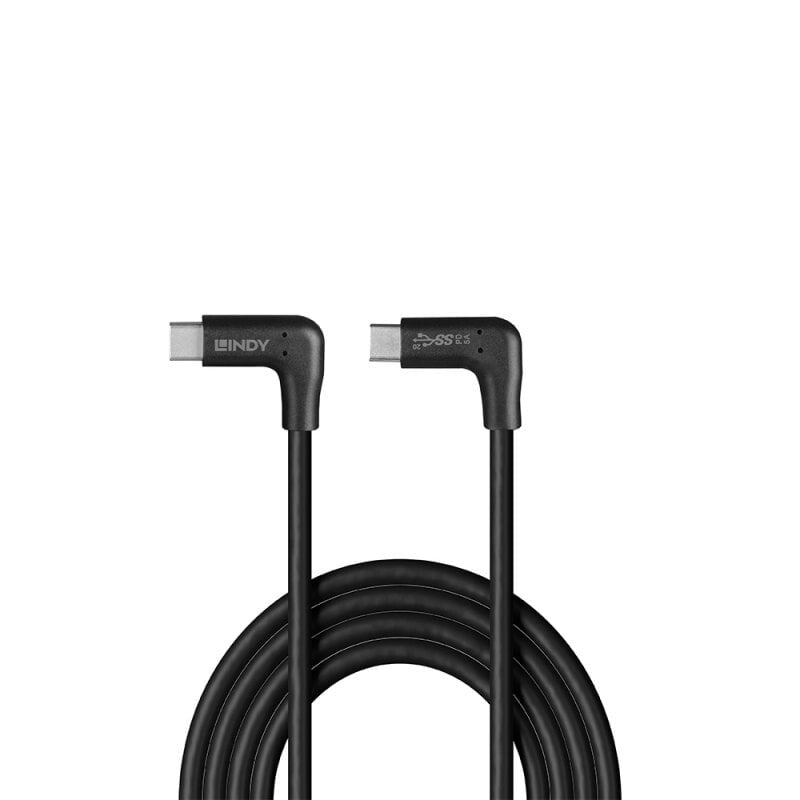

  • Entry level USB 3.2 Type C cable for home and small office applications

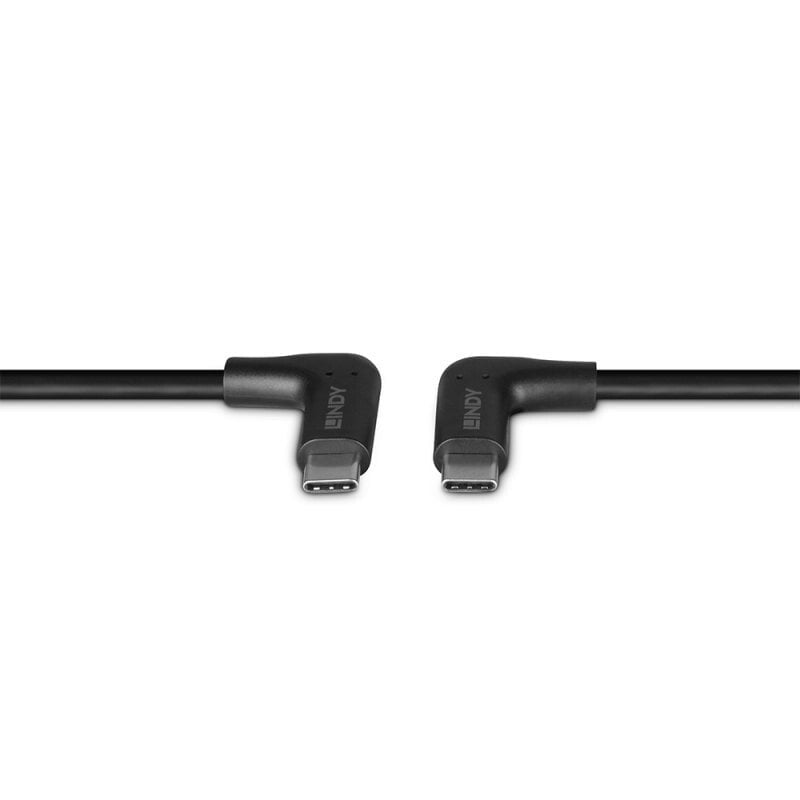

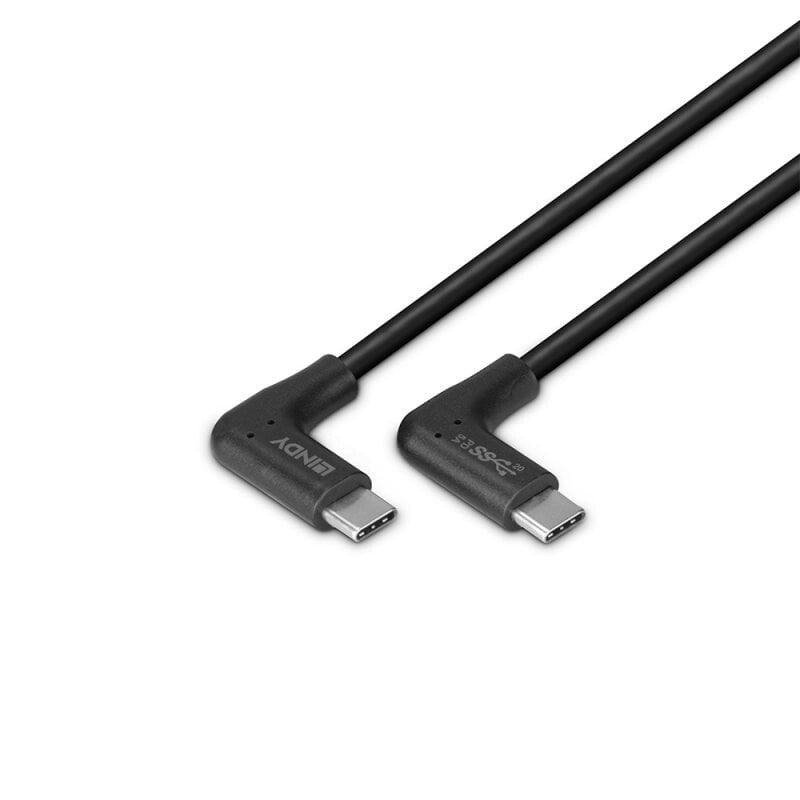

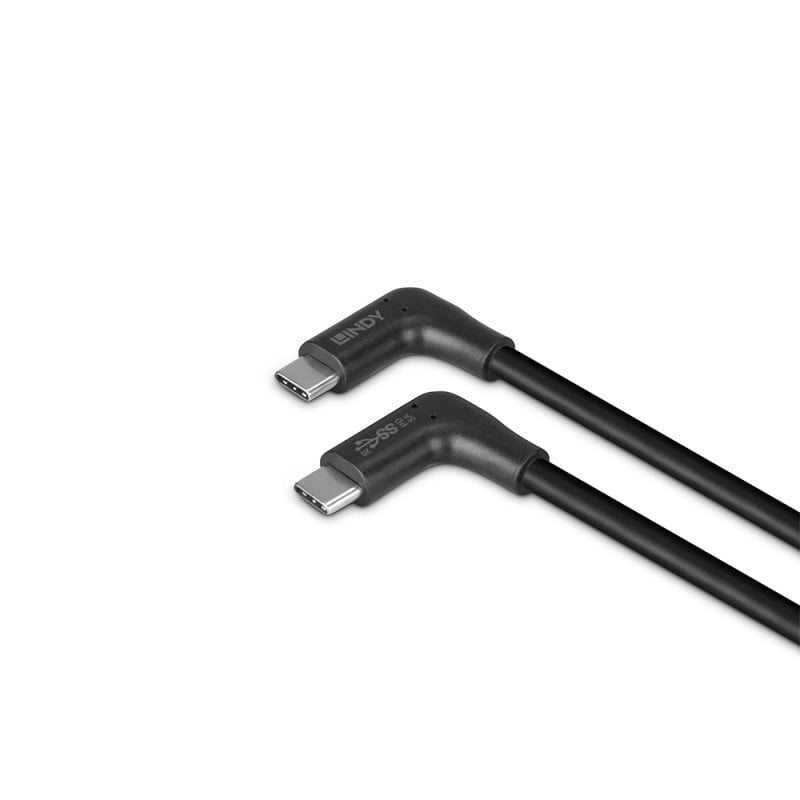

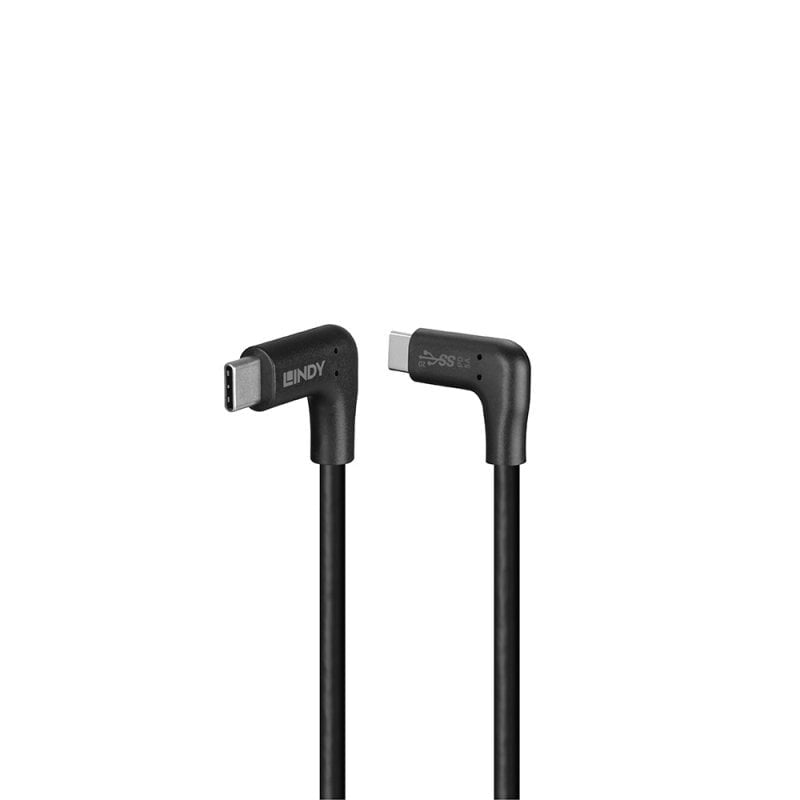

  • Both USB Type C plugs are angled at 90°
  • Supports data rates of up to 10Gbps
  • Robust PVC housing with nickel-plated contacts

Lindy USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.

USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.

Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

USB 3.2 Type C, 2 x 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.

Features
Nominal attenuation 0.5Mhz- 400Mhz < 5.8db
USB Power Delivery (USB PD) Yes
USB Power Delivery up to 60 W
USB Power Delivery revision 2.0
Cable type Round cable
Product colour Black
Maximum data transfer rate 10 Gbit/s
Conductor material Copper
Connector shield material Aluminium
Connector shielding Yes
Cable jacket material Nylon/Polyvinyl Chloride (PVC)
Connector contacts plating Nickel
Connector material Gold
AWG wire size 22/28
Connector 2 form factor Angled
Connector 1 form factor Angled
Connector 2 gender Male
Connector 1 gender Male
Connector 2 USB C
Connector 1 USB C
USB version USB 3.2 Gen 2 (3.1 Gen 2)
Weight & dimensions
Connector 2 dimensions (WxDxH) 11.1 x 25.8 x 24.2 mm
Connector 1 dimensions (WxDxH) 11.1 x 25.8 x 24.2 mm
Bend radius (min) 5 cm
Cable diameter 5 mm
Cable length 1.5 m
Packaging data
Package type Polybag
Packaging content
Quantity per pack 1 pc(s)
Operational conditions
Storage temperature (T-T) 0 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Certificates
Certification RoHS, REACH, California Proposition 65
Compliance certificates REACH, RoHS
Logistics data
Warranty period 10 year(s)
