• HDBaseT Matrix Extender that extends and distributes HDMI, IR and RS-232 signals to 4 displays at distances of up to 150m
• Supports resolutions up to 4K60Hz with HDR
• Features loop-through HDMI outputs for local monitoring
• Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions
• 2 year warranty

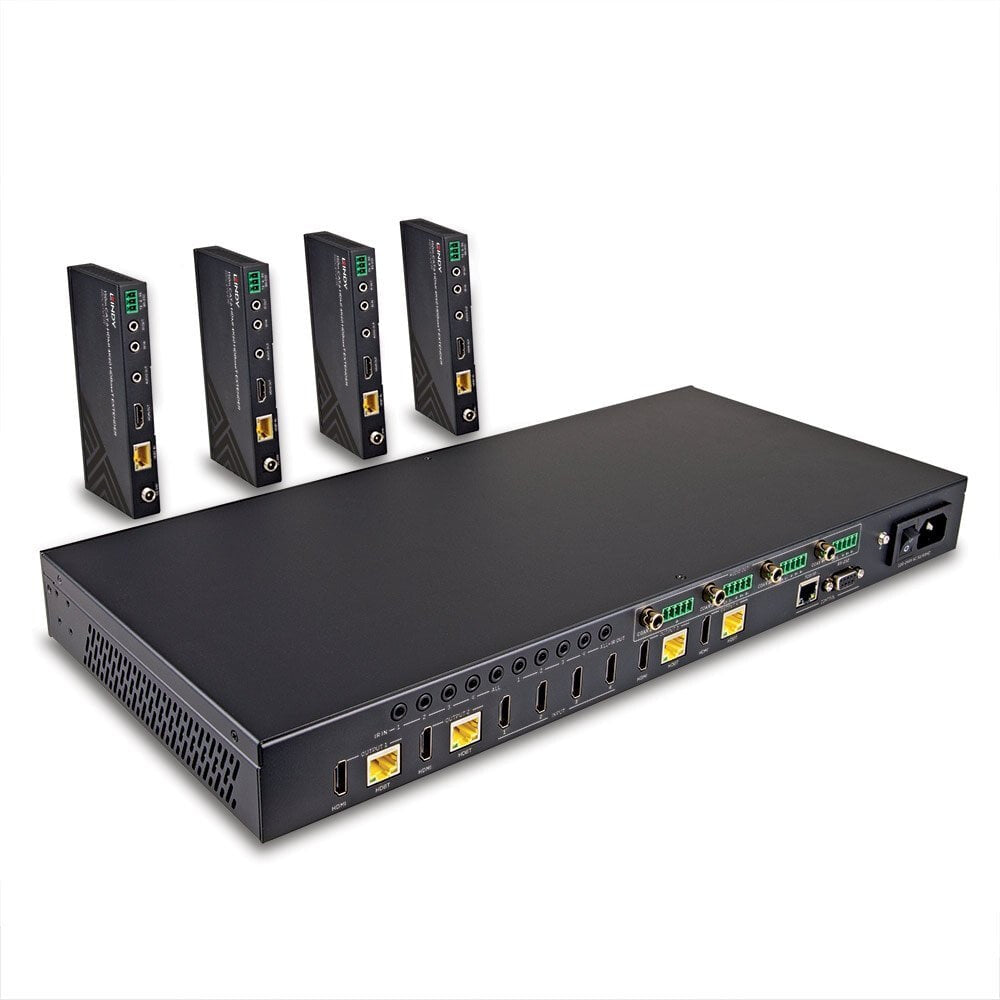

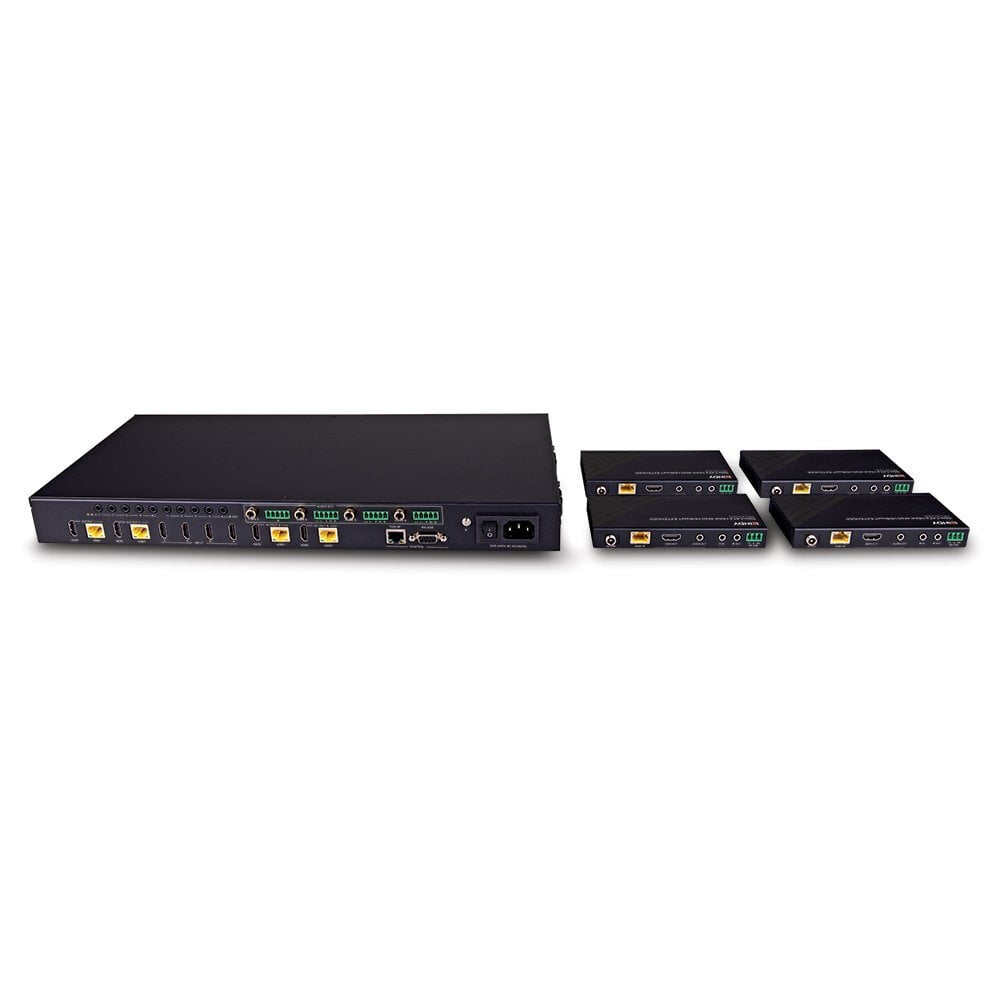

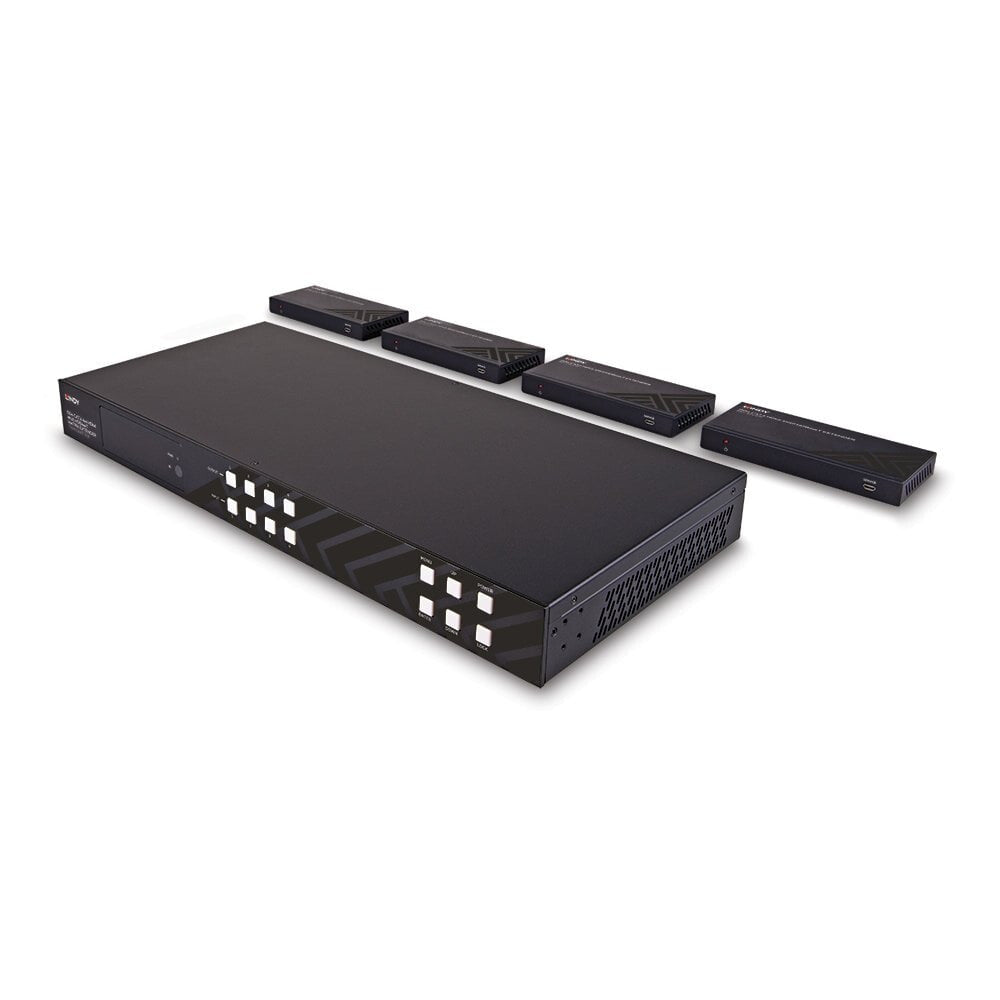

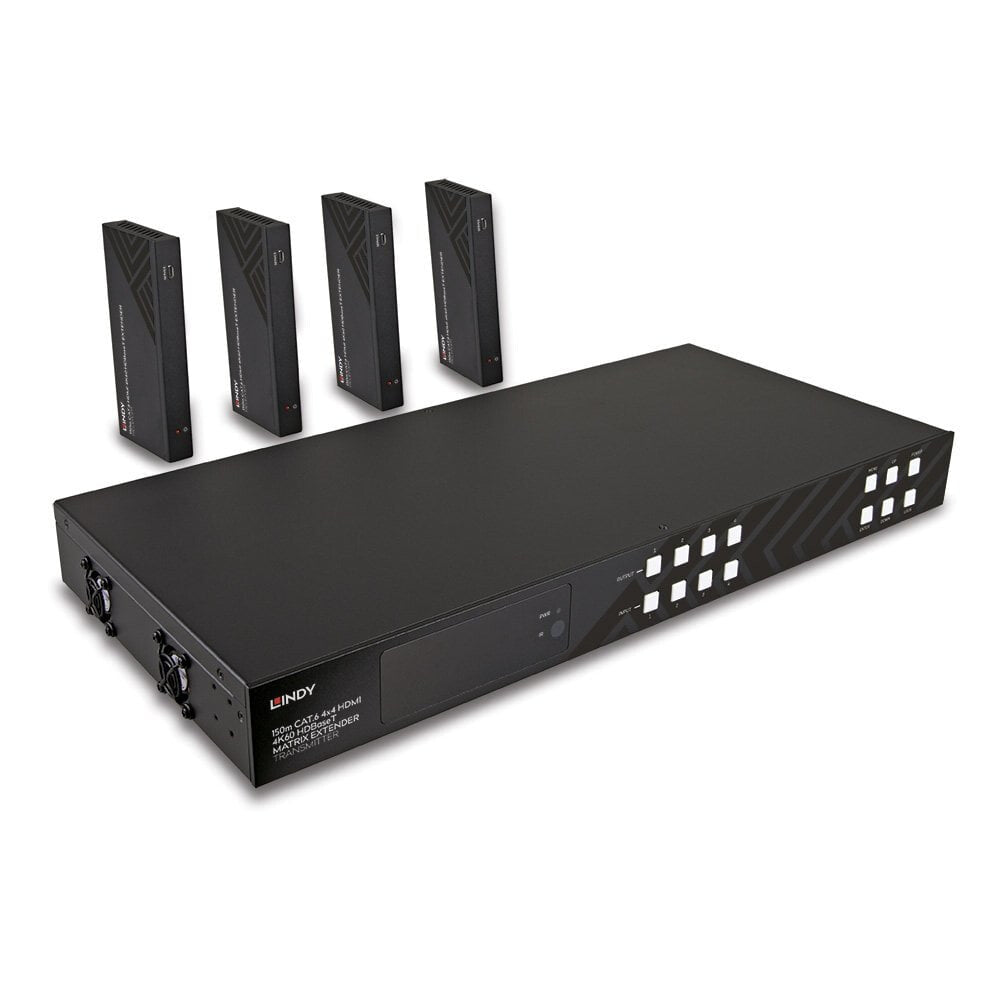

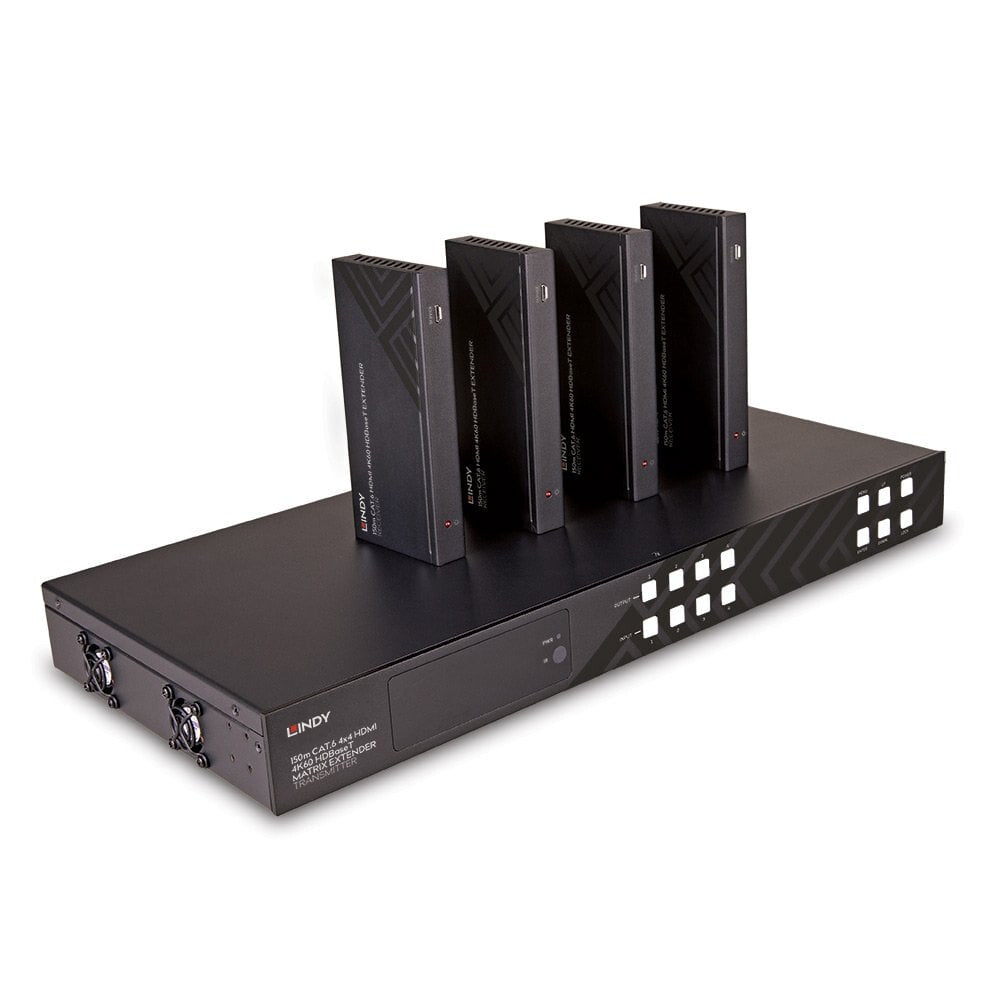

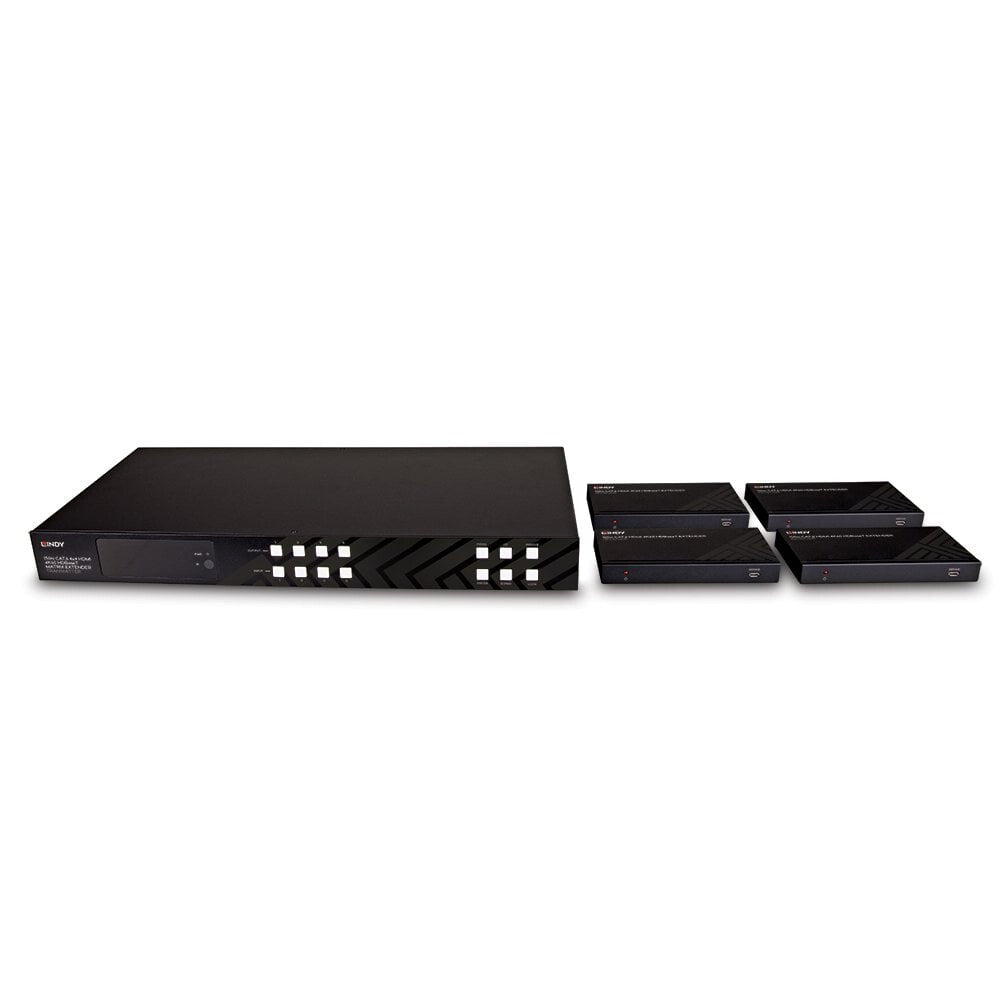

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.

Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.

PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.

• manual pdf
