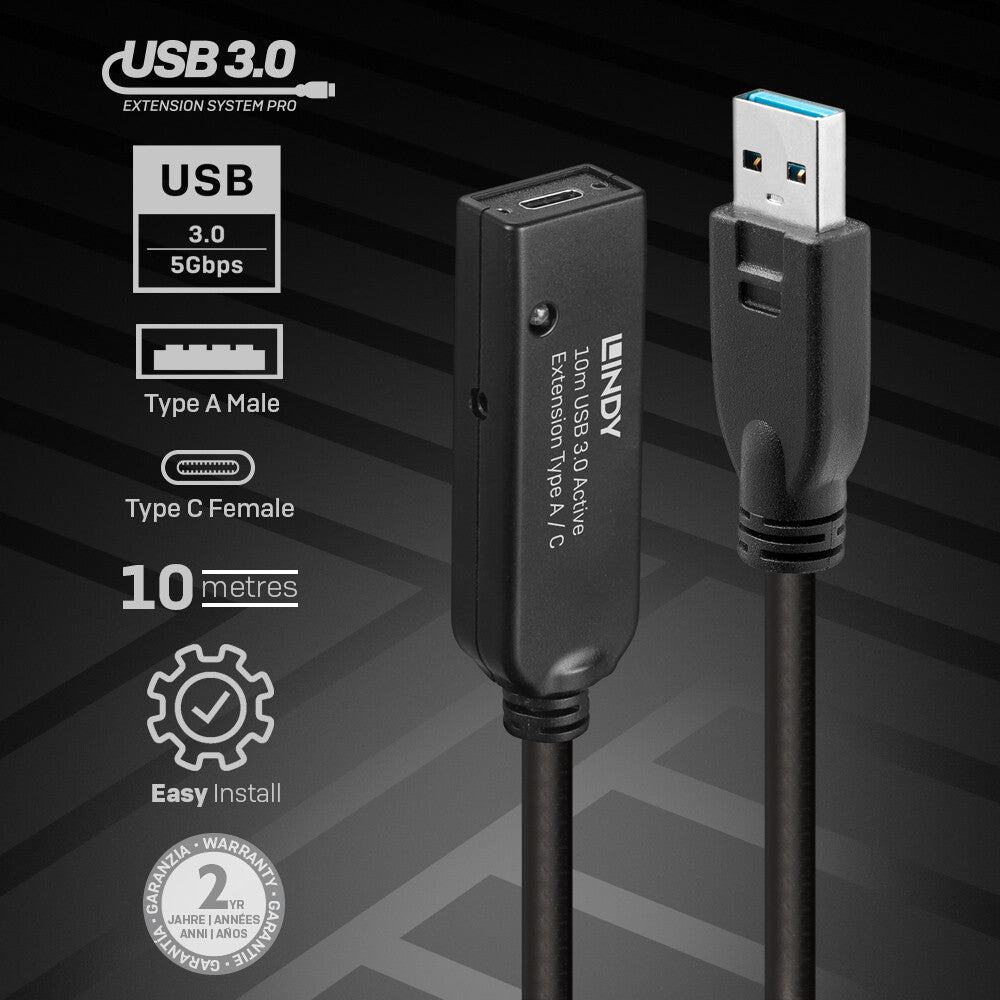

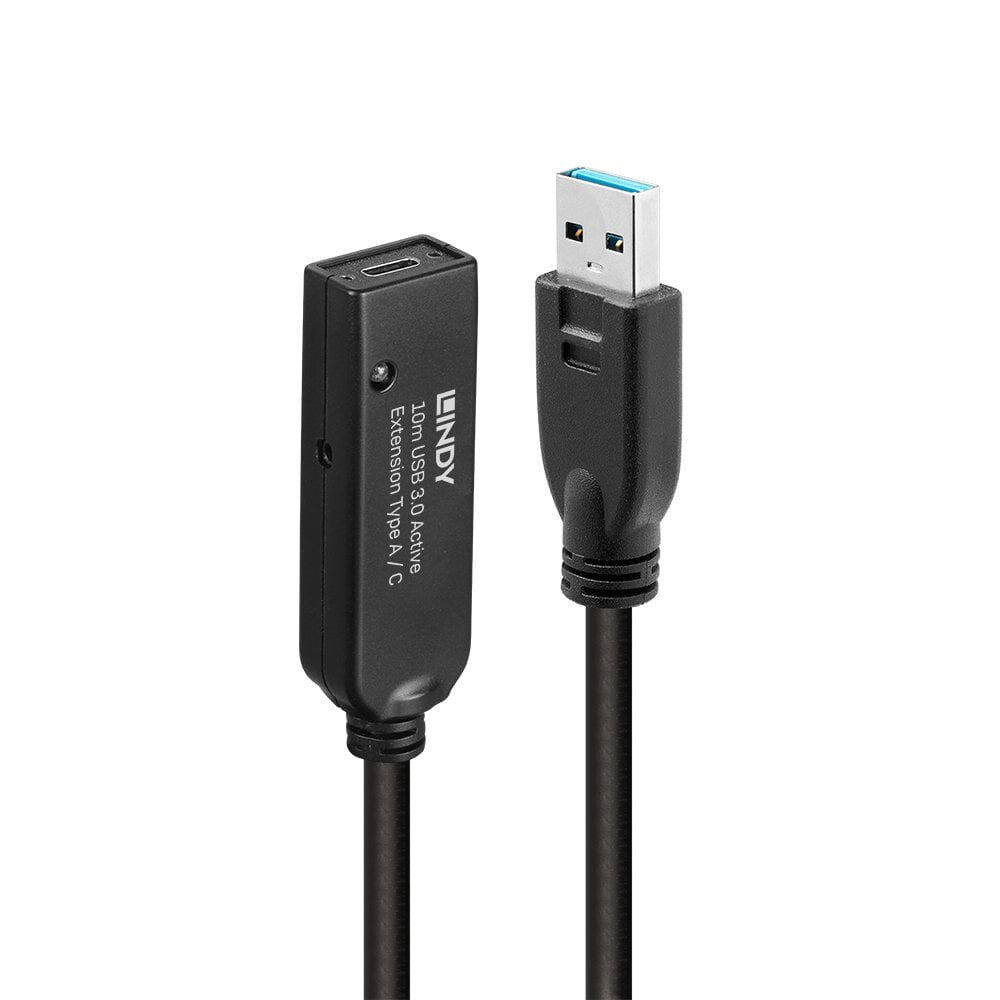

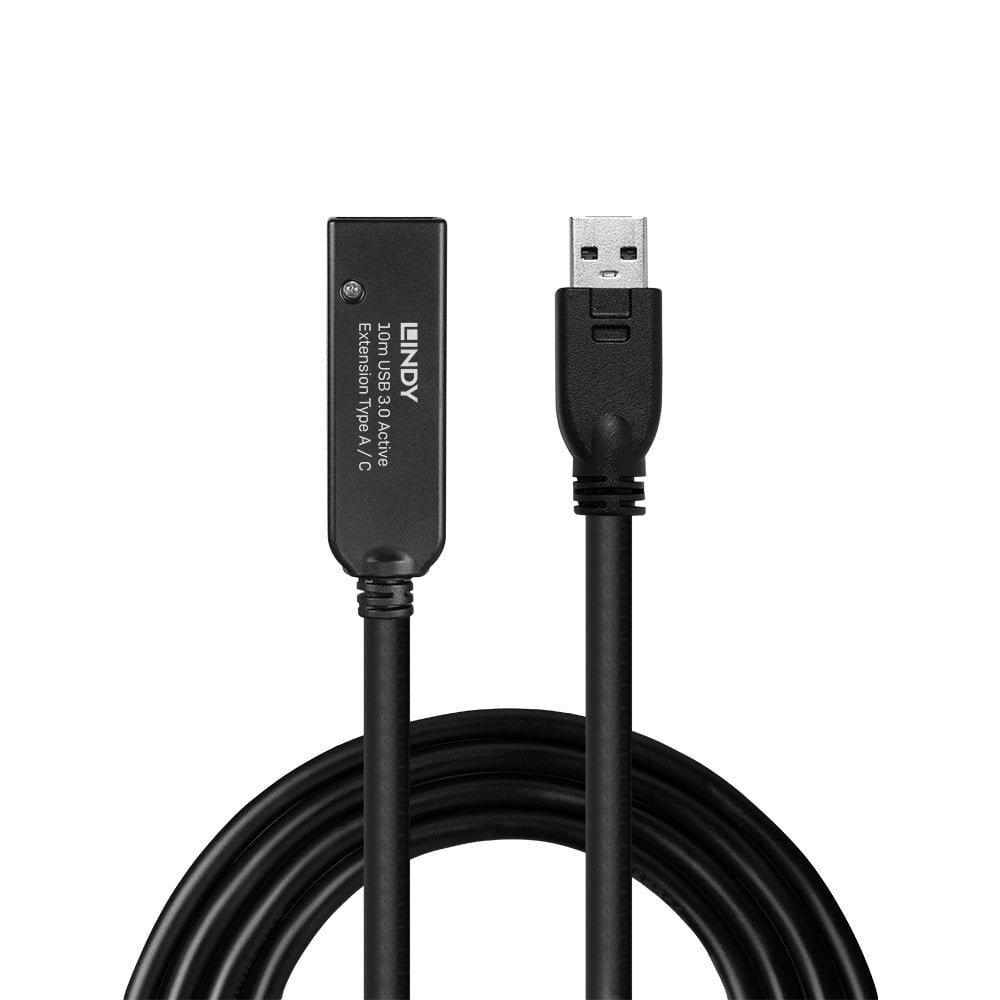

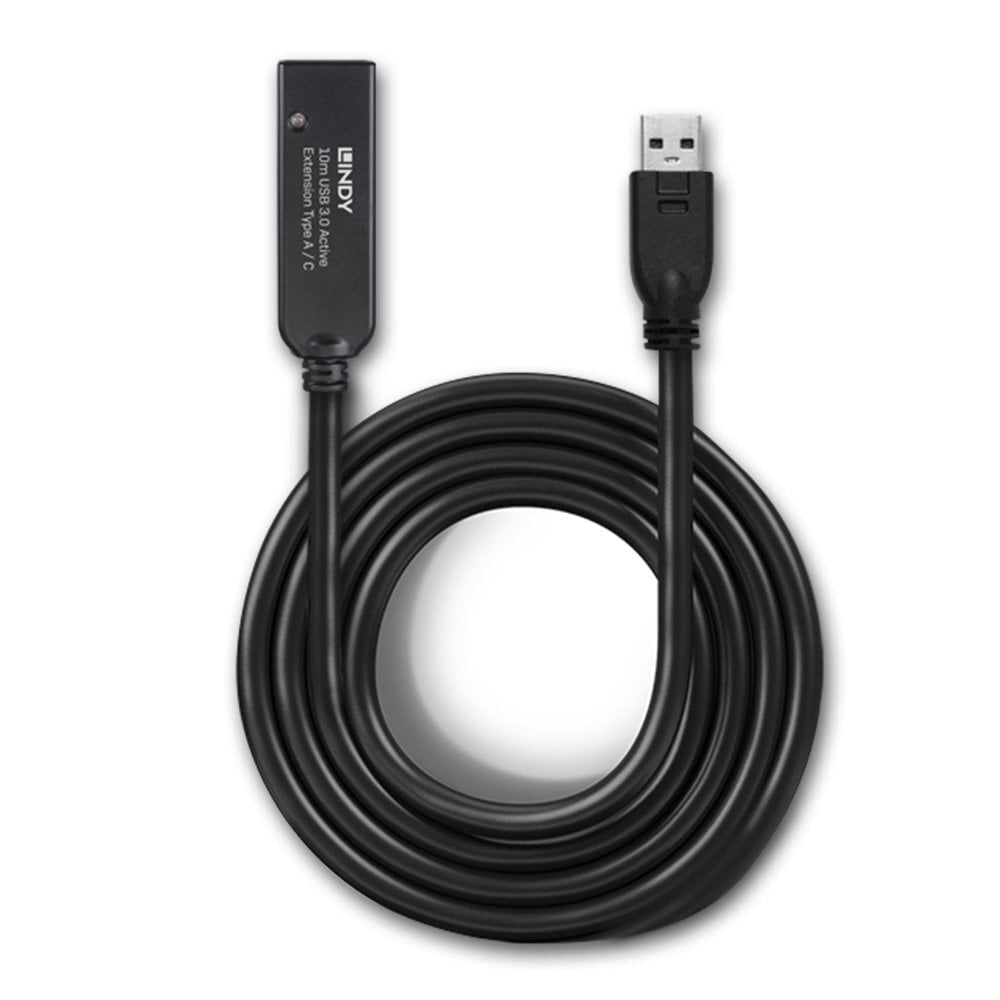

Lindy 10m USB 3.0 Active Extension Type A to C
Couldn't load pickup availability
- High performance, active cable that provides an extended 10m connection between a computer with USB Type A port and a Type C device
- Supports USB 3.2 / 3.1 Gen 1 / USB 3. 0 bandwidth for speeds of 5Gbps
- Can be used standalone orandnbsp; - for even greater distances - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361) up to a maximum distance of 38m
- Industry-proven active technology and screw-lock connector
- 2 year warranty
This Lindy 10m USB Active Extension Cable is a high performance active cable that allows access to USB Type C peripherals like webcams or storage devices over long distances. With support for data transfer speeds of up to 5Gbps this extension cable is perfect for transferring large data volumes quickly and reliably.

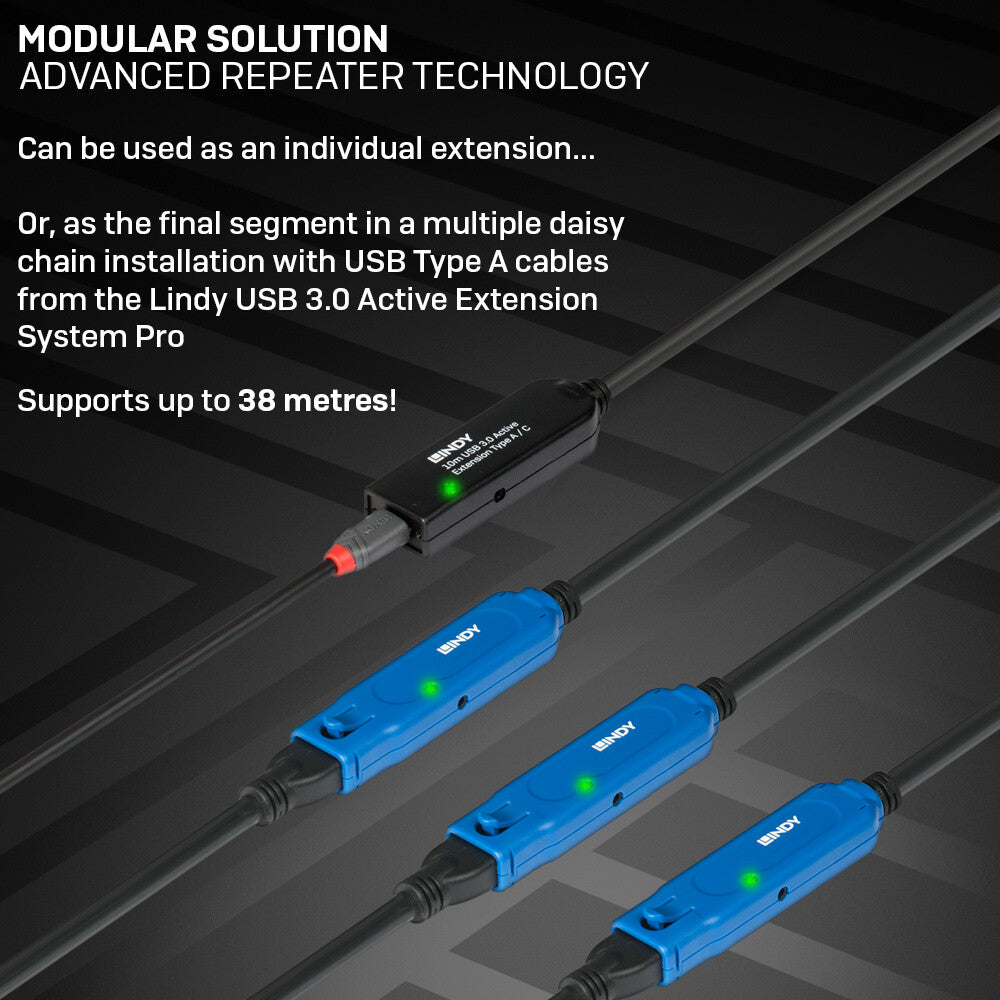

This 10m extension cable can be used standalone or - for distances up to 38m - as part of the Lindy USB 3.0 Active Extension System Pro (No. 43157, 43158, 43229 or 43361). Please note that only No. 43157, 43158, 43229 or 43361 (depending on the maximum required distance) can be connected directly to your computer as first unit. The final part of the extension shall always be the 10m USB Type A to C Active Extension No. 43376.

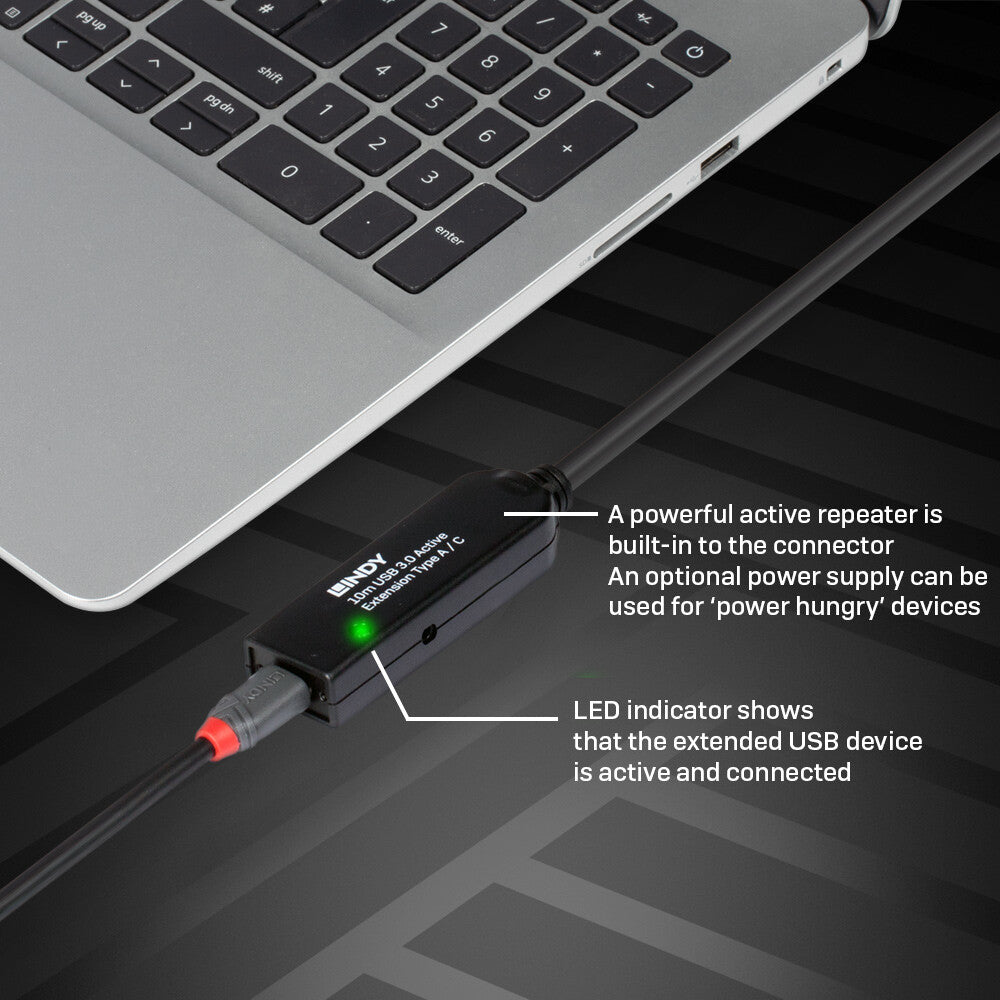

A USB to DC adapter cable for power supply is included. Usually a 5V 1A power supply of a smartphone is enough to drive the connected device.For USB devices with high power demands, such as a USB Hub or storage device, it may be necessary to connect a bigger power supply with an output voltage and amperage up to 5V 3A.
This cable features industry-proven active technology and screw-lock connectors to ensure full signal integrity in the most demanding environments.
Information about USB 3.0, 3.1 and 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
| Features | |
|---|---|
| Cable type | Round cable |
| Product colour | Black |
| Maximum data transfer rate | 5 Gbit/s |
| Connector housing material | Plastic |
| Conductor material | Tinned copper |
| Connector shielding | Yes |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector contacts plating | Nickel |
| AWG wire size | 24/24/20 |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Female |
| Connector 1 gender | Male |
| Connector 2 | USB C |
| Connector 1 | USB A |
| USB version | USB 3.2 Gen 1 (3.1 Gen 1) |
| Weight & dimensions | |
|---|---|
| Connector 2 dimensions (WxDxH) | 9.86 x 9.15 x 2.96 mm |
| Connector 1 dimensions (WxDxH) | 15 x 49 x 8 mm |
| Weight | 800 g |
| Cable diameter | 7 mm |
| Cable length | 10 m |
| Packaging data | |
|---|---|
| Package weight | 1 kg |
| Package height | 63 mm |
| Package depth | 198 mm |
| Package width | 230 mm |
| Package type | Box |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Certificates | |
|---|---|
| Certification | California Proposition 65 |
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
| Logistics data | |
|---|---|
| Warranty period | 2 year(s) |
