Lenovo ThinkSystem ST50 V2 server 1.92 TB Tower Intel Xeon E E-2324G 3.1 GHz 16 GB DDR4-SDRAM 500 W
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £812.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Processor modelE-2324G
- Internal memory typeDDR4-SDRAM
- Total storage capacity1.92 TB
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 128 GB
- Three PCIe slots for I/O expansion, one of which has the new PCIe Gen4 interface to maximize I/O performance
- Support for a NVMe M.2 drive for OS boot operations
- Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
- The use of SSDs instead of, or along with, traditional spinning drives (HDDs) can significantly improve I/O performance
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server is based on the Intel Xeon E-2300 Series processors, formerly codenamed "Rocket Lake".
This product guide provides essential presales information to understand the ThinkSystem ST50 V2 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the ST50 V2 and consider its use in IT solutions.
The Lenovo ThinkSystem ST50 V2 single-socket tower server is an entry level server ideal for small businesses, home offices, retail, educational institutions and branch offices. The server supports one Intel Xeon E-2300 Series processor (formerly codenamed "Rocket Lake") or Intel Pentium ("Comet Lake Refresh") and up to 128 GB of 3200 MHz TruDDR4 ECC memory.

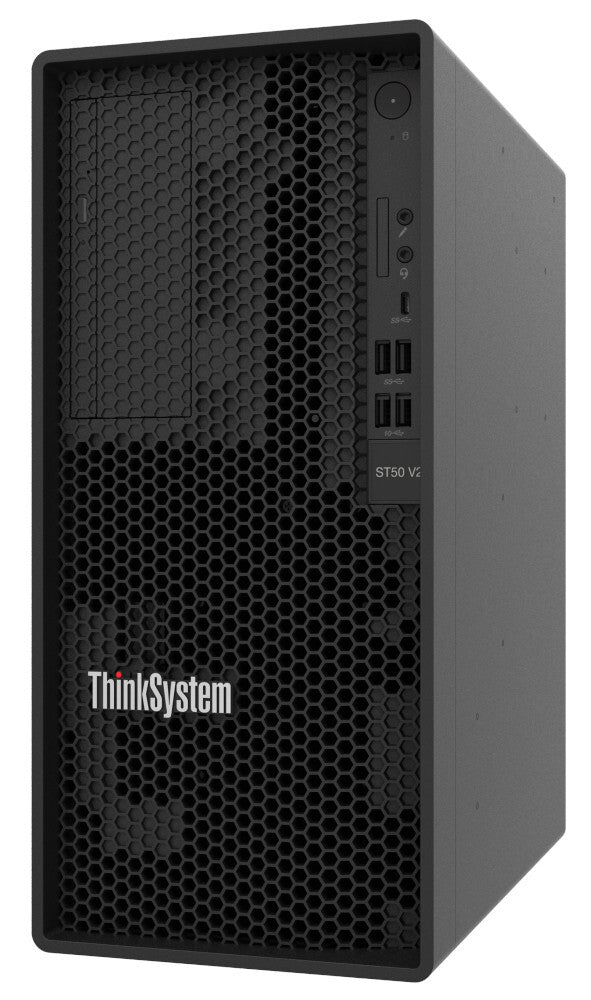

The following figure shows the ThinkSystem ST50 V2.
Specifications
Processor
| Number of processors installed | 1 |
|---|---|
| Motherboard chipset | Intel C256 |
| Processor cache | 8 MB |
| Processor cores | 4 |
| Processor boost frequency | 4.6 GHz |
| Processor frequency | 3.1 GHz |
| Processor model | E-2324G |
| Processor family | Intel Xeon E |
| Processor manufacturer | Intel |
Memory
| Maximum internal memory | 128 GB |
|---|---|
| Memory slots | 4x DIMM |
| ECC | Yes |
| Memory layout (slots x size) | 1 x 16 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 16 GB |
Show all 60 specificationsShow fewer specifications
Storage
| Optical drive type | No |
|---|---|
| Hot-swap | No |
| RAID support | Yes |
| Number of SSDs supported | 2 |
| SSD size | 3.5" |
| Supported SSD sizes | 2.5", 3.5" |
| SSD capacity | 960 GB |
| Number of SSDs installed | 2 |
| Total storage capacity | 1.92 TB |
| Maximum storage capacity | 16 TB |
Graphics
| On-board graphics card model | Intel UHD Graphics P750 |
|---|---|
| On-board graphics card | Yes |
Network
| LAN controller | Intel® I219-LM |
|---|---|
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
Ports & interfaces
| DisplayPorts quantity | 2 |
|---|---|
| Serial ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| PCI Express x16 (Gen 4.x) slots | 1 |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
Design
| Product colour | Black |
|---|---|
| Chassis type | Tower |
Performance
| Trusted Platform Module (TPM) | Yes |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
Software
| Compatible operating systems | Microsoft Windows Server, Red Hat Enterprise Linux, VMware ESXi |
|---|---|
| Operating system installed | No |
Processor special features
| CPU configuration (max) | 1 |
|---|
Power
| Power supply | 500 W |
|---|---|
| Redundant power supply (RPS) support | No |
Operational conditions
| Operating altitude | 0 - 3050 m |
|---|---|
| Storage relative humidity (H-H) | 8 - 90% |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 5 - 45 °C |
General
| Product family | ThinkSystem |
|---|
Weight & dimensions
| Depth | 316 mm |
|---|---|
| Height | 376 mm |
| Width | 170 mm |
Other features
| Warranty period | 3 year(s) |
|---|
