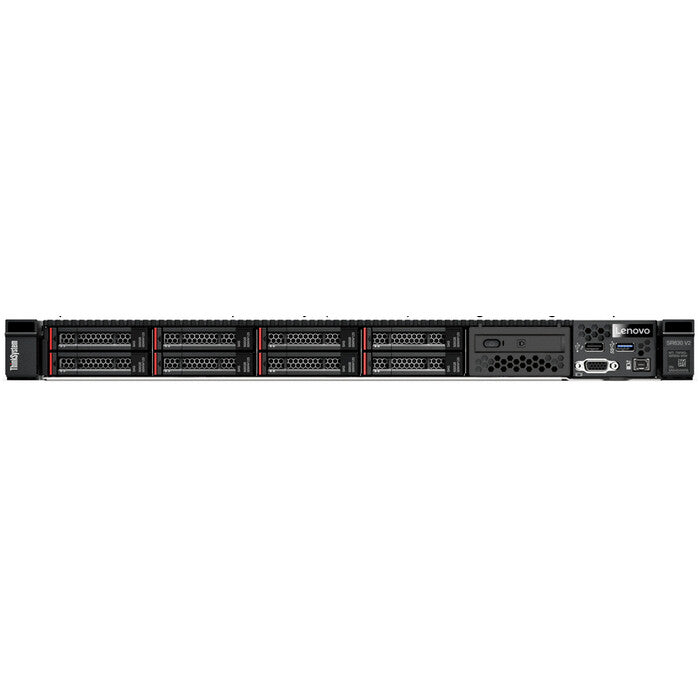

Lenovo ThinkSystem SR630 V2 server Rack (1U) Intel Xeon Silver 4310 2.1 GHz 32 GB DDR4-SDRAM 750 W
£4,782.99
Couldn't load pickup availability
- No OS
- Intel Xeon Silver 4310 (18MB Cache, 2.1GHz)
- 32GB (3200MHz) DDR4-SDRAM (1 x 32)
Built for business, with business-critical versatility
The versatile, highly reliable 1U ThinkSystem SR630 V2 2P rack server is designed to handle hybrid data center workloads, from IT infrastructure and HPC to cloud and hyperconverged.
| Processor | |
|---|---|
| Maximum number of SMP processors | 2 |
| Number of processors installed | 1 |
| Processor cache | 18 MB |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.1 GHz |
| Processor model | 4310 |
| Processor family | Intel Xeon Silver |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory slots | 32x DIMM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 1 x 32 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported RAID controllers | 9350-8i |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| RAID support | Yes |
| Graphics | |
|---|---|
| Maximum graphics card memory | 16 MB |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Design | |
|---|---|
| Redundant fans support | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Chassis type | Rack (1U) |
| Performance | |
|---|---|
| BIOS type | UEFI |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Noise level | 56 dB |
| Performance management | XClarity Enterprise |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2016Microsoft Windows Server 2019Microsoft Windows Server 2022Red Hat Enterprise Linux 7.9Red Hat Enterprise Linux 8.2Red Hat Enterprise Linux 8.3SUSE Linux Enterprise Server 12 SP5SUSE Linux Enterprise Server 12 Xen SP5SUSE Linux Enterprise Server 15 SP2SUSE Linux Enterprise Server 15 Xen SP2VMware ESXi 6.7 U3VMware ESXi 7.0 U2 |
| Operating system installed | No |
| Power | |
|---|---|
| Number of redundant power supplies supported | 2 |
| Power supply | 750 W |
| Redundant power supply (RPS) support | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Depth | 773 mm |
| Height | 43 mm |
| Width | 440 mm |
