Lenovo · MPN: 7Y68A004EA
£3,424.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,141.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

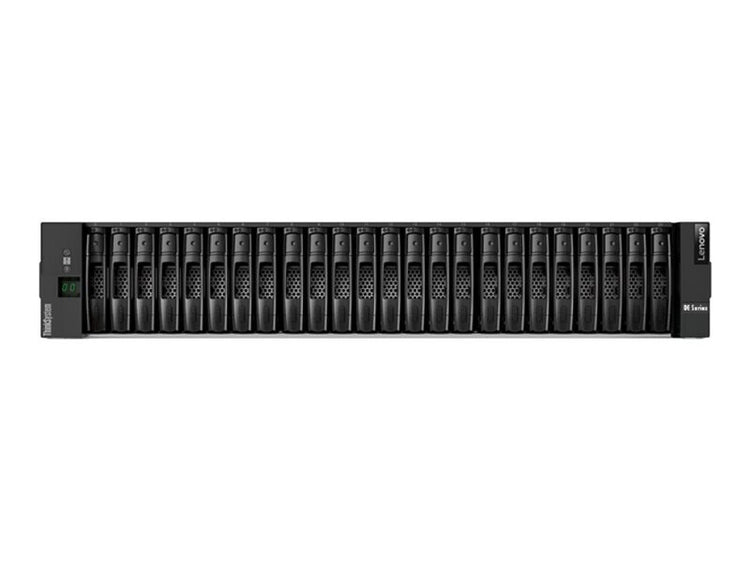

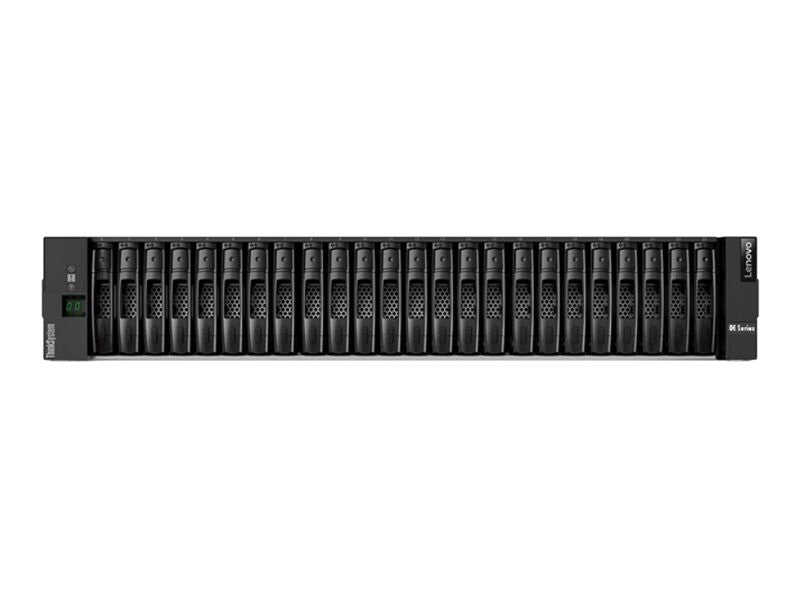

Lenovo ThinkSystem DE240S disk array Rack (2U) Black
Now £3,424.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • Scalable entry-level hybrid storage with dual active/active controller configurations with 8 GB cache per controller for high availability and performance
  • Improved performance and data protection with Dynamic Disk Pools (DDP) technology, as well as support for traditional RAID 0, 1, 3, 5, 6, and 10
  • Flexible host connectivity to match diverse client needs with support for 10 Gb iSCSI or 4/8/16 Gb FC, and 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connectivity at the same time
  • 12 Gb SAS drive-side connectivity with support for up to 24x 2.5-inch small form factor (SFF) drives in the 2U24 SFF enclosures, up to 12x 3.5-inch large form factor (LFF) drives in the 2U12 LFF enclosures, or up to 60x 3.5-inch LFF drives in the 4U60 LFF enclosures
  • Scalability to up to 192 SFF or LFF drives with the attachment of the ThinkSystem DE240S 2U24 SFF, DE120S 2U12 LFF, or DE600S 4U60 LFF expansion enclosures to satisfy growing needs for storage capacity and performance
  • Rich set of standard storage management functions available at no extra cost, including Dynamic Disk Pools, SSD read cache, snapshots, volume copy, thin provisioning, and encryption (requires optional FIPS drives)
  • Optional licensed functions, including higher number of snapshots for greater scalability and synchronous or asynchronous mirroring for continuous data availability
  • Intuitive, web-based GUI for easy system setup and management
  • Designed for 99.999% availability with redundant hot-swap components, including controllers and I/O modules, power supplies, cooling modules (4U60 LFF enclosures only), proactive maintenance, and non-disruptive firmware upgrades

Abstract
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. The ThinkSystem DE4000H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.

This product guide provides essential technical and pre-sales information on the Lenovo ThinkSystem DE4000H Hybrid Storage Array, its key features and specifications, components and options, and configuration guidelines.

This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the ThinkSystem DE4000H Hybrid Storage Array and consider its use in their solutions.

Introduction
Lenovo ThinkSystem DE4000H is a scalable, hybrid entry-level storage system that is designed to provide performance, simplicity, capacity, security, and high availability for medium to large businesses. It delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features. The ThinkSystem DE4000H is a perfect fit for a wide range of enterprise workloads, including big data and analytics, video surveillance, technical computing, backup and recovery, and other storage I/O-intensive applications.

ThinkSystem DE4000H models are available in a 2U rack form-factor with 24 small form-factor (2.5-inch SFF) drives (2U24 SFF), 12 large form-factor (3.5-inch LFF) drives (2U12 LFF), or a 4U rack form-factor with 60 LFF drives (4U60 LFF) and include two controllers, each with 8 GB cache for a system total of 16 GB. Universal 10 Gb iSCSI or 4/8/16 Gb Fibre Channel (FC) ports provide base host connectivity, and the host interface cards provide additional 10 Gb iSCSI or 4/8/16 Gb FC, 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC connections.

The ThinkSystem DE4000H Storage Array scales up to 192 drives with the attachment of Lenovo ThinkSystem DE120S 2U12, DE240S 2U24 SFF, and DE600S 4U60 LFF Expansion Enclosures. It also offers flexible drive configurations with the choice of 2.5-inch (SFF) and 3.5-inch (LFF) form factors, 10 K rpm SAS and 7.2 K rpm NL SAS hard disk drives (HDDs), and SAS solid-state drives (SSDs).

Did you know?
The ThinkSystem DE4000H scales up to 2.3 PB of raw storage capacity, and it offers block storage connectivity with support for 10 Gb iSCSI or 4/8/16 Gb FC, and 12 Gb SAS, 10/25 Gb iSCSI, or 8/16/32 Gb FC at the same time.

For the ThinkSystem DE4000H, customers can change the host port protocol from FC to iSCSI or from iSCSI to FC for the SFP+ host ports built into the controller (base host ports), or the universal SFP+ host ports on the host interface card (HIC ports), or for all SFP+ base and universal HIC ports.

Specifications

Storage

Hot-swap drive baysYes
RAID levels0, 1, 3, 5, 6, 10
Supported storage drive interfacesSAS
Storage drive size2.5"
Number of storage drives supported24
Supported storage drive typesHDD & SSD
Installed storage drive typeNo
Storage drives installedNo

Ports & interfaces

USB connectivityYes
Show all 27 specificationsShow fewer specifications

Design

CertificationUnited States: FCC Part 15, Class A; UL 60950-1 and 62368-1 Canada: ICES-003, Class A; CAN/CSA-C22.2 60950-1 and 62368-1 Argentina: IEC60950-1 Mexico NOM European Union: CE Mark (EN55032 Class A, EN55024, IEC/EN60950-1 and 62368-1); ROHS Directive 2011/65/EU Russia, Kazakhstan, Belarus: EAC China: CCC GB 4943.1, GB 17625.1, GB 9254 Class A; CELP; CECP India: BIS Japan: VCCI, Class A Taiwan: BSMI CNS 13438, Class A; CNS 14336-1 Korea KN32/35, Class A Australia/New Zealand: AS/NZS CISPR 22 Class A
LED indicatorsStatus
Product colourBlack
Chassis typeRack (2U)
Device classSmall & Medium Business

Power

AC input voltage100 - 240 V
Hot-swap PSUYes
Redundant power supply (RPS) supportYes
Number of power supply units2
Power supply unit (PSU) capacity913 W

Weight & dimensions

Weight27.4 kg
Height85 mm
Depth553 mm
Width449 mm

Operational conditions

Storage relative humidity (H-H)10 - 90%
Storage temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)8 - 90%
Operating temperature (T-T)5 - 45 °C
