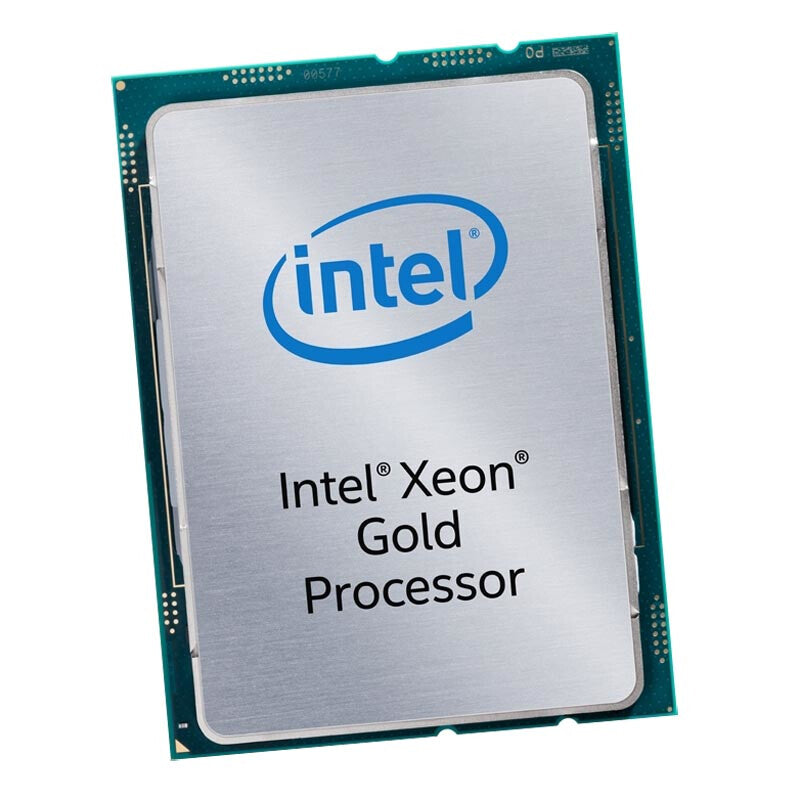

Lenovo Intel Xeon Gold 5118 processor 2.3 GHz 16.5 MB L3
£2,679.99
Couldn't load pickup availability
- Intel® Xeon® Gold 5118 2.3 GHz
- 16.5 MB L3 LGA 3647 (Socket P)
- Processor cores: 12 14 nm 64-bit 105 W
- Maximum internal memory supported by processor: 768 GB DDR4-SDRAM
For the SR570 server models that come standard with one processor, the second processor can be ordered, if required. The second processor must be of the same model as the first processor. The second processor option includes a processor, a heatsink, and two additional single-rotor system fans.
| Processor | |
|---|---|
| Processor codename | Skylake |
| Stepping | M0 |
| Thermal Design Power (TDP) | 105 W |
| Processor cache type | L3 |
| Processor cache | 16.5 MB |
| Processor boost frequency | 3.2 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 24 |
| Processor series | Intel Xeon Gold 5000 Series |
| Component for | Server/workstation |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 12 |
| Processor base frequency | 2.3 GHz |
| Processor model | 5118 |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2666 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 768 GB |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Features | |
|---|---|
| Scalability | S4S |
| Embedded options available | Yes |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Optane™ Memory Ready | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Conflict-Free processor | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Tcase | 81 °C |
| Weight & dimensions | |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
