Lenovo · MPN: 7Y37A01091
£555.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £185.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Price drop alert

Lenovo 7Y37A01091 interface cards/adapter Internal SAS, SATA
Now £555.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

  • PCIe 3.0 x8 host interface
  • 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
  • PCI low profile, half-length form factor
  • External 12 Gbps SAS/SATA ports:
  • 430-8e: 8 SAS/SATA ports
  • 430-16e: 16 SAS/SATA ports
  • Connectivity for up to 512 external SAS or SATA drives (future planned support for an upper limit of 1024 drives)
  • Up to 12 Gbps throughput per port
  • Supports 12, 6, or 3 Gbps SAS speeds
  • Supports 6 or 3 Gbps SATA speeds
  • External x4 HD Mini-SAS connectors (SFF-8644):
  • 430-8e: 2 external connectors
  • 430-16e: 4 external connectors
  • Support for external storage systems and tape backup units
  • High performance architecture with very deep queue depth
  • Advanced power management support
  • Support for SSP, SMP, STP, and SATA protocols
  • End-to-End CRC with Advanced Error Reporting
  • Spread Spectrum Clocking for EMI reductions
  • Supports 512e, 512n and 4K (when available) formatted drives
  • Compliant with Disk Data Format (DDF) configuration on disk (CoD)
  • S.M.A.R.T. support
  • Configuration through
  • XClarity Provisioning Manager UEFI interface
  • XClarity Controller web interface
  • XClarity Administrator Configuration Patterns
  • StorCLI command-line interface
  • LSI Storage Authority (LSA) GUI interface
  • UEFI Human Interface Infrastructure (HII)

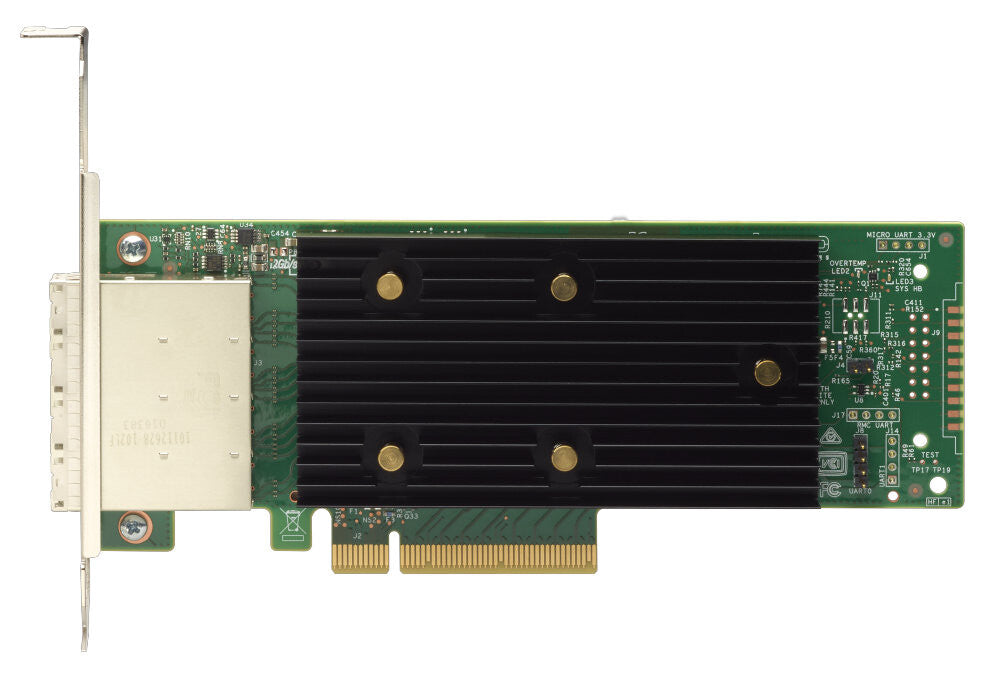

The Lenovo ThinkSystem 430-8e and 430-16e SAS/SATA 12Gb HBAs are high performance host bus adapters for external storage connectivity in ThinkSystem servers. The 430-8e provides two x4 external mini-SAS HD connectors with eight lanes of 12 Gbps SAS. The 430-16e provides four x4 external mini-SAS HD connectors with 16 lanes of 12 Gbps SAS.

This product guide provides essential presales information to understand the ThinkSystem external HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.

Specifications

Ports & interfaces

External mini-SAS HD ports4
Expansion card standardPCIe 3.0
Expansion card form factorFull-height / Low-profile
Output interfaceSAS, SATA
Host interfacePCIe

Design

CertificationFCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)WEEEEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B)
Product colourBlack, Green
InternalYes
Show all 16 specificationsShow fewer specifications

Features

Data transfer rate (max)12000 Gbit/s

Operational conditions

Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)20 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)10 - 55 °C

Technical details

Compliance certificatesRoHS

Other features

CompatibilitySR530, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, SD530
Compatible operating systemsMicrosoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise Server 11 with Xen for AMD64/EM64TSUSE Linux Enterprise Server 12SUSE Linux Enterprise Server 12 with XENVMware vSphere ESXi 6.0VMware vSphere ESXi 6.5
