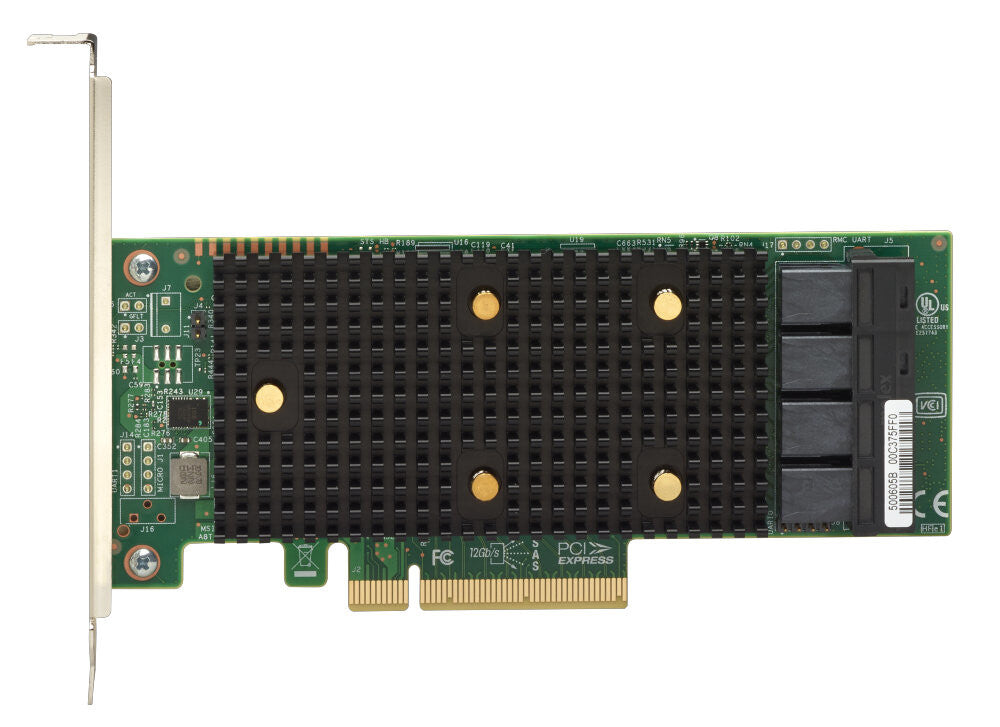

Lenovo 7Y37A01089 interface cards/adapter Internal SAS, SATA
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £178.99 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
Pay in full today. We'll dispatch it for release day and email you tracking as soon as it ships.
Get an email if it's back in stock
If this comes back in stock, we'll send you one email. No spam, and you can stop alerts at any time.
You're on the list
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- PCIe 3.0 x8 host interface
- 12 Gbps SAS/SATA host bus adapter, based on the Broadcom SAS3408 and SAS3416 IOC design
- PCI low profile, half-length form factor
- 8 or 16 internal 12 Gbps SAS/SATA ports
- 430-8i support connectivity to 8 internal drives
- 430-16i support connectivity to 16 internal drives
- Up to 12 Gbps throughput per port
- Supports 12, 6, or 3 Gbps SAS speeds
- Supports 6 or 3 Gbps SATA speeds
- Two internal x4 HD Mini-SAS connectors (SFF-8643)
- Non-RAID (JBOD mode) support for SAS and SATA HDDs and SSDs (RAID not supported)
- Support internal SAS tape drives
- Optimized for SSD performance
- High performance architecture with very deep queue depth
- Advanced power management support
- Support for SSP, SMP, STP, and SATA protocols
- End-to-End CRC with Advanced Error Reporting
- Spread Spectrum Clocking for EMI reductions
- Supports 512e, 512n and 4K (when available) formatted drives
- Compliant with Disk Data Format (DDF) configuration on disk (CoD)
- S.M.A.R.T. support
- Configuration through
- XClarity Provisioning Manager UEFI interface
- XClarity Controller web interface
- XClarity Administrator Configuration Patterns
- StorCLI command-line interface
- LSI Storage Authority (LSA) GUI interface
- UEFI Human Interface Infrastructure (HII)
The Lenovo ThinkSystem 430-8i and 430-16i SAS/SATA 12Gb HBAs are high performance host bus adapters for internal storage connectivity in ThinkSystem servers. They integrate the latest enhancements SAS technology and offer eight or 16 lanes of 12 Gbps SAS.
This product guide provides essential presales information to understand the ThinkSystem internal HBAs and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the HBAs and consider their use in IT solutions.
Specifications
Ports & interfaces
| Internal mini-SAS HD ports | 4 |
|---|---|
| Expansion card standard | PCIe 3.0 |
| Expansion card form factor | Full-height / Low-profile |
| Output interface | SAS, SATA |
| Host interface | PCIe |
Design
| Certification | FCC Part 15 Class AAustralia/New Zealand (AS/NZS CISPR 22)Canada (ICES-003 Class B)Europe (EN55022/EN55024)Japan (VCCI V-3)Korea (RRA no 2013-24 & 25)WEEEEN/IEC/UL 60950Taiwan (CNS 13438)USA (FCC 47 CFR part 15 Subpart B class B) |
|---|---|
| Product colour | Black, Green |
| Internal | Yes |
Show all 16 specificationsShow fewer specifications
Features
| Data transfer rate (max) | 12000 Gbit/s |
|---|
Operational conditions
| Storage relative humidity (H-H) | 5 - 95% |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 55 °C |
Technical details
| Compliance certificates | RoHS |
|---|
Other features
| Compatibility | ST550, SR550, SR570, SR590, SR630, SR650, SR850, SR860, SR950, |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Linux Enterprise Server 11 for AMD64/EM64TSUSE Linux Enterprise Server 11 with Xen for AMD64/EM64TSUSE Linux Enterprise Server 12SUSE Linux Enterprise Server 12 with XENVMware vSphere ESXi 6.0VMware vSphere ESXi 6.5 |
