Lenovo 4XF1L53431 interface cards/adapter Internal Mini DisplayPort, Thunderbolt 4
Now £193.99

We'll only use your email for this alert unless you tick the box. Unsubscribe any time.

We'll watch the price for 6 months and email you if it drops. Unsubscribe in one click.

Overview

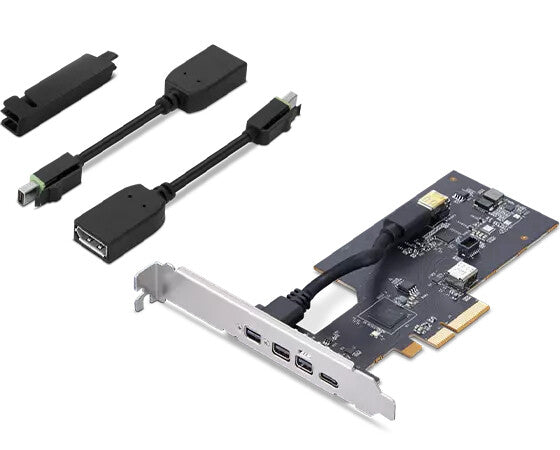

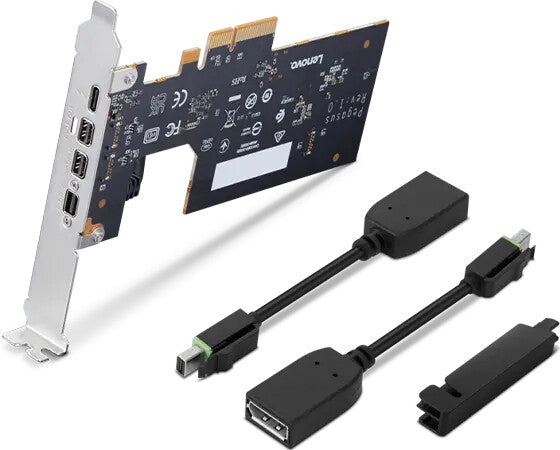

  • Custom x4 high profile PCIe add-in card
  • 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports
  • Utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports and 1 mini display port
  • Will be installed in one of the Px family Workstations PCIe Slots

The following specification describes a custom x4 high profile PCIe add-in card that will provide 1 rear customer facing and 1 internal Thunderbolt™ 4 (TBT4) branded ports. The x4 high profile PCIe add-in card will utilize the Maple Ridge controller to connect 1 rear and 1internal TBT4 ports, 2 mini display ports (to be used as inputs from graphics cards) and 1 mini display port for connection to an external monitor. The x4 high profile PCIe add-in card's internal TBT4 port will be used for possible future TBT offerings through use of a TBT bridge or hub.

Specifications

Ports & interfaces

Host interface genderMale
Output interfaceMini DisplayPort, Thunderbolt 4
Host interfacePCIe

Design

CertificationBSMI,CE,Morocco,FCC,IC,VCCI
Hot-Plug supportYes
Cooling typePassive
PurposeServer
InternalYes
Show all 15 specificationsShow fewer specifications

Power

Power consumption (typical)45 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Weight100 g
Height22 mm
Depth68.9 mm
Width144.8 mm
