£5,041.99

Stock Available: 0

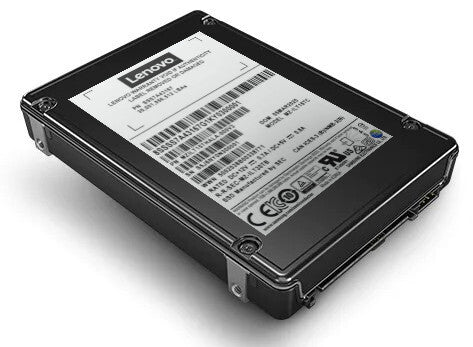

  • 960 GB 2.5" SAS
  • Read speed: 2100 MB/s 420000 IOPS
  • Write speed: 1300 MB/s 60000 IOPS
  • V-NAND TLC
  • Component for: Server/workstation



Unlike 6 Gb/s SATA drives, the 24 Gb/s SAS interface on these drives supports full duplex data transfer for higher performance, and enterprise-level error recovery for better availability. By combining the enhanced reliability of Samsung NAND flash memory silicon with NAND Flash management technologies, PM1653 SSDs deliver endurance of up to 1 drive writes per day (DWPD) for 5 years, which is suitable for many enterprise applications with read-intensive storage characteristics.

Self-encrypting drives (SEDs) provide benefits by encrypting data on-the-fly at the drive level with no performance impact, by providing instant secure erasure thereby making the data no longer readable, and by enabling auto-locking to secure active data if a drive is misplaced or stolen from a system while in use. These features are essential for many businesses, especially those storing customer data.

Features
SSD capacity 960 GB
SSD form factor 2.5"
Interface SAS
Memory type V-NAND TLC
Component for Server/workstation
Data transfer rate 24 Gbit/s
Read speed 2100 MB/s
Write speed 1300 MB/s
Random read (4KB) 420000 IOPS
Random write (4KB) 60000 IOPS
Read latency 120 µs
Write latency 45 µs
Mean time between failures (MTBF) 2000000 h
Certification UL
TUV
FCC
IC
CB
CE Mark
C-Tick Mark
BSMI (Taiwan)
KCC (Korea EMI)
VCCI
Power
Power consumption (read) 11.5 W
Power consumption (write) 14.7 W
Weight & dimensions
Width 70 mm
Depth 100 mm
Height 15 mm
Weight 160 g
Operational conditions
Operating temperature (T-T) 0 - 70 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Non-operating shock 1500 G
Vibration resistance 20 G
