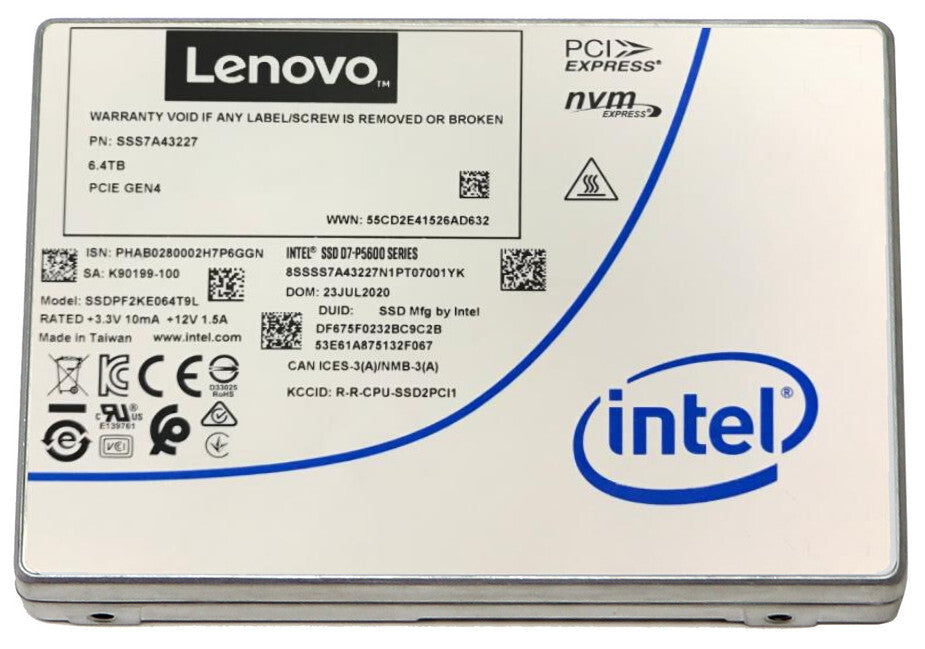

Lenovo 4XB7A17154 internal solid state drive 6.4 TB U.2 PCI Express 4.0 NVMe TLC 3D NAND
£8,980.99
Couldn't load pickup availability
- 6.4 TB U.2 PCI Express 4.0
- 1000000 IOPS
- 260000 IOPS
- TLC 3D NAND NVMe
- S.M.A.R.T. support
- Component for: Server/workstation
The Intel SSD D7-P5600 Series Mainstream NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the Intel P5600 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| Certification | FCC Title 47, Part 15B, Class BCA/CSA-CEI/IEC CISPR 22:02EN 55024: 1998EN 55022: 2006EN-60950-1 2nd EditionUL/CSA EN-60950-1 2nd EditionLow Voltage Directive 2006/95/ECC-Tick: AS/NZS3584BSMI: CNS 13438KCC Article 11.1RoHS DIRECTIVE 2011/65/EUWEEE Directive 2002/96/EC |
| Mean time between failures (MTBF) | 2000000 h |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| S.M.A.R.T. support | Yes |
| Sequential latency - write (up to) | 12 µs |
| Sequential latency - read (up to) | 9 µs |
| Random latency - write (up to) | 14 µs |
| Random latency - read (up to) | 78 µs |
| Random write (4KB) | 260000 IOPS |
| Random read (4KB) | 1000000 IOPS |
| Component for | Server/workstation |
| Memory type | TLC 3D NAND |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | U.2 |
| SSD capacity | 6.4 TB |
| Power | |
|---|---|
| Power consumption (write) | 20 W |
| Power consumption (read) | 12.5 W |
| Weight & dimensions | |
|---|---|
| Weight | 146 g |
| Height | 15 mm |
| Depth | 100 mm |
| Width | 70 mm |
| Operational conditions | |
|---|---|
| Operating shock | 1000 G |
| Operating vibration | 2.17 G |
| Other features | |
|---|---|
| Endurance rating | 35 PB |
