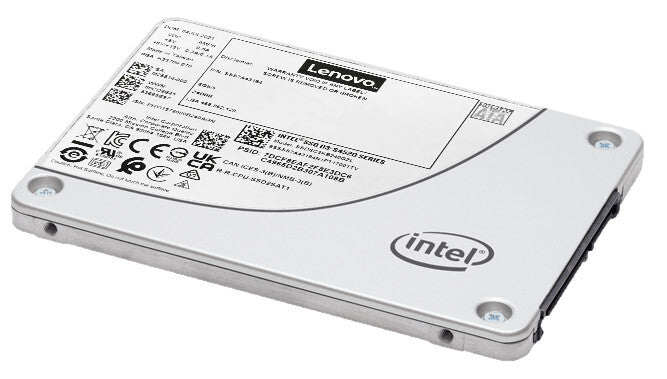

Lenovo 4XB7A17102 internal solid state drive 960 GB 2.5" Serial ATA III 3D TLC NAND
£3,059.99
Couldn't load pickup availability
- 960 GB 2.5" Serial ATA III
- Read speed: 550 MB/s 85000 IOPS
- Write speed: 510 MB/s 44000 IOPS
- 3D TLC NAND
- Hardware encryption 256-bit AES
- S.M.A.R.T. support
- Component for: Server/workstation
The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance.
Compared with the S4510 series, these new Read Intensive (Entry) drives offer improved endurance. The S4520 SSDs are optimized for read-intensive applications such as boot, web servers, lower data rate operational databases and analytics.
| Features | |
|---|---|
| SSD capacity | 960 GB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| Memory type | 3D TLC NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 550 MB/s |
| Write speed | 510 MB/s |
| Random read (4KB) | 85000 IOPS |
| Random write (4KB) | 44000 IOPS |
| Read latency | 36 µs |
| Write latency | 36 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B EN-55035:2017 EN-55022:2006 EN-55032:2012 Low Voltage Directive (LVD) 2014/35/EU EMC Directive 2014/30/EU RoHS Directive 2011/65/EU WEEE Directive 2012/19/EU UL 60950-1, 2nd Edition, 2014-10-14 CSA C22.2 No. 60950-1-07, 2nd Edition, 2014-010 UL/CSA 62368-1, 2nd Edition AS/NZ CISPR 32:2015 AS/NZ CISPR 22:2009 +A1:2010 Taiwan BSMI EMC standard CNS 13438 Korea KCC Article 11.1 Morocco Decree # 2574-14 (EMC) Canada ICES-003 Japan VCCI China EFUP |
| Power | |
|---|---|
| Power consumption (write) | 3 W |
| Weight & dimensions | |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Packaging data | |
|---|---|
| Package width | 174 mm |
| Package depth | 133 mm |
| Package height | 63 mm |
| Package weight | 434 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
| Maximum operating altitude | 3050 m |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
