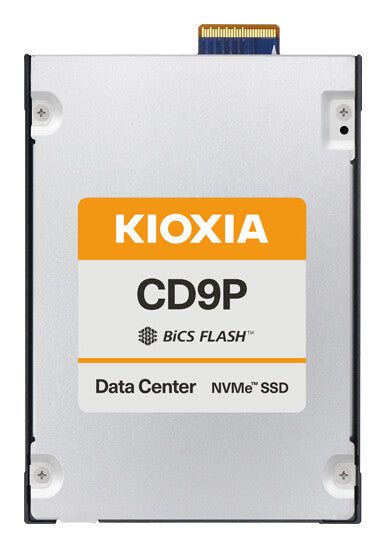

Kioxia KCD9DPJE12T8 internal solid state drive 12.8 TB E3.S PCI Express 5.0 NVMe BiCS FLASH TLC

Kioxia KCD9DPJE12T8 internal solid state drive 12.8 TB E3.S PCI Express 5.0 NVMe BiCS FLASH TLC

Kioxia
£8,978.99
Stock Available: 0
  • PCIe® 5.0, NVMe™ 2.0 specification compliant
  • Open Compute Project Datacenter NVMe™ SSD specification v2.5 support (not all requirements)
  • Form factor: E3.S, 7.5 mm thickness
  • Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ 3D TLC flash memory generation 5 and generation 8
  • Single-port design optimized for data center class workloads
  • Consistent performance and reliability for demanding 24x7 environments
  • Designed for high-density storage deployments
  • Power Loss Protection (PLP) and End-to-End Data Protection
  • Security options: SIE, SED

KIOXIA CD9P-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CD9P-V Series SSDs deliver consistent performance up to 2,600K IOPS (random read) and 750K IOPS (random write).
Featuring KIOXIA BiCS FLASH™ generation 8 TLC flash memory, CD9P-V E3.S form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB, making them well-suited for hyperscale data center applications.

Features
SSD capacity 12.8 TB
SSD form factor E3.S
Interface PCI Express 5.0
NVMe Yes
NVMe version 2.0
Memory type BiCS FLASH TLC
Component for Disk array
Target workload Mixed Use (MU)
Drive writes per day (DWPD) 3
Power
Operating voltage 12 V
Power consumption (read) 5 W
Weight & dimensions
Width 76 mm
Depth 7.5 mm
Height 112.8 mm
Weight 110 g
Operational conditions
Operating temperature (T-T) 0 - 75 °C
Storage temperature (T-T) -40 - 85 °C
Operating relative humidity (H-H) 5 - 95%
Operating shock 1000 G
