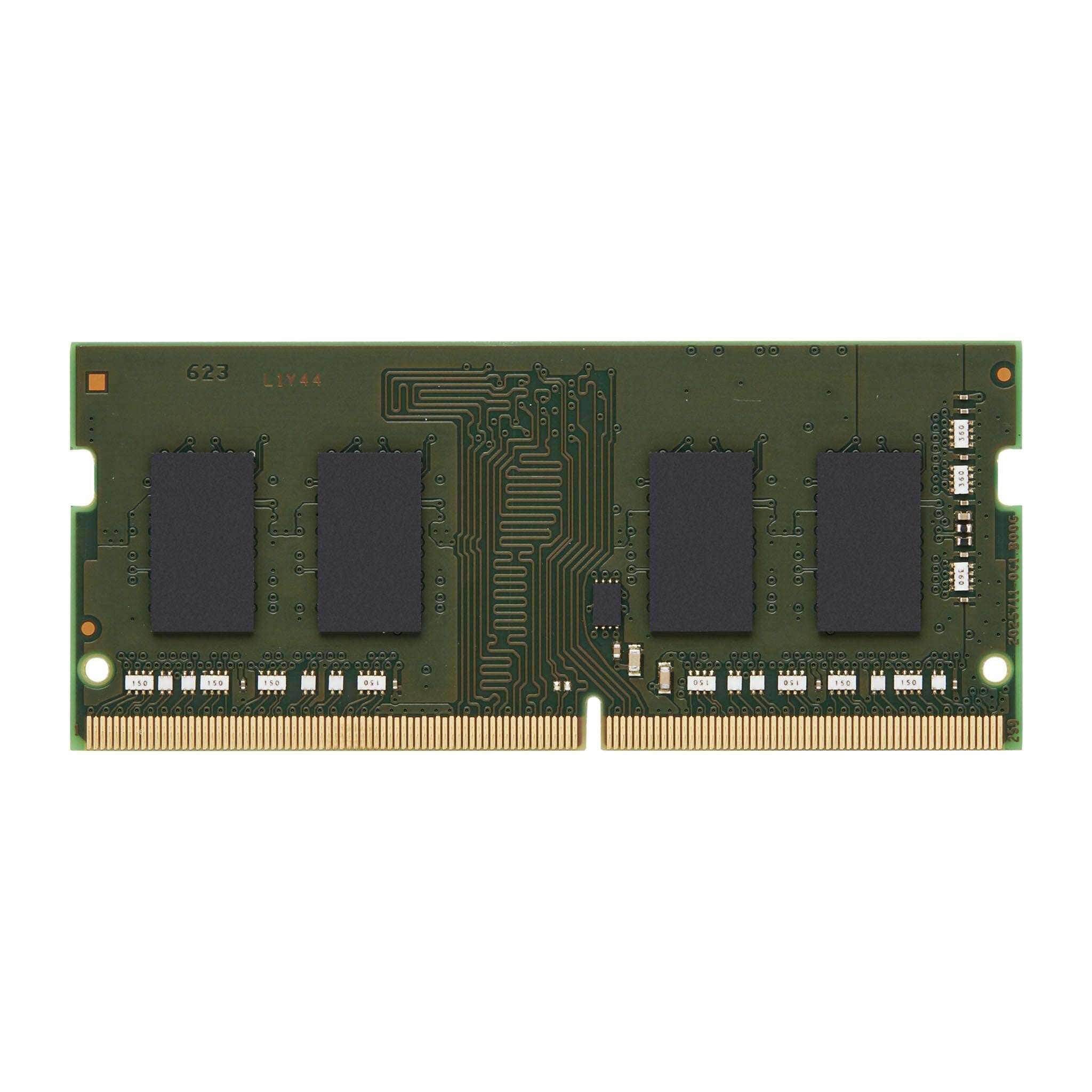

Kingston Technology ValueRAM KVR32S22D8/32 memory module 32 GB 1 x 32 GB DDR4 3200 MHz
iFrame
£55.68
Couldn't load pickup availability
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Terminated control command and address bus
ValueRAM, Kingston’s industry standard memory, delivers award-winning performance and legendary Kingston reliability. When you know what you want, you want ValueRAM.
| Features | |
|---|---|
| JEDEC standard | Yes |
| Country of origin | Taiwan |
| Programming power voltage (VPP) | 2.5 V |
| Row active time | 32 ns |
| Refresh row cycle time | 350 ns |
| Row cycle time | 45.75 ns |
| Memory voltage | 1.2 V |
| CAS latency | 22 |
| ECC | No |
| Memory form factor | 260-pin SO-DIMM |
| Component for | Laptop |
| Memory clock speed | 3200 MHz |
| Internal memory type | DDR4 |
| Memory layout (modules x size) | 1 x 32 GB |
| Internal memory | 32 GB |
| Buffered memory type | Unregistered (unbuffered) |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -55 - 100 °C |
| Operating temperature (T-T) | 0 - 85 °C |
| General | |
|---|---|
| Product family | ValueRAM |
| Technical details | |
|---|---|
| Compliance certificates | RoHS |
| Sustainability | |
|---|---|
| Doesn't contain | Halogen |
| Weight & dimensions | |
|---|---|
| Height | 30 mm |
| Depth | 3.7 mm |
| Width | 69.6 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
